About the Coastal Source SAS300/4-SPR

Product highlights:
- 300 watts total power for compatible Coastal Source speakers
- polycarbonate and stainless steel enclosure for Sonos Port streaming music player (sold separately)
- IP68 rating: "dust tight" and rated for complete, continuous submersion in water (enclosure and connections)
- wall-mountable design
- must be installed in shade
Connections:
- line input with male Coastal Connector™
- weathertight Ethernet port
- four speaker outputs with Coastal Connectors™
- 120-volt AC power input with 10-foot cord
Dimensions and warranty:
- (measured by Crutchfield) 15-1/4"W x 7-1/4"H x 16"D
- weight: 18 lbs.
- warranty: 5 years
- MFR # SAS300/4-SPR
- Item # 216SAS34PT
What's in the box:
Coastal Source SAS300/4-SPR owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 4-Channel amplifier mounted in a weatherproof enclosure (attached 80" IEC 3-pin AC power cable)
- 4 Wall brackets
- Four 3/4" Screws
- 4 Hole plugs
- Enclosure installation instructions
More details on the Coastal Source SAS300/4-SPR

Product Research
Features

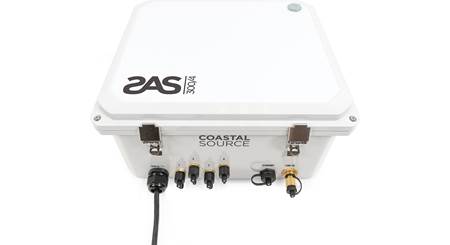

Overview: The Coastal Source SAS300/4 is a fully DSP-enabled outdoor amplifier that can provide up to 75W x 4 (300W total). Designed for outdoor use, the SAS300/4 comes pre-installed inside a water-tight, polycarbonate and stainless steel enclosure. Mounting brackets are provided for wall-mounting the amplifier enclosure. The SAS300/4 carries an IP68 weatherproof rating for outdoor use, but must be mounted in a shady area away from direct sunlight.
Note: The SAS300/4 amplifier's DSP will come pre-configured for use with the Coastal Source speakers purchased with the system (speakers sold separately).
Sonos Port: The Coastal Source SAS300/4 is pre-configured for use with a Sonos Port network audio player (sold separately). The SAS300/4 amplifier and enclosure include pre-attached connections for plugging your Sonos Port into the amplifier and into the enclosure. The amplifier mounting plate also includes a bracket for mounting a Sonos Port inside the amplifier's enclosure. An internal DC power plug is provided for powering a Sonos Port from the main AC power input.
Note: The enclosure's Line In and Ethernet connections do not come pre-connected to the input of the amplifer. When a Sonos Port is installed, it gets connected to both sets of cables, providing a pass-thru connection from the enclosure ports to the amplifier.
Enclosure Inputs & Outputs: All connections to the SAS300/4 enclosure feature watertight connectors designed for outdoor use.
- Ethernet: An RJ-45 input connection on the amplifier enclosure gets internally connected to the Ethernet Input on a Sonos Port module. A corresponding RJ-45 cable on the amplifier attaches to the Ethernet Output on the Sonos Port.
- Line In: A 5P connector on the enclosure terminates in a pair of RCA plugs for connecting to the Line In on a Sonos Port, while a second set of RCA cables from the amp get connected to the Sonos Port Line Out jacks.
- Speaker Outputs (1-4): Four 2-pin Coastal Connect (CC) ports provide the speaker output connections. The enclosure speaker outputs are per-connected to the amplifier's output.
- AC Power: An attached 80" (6.7') AC power cord is internally connected to the amplifier and includes an additional DC connector for powering a Sonos Port module. The SAS300/4 amplifier operates on 100-240VAC @ 50/60Hz.
Note: The Line In and Ethernet inputs have no connection to the amplifier until a Sonos Port is installed.
