VOXX EXTCAM1 Exterior rear-view camera for use with Voxx RVMDVR replacement rear-view mirror

Name: VOXX EXTCAM1
Brand: Audiovox
SKU: 220EXTCAM1
Price: 79.99 USD
Availability: InStock

Item # 220EXTCAM1

Add another view of your surroundings on your RVMDVR mirror with this handy exterior rear-view camera.

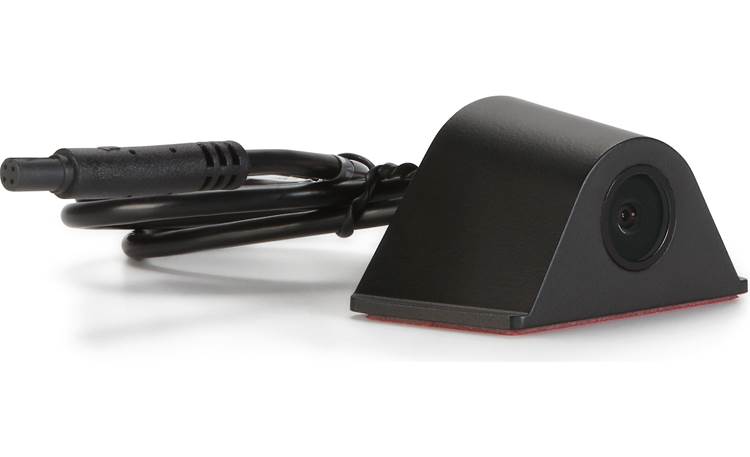

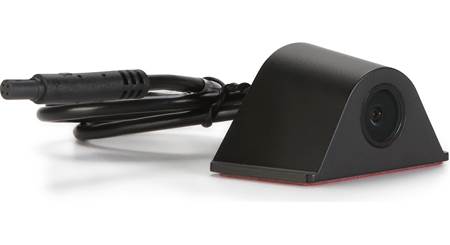

Front

1/5

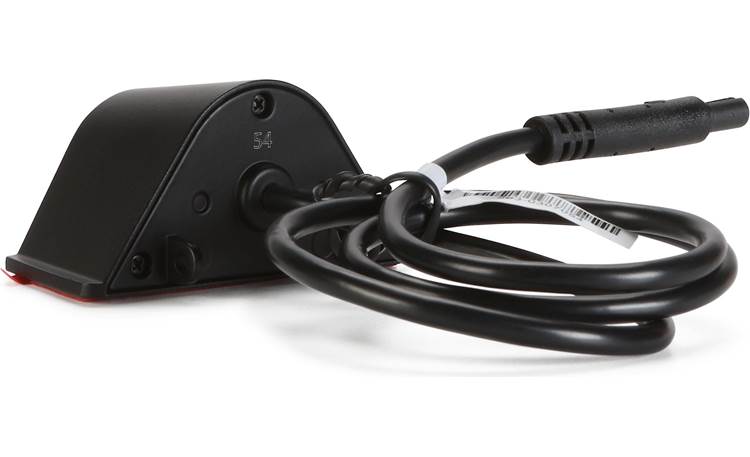

Back

2/5

Only at Crutchfield

3/5

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

What's in the box

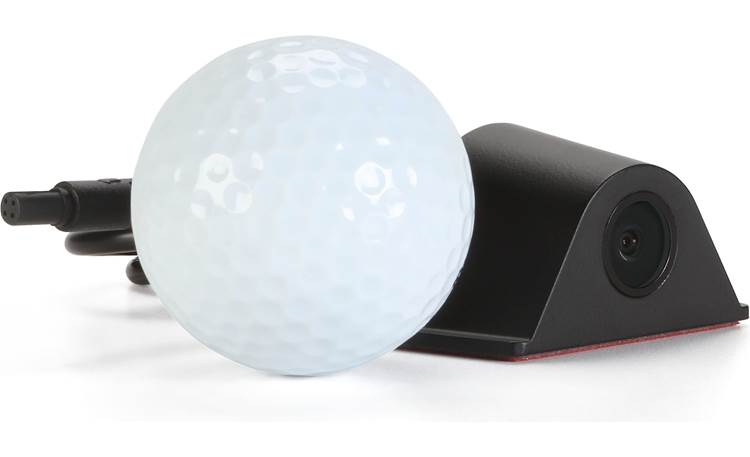

Golf ball shown for scale

Add another view of your surroundings on your RVMDVR mirror with this handy exterior rear-view camera.

Item # 220EXTCAM1

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$79.99

Add to cart

Other options

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Dominic DeVito

Get a clearer rear view for your VOXX RVMDVR replacement mirror

VOXX's EXTCAM1 backup camera makes a great accessory to your VOXX RVMDVR replacement mirror. It offers a continual full-color view of the area behind your vehicle as you're driving, or you can choose to use it only while you're in reverse. You can add optional parking lines through the RVMDVR's on-screen menu, and you can even flip and/or reverse the image if you have the camera mounted upside-down.

The EXTCAM1 includes an adhesive base for convenient installation, plus mounting brackets and hardware for placement in harder-to-fit spots. It also comes with a 19.5-foot extension cable, plus a 45" reverse lead for tapping into your vehicle's reverse light. The EXTCAM1 only works with the RVMDVR and does not include a composite video connector for use with other mirrors or monitors.

Installing this camera yourself? Here's what you should know.

What does it do? This camera can provide a constant rear-view of the area behind your vehicle, or you can use it only while backing up.

How much wiring is required? Wiring instructions vary from camera to camera. Some cameras have power wiring that can only be connected near the radio. Others let you power the camera at compatible reverse lights. In all cases, the camera must be wired for power and ground, the camera's video output must be connected to the radio/monitor, and the radio/monitor must be connected to a reverse trigger in your vehicle. Some radio replacement interfaces supply a reverse trigger wire for the radio -- using that wire to power your camera will damage the interface.

Will the included video cable be long enough? You'll need to route the camera's video cable from its mounting location outside your vehicle into your vehicle's cabin and all the way to the screen in the mirror. This often requires drilling a small hole in your vehicle or filing some metal and or plastic. You'll also need to estimate the length of cable needed to run from the camera to the mirror, which will not be a straight shot. Each camera's cable length is listed.

Product highlights:

exterior rear-view camera for use with the VOXX RVMDVR replacement mirror
does not include a composite video connection for use with other mirrors or monitors
19.5' video extension cable with 45" reverse trigger wire included
3M adhesive base, mounting bracket (with adhesive base), and mounting hardware included
provides continous coverage of the area behind your vehicle, or can be used solely as a backup camera
metal housing
optional parking lines
optional image flipping and mirroring
warranty: 1 year
MFR # EXTCAM1
Item # 220EXTCAM1
California customers: Please click here for your Proposition 65 WARNING.

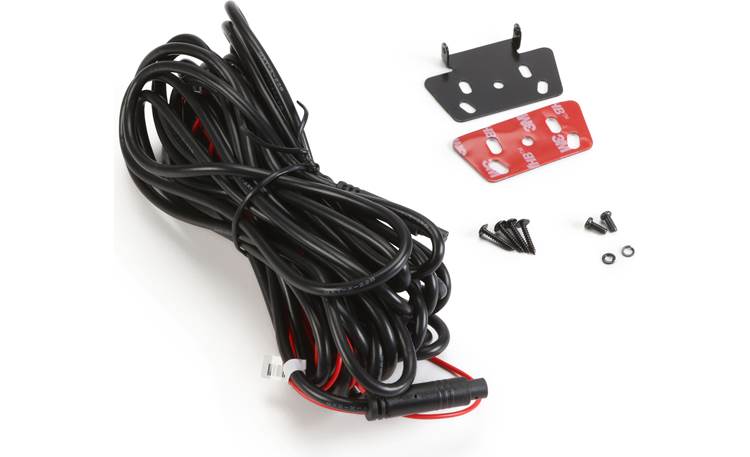

What's in the box:

Exterior rear camera with attached 3M adhesive base and 18" connection cable (terminated in a 4-pin plug)
19.5' Camera extension cable with attached 45" reverse wire (red)
Mounting bracket
3M Adhesive pad for bracket
Four 3/8" screws
Two 5mm machine screws
2 Split lock washers

Researched by Crutchfield's Stacey B.

Features & specs

Features and Specs
GPS	No
Includes Rear-view Cam	No
Bluetooth	No
Driving Assistance	No
Built-in Microphone	No
Camera Type	Rear
Resolution	Not given
Parking Guidelines	Selectable
Lux Rating	Not given
Selectable Views	No
Reversed Image	Both
Horizontal Viewing Angle	---
Vertical Viewing Angle	---
Wireless	No
Plug type	Proprietary 4-pin

Product Research

Features

Add-On Camera: The Voxx ADAS EXTCAM1 add-on rear-view camera is designed to be used specifically with a Voxx ADAS RMDVR Rearview Mirror (sold separately). The exterior camera can provide a continual display of the area behind the vehicle with no obstructions from headrests, passengers, luggage, etc.

Note: The Voxx ADAS EXTCAM1 does not include a composite video connector for connecting to other aftermarket mirror/monitors.

Reversing: The EXTCAM1 rear-view camera features an attached 45" reverse trigger wire that can be connected to your reverse light for assistance when backing up. Optional parking guidelines can be displayed while reversing, accessible in the RMDVR mirror menu. Other menu options include flipping the image, when mounting the camera upside down, and displaying either a Normal or Mirror image.

Mounting: The Voxx ADAS EXTCAM1 includes an attached 3M adhesive base for attaching the camera to a flat surface - upright or upside down. An additional mounting bracket is also provided, letting you adjust the camera angle for optimum viewing. The bracket can be installed on the vehicle with the attached adhesive or with the provided hardware.

Connection: The EXTCAM1 features an attached 18" connection cable along with a 19.5' extension cable for connecting to your RMDVR mirror's rear camera input. The camera end of the extension cable includes an attached 45" red wire for connecting to your reverse light wire. The camera cable and extension cable are all terminated in proprietary 4-pin connectors.

Power: The Voxx ADAS EXTCAM1 receives power through the 4-pin cable from the connected RMDVR rear-view mirror.

Loading accessories...

Loading articles...

Frequently compared with

Current item

Loading...

Adding...

VOXX EXTCAM1

Exterior rear-view camera for use with Voxx RVMDVR replacement rear-view mirror

In stock

$79.99
Loading...

Adding...

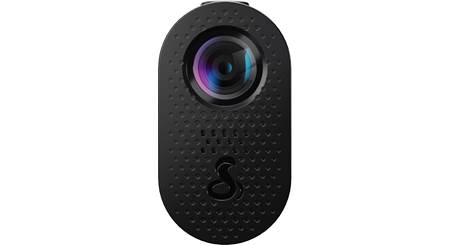

Cobra SC 120

QHD dash cam with GPS, Bluetooth®, and Wi-Fi®

In stock

5.0 out of 5 stars
1 review

$129.95
Loading...

Adding...

Garmin Dash Cam™ Mini 3

HD dash cam with Bluetooth® and GPS

In stock

3.5 out of 5 stars
7 reviews

$149.99
Loading...

Adding...

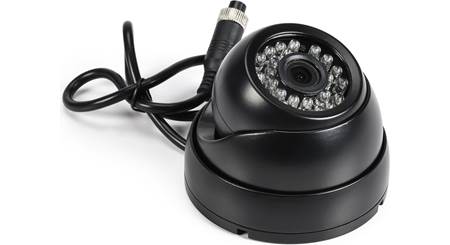

Brandmotion FLTW-1102
