About the Soundskins SSK-P115P-SMD

Product highlights:
- forward-firing ported subwoofer enclosure
- holds one 15" subwoofer (not included)
- 3/4" MDF construction with bedliner finish
- heavy-duty SMD speaker terminal cup handles up to 2000 watts
- requires drilling screw holes in the enclosure and connecting speaker wire to subs
- mounting hardware and speaker wire not included
- internal volume: 2.84 cubic feet
- mounting depth: 14.875"
- cutout diameter: 13.83"
- dimensions: 21"W x 16.25"H x 18"D1 x 19.125"D2
- warranty: limited lifetime
- MFR # SSK-P115P-SMD
- Item # 239P115PSM

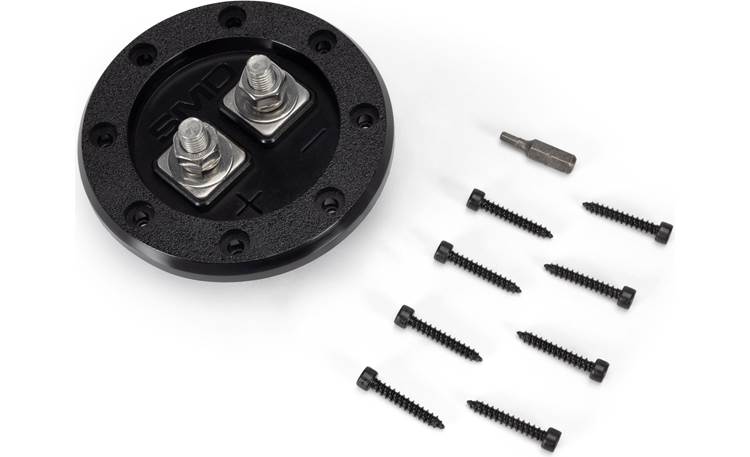

What's in the box:
- Ported enclosure for one 15" subwoofer
- One SMD TCR-1 Terminal
- Eight 1" Allen head screws (3mm)
- 3mm Allen bit
More details on the Soundskins SSK-P115P-SMD

Features & specs
General | ||
---|---|---|
Box Type | Ported | |
Number of Boxes | 1 | |
Number of Speakers Per Box | 1 | |
Speaker Size | 15 | |
Cutout Diameter or Length (inches) | 13 7/8 | |
Maximum Speaker Depth (inches) | 14-7/8 | |
Box Volume (cubic feet) | 2.84 | |
Tuning Frequency | 32 Hz | |
Height (inches) | 16-1/4 | |
Width (inches) | 21 | |
Depth (inches) | 18 | |
Second Depth (inches) | 19-1/8 | |
Wood Thickness (inches) | 3/4 | |
Speaker Wire Connectors | Screw terminal | |
Box Color | Black | |
Box Finish | Polymer Bedliner | |
Parts Warranty | Limited Lifetime | |
Labor Warranty | Limited Lifetime |
Product Research
Features

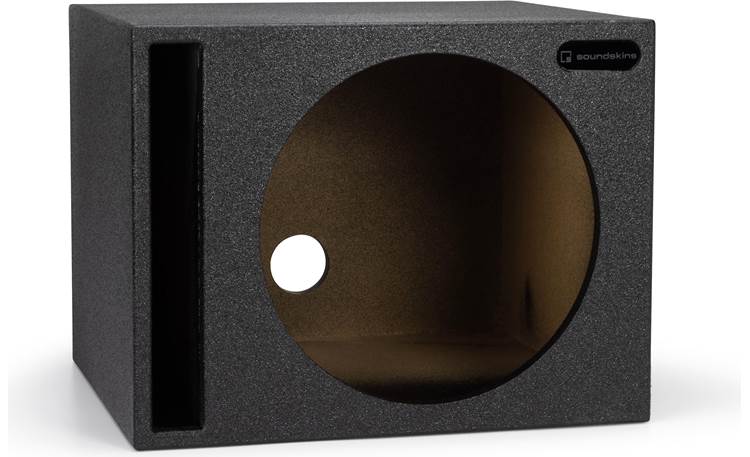

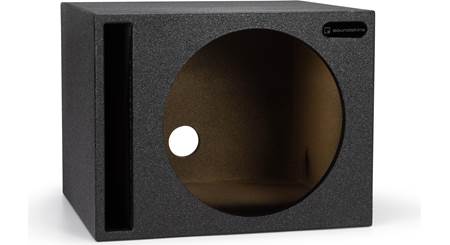

Design: The SoundSkins SSK-P115P-SMD is an unloaded, ported enclosure for one 15" subwoofer. It is constructed of ¾" MDF (medium-density fiberboard) and coated with a polymer bedliner spray.
Internal Volume: The enclosure has an internal volume of 2.84 ft³ and a tuning frequency of 32 Hz.

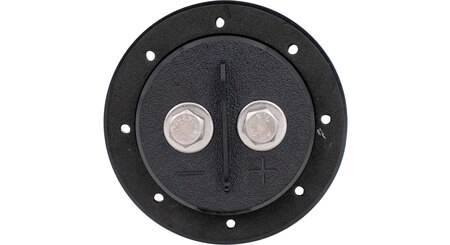

Terminals: One SMD (Steve Meade Designs) TCR-1 speaker terminal cup is included with the enclosure. The hardware to mount the terminal in the enclosure is included, but you will need to drill eight screw pilot holes. Both sides of the terminal (inside and outside the enclosure) share a 5/16" bolt, compatible with bare wire, spade terminals, and ring terminals.
Brackets: Brackets for securing the enclosure to your vehicle are recommended.
