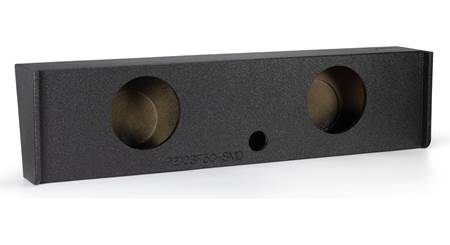

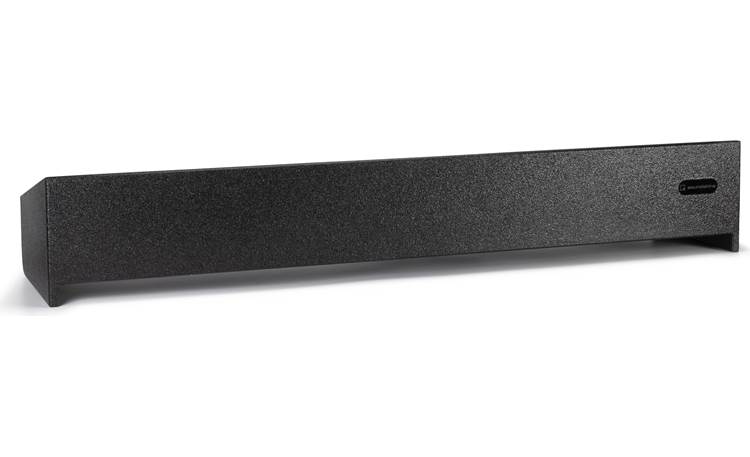

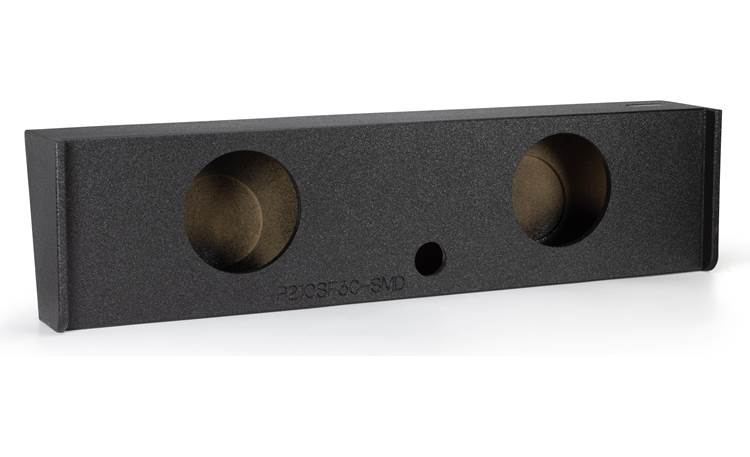

About the Soundskins SSK-P210SF3C-SMD

Product highlights:
- vehicle-specific downward-firing sealed subwoofer enclosure
- holds two 10" subwoofers (not included)
- installs under rear seat of 2009-up Ford F-150 Crew Cab trucks
- 3/4" MDF construction with bedliner finish
- heavy-duty SMD speaker terminal cup handles up to 2000 watts
- requires drilling screw holes in the enclosure and connecting speaker wire to subs
- mounting hardware and speaker wire not included
- internal volume: 0.85 cubic feet per chamber
- mounting depth: 5.0"
- cutout diameter: 9.08"
- dimensions: 55"W x 9"H x 14"D
- warranty: limited lifetime
- MFR # SSK-P210SF3C-SMD
- Item # 239P210SF3
What's in the box:

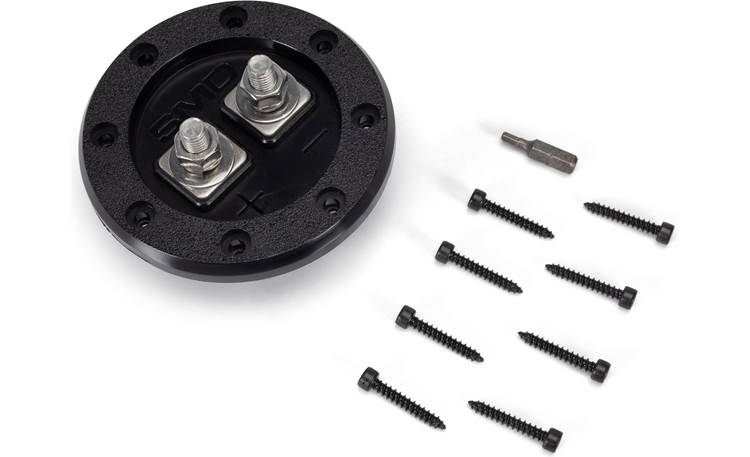

- One sealed vehicle specific enclosure for two 10" subwoofers
- One SMD TCR-1 Terminal
- Eight 1" Allen head screws (3mm)
- 3mm Allen bit
More details on the Soundskins SSK-P210SF3C-SMD

Features & specs
General | ||
---|---|---|
Box Type | Sealed | |
Number of Boxes | 1 | |
Number of Speakers Per Box | 2 | |
Speaker Size | 10 | |
Cutout Diameter or Length (inches) | 9 1/8 | |
Maximum Speaker Depth (inches) | 5 | |
Box Volume (cubic feet) | 1.7 | |
Tuning Frequency | --- | |
Height (inches) | 9-1/8 | |
Width (inches) | 55 | |
Depth (inches) | 14 | |
Second Depth (inches) | --- | |
Wood Thickness (inches) | 3/4 | |
Speaker Wire Connectors | Screw terminal | |
Box Color | Black | |

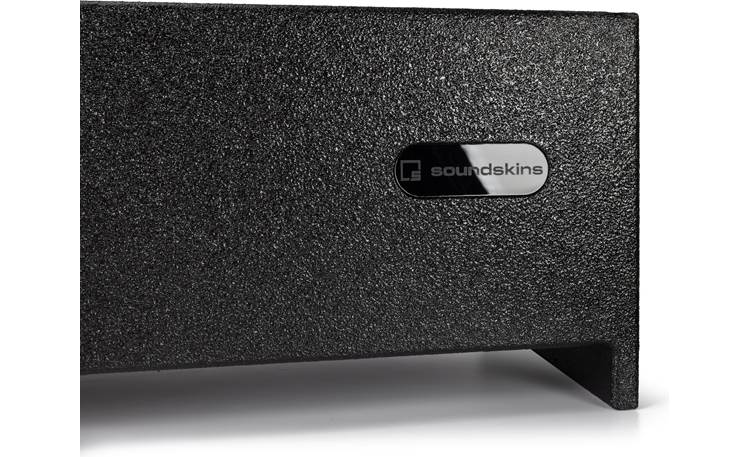

Box Finish | Polymer Bedliner | |
Parts Warranty | Limited Lifetime | |
Labor Warranty | Limited Lifetime |
Product Research
Features
Vehicle Compatibility: The SoundSkins SSK-P210SF3C-SMD is an unloaded, sealed enclosure for two 10" subwoofers, designed specifically to fit select Ford SuperCrew F-150s. Please enter your vehicle information to confirm fit.
Dual 10" Subwoofers: The enclosure is constructed of ¾" MDF (medium-density fiberboard) coated with a polymer bedliner spray, and holds two 10" subwoofers in a shared 1.7 ft³ chamber. Once mounted the subwoofers fire downward.
Terminals: One SMD (Steve Meade Designs) TCR-1 speaker terminal cup is included with the enclosure. (Wire the subs in series or parallel to match your amp.) The hardware to mount the terminal in the enclosure is included, but you will need to drill eight screw holes. Both sides of the terminal (inside and outside the enclosure) share a 5/16" bolt, compatible with bare wire, spade terminals, and ring terminals.
