About the Wāvtech IRAD+
Product highlights:
- provides two 12V, 3A outputs for remote turn-on circuits
- adjustable delays to avoid on/off pop
- delay up to 10 minutes
- reversable on/off order
- relay/solenoid control for a secondary battery in start/stop engine systems
- locking detachable wiring terminals
- aluminum chassis with detachable mounting tabs
- dimensions: 2.414"W x 0.868"H x 1.491"D
- warranty: 1 year
- MFR # IRAD+
- Item # 241IRAD2
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
If you need assistance accessing this owner's manual, please give us a call.
- Ignition/remote output generator
- 2 Removable terminal blocks (installed)
- Owner's manual
More details on the Wāvtech IRAD+
Researched by Crutchfield's Stacey B.
The Wāvtech IRAD+ replaces these items:
Product Research
Features
Operation: The IRAD+ has three operating modes:
- Ignition and Remote Generation with Delays: The ignition output (+12 volts) is triggered by the voltage change on the +12 volt input terminal when the engine is started. After the engine is started, a delay can be programmed for the ignition output (0-10 seconds or minutes in 1 second steps). Once the ignition output has engaged, the remote output (+12 volts) turns on after the programmed delay (also 0-10 seconds or minutes in 1 second steps). When the engine stops, the ignition output turns off after the programmed delay (0-10 minutes in 1 minute steps). After the ignition output turns off, the remote output also turns off with the programmed delay (0-10 seconds or minutes in 1 second steps).
- Remote Generation with Delays: The remote output (+12 volts) is triggered when a voltage (greater than 5 volts) is applied to the remote input on the power terminal. A delay can be programmed for the remote output (0-10 seconds or minutes in 1 second steps). A delay can also be programmed for turning the remote output off (0-10 seconds or minutes in 1 second steps).
- Stop-Start Relay/Solenoid Control Mode: Useful in some stop-start enabled vehicles, off-road, or marine applications with larger aftermarket sound systems, battery isolation is controlled based on the engine running status.

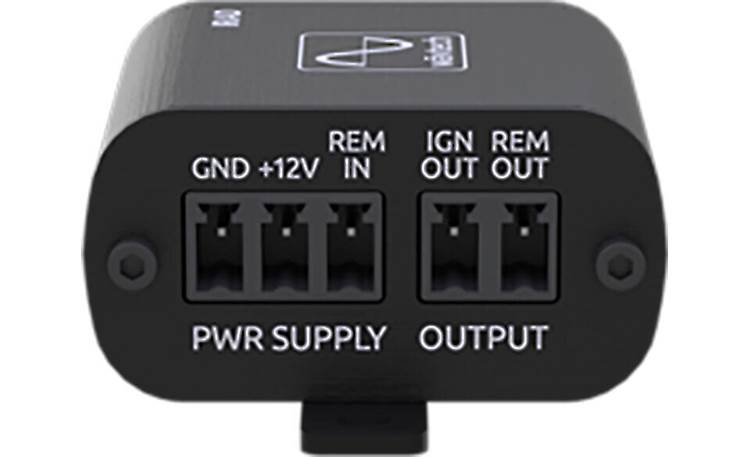

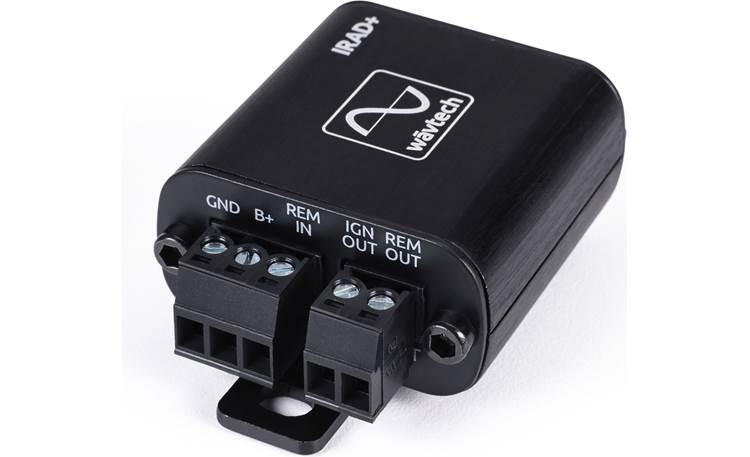

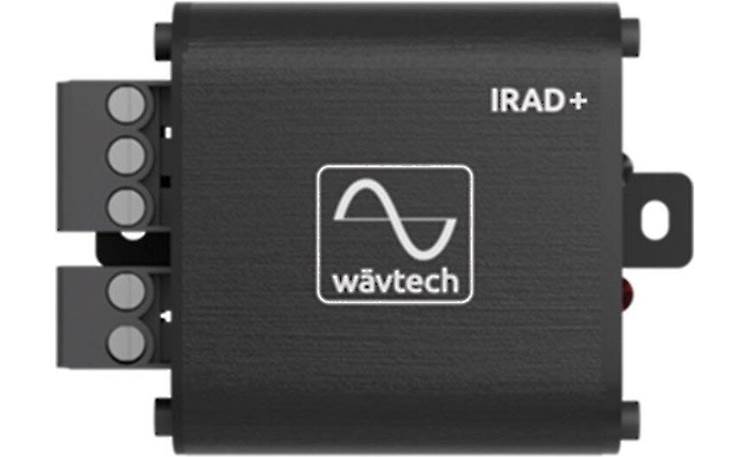

Terminal Blocks: The power/ground/remote-in and the ignition out/remote-out terminals are removable Phoenix terminals (Euroblock). The wiring is attached to the block, then the block is plugged into the chassis. The terminal blocks will accommodate wire up to 16-gauge.
Connections:
- Power: removable 3-pin Phoenix terminal
- Ground: minimum 18-gauge wire recommended
- +12 volts: connected to the battery to monitor resting voltage (engine off) vs. charging voltage (engine running); minimum 18-gauge wire recommended with a 5-amp fuse (not included)
- Remote Input: when connected to a switched voltage source (> 5 volts), the remote output terminal can be triggered directly
- Output Terminal: removable 2-pin Phoenix terminal
- Ignition Output: programmable +12 volt output, triggered by the voltage change on the +12 volt input terminal when the engine is started
- Remote Output: programmable +12 volt output, engaged either following the ignition output or triggered by the remote input terminal

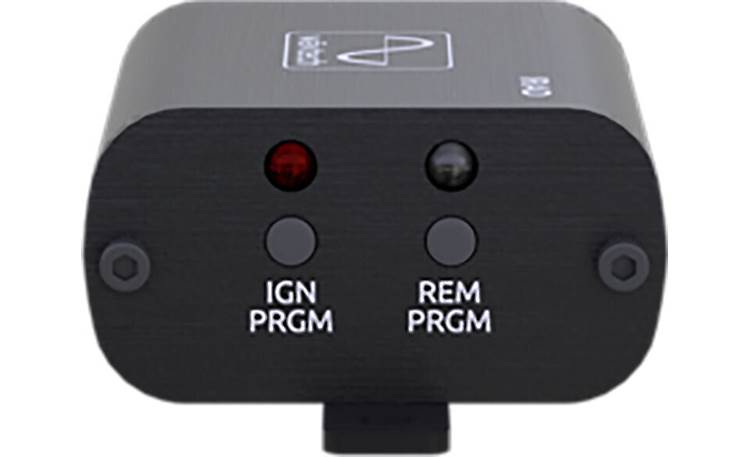

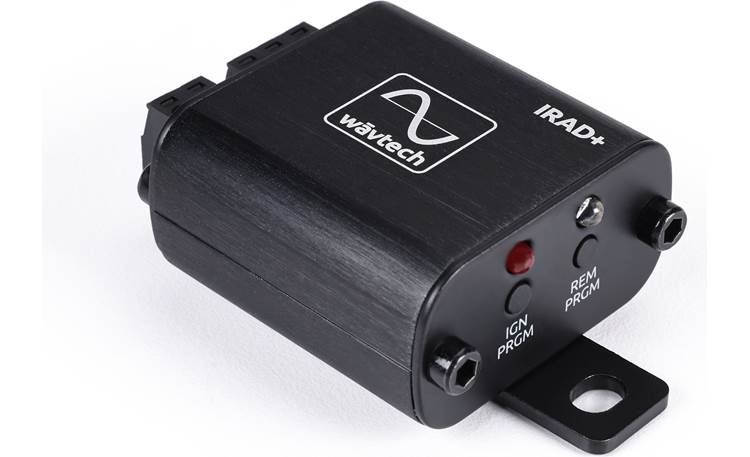

Controls: The Ignition Program and Remote Program buttons are used to program ignition and remote on/off delays, and the voltage difference tolerance.
Specifications:
- Operating Voltage: 3-18 volts
- Ignition Detect Threshold: >0.5 volt change on the +12 volt terminal detected
- Ignition Output:
- Voltage: < 3% variation from the +12 volt terminal voltage
- Current Capacity:
- Single Output: 3A
- Dual Outputs: 3A each
- Parallel Output: 6A
- Remote Output:
- Voltage: within < 3% variation from the +12 volt terminal voltage
- Current Capacity: > 750mA continuous per output
- Total Current Draw:
- Operating: 6.0A (maximum)
- Idle: < 22mA
- Sleep: < 2.7mA
- Dimensions:
- Width: 2.414"
- Height: 0.868"
- Depth: 1.491"
The Wāvtech IRAD+ replaces these items:
- provides 12-volt output for remote turn-on
- adjustable delay to avoid on/off pop
- relay/solenoid control for a secondary battery in start/stop engine systems
Loading...
Loading accessories...
Customer Q&A
1 question already asked
Q
I want to accomplish a delayed turn off on the head unit which puts out a 12v signal to turn my amp on and off. I have a classic accessory key tumbler position one step back after the lock position. I can remove the key in the lock position but not in the accessory position. It's an open top vehicle with no doors to trigger the delay off when door opens. Normally I put the ign switch in the accessory or ign on position and get my music source going, then I crank engine only to interrupt power to audio gear with sometimes a loud pop. Can this unit keep power to audio gear while cranking engine? This is the most important function that I want, while still shutting the accessory signal off after a preset delay and ignition key removed. Thank you Crutchfield.
patrick Mar 09, 2025
1 answer
A
When using the Wavtech IRAD+ Patrick, the remote output (+12 volts) is triggered when a voltage (greater than 5 volts) is applied to the remote input on the power terminal. A delay can be programmed for the remote output and also for turning the remote output off, so from what you described as far as delay needed to avoid the turn-on pop in your system the IRAD+ should work well!
bo Mar 10, 2025 (Staff)
