About the iFi GO link Max
Product highlights:
- ultra-portable headphone amplifier and DAC with USB-C connector
- flexible cable helps relieve stress on connection ports
- lightweight, sturdy magnesium alloy frame
- includes USB-A and Lightning adapters
DAC specs:
- dual ESS Sabre digital-to-analog converter chips
- supported audio files: up to 32-bit/384kHz PCM; bit-perfect DSD (up to 11.2MHz)
- LED indicators display sample rate and sound format
S-Balanced headphone amplifier specs:
- two headphone outputs:
- one unbalanced 3.5mm stereo minijack output
- one balanced 4.4mm output
- iFi's dual-mono circuitry helps reduce crosstalk between the left and right audio channels
- output power:
- 4.4mm balanced: >241mW @ 32 ohms; 4V @ 300 ohms
- 3.5mm unbalanced: >100mW @ 32 ohms; 2V @ 300 ohms
- signal-to-noise ratio:
- balanced: 130dB
- unbalanced: 125dB
- THD: 0.0016% (balanced); 0.0015% (unbalanced)
Other info:
- 5/8"W x 7/16"H x 6-1/16"D
- weight: 0.51 oz.
- warranty: 1 year
- MFR # GOLINKMAX
- Item # 246GOLNKMX
What's in the box:
iFi GO link Max owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Portable digital-to-audio converter with USB-C input
- USB adapter (USB-C female to USB-A male)
- Apple Lightning adapter (USB-C female to Lightning male)
- Quick Start Guide
- After Sales instructions
- Product Safety Guide
More details on the iFi GO link Max
Features & specs
| Design | ||
|---|---|---|
| Type | Portable | |
| Built-in Rechargable Battery | --- | |
| Built-in Headphone Amplifier | ||
| Output Power | 241mW B/100mW U | |
| Output Impedance (Unbalanced) | 0.7 ohms | |
| Output Impedance (Balanced) | 0.35 ohms | |
| Audio Specs | ||
| Bit Depth (USB) | 32 | |
| Max Sampling Rate (USB) | 384 kHz | |
| Bit Depth (S/PDIF) | --- | |
| Max Sampling Rate S/PDIF | --- | |
| S/N Ratio (Unbalanced, in dB) | 125 | |
| S/N Ratio (Balanced, in dB) | 130 | |
| THD (Unbalanced) | 0.0015% | |
| THD (Balanced) | 0.0016% | |
| Supported File Types | ||
| PCM | Up to 384kHz | |
| DSD | DSD 256 | |
| DXD | DXD 384 | |
| MQA | No | |
| Inputs | ||
| Total Inputs | 1 | |
| USB | USB-C (A adptr) | |
| Optical Digital | --- | |
| Coaxial Digital | --- | |
| 3.5mm Digital | --- | |
| Stereo RCA Analog | --- | |
| Stereo 3.5mm Analog | --- | |
| Stereo XLR Analog | --- | |
| Headphone Outputs | ||
| 3.5mm Unbalanced | 1 | |
| 1/4-inch Unbalanced | --- | |
| 4.4mm Balanced | 1 | |
| XLR4 Balanced | --- | |
| Other Headphone Outs | --- | |
| Line Level & Digital Outs | ||
| RCA Line Out | --- | |
| 3.5mm Line Out | --- | |
| XLR Line Out | --- | |
| Subwoofer Out | --- | |
| Optical Digital Out | --- | |
| Coaxial Digital Out | --- | |
| Wireless Connectivity | ||
| Bluetooth | No | |
| Wi-Fi | No | |
| Apple-compatible | --- | |
| Android-compatible | --- | |
| General Info | ||
| Width (inches) | 0-5/8 | |
| Height (inches) | 0-7/16 | |
| Depth (inches) | 6-1/16 | |
| Weight | 0.032 lbs. | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
Product Research
Features
Overview: The iFi Audio GO link Max is the upgrade to the popular Go link portable DAC/headphone amp. The latest version offers both balanced (4.4mm) and S-Balanced (3.5mm) headphone outputs and significantly more power than its predecessor. Go link Max offers 7x the power of an iPhone, and 5x the output of a MacBook Pro's headphone jack. Its compact size lets you take your Hi-Res music wherever you go. Go link Max has a USB-C input with a Type A USB adapter and an Apple Lightning adapter. No batteries are required, because it receives its power from your phone, tablet, or computer's output.

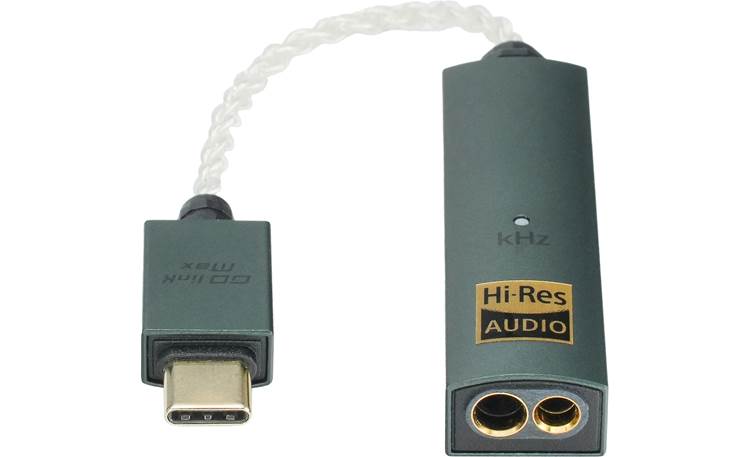

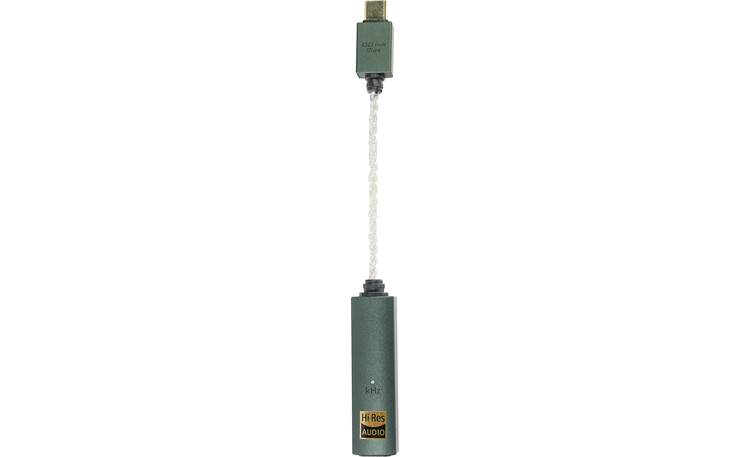

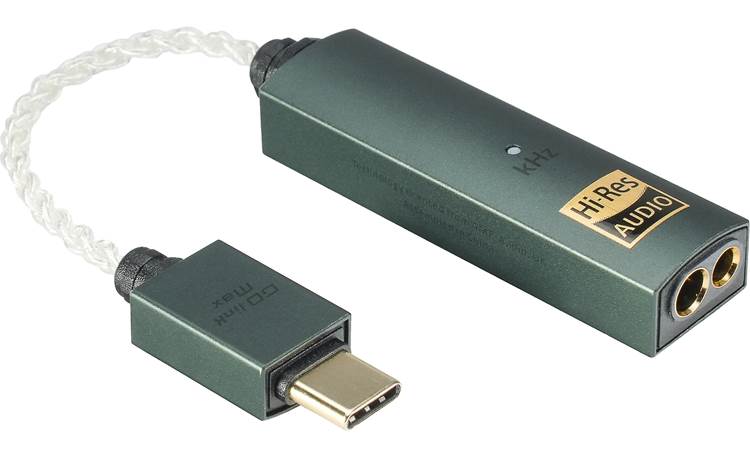

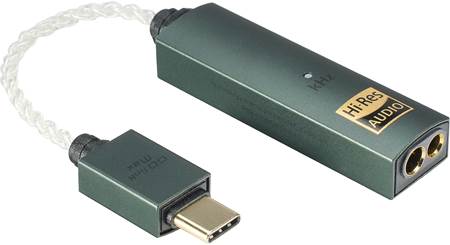

Construction: The GO link Max has a USB-C input and a combination DAC/headphone amp tethered together via a 2-3/4" braided cable. The silver-plated copper cable is extremely flexible and minimizes strain on the USB input. Both components are encased in durable, lightweight magnesium alloy.
Digital-to-Analog Conversion: GO link Max is equipped with dual ESS Sabre ES9219 DACs to deliver True Native® playback of your Hi-Res music files. Each channel has its own dedicated DAC to provide better channel separation, a wider soundstage, and greater musical detail. The DAC's Dynamic Range Enhancement (DRE) gives you a much wider contrast between the loudest and the quietest sounds. The GO link Max is compatible with the following audio formats and frequencies:
- PCM: 384, 352.8, 192, 176.4, 96, 88.2, 48, 44.1 kHz
- DSD: 256 (11.2MHz), 128 (5.6MHz), 64 (2.8MHz) (Quad-rate, Double-rate, and Single-rate, respectively)
- DXD: 384, 352.8 kHz
LED Indicators: The GO link Max has an LED on the top of the DAC to indicate the audio format and sampling frequency received from the music source:
- Green: PCM 44.1 / 48 / 88.2 / 96 kHz
- White: PCM 176.4 / 192 / 352.8 / 384 kHz
- Cyan: DSD 64 / 128
- Blue: DSD 256

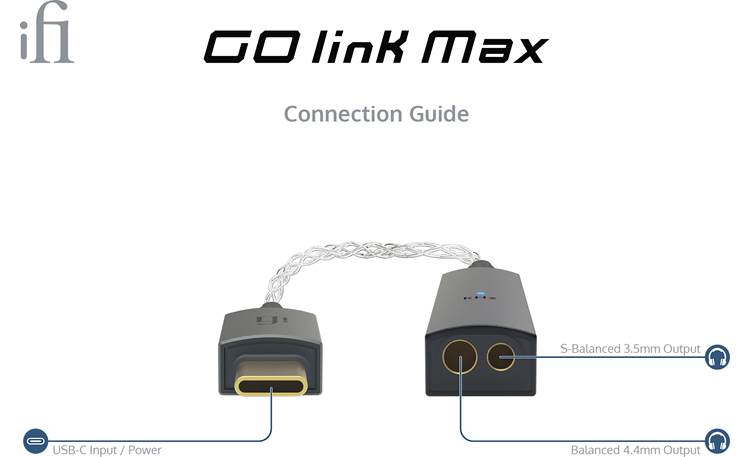

Headphone Amplifier: iFi GO link Max's built-in headphone amplifier can drive most headphones and in-ear monitors with ease. The 4.4mm balanced headphone output delivers 241mW into 32-ohm headphones, and 4V into a 300-ohm high-impedance headphone load, with reduced distortion and crosstalk, compared to single-ended (unbalanced) outputs. The balanced output uses inverse positive/negative electrical paths to deliver equal and opposite audio signals to each side of the headphone driver voice coil. The single-ended 3.5mm unbalanced headphone output benefits from iFi's S-Balanced circuitry which is specially suited for sensitive IEMs (in-ear monitors). S-Balanced features a dedicated negative wire for each channel, and supports both TRS and TRRS headphones. The 3.5mm unbalanced output delivers 100mW into a 32Ω and 2V at 300Ω.

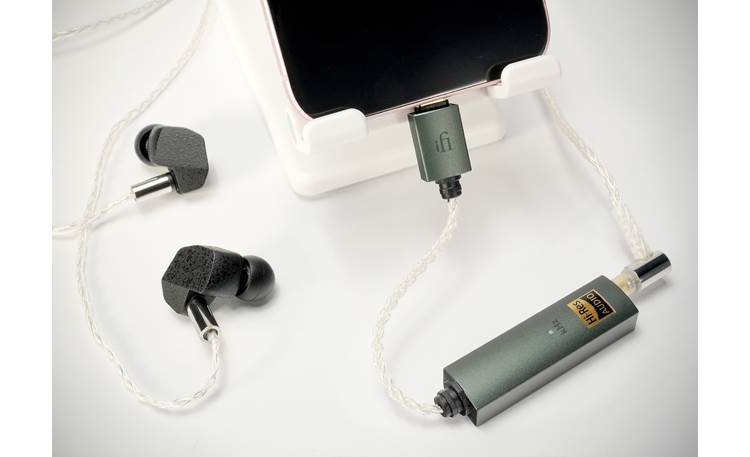

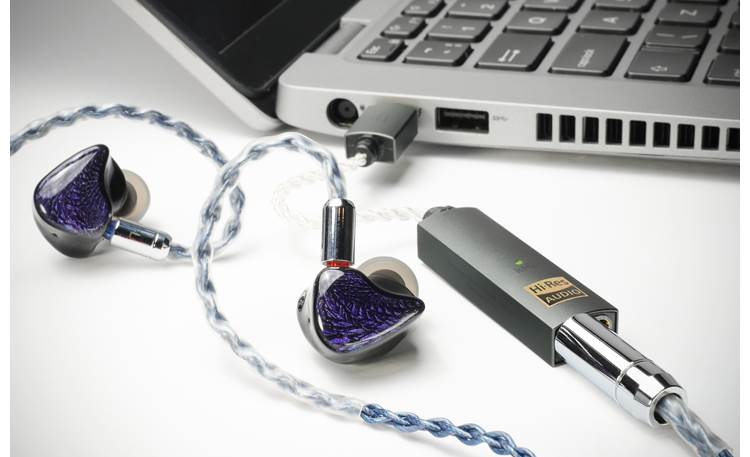

USB Input and Adapters: The GO link Max has a USB-C input, and plugs directly into many of today's smartphones, tablets, and some computers. It comes with an adapter for USB-A equipped computers, and an Apple adapter for connecting Lightning-equipped iPhones and iPads.
Specifications:
- Frequency Response: 10Hz to 80kHz (-3dB)
- Input: USB-C
- Output:
- Balanced: 4.4mm
- S-Balanced: 3.5mm
- Output Power (RMS):
- Balanced: ≥ 241mW @ 32Ω; ≥ 4V @ 300Ω
- S-Balanced: ≥ 100mW @ 32Ω; ≥ 2V @ 300Ω
- Output Impedance:
- Balanced: < 0.7Ω
- S-Balanced: < 0.3.5Ω
- Signal-to-Noise Ratio (SNR):
- Balanced: 130dB(A) (600Ω @ 20-20kHz)
- S-Balanced: 125dB (A) (600Ω @ 20-20kHz)
- Dynamic Noise Reduction (DNR):
- Balanced: 130dB(A) (600Ω @ 20-20kHz)
- S-Balanced: 125dB (A) (600Ω @ 20-20kHz)
- THD+N:
- Balanced: ≤ 0.0016% (2.4V @ 32Ω at 20-20kHz)
- S-Balanced: ≤ 0.0015% (1.27V @ 32Ω at 20-20kHz)
- Power Consumption:
- No Signal: ~ 0.6W
- Max Signal: ~3.2W
- Dimensions: Width 0.589", Height 0.394", Length 2.298" (DAC), 6.0625" (Overall)
- Weight: 0.51 ounces
