iFi NEO iDSD 2 Desktop USB DAC/preamp/headphone amp with Bluetooth®

Item # 246NIDSD2

The NEO iDSD 2 is a powerhouse DAC with a beefy headphone amp that can stream lossless, CD-quality Bluetooth audio.

The NEO iDSD 2 is a powerhouse DAC with a beefy headphone amp that can stream lossless, CD-quality Bluetooth audio.

Item # 246NIDSD2

In stock
$899.00

Other options

About the iFi NEO iDSD 2

Archer A.

A new desktop powerhouse from iFi

iFi's original NEO iDSD was an excellent piece of gear that was difficult to beat for the price. But leave it to iFi to one-up themselves. The new NEO iDSD 2 features the same sleek design, but with a slew of useful sound quality-focused improvements. Oh, and it's the world's first lossless Bluetooth DAC/headphone amp.

A new desktop powerhouse from iFi

iFi's original NEO iDSD was an excellent piece of gear that was difficult to beat for the price. But leave it to iFi to one-up themselves. The new NEO iDSD 2 features the same sleek design, but with a slew of useful sound quality-focused improvements. Oh, and it's the world's first lossless Bluetooth DAC/headphone amp.

Lossless Bluetooth for premium wireless sound

Bluetooth sound quality has improved in recent years. But up to now, even higher-fidelity versions of the wireless technology have relied upon a type of compression resulting in a loss of detail. That's an issue that iFi found a workaround for.

The NEO iDSD 2 features Bluetooth version 5.4 with the latest Qualcomm QCC518x Bluetooth audio chip. It offers aptX Lossless, the only Bluetooth codec available today that can stream lossless CD-quality audio. All other major Bluetooth codecs are supported, too, including aptX, aptX Adaptive, and LDAC.

To put it into perspective: aptX HD, one of the most popular Bluetooth codecs, streams at around 576kbps (kilobits per second). Sony's proprietary LDAC codec streams at 990kbps. aptX Lossless clocks in at an astonishing 1,200kbps. That means you don't have to give up dynamic, rich sound for the sake of convenient wireless streaming.

Plenty of power on tap for headphones

The NEO iDSD 2's internal headphone amplifier is quite the powerhouse. It deals out a whopping 5,551mW at 32 ohms, over five times more than its predecessor. Advanced, user-selectable digital and analog processing modes let you fine-tune the sound. There's also a handy iEMatch gain mode that gets rid of the hiss some sensitive in-ear monitors have when connected to a headphone amplifier.

App control for fine adjustments

You can download the iFi Nexis app on your smartphone (available on Android™ and iOS®) for more control over the NEO iDSD 2. You can perform over-the-air firmware updates and adjust various functions and settings, like turning on and off the XBass and XSpace listening modes.

READ LESS

Product highlights:

  • desktop USB digital-to-analog converter with built-in high-performance headphone amp
  • improves sound from your PC, laptop, digital music player, iPhone®, and/or Android™ phone
  • slim design with sturdy aluminum chassis
  • can be positioned horizontally or vertically (four rubber feet and aluminum vertical stand included)
  • preamp mode with balanced XLR and unbalanced RCA outputs for connection to an outboard power amp or self-amplified speakers
Bluetooth specs:
  • Qualcomm QCC518x Bluetooth processing chip
  • uses Bluetooth version 5.4 for wireless audio streaming
  • supported codecs: aptX® Adaptive, aptX, aptX Lossless, LDAC, LHDC, AAC, and SBC
    • aptX Lossless provides lossless CD-quality audio for uncompromised wireless sound
    • aptX Lossless natively streams at 1,200kb/s
  • voice prompts for connection and codec status
Digital-to-analog converter specs:
  • 4-channel Burr-Brown "True Native" digital-to-analog converter chip for high-quality sound
    • allows for separate signal pathways for PCM and DSD
  • plays PCM digital audio sources up to 32-bit/768kHz; DSD 512, and single-and double-speed DXD
  • full decoding for MQA (Master Quality Authenticated) audio files (up to 384 kHz)
  • upgraded low-latency 16-core XMOS chip for accurate sound processing through USB connection
  • GMT Femto-Precision clock ensures accurate timing and reduces digital jitter
  • XBass II, XSpace, and four digital filters let you fine-tune your sound
Headphone amplifier specs:
  • two front-panel headphone outputs:
    • one unbalanced 1/4" output (3.5mm mini to 1/4" adapter included)
    • one balanced 4.4mm output
  • iFi's enhanced dual-mono "PureWave" circuitry helps reduce noise and crosstalk between the left and right audio channel
  • OV Series op-amp, Texas Instruments low-noise ICs, and TDK C0G ceramic capacitors help drive noise floor even lower
  • output impedance: <1 ohm
  • output power (balanced):
    • 13.3V / 5,551mW @ 32 ohms
    • 19.5V / 650mW @ 600 ohms
  • output power (unbalanced):
    • 9.5V / 2832mW @ 32 ohms
    • 10.5V / 184mW @ 600 ohms
  • signal-to-noise ratio: 120dB
  • THD + N: <0.0015% @ 32 ohms
Connections:
  • stereo balanced XLR and unbalanced RCA preamp outputs
  • 1/4" unbalanced headphone output
  • 4.4mm balanced headphone output
  • BNC clock input (10MHz) for connecting DAC to external digital clocking devices
  • 3.5mm analog input
  • digital audio inputs:
    • coaxial digital — supports signals up to 24-bit/192kHz
    • optical digital — up to 24-bit/192kHz
    • asynchronous USB Type B for connecting a Mac® or Windows® computer — PCM files up to 32-bit/768 kHz, DSD up to 22.6 MHz
  • not compatible with multichannel Dolby® Digital signals
General features and specs:
  • iFi Nexis app (available on iOS® and Android™) offers fine adjustments of features and sound
  • includes outboard "iPower 2" DC 5V power supply for clean, quiet power
  • USB 3.0 cable (Type A to Type B)
  • remote control
  • 8-7/16"W x 1-11/16"H x 7-3/4"D
  • weight: 2 lbs.
  • warranty: 1 year
  • MFR # NEOIDSD2

What's in the box:

  • Digital-to-analog converter
  • iPower AC adapter with attached 79" DC output cord (DC output: 12V 1.8A)
  • US 2-pronged AC plug adapter
  • Wireless remote control
  • CR2025 Lithium battery (installed in remote)
  • 3.5mm-to-6.3mm Adapter
  • 20" RCA patch cord (male stereo RCA plug on each end)
  • 20" USB 3.0 cable (Type A USB 3.0 on one end and Type B USB 3.0 on other end)
  • 4 Adhesive-backed rubber feet
  • Vertical base
  • Quick Set-Up
  • After-Sales card
  • Safety & Handling Guide
  • 2 iFi decals

Customer reviews for iFi NEO iDSD 2

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the iFi NEO iDSD 2

Mark G.

Features & specs

Design
Type Desktop/Component
Built-in Rechargable Battery ---
Built-in Headphone Amplifier
Output Power 3.5V / 4.5V
Output Impedance (Unbalanced) ---
Output Impedance (Balanced) < 1
Audio Specs
Bit Depth (USB) 32
Max Sampling Rate (USB) 768 khz
Bit Depth (S/PDIF) ---
Max Sampling Rate S/PDIF ---
S/N Ratio (Unbalanced, in dB) ---
S/N Ratio (Balanced, in dB) 120
THD (Unbalanced) ---
THD (Balanced) 0.0015%
Supported File Types
PCM Up to 768kHz
DSD DSD 512
DXD DXD 768
MQA MQA 384
Inputs
Total Inputs 5
USB Type B 3.0
Optical Digital 1
Coaxial Digital 1
3.5mm Digital ---
Stereo RCA Analog ---
Stereo 3.5mm Analog 1
Stereo XLR Analog ---
Headphone Outputs
3.5mm Unbalanced ---
1/4-inch Unbalanced 1
4.4mm Balanced 1
XLR4 Balanced ---
Other Headphone Outs ---
Line Level & Digital Outs
RCA Line Out 1
3.5mm Line Out ---
XLR Line Out 1
Subwoofer Out ---
Optical Digital Out ---
Coaxial Digital Out ---
Wireless Connectivity
Bluetooth Yes
Wi-Fi No
Apple-compatible Yes
Android-compatible Yes
General Info
Width (inches) 8-7/16
Height (inches) 1-11/16
Depth (inches) 7-3/4
Weight 2 lbs.
Parts Warranty 1 Year
Labor Warranty 1 Year

Product Research

Features

Overview: The iFi Audio NEO iDSD 2 is a compact, tabletop DAC (digital-to-analog converter) and headphone amplifier that will add smoothness and warmth to your digital music collection, and provide a boosted signal to your headphones or your home amplifier. It is designed for use with your smartphone or tablet, your home or office computer, or a home disc player with a digital output. The unit features multiple inputs (3.5mm analog, USB 3.0, Optical and Coaxial digital), Bluetooth pairing, two headphone outputs (4.4mm balanced and 6.5mm single-ended), and two analog line outs (XLR balanced and RCA single-ended). NEO iDSD 2 is designed to be placed horizontally on a tabletop, or vertically in the included custom base made of aviation-grade aluminum. The OLED display rotates based on its orientation. It comes with a wireless remote, and a variety of USB and audio cables and adapters. The NEO iDSD 2 measures 8.429" x 1.628" x 7.7" (w/cables), and weighs 2 pounds.

Digital-to-Analog Conversion: The NEO iDSD 2 plays Hi-Res audio in the native format, including DSD (up to 512 MHz), DXD (up to 768 kHz), and PCM (up to 768 kHz). You can also listen to MQA (Master Quality Authenticated) audio from Tidal Masters with full MQA decoding. It uses a dual-core Burr-Brown "True Native" DAC chip to lower noise (by 3dB) and provide better channel separation. The signal remains in its native format, so you get the best of each format. The NEO iDSD 2 portable DAC is compatible with the following audio formats:

  • DSD: 512, 256, 128, 64 MHz (Octa-/ Quad-/ Double-/ Single-Speed DSD)
  • DXD: 768, 705.6, 384, 352.8 kHz (Double / Single-Speed DXD)
  • PCM: 768, 705.6, 384, 352.8, 192, 176.4, 96, 88.2, 48, 44.1 kHz
  • MQA: full decoding

MQA (Master Quality Authenticated): The NEO iDSD 2 supports full decoding of MQA files up to 384 kHz. The full "three unfold" decoding takes place internally, allowing you to play back MQA files and stream MQA audio from Tidal Masters, Audirvana, and Roon.

Bluetooth 5.4: The NEO iDSD 2 is equipped with the latest Bluetooth version 5.4 technology, with Qualcomm's new QCC518x Bluetooth audio chip. The device supports all Bluetooth formats, including the new aptX Lossless, the first and only codec capable of streaming CD-quality audio without using a compression method that degrades sound quality. aptX Lossless provides a maximum bitrate of 1200 kbps, compared to 420 kbps for aptX Adaptive, and 990 kbps for Sony's LDAC. The NEO iDSD 2 also supports Qualcomm's aptX Adaptive, aptX HD, aptX Low Latency, and "regular" aptX, plus Sony's LDAC and HWA's LHDC. The unit can store up to 8 paired devices.

Headphone Amplifier: The iFi NEO iDSD 2 has a strong headphone amplifier that can drive most headphones and in-ear monitors. It is five times more powerful than the original NEO iDSD with a maximum headphone output power of 5551mW @ 32Ω, outperforming many dedicated headphone amplifiers. There are two headphone outputs: a 4.4mm balanced output, and a 6.3mm (1/4") single-ended output.

Gain Control: The NEO iDSD 2 features four gain modes to choose from: Normal (0dB), Turbo (+6dB), Nitro (+16dB), and iEMatch (-12dB). Auto iEMatch reduces the gain for high-sensitivity headphones and in-ear monitors (IEMs). This reduces the hissing sound in sensitive headphones, maintaining the dynamic range of the device. The Turbo and Nitro settings can be used for more power-hungry headphones.

Sync Clock: The device is equipped with iFi's GMT (Global Master Timing) femto-precision internal clock with a smart storage cache to dramatically reduce digital jitter for clean, accurate sound. It has an input for a 10 MHz External Sync Clock for even greater clock signal accuracy. If no 10 MHz External clock is detected, or if there is an error in the external clock, the NEO iDSD 2 automatically switches back to the internal clock.

Inputs: The NEO iDSD 2 features three digital inputs: USB 3.0 (USB 2.0 compatible), Optical (Toslink), and Coaxial (RCA). The USB audio input connects the unit to your computer's audio source. The S/PDIF optical (Toslink) and coaxial (RCA) inputs connect digital sources such as Apple TV, Google Chromecast, PS5, Xbox, or a high-end CD transport. The digital audio data is processed by the built-in XMOS 16-Core microcontroller chip, which is optimized for sound quality. It has double the clock speed and four times the memory as 8-core chips. The front panel input selector cycles through the USB, Bluetooth, Coaxial, Optical, and 3.5mm (Analog) inputs. An "Auto" setting detects any incoming input signal and automatically switches to that input.

Line Outputs: In addition to the front-panel headphone outputs, the DAC/headphone amp features both balanced and single-ended analog outputs on the rear panel. An audio signal is sent to both outputs, so you can use the outputs simultaneously. The analog outputs can be configured as fixed for connecting it to an integrated amp or preamp, or set to variable for connecting to a power amp or active speakers. When set to fixed, you can no longer adjust the volume using the multi-function knob. You can switch between fixed and variable output using the multi-function knob and power button.

Digital Filters: There are four Digital Filters, selectable from the front multi-function dial:

  • Bit-Perfect (BP): Bit Perfect (i.e. no digital filtering); no pre- or post-ringing
  • Standard (STD): Modest filtering; modest pre- and post-ringing
  • Minimum Phase (MIN): Minimum phase, slow roll-off; minimum pre- and post-ringing
  • Gibbs Transient-Optimized (GTO): Up-sampled to 352.8/384 kHz, minimum filtering; no pre-ringing and minimum post-ringing

XSpace/XBass II: Two newly added analog processing modes, XSpace and XBass II, have been added to help you fine-tune the sound. XSpace Matrix recreates a holographic sound field for listening with headphones, making it sound as if you're listening to external speakers. XBass II adds back the bass response lost during the conversion process. There are three settings: XBass (low frequency boost), Presence (upper midrange boost), and XBass + Presence (low frequency + upper midrange boost).

TFT Display: The easy-to-read 2" TFT color display shows the current audio format, sampling rate, volume, and input mode. It is located on the left side when the device is placed horizontally, and at the top when vertical. The display rotates to match the unit's orientation. You can set the brightness of the display by selecting one of the following: High, Med, Low, or Off. If Off is selected, the display goes to sleep 3 seconds after an operation is performed. You can adjust the brightness using the multi-function knob or the included wireless remote.

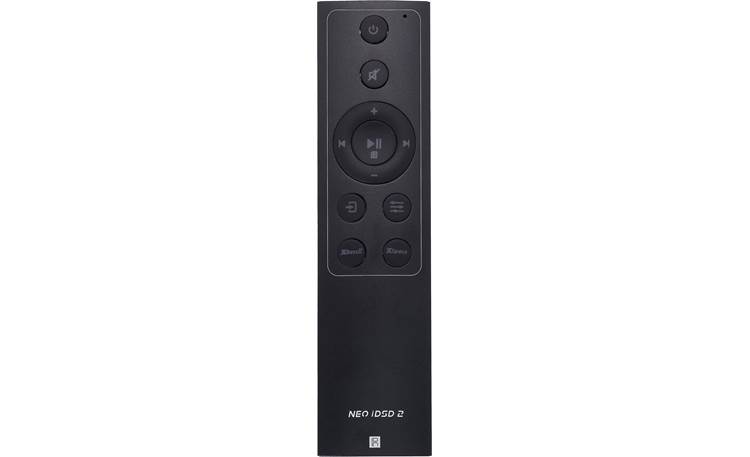

Wireless Remote: The NEO iDSD 2 comes with a small wireless remote control that lets you control the OLED display brightness, select the input, mute/unmute, and adjust the volume. The remote is 1.6" x 3.4" x 0.27", and is powered by a CR2025 coin-cell battery.

iFi Nexis App: The new iFi Nexis app offers a long list of features and settings for the NEO iDSD 2. Not only can you control the device through the app, you can perform over-the-air (OTA) upgrades. The app helps you connect the NEO iDSD 2 to your Wi-Fi 2.4 GHz network or nearby Bluetooth device. The iFi Nexis app is compatible with iPhone and iPod touch with iOS 11.0 or later, and Android devices running version 5.0 and up.

Power: The NEO iDSD 2 is powered by the included iPower 2 DC power supply (12V / 1.8A). Optional power supplies from 9V / 1.5A to 15V / 0.9A can be used. The iPower 2 features Active Noise Cancellation II to actively cancel incoming EMI/RFI noise.

Specifications:

DAC Section:

  • Digital Inputs:
    • USB: USB 3.0 Type B (USB 2.0 compatible)
    • S/PIDF: Coaxial (RCA) / Optical (Toslink)
    • Bluetooth 5.4: aptX Lossless, aptX Adaptive, aptX, LDAC, LHDC/HWA, AAC, and SBC Codecs
    • Clock Sync: 75Ω BNC connector for External Sync Clock 10 MHz, Sinewave or Squarewave
    • Formats:
      • DSD: 512 / 256 / 128 / 64 (Octa/Quad/Double/Single-speed DSD)
      • DXD: 768 / 705.6 / 384 / 352.8 kHz (Double/Single-speed DXD)
      • PCM: 768 / 705.6 / 384 / 352.8 / 192 / 176.4 / 96 / 88.2 / 48 / 44.1 kHz
      • MQA: full MQA decoder
  • Analog Input: 3.5mm (unbalanced)
  • Line Output:
    • Outputs:
      • Balanced XLR: 19.5V max. (variable); 4.4V (fixed)
      • UnBalanced RCA: 10.5V max. (variable); 2.2V (fixed)
    • Output Impedance:
      • Balanced XLR: <= 100Ω
      • Unbalanced RCA: <= 50Ω
    • Signal-to-Noise Ratio (SNR): >=120dB (A) @ 0dBFS (UnBal/Bal)
    • DNR: >= 120dB (A) @ -60dBFS (UnBal/Bal)
    • THD+N: < 0.0015% @ 0dBFS (UnBal/Bal)

Headphone Amp Section:

    • Output:
      • Balanced (4.4mm): 3.5V / 19.5V max. (12Ω - 600Ω headphone)
      • Unbalanced (6.3mm): 4.5V / 9.5V max. (12Ω - 300Ω headphone)
    • Output Power:
      • Balanced (4.4mm):
        • >19.5V / 650mW @ 600Ω
        • >13.3V / 5551mW @ 32Ω
      • Unbalanced:
        • >10.5V / 184mW @ 600Ω
        • >9.5V / 2832 mW @ 32Ω
    • Output Impedance: < 1Ω (UnBal/Bal)
    • Signal-to-Noise Ratio (SNR): -120dBA (3.3V UnBal/6.2V Bal)
    • DNR: -120dB (A)
    • THD+N: < 0.0015% (125mW@32Ω)

General:

  • Power Consumption:
    • No Signal: ~5W
    • Max Signal: ~13.5W
  • Input Voltage: DC 9V / 1.5A to 15V / 0.9A (center +)
  • Dimensions: Width 8.429", Height 1.628", Depth 6.216" (chassis) 7.7" (w/cables)
  • Weight: 2.0 pounds (2.296 ounces w/base)
