Crux CMB-16K Trunk handle backup camera for 2009-12 Mercedes-Benz GLK vehicles — connects to aftermarket radio

Name: Crux CMB-16K
Brand: CRUX
SKU: 249CMB16K
Price: 105.99 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Item # 249CMB16K

You love your Mercedes-Benz SUV, but with Crux's CMB-16G custom-fit backup camera installed, you're about to love...

Does it Fit your car?

Find what Fits your vehicle

Remove

Checking fit...

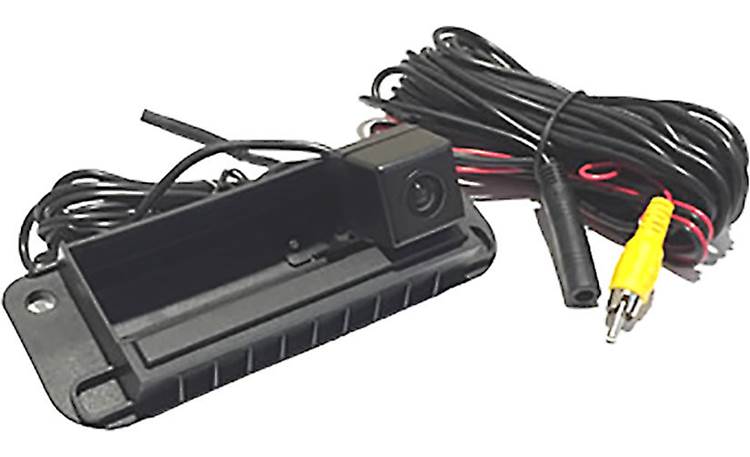

Crux builds this rear-view camera into a vehicle-specific replacement trunk handle

1/3

2/3

Only at Crutchfield

3/3

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Crux CMB-16K Crux builds this rear-view camera into a vehicle-specific replacement trunk handle

You love your Mercedes-Benz SUV, but with Crux's CMB-16G custom-fit backup camera installed, you're about to love...

Item # 249CMB16K

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$105.99

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Alexander H.

Upgrade your Mercedes GLK

You love your Mercedes-Benz SUV, but with Crux's CMB-16G custom-fit backup camera installed, you're about to love it a whole lot more. Crux builds the wide-angle camera into a replacement trunk handle. An included 20-foot cable connects to the back of an aftermarket radio or monitor like those built into select replacement rear-view mirrors with a composite video input. Once installed, you'll see a generous, well-lit picture of what's behind you on your radio's display, with a 170-degree wide view and excellent visibility for night driving.

Installing this camera yourself? Here's what you should know.

What does it do? Unless otherwise noted, a backup camera is only intended for use backing up your vehicle. (If you require a front-view or constant rear-view camera, check for that capability.)

What tools and supplies will I need? A panel tool, a wire cutter/stripper, a soldering iron, and a rosin-core solder with heat shrink tubing are recommended, along with whatever tools are needed to remove the radio from the dash.

How much wiring is required? Wiring instructions vary from camera to camera. Some cameras have power wiring that can only be connected near the radio. Others let you power the camera at compatible reverse lights. In all cases, the camera must be wired for power and ground, the camera's video output must be connected to the radio/monitor, and the radio/monitor must be connected to a reverse trigger in your vehicle. Some radio replacement interfaces supply a reverse trigger wire for the radio -- using that wire to power your camera will damage the interface.

Will the included video cable be long enough? You'll need to route the camera's video cable from its mounting location outside your vehicle into your vehicle's cabin and all the way to the screen in the dash. This often requires drilling a small hole in your vehicle or filing some metal and or plastic. You'll also need to estimate the length of cable needed to run from the camera to the dash, which will not be a straight shot. Each camera's cable length is listed.

Product highlights:

waterproof CCD camera
replaces your trunk handle
wide-angle rear-view camera compatible with select Mercedes-Benz vehicles
20' video cable included
resolution: 480 TV lines
170° wide viewing angle
parking lines (selectable at installation)
illumination: 0.4 Lux minimum for night driving
warranty: 1 year
MFR # CMB-16K
Item # 249CMB16K
California customers: Please click here for your Proposition 65 WARNING.

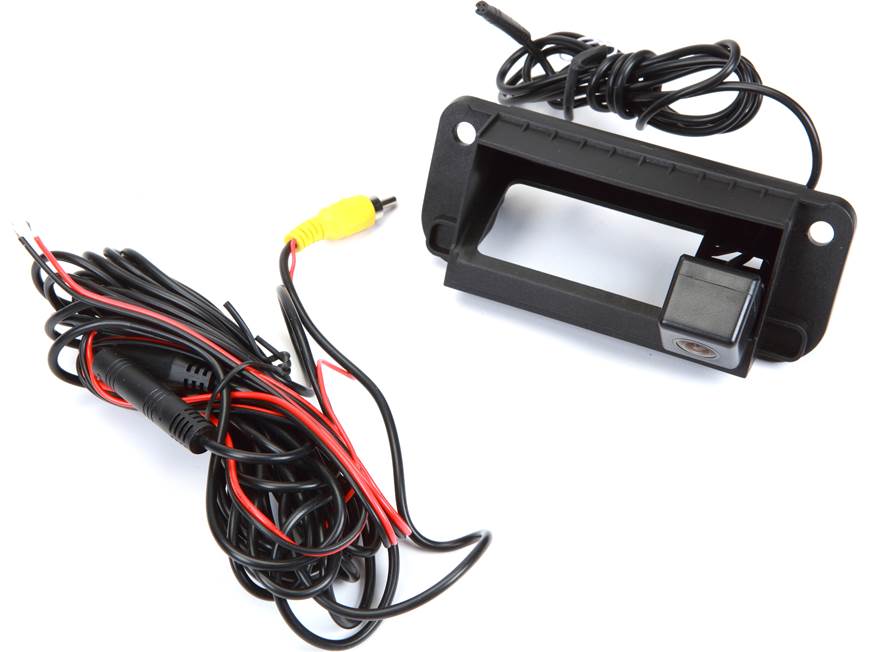

What's in the box:

Mercedes-Benz (GLK-Class) trunk replacement camera (attached 4.5' cable)
20' Video cable (attached 2.5' power/ground wire)

Researched by Crutchfield's Russ B.

Product Research

Features

Mercedes Benz Trunk Handle Replacement Camera: The Crux CMB-16G Mercedes Benz trunk handle replacement camera is specifically designed for 2009-2012 Mercedes Benz GLK-Class vehicles with an aftermarket in-dash multimedia or navigation receiver installed. Your aftermarket receiver must feature an integrated video monitor and a composite video camera input. The Crux CMB-16G replaces your vehicle's factory trunk handle assembly. With the Crux CMB-16G Mercedes Benz trunk handle replacement camera installed, you'll be able to view what's behind you on your in-dash aftermarket receiver's video monitor when you put your vehicle in reverse.

Note: This rear-view camera is meant as a back-up aid only; never solely rely on the rear-view camera when backing-up. In addition to using the rear-view camera, always look behind you to make sure everything is clear when backing up your vehicle.

Image Sensor & Lens: The Crux CMB-16G Mercedes Benz trunk handle replacement camera features a CCD image sensor that offers 480 lines of resolution (NTSC or PAL compatible). The bright f/1.2 lens has 170° (horizontal) x 90° (vertical) viewing angle. The minimum illumination is 0.4 Lux.

Park Assist Lines: The rear-view camera provides parking assist lines on the screen of your vehicle's in-dash aftermarket monitor. These parking lines are there to assist you when backing up into a parking space. There are two vertical lines which help you judge the left and right edges of the parking space and your vehicle. There are also 3 color-coded horizontal lines that are used to distinguish how close you are getting to the end of the parking spot - Green (Clear), Yellow (Getting Close), Red (Very Close).

Note: The park assist lines are turned on and active by default. If you prefer to turn off the park assist lines, you will need to cut the white wire loop on the the attached power/signal cable of the rear-view camera.

Connections: The rear-view camera features an attached 4.5' power/signal cable which plugs into the included 20' video cable which also features attached 2.5' power/ground wires. At the end of the video cable is a male RCA composite video plug, which connects to the composite, rear-view camera input of your aftermarket head unit. The power (red) & ground (black) wires will need to be hardwired. 12V power can be obtained from your vehicle's reverse light circuit or from the reverse gear wire of your aftermarket stereo (if applicable). The ground will need to connected to your vehicle's metal chassis.

Waterproof Housing: The Crux CMB-16G Mercedes Benz trunk handle replacement camera features an IP67 waterproof housing.
