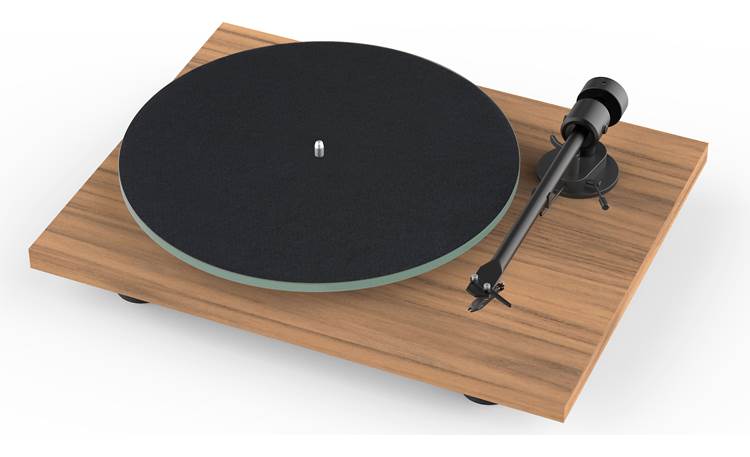

About the Pro-Ject T1 EVO
Product highlights:
- heavy 8mm zero-resonance glass platter with felt mat to protect records from scratches
- 8.6" one-piece aluminum tonearm with low-friction, vibration-free bearing
- includes pre-mounted Ortofon OM10 moving magnet cartridge
- anti-resonant sub-platter design
- heavy, solid, precision-routed chassis with shock-absorbing feet
- electronic speed control: 33-1/3 rpm and 45 rpm
- speed variance: 0.7% (at 33-1/3 rpm), 0.6% (at 45 rpm)
- wow and flutter: 0.25% (at 33-1/3 rpm), 0.23% (at 45 rpm)
- speed-regulated AC motor
Ortofon OM10 cartridge specs:
- moving magnet design
- bonded elliptical stylus
- output voltage: 4mV
- tracking force: 1.25 g-1.75 g
- recommended tracking force: 1.5 grams
- cartridge weight: 5 grams
- load resistance: 47k ohms
- load capacitance: 200-500 pF
- frequency response: 20-22,000 Hz
Dimensions and other info:
- 16-5/16"W x 4"H x 13-1/4"D
- weight: 8.4 lbs.
- warranty: 2 years (1 year warranty for the supplied cartridge)
- requires a phono preamp or phono input on receiver or preamplifier
- MFR # 9120129864756
- Item # 252T1EVOWN
What's in the box:
Pro-Ject T1 EVO owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Turntable
- Sub-platter (pre-installed)
- Cartridge w/ stylus (pre-installed)
- AC power adapter (attached 57" DC cord)
- 3 AC power plugs (US/EU/UK)
- Counter-weight (pre-installed)
- Platter
- Belt
- Mat
- 45RPM adapter
- Dust cover
- Stylus pressure gauge
- Two-point cartridge alignment protractor
- Allen-key
- Setup Guide
More details on the Pro-Ject T1 EVO
Features & specs
| Features | ||
|---|---|---|
| Color | Walnut | |
| Operation | Manual | |
| Automatic Functions | N/A | |
| Speeds | 33-1/3, 45 | |
| Speed Control | Manual | |
| Drive Type | Belt | |
| Pitch Control | No | |
| Phono Preamp | No | |
| Phono/Line Switch | No | |
| Adjustable Vertical Tracking Angle | No | |
| Adjustable Azimuth | No | |
| Bluetooth Built-In | No | |
| Wi-Fi Streaming | No | |
| 45 RPM Adapter | Yes | |
| Dust Cover | Yes | |
| Materials and Construction | ||
| Plinth | MDF | |
| Platter | Glass | |
| Tone Arm Shape | Straight | |
| Tone Arm Material | Aluminum | |
| Tone Arm Lift | Finger, Lever | |
| Cartridge Info | ||
| Included Cartridge | Ortofon OM10 | |
| Cartridge Type | MM | |
| Removable Headshell | No | |
| Tracking Weight | 1.5 g (15mN) | |
| Frequency Response | 20-22,000 | |
| Output Voltage | 4.0 | |
| Load Impedance | 47,000 | |
| Load Capacitance | 200-500 | |
| Connections | ||
| RCA Audio Output | Yes | |
| 3.5mm Audio Output | No | |
| 5-pin Mini XLR Audio Output | No | |
| 5-pin DIN Audio Output | No | |
| Ground Wire Terminal | Yes | |
| USB-A Port | No | |
| USB-B Port | No | |
| Audio Cable | Attached | |
| Power Cable | Attached | |
| Audio Specs | ||
| Signal to Noise Ratio | 65 | |
| Wow and Flutter | 0.25 | |
| Dimensions and Warranty | ||
| Width (Inches) | 16.5625 | |
| Height (Inches) | 4.3125 | |
| Depth (Inches) | 13.5625 | |
| Weight | 8.38 lbs. | |
| Turntable Parts Warranty | 2 Years | |
| Turntable Labor Warranty | 2 Years | |
| Cartridge Parts Warranty | 1 Year | |
| Cartridge Labor Warranty | 1 Year | |
Product Research
Features
Low-Noise Design: For the drive system, where many turntables may use un-regulated DC motors with wide speed fluctuations, the T1 Evo features Pro-Ject's proven system of an electronically regulated, precision-speed AC motor. The result is a low-noise, stable drive system for the turntable. The precision-speed AC motor drives a belt-system, attached to a newly designed sub-platter, which is mounted into an ultra-precise 0.001mm main bearing with a hardened steel axle and brass bushing. Alongside this chosen motor system, the T1 Evo is able to ensure a smooth, anti-resonant rotational platform for the tonearm and cartridge to ride across.
One-Piece Tonearm: The tonearm on the T1 Evo is a new model, based on previous Pro-Ject designs. With its straight, 8.6" effective length and stiff aluminum construction, this one-piece tonearm also features low-friction bearings for absolute accuracy in use. Besides the clean and stylish looks, the integrated headshell won't cause any additional vibrations either, and is a big improvement over many other detachable, screwed-on or glued-on headshells.
Ortofon OM10 MM Cartridge: The Pro-Ject T1 Evo comes supplied with an Ortofon OM10 Moving Magnet (MM) cartridge, featuring an elliptical diamond stylus tip for true high-fidelity playback from your vinyl record collection. The cartridge is pre-installed and aligned with the tracking force set at the factory and the anti-skating built-in, sparing you the hardest part of turntable setup.
Zero-Resonance Construction: The stylish CNC-machined plinth features no plastic parts and is carefully manufactured to ensure there are no hollow spaces inside, therefore avoiding unwanted vibrations within the chassis. Carrying this philosophy through the design, the included 8mm glass platter is also a heavy, zero-resonance design (avoiding the flaws of plastic or lightweight steel alternatives). Finally, the purpose-chosen turntable feet also do a good job of isolating the T1 Evo from ambient vibrations around your hi-fi system.
Attached Stereo RCA Cable: The Pro-Ject T1 Evo is outfitted with 44"' attached stereo RCA cable to connect the turntable to a Phono MM input of your integrated amplifier or stereo receiver. The Pro-Ject T1 Evo requires a Phono MM input. If your amplifier or receiver does not feature a dedicated Phono MM input, you'll also need an external Phono MM preamp (sold separately - see Accessories List).

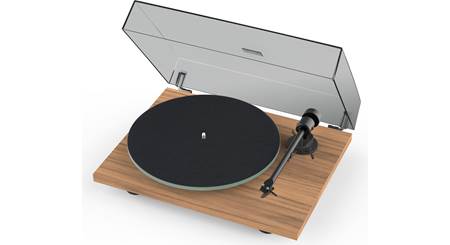

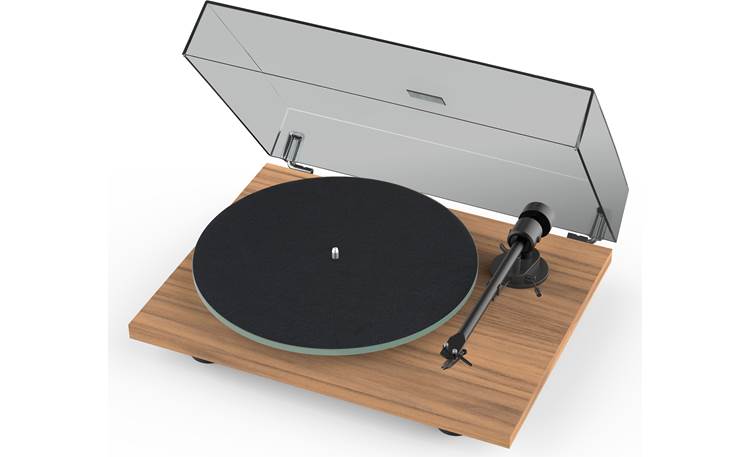

Dust Cover: The Pro-Ject T1 Evo comes with a hinged, clear plastic dust cover to protect against dust, dirt, and debris.
- Dimensions with Dust Cover Closed: 16.5625" (w) x 4.3125" (h) x 13.5625" (d)
- Dimensions with Dust Cover Open: 16.5625" (w) x 14.375" (h) x 15.625" (d)
AC Power Adapter: The included AC power adapter plugs into the back of the turntable and into an AC power wall outlet or surge protector/line-conditioner (sold separately).
