About the Pro-Ject The Dark Side of the Moon

Product highlights:
- prism-shaped MDF plinth with precision aluminum sub-platter
- dimmable LED rainbow backlight
- acoustically inert 10mm-thick glass platter (includes felt mat)
- platter bearing is a stainless steel axle in a bronze bushing for smooth rotation, accurate speed, and low wow-and-flutter
- 8-5/8" straight aluminum and acrylic tonearm
- manual operation
- includes pre-mounted Pick It PRO Special Edition moving magnet cartridge
- 33-1/3 and 45 rpm speeds with manual speed change
- detachable RCA audio cable included
- dust cover not included
- requires a phono preamp or phono input on receiver or preamplifier
- matching glass pyramid TDSOM Record Weight available (sold separately)
Performance specs:
- speed drift: ±0.40% at 33 RPM, ±0.30% at 45 RPM
- wow and flutter: ±0.16% at 33 RPM, ±0.14% at 45 RPM
- signal-to-noise ratio: 68 dB
Dimensions and warranty:
- 19-1/2"W x 5-3/16"H x 15-15/16"D
- weight: 13.23 lbs.
- warranty: 2 years (1 year for the supplied cartridge)
- MFR # 9120129861649
- Item # 252TDSOTM

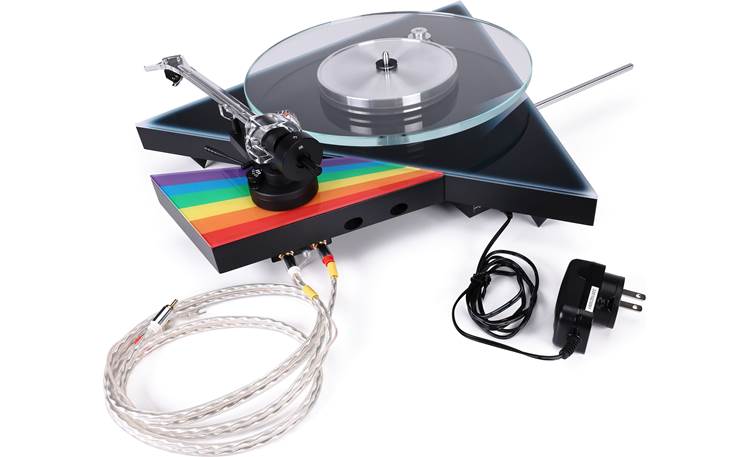

What's in the box:
Pro-Ject The Dark Side of the Moon owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Turntable
- Tonearm with integrated headshell
- Cartridge/Stylus assembly (pre-installed)
- AC power supply (attached 6.5' DC cord)
- 3 AC plug adapters (US/UK/EU)
- Platter
- Sub-platter
- Mat
- Belt
- 47" RCA stereo cable (Connect-it-E)
- 45 RPM adapter
- Counter weight
- On/Off switch rod
- Hex-key
- Stylus Pressure Gauge
- Two-Point Cartridge Alignment Protractor
- Setup Guide
More details on the Pro-Ject The Dark Side of the Moon

Features & specs
Features | ||
---|---|---|
Color | Black | |
Operation | Manual | |
Automatic Functions | N/A | |
Speeds | 33-1/3, 45 | |
Speed Control | Manual | |
Drive Type | Belt | |
Pitch Control | No | |
Phono Preamp | No | |
Phono/Line Switch | No | |
Adjustable Vertical Tracking Angle | No | |
Adjustable Azimuth | No | |
Bluetooth Built-In | No | |
Wi-Fi Streaming | No | |
45 RPM Adapter | Yes | |
Dust Cover | No | |
Materials and Construction | ||
Plinth | MDF | |
Platter | Glass | |
Tone Arm Shape | Straight | |
Tone Arm Material | Aluminum/Acrylic | |
Tone Arm Lift | Finger, Lever | |
Cartridge Info | ||
Included Cartridge | Pick It PRO Special Edition | |
Cartridge Type | MM | |
Removable Headshell | No | |
Tracking Weight | 2.0 g (20mN) | |
Frequency Response | 20-20,000 | |
Output Voltage | 4.0 | |
Load Impedance | 47,000 | |
Load Capacitance | 150-300 | |
Connections | ||
RCA Audio Output | Yes | |
3.5mm Audio Output | No | |
5-pin Mini XLR Audio Output | No | |
5-pin DIN Audio Output | No | |
Ground Wire Terminal | Yes | |
USB-A Port | No | |
USB-B Port | No | |
Audio Cable | Detachable | |
Power Cable | Detachable (12-volt DC adapter) | |
Audio Specs | ||
Signal to Noise Ratio | 68 | |
Wow and Flutter | 0.16 | |
Dimensions and Warranty | ||
Width (Inches) | 19.5 | |
Height (Inches) | 5.3125 | |
Depth (Inches) | 15.9375 | |
Weight | 13.23 lbs. | |
Turntable Parts Warranty | 2 Years | |
Turntable Labor Warranty | 2 Years | |
Cartridge Parts Warranty | 1 Year | |
Cartridge Labor Warranty | 1 Year |
Product Research
Features
2-Speed Manual Belt Drive: The Pro-Ject Dark Side Of The Moon (TDSOTM) Special Edition turntable employs a 2-speed manual belt drive design that supports 33-1/3 and 45 RPM playback (45 RPM adapter is included). The turntable's flat silicon belt is driven by an AC motor to ensure stable speed every time.

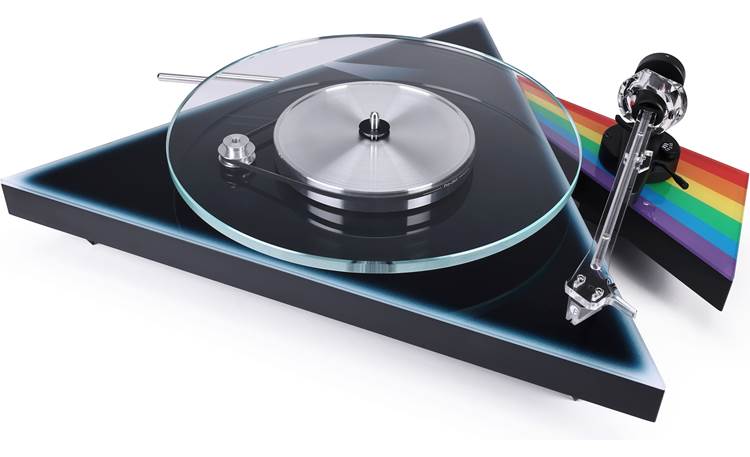

Prism MDF Plinth with Rainbow LEDs & Damped Feet: The Dark Side Of The Moon (TDSOTM) Special Edition turntable features a triangular 28mm MDF (medium density fiberboard) plinth for a sturdy, non-resonant base. The unique triangular-shaped plinth is paired with a rainbow LED backlight on the right-hand side which makes the turntable look even more impressive and beautiful when listening to your favorite vinyl records in the dark. The rainbow LED backlight is dimmable and can be turned completely off. The MDF plinth stands on three damped aluminum feet to isolate the turntable from your mounting surface.
Heavyweight Platter & Sub Platter: The Pro-Ject Dark Side Of The Moon turntable includes a heavy 10mm glass platter combined with a solid aluminum sub platter that sits on a stainless steel axle and brass bushing for exceptional detail and accurate sound. The optional Glass Prism Record Weight makes a perfect addition to the turntable and ensures a firm fit of your vinyl record by securing your playing vinyl record against the turntable platter. By holding the two together, the sound performance of the turntable is improved, in timing and depth of sound - typically with more clarity in the lows and mids, plus less harshness in the upper registers.

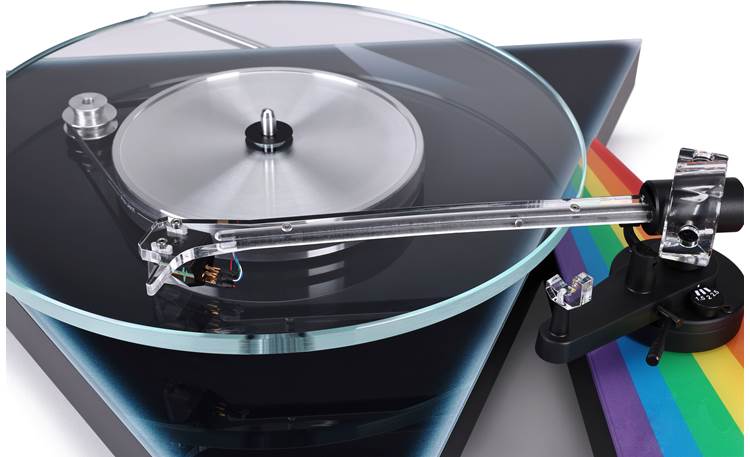

Aluminum/Acrylic Tonearm with Pre-installed Pick It PRO Special Edition Cartridge: The Dark Side Of The Moon turntable features an 8.6" tonearm with integrated headshell and spring anti-skating. This low resonance tonearm is a completely new design that combines black aluminum parts and acrylic for excellent tracking. The one-piece arm and headshell design prevents unwanted resonances and offers a solid physical bond to the cartridge.
Pick it PRO Special Edition Cartridge: The Dark Side Of The Moon turntable is outfitted with a pre-installed and pre-adjusted Pick it PRO Special Edition MM (moving magnet) phono cartridge. This special edition MM phono cartridge has been expertly tuned to deliver rich, detailed sound.
Gold-Plated RCA Outputs: The Pro-Ject Dark Side Of The Moon is outfitted with a set of gold-plated stereo RCA outputs that provide excellent audio signal transfer and resistance against corrosion. Pro-Ject's Connect-it-E cable is included. Pro-Ject's Connect-it-E cable is a semi-balanced, low-capacitance cable, with superior shielding. However, you can always upgrade to an even higher quality cable if preferred.
- The Dark Side Of The Moon turntable will need to be plugged into a dedicated Phono MM input on your AV receiver or integrated amplifier.
- If your AV receiver or integrated amplifier is not equipped with a dedicated Phono MM input, you'll need an external Phono MM preamp (sold separately - see Accessories Tab).
AC Power Adapter: The Dark Side Of The Moon includes an AC power adapter that will plug into the back of the turntable and into an AC power outlet or surge protector/line-conditioner (sold separately).
