Features

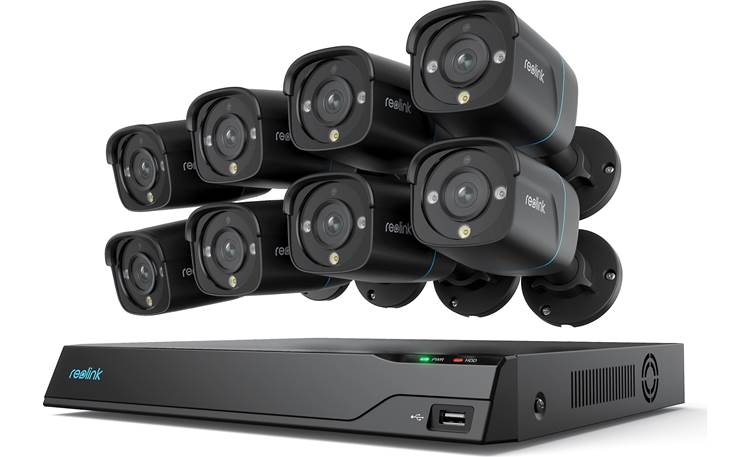

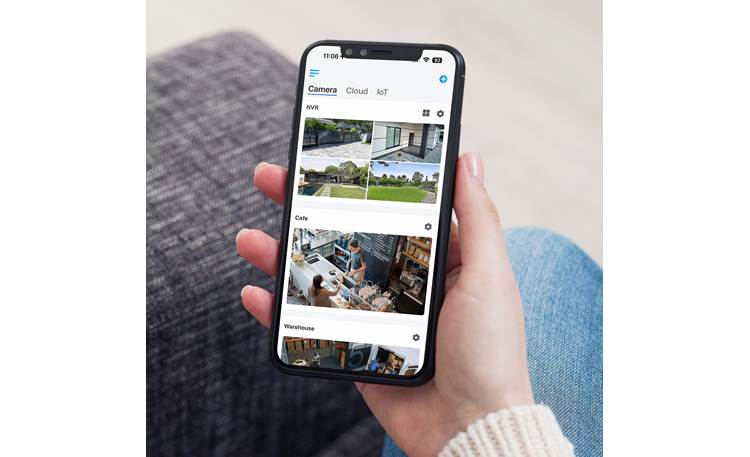

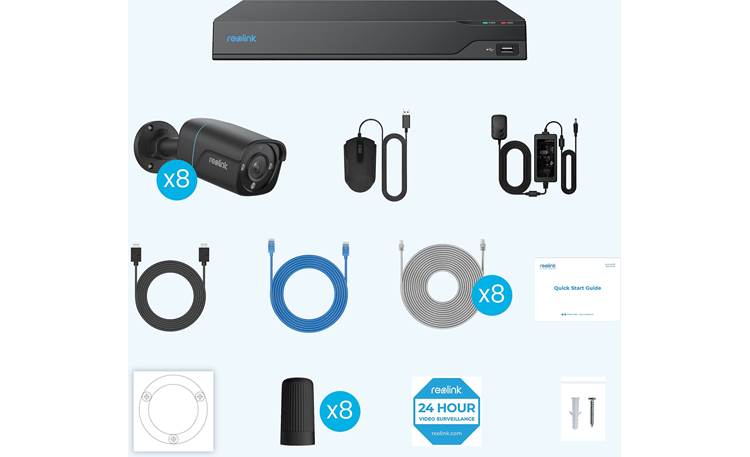

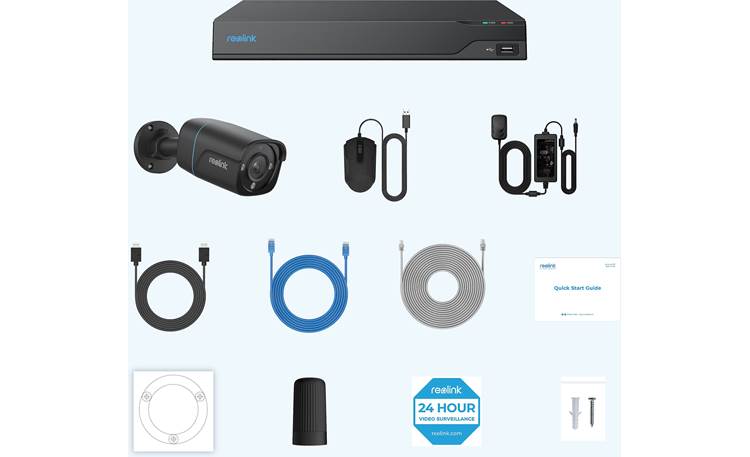

Overview: The Reolink 8MP 4K 16-channel Security System (NVS16-8MB8) is an expandable security system that protects your home or business. It includes a 16-channel Network Video Recorder (NVR) with a 4 TB HDD and eight 4K PoE Bullet cameras (P330). Eight more cameras can be added to the system to cover an even wider area. You can monitor and control the system locally and remotely through the Reolink Client on a computer or web browser or through the Reolink app on a mobile device. The 8MP 4K 16-channel Security System has a 2-year warranty.

NVR Features: The NVS16 brings together the video footage from up to 16 connected cameras and stores it on the inserted Seagate 4 TB Hard Disk Drive (HDD). You can replace the internal HDD with one up to 6 TB. The NVR has a second SATA interface for adding another internal HDD, up to 6 TB, giving you a total of up to 12 TB of storage. The NVS16 does not have an interface for an external HDD. You can record video 24/7, record on a preset schedule, or record only when motion is detected for longer recording. The NVR has the following connections and specifications:

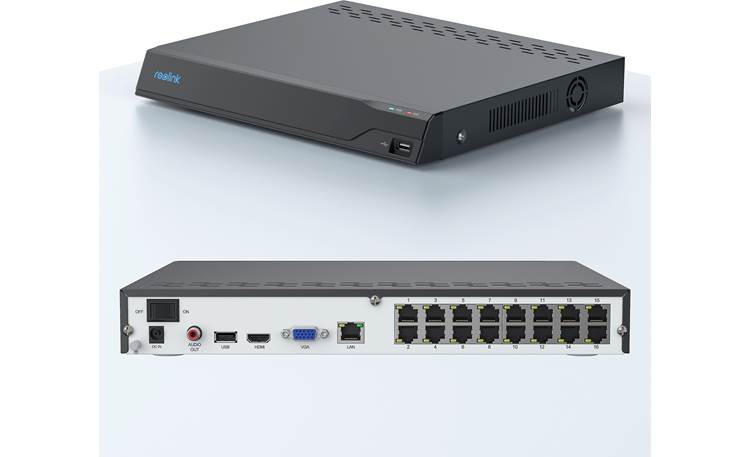

Network Video Recorder Specifications:

• Network Interface:
  • LAN/WAN: 1 RJ-45 10/1000 Mbps
  • IP Camera: 16 RJ-45 10/100 Mbps inputs for PoE cameras
• Power over Ethernet (PoE): 25 watts (max) per port
• USB Interface: 2 USB-A ports (one on front for included optical mouse)
• HDD Interface: 2 SATA interfaces for HDD (One 4 TB HDD included); total capacity up to 12 TB (max 6 TB per HDD)
• Video Format: H.264, H.265
• Video Input: PoE IP camera x 8
• Video Output:
  • HDMI: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
  • VGA: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
• Live View Playback Resolution:
  • 7680 x 2160, 4608 x 1728, 4512 x 2512, 4096 x 3072
  • 3840 x 2160, 2560 x 2560, 2560 x 1920, 2560 x 1440
  • 2048 x 1536, 2304 x 1296, 1920 x 1080, 1280 x 720
  • Up to 4 channels synchronous playback
• Audio Input: RCA x1 for cameras with built-in mic
• Network:
  • Operating Systems supported:
    • PC: Windows, Mac OS
    • Smartphone: iOS, Android
    • Voice Assistant: Google Assistant
  • Browsers supported: Edge, Firefox, Chrome, Safari
  • User Access: 20 users (1 admin + 19 user accounts); supports up to 12 simultaneous video streams (2 mainstreams, 10 substreams)
• Power Supply: DC 48V-54V
• Power Consumption: < 10W (w/o HDD and PoE)
• Working Environment: 14°F - 113°F; humidity 10% to 90%

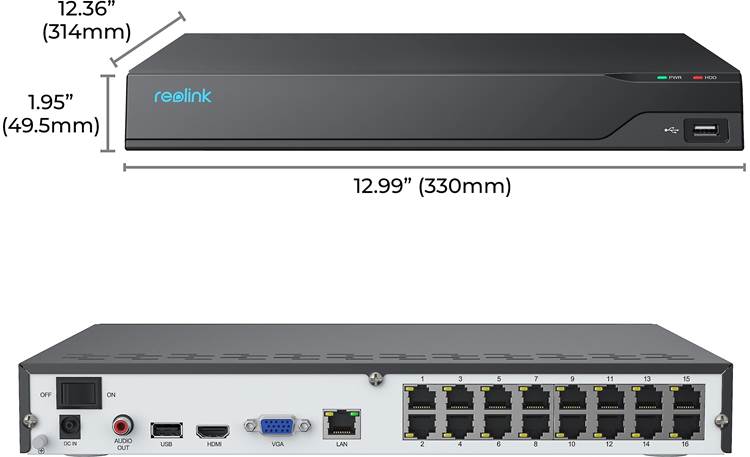

• Dimensions: Width 13", Height 1.849", Depth 11.75" (13.25" w/cables)

• Weight: 5.2911 pounds

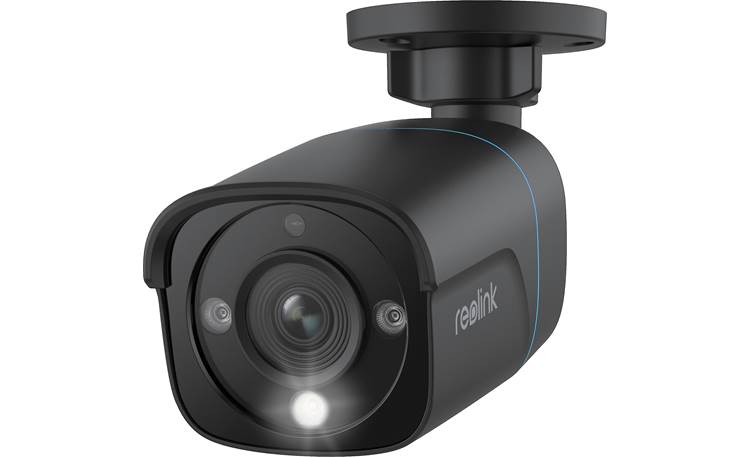

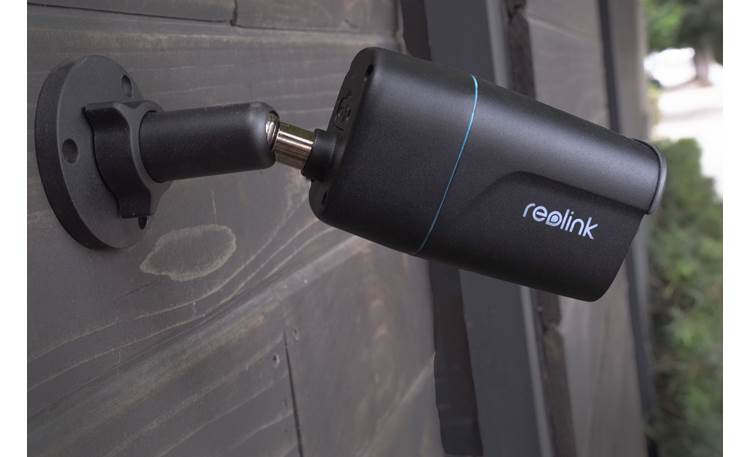

Camera Features: The Reolink 8MP 16-channel 4K Security System includes eight black P330 4K PoE Bullet cameras, each with a 2.8mm f/1.6 lens. The camera's 1/2.49" CMOS image sensor can produce stunning 8MP 4K video (3840 x 2160). Each camera has the following features:

• Two-way Audio: The camera has a built-in microphone and speaker that allows you to have a conversation with anyone on camera. This is helpful for giving instructions to delivery drivers, or to deter unwanted visitors.
• Motion Detection: Smart detection technology identifies motion from a person, vehicle, or pet, and instantly notifies you. You can customize motion zones to concentrate only on specific areas for fewer false alarms.
• Spotlight: The camera is equipped with a 700 lumen spotlight that lights up when motion is detected to illuminate dark areas for color night vision, and to deter unwanted visitors.
• Night Vision: Two built-in IR (infrared) LEDs enable night vision out to 100 feet in total darkness.
• Water Resistant: The cameras feature an aluminum metal body that can withstand the elements (IP66 rated).

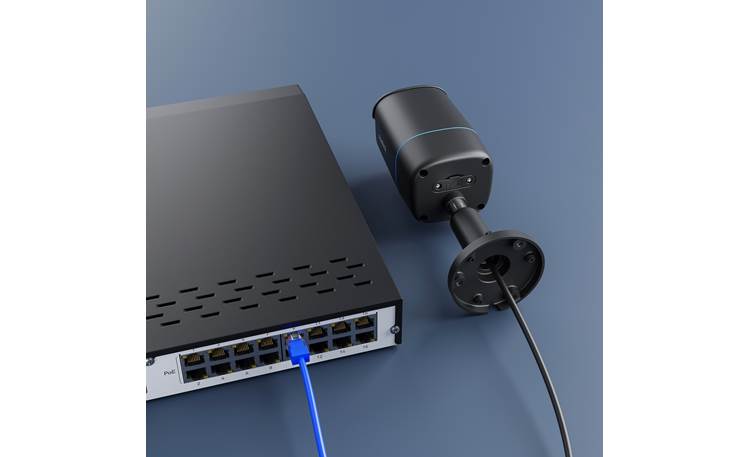

• Cable: Each camera comes with a 59' Network cable that carries power to the camera, and transmits video and audio signals back to the NVR.
• Connections: Attached to each camera is a 21" pigtail with DC power and RJ-45 LAN connections, and a reset button.
• microSD Slot: The camera has a microSD card slot for local storage. The camera supports cards up to 256 GB.

Camera Specifications:

• Video Resolution: 3840 x 2160 (8MP) @ 25 fps
• Lens: 2.8mm f/1.6
• Viewing Angle: 105° horizontal, 56° vertical
• Night Vision: up to 100 feet with two 850nm IR LEDs
• Spotlight (for Color Night Vision): 4.3W, 6500K, 700 lumens
• Audio: 2-way audio with built-in microphone and speaker
• Working Environment: 14°F - 131°F
• Weatherproof: IP66
• Power: Power over Ethernet (PoE); optional 12V direct DC power
• Dimensions: Width 2.683", Height 2.495", Depth 7.395", Base Diameter 2.691"
• Weight: 16 ounces
