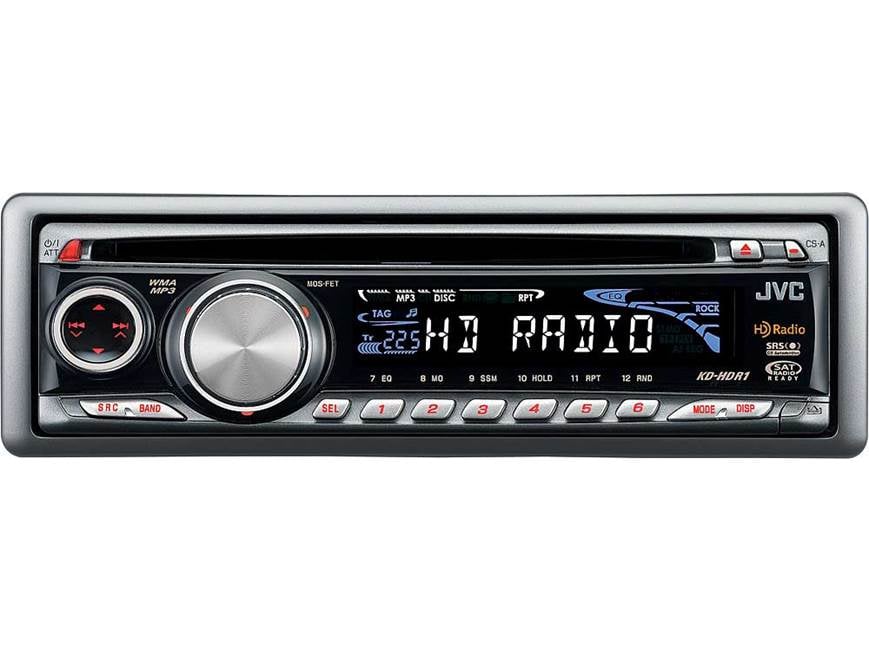

JVC KD-HDR1

Features
External Device Controls

Features

MP3/WMA Playback: The KD-HDR1 can play MP3/WMA files that have been recorded on CD-R and CD-RW discs. The disc must be recorded in one of the following formats: ISO 9660 Level 1/Level 2, Joliet or Romeo. You can directly access folders numbered 01-12 (they must be assigned two-digit numbers when recorded). Each disc can have a maximum of 8 folder hierarchies, 200 folders, and no more than a total of 512 files and/or folders on each disc.

Intelligent EQ (7-Band iEQ): This model has Rock, Classic, Pops, Hip Hop, Jazz, and User preset EQ curves. The User preset can be adjusted to your preference and stored in memory. For the User preset, you can independently adjust the following frequencies: 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, and 15 kHz. The level of each frequency can be adjusted from -5dB to +5dB in 1dB increments.

SRS CS Automotive: SRS Circle Surround Automotive (CS Auto) lets you experience a natural sound field anywhere in the vehicle, unlike other sound field manipulation methods such as time delay. The SRS Circle Surround II decoder converts a stereo signal into multichannel sound. SRS Focus elevates the sound field to an optimal listening level, while SRS TruBass creates rich bass, even without using a subwoofer. SRS Focus can be applied independently to front and rear speakers. SRS TruBass can be applied independently to front and rear speakers and the subwoofer. You can choose from the following presets:

• Type A: systems with large front speakers with tweeters and rear deck speakers
• Type B: systems with large front speakers with tweeters and door-mounted rear speakers
• Type C: systems with small front speakers and door-mounted rear speakers
• User: allows you to store your own setting

Amplifier Gain Control: When you are using the KD-HDR1 with factory speakers (or those rated to less than 50 watts peak), the Amplifier Gain Control can limit the amount of power being sent to those speakers. When the Amp Gain Control is set to "low," the volume control ranges from 0 (minimum) to 30 (maximum). When using speakers rated higher than 50 watts peak, you can set the Amp Gain Control to "high," and the volume control will range from 0 to 50.

DiAS Tuner: This model is equipped with JVC's Digital Intelligent Advanced Sensing tuner, offering unprecedented analog radio performance with higher sensitivity and selectivity. You can set up to 18 FM and 6 AM stations as presets. Presets can be set manually, or automatically using Strong-station Sequential Memory (SSM). If an FM stereo broadcast is hard to receive, you can manually switch the tuner to "Mono" operation. You can also switch the tuner's IF filter to Wide or Auto to increase/decrease the sensitivity.

Built-in HD Radio: With the built-in HD Radio tuner, you can receive digital AM/FM broadcasts from local stations where available. This new technology will significantly improve audio quality and reception, as well as include information such as artist name and song titles or traffic news, viewable on the receiver's display.

Subwoofer Output: In addition to the 2.5V front and rear preamp outputs, this unit has a set of 2V subwoofer preamp outputs. The subwoofer output has independent level control, adjustable from 00 to 08, and a selectable low-pass crossover. You can select a cutoff frequency of 90, 135, or 180Hz.

Compatibility with Optional Input Adapter: An optional JVC Line Input Adapter (item # 105KSU57) or Aux Input Adapter (item # 257KSU58) may be used to provide an additional auxiliary input on this unit. This feature allows you to connect a portable audio player, such as a portable MP3 player, to this unit as an additional audio source. The adapter connects to the CD changer input on this unit. When the adapter is connected to this unit, a CD changer cannot be connected.

Clock Display: When you press the Display button during power off, the unit will turn on, display the clock for 5 seconds, then shut off. This can be done with the ignition on or off.

Dimmer: This unit is equipped with a wire that JVC calls an illumination lead, however, it acts as a dimmer lead. The dimmer can be set to Off (normal brightness at all times), Auto (display window automatically dims when your car head lights are turned on), or On (display is always dimmed).

Note:The amount of dimming is fixed, it cannot be adjusted, and the illumination wire must be connected for Auto operation.

External Device Controls

Optional Interface Adapter for iPod: The optional KS-PD100 adapter (item #257KSPD100) allows an iPod digital music player with a dock connector to be hooked up to and controlled by the KD-HDR1. You'll be able to scroll through all your playlists, albums, artists, genres, and composers directly from the head unit. Song titles and other file information show up right on the head unit display. The iPod is also charged while it is connected to the KD-HDR1.

Satellite Radio: This unit supports both XM and Sirius Satellite Radio when used with an optional satellite radio tuner and adapter, sold separately. This JVC headunit supports the SiriusConnect Universal Vehicle tuner and JVC KS-SRA100 Sirius Satellite Radio interface (item number 700SIRJVC1, sold separately). The headunit also supports the XMDirect2 Universal Vehicle tuner and CNPJVC1 XM Satellite Radio interface (item number 700XMJVC1, sold separately).

Changer Controls: This unit is equipped with JVC's "J-Link" CD changer control system. It is fully compatible with JVC's CD/MP3 changer (257CHX1500). Other JVC CH-X series CD changers (except CH-X99 and CH-X100) can be controlled directly by this head unit, however, they are not compatible with MP3 discs. You cannot use the KD-MK series CD changers with this unit, even with an adapter.
