About the Simplified MFG DARC1
Product highlights:
- lets you send audio signals from your TV's HDMI ARC port to non-HDMI-equipped components
- supports Dolby® and DTS® multichannel surround sound formats
- downmixes multi-channel audio signals to stereo
Connections:
- HDMI ARC input
- stereo RCA analog output
- 3.5mm analog headphone output
- micro USB power port
- can be powered with included AC adapter or via USB-A port on TV
Dimensions & other info:
- 2-3/16"W x 13/16"H x 5"D
- weight: 12.16 oz.
- warranty: 3 years
- MFR # DARC1
- Item # 297DARC1

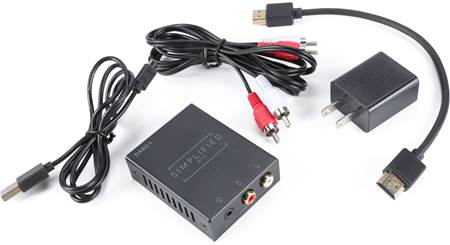

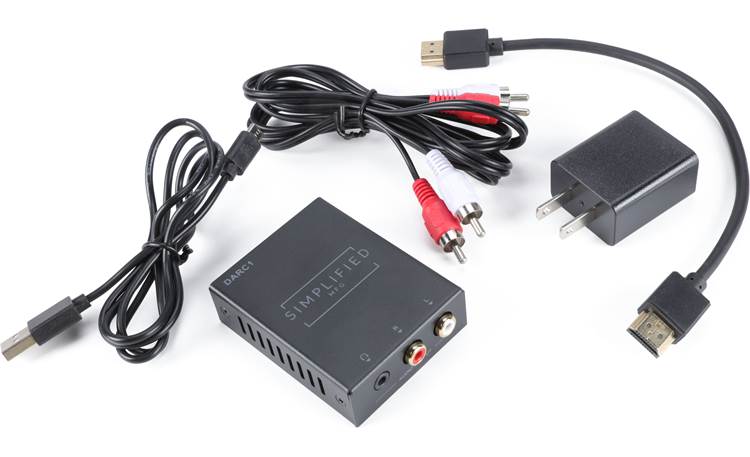

What's in the box:
Simplified MFG DARC1 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- HDMI ARC down-mixing device
- USB/AC powr adapter
- 39" microUSB-to-USB cable
- 10" HDMI cable
- 58" RCA stereo cable
- 2 Mounting brackets
- 4 Screws
- User Manual
More details on the Simplified MFG DARC1
Features & specs
| Design | ||
|---|---|---|
| Type | Desktop/Component | |
| Built-in Rechargable Battery | --- | |
| Built-in Headphone Amplifier | ||
| Output Power | N/A | |
| Output Impedance (Unbalanced) | N/A | |
| Output Impedance (Balanced) | N/A | |
| Audio Specs | ||
| Bit Depth (USB) | 0 | |
| Max Sampling Rate (USB) | 0 | |
| Bit Depth (S/PDIF) | 24 | |
| Max Sampling Rate S/PDIF | 192 kHz | |
| S/N Ratio (Unbalanced, in dB) | 0 | |
| S/N Ratio (Balanced, in dB) | 0 | |
| THD (Unbalanced) | Not given | |
| THD (Balanced) | N/A | |
| Supported File Types | ||
| PCM | Up to 192kHz | |
| DSD | No | |
| DXD | No | |
| MQA | No | |
| Inputs | ||
| Total Inputs | 1 | |
| USB | 0 | |
| Optical Digital | None | |
| Coaxial Digital | None | |
| 3.5mm Digital | None | |
| Stereo RCA Analog | None | |
| Stereo 3.5mm Analog | None | |
| Stereo XLR Analog | None | |
| Headphone Outputs | ||
| 3.5mm Unbalanced | None | |
| 1/4-inch Unbalanced | None | |
| 4.4mm Balanced | None | |
| XLR4 Balanced | None | |
| Other Headphone Outs | None | |
| Line Level & Digital Outs | ||
| RCA Line Out | 1 | |
| 3.5mm Line Out | None | |
| XLR Line Out | None | |
| Subwoofer Out | None | |
| Optical Digital Out | None | |
| Coaxial Digital Out | None | |
| Wireless Connectivity | ||
| Bluetooth | No | |
| Wi-Fi | No | |
| Apple-compatible | No | |
| Android-compatible | No | |
| General Info | ||
| Width (inches) | 2-3/16 | |
| Height (inches) | 0-13/16 | |
| Depth (inches) | 5 | |
| Weight | 0.76 lbs. | |
| Parts Warranty | 3 Years | |
| Labor Warranty | 3 Years | |
Product Research
Features

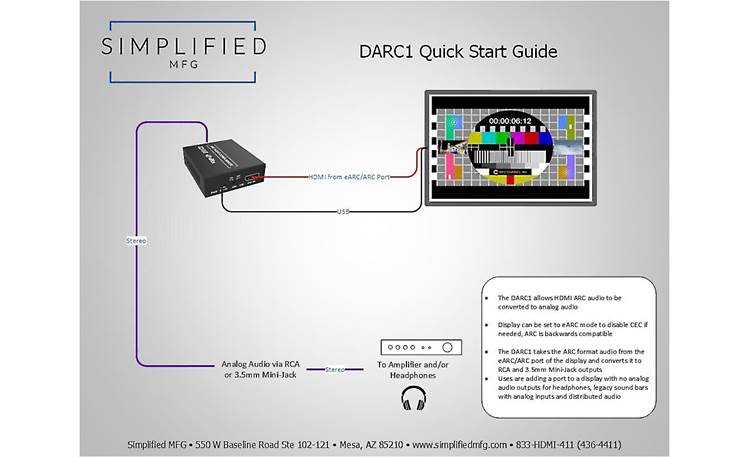

HDMI ARC Audio DownMixer: The Simplified MFG DARC1 is a HDMI ARC audio downmixing device that will take ARC digital audio and convert it to analog stereo via a stereo RCA output and/or 3.5mm headphone output. Use the DARC1 to extract audio from your TV's eARC/ARC jack and convert the multichannel digital audio signal to analog stereo to connect to your stereo receiver, integrated amplifier, powered speaker, or headphones.

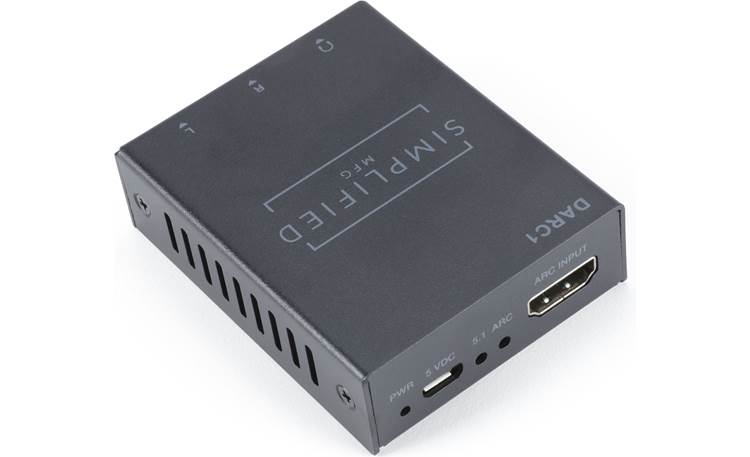

HDMI ARC Input: The Simplified MFG DARC1 is equipped with a HDMI ARC (Audio Return Channel) input that will connect to your TV's HDMI ARC or eARC jack. The DARC1's HDMI input supports LPCM (2ch or 5.1ch), Dolby Digital (5.1ch), and DTS (5.1ch). Supported sampling rates include 32kHz., 44.1kHz., 48kHz., 88.2kHz., 96kHz., 176.4kHz., & 192kHz.
Note: Many newer TVs and AV receivers support HDMI eARC (Enhanced Audio Return Channel). eARC is backward compatible with ARC. However, the Simplified MFG DARC1 will not support the transmission of Dolby Atmos, Dolby TrueHD, DTS:X, or DTS-HD.

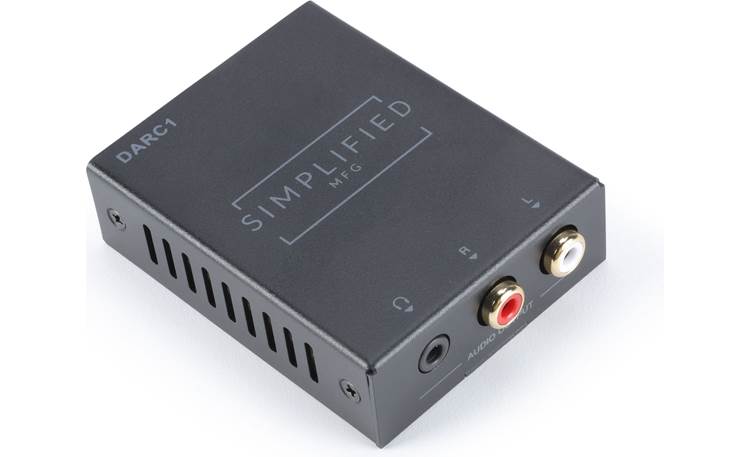

Stereo Analog Outputs: The DARC1 is outfitted with two stereo analog outputs. Choose from an analog stereo RCA output or a stereo minijack (3.5mm) headphone output which will connect to your stereo receiver, integrated amplifier, powered speaker, or headphones.
HDMI CEC: HDMI Consumer Electronics Control (CEC) is a feature of HDMI designed to allow you to operate and control devices connected through HDMI by using only one remote control. HDMI CEC is supported by the Simplified MFG DarC1, so your TV's remote can be used to control the volume level of the unit's stereo outputs.
Power Requirements: The Simplified MFG DARC1 features a microUSB power port and comes with a USB/AC power adapter and 39" microUSB-to-USB cable to power the unit. The DARC1 can also be powered via a USB-A port (rated 5V/1A) found on your TV.
Mounting Options: The Simplified MFG DARC1 can simply be table-top mounted on a flat horizontal surface, or mounted on a wall or to a piece of AV furniture using the included mounting brackets.
