About the SoundTube CM82-EZ-II
Solid coverage from an in-ceiling speaker
Get started with
a free system design
After we gather your information, we’ll send you a detailed system plan. It will include a link to a pre-filled shopping cart. Ordering is easy, and delivery is fast.
Solid coverage from an in-ceiling speaker

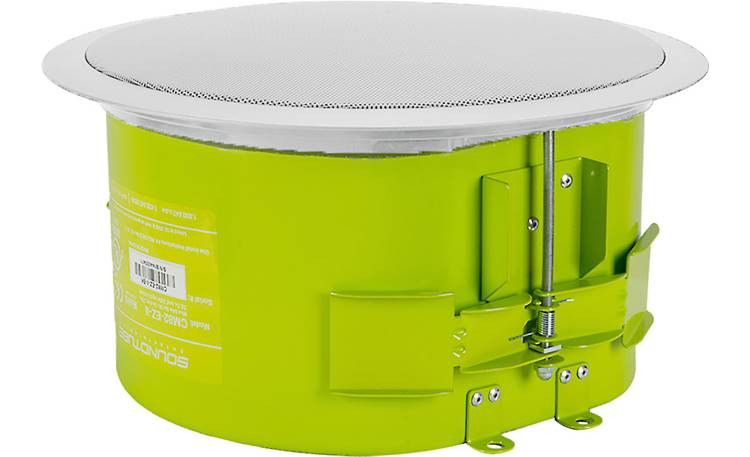

SoundTube's CM82-EZ-II in-ceiling speaker lets customers hear music and announcements clearly. Its wide 105-degree horizontal coverage pattern makes it easier and less expensive to design a system to fit a larger space.
Each speaker has an 8" poly woofer with butyl rubber surround and 1" silk dome tweeter. A built-in transformer tap lets you use one amplifier to drive several speakers in an efficient distributed audio system. Convenient mounting arms make installation easier.
Product highlights:
- 8" poly woofer with butyl rubber surround and 1" silk dome tweeter
- 105° horizontal coverage area
- sealed drawn steel back enclosure
- built-in transformer for use with commercial systems
- 25V taps: 0.5, 1, 2, 4, and 8 watts
- 70V taps: 4, 8, 16, 32 and 64 watts
- 100V taps: 8, 16, 32 and 64 watts
- 16-ohm transformer bypass
- power handling: 128 watts continuous program power (when using transformer bypass)
- frequency response: 92-18,000 Hz (±3dB)
- maximum SPL: 107 dB
- tile bridge, conduit clamp and paint shield included
- painted steel grille with rust-inhibiting finish
- fixed-wing mounting hardware makes installation easier
- diameter: 9-11/16"
- depth: 5-3/4"
- weight: 9 lbs.
- warranty: 5 years
- MFR # CM82-EZ-II-WH
What's in the box:
SoundTube CM82-EZ-II owner's manual
- One in-ceiling speaker
- Grill w/attached safety restraint
- Terminal cover plate
- Conduit clamp
- Paint guard
- Installation instructions
Reviews (0)
Customer reviews for SoundTube CM82-EZ-II
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the SoundTube CM82-EZ-II
Features & specs
| General | ||
|---|---|---|
| Drivers per speaker | 2 | |
| Woofer Size (inches) | 8 | |
| Tweeter Size (inches) | 1.0 | |
| System Frequency response | 92-18k | |
| Maximum SPL | 107 | |
| Power Handling | ||
| Power rating | 64 | |
| Peak Power rating | --- | |
| Specs | ||
| Width (inches) | 11-3/4 | |
| Height (inches) | 6-1/2 | |
| Depth (inches) | 5-3/4 | |
| Weight | 9 lbs | |
Product Research
Features
Overview: The Soundtube CM82-EZ-II is a 2-way, blind-mount, in-ceiling speaker featuring a coaxially mounted 8" woofer and a 1" tweeter. The speaker features transformer tap settings for 25, 70, and 100 volt operation, and also includes a 16Ω bypass. Designed specifically for indoor paging and background music, the CM82-EZ-II is ideal for hotels, restaurants, airports, churches, and similar applications.
Drivers: The CM82-EZ-II features an 8" polypropylene woofer with a butyl rubber surround along with a 1" silk dome tweeter, all mounted in a sealed steel backcan enclosure. This combination delivers high efficiency and performance across the operating bandwidth with a frequency response of 92Hz to 18kHz (-3db). Able to handle up to 64 watts RMS (128 watts Program power) and with a sensitivity of 89 dB, the CM82-EZ-II can provide clear powerful sound with a coverage angle of up to105˚ (@ 2kHz).
Enclosure: The CM82-EZ-II is housed in a galvanized steel backcan with an ABS plastic front baffle along with a painted steel-mesh grill. The grill can be painted to match the room color and includes an attached safety restraint lanyard. The CM82-EZ-II enclosure carries both UL1480A and UL2043 UL certifications and is CE and RoHS approved.
Mounting: Installation of the speaker is done blind-mount using Soundtube's proprietary SpeedWing mounting arms. Two constant-tension, winged assemblies come pre-mounted to the speaker. Once the speaker is slid into the ceiling opening 2 Phillips-head screws on the front of the speaker are tightened. This expands out the SpeedWing mounting arms providing tension on the backside of the mounting surface. The CM82-EZ-II can be mounted to ceilings ranging in thickness from 0.04 to 1.6 inches, including drop-ceilings using the optional Tile Bridge (not included). Three secondary attachment points are provided on the back of the speaker for an additional safety line.
25/70/100 Volt: The CM82-EZ-II can be used in 25, 70, and 100 volt applications and includes a 16Ω bypass selection. A tap selection dial on the front of the speaker allows for easy configuration without having to remove the speaker from the ceiling. The following tap settings are available:
- 25 Volt: 0.5W, 1W, 2W, 4W, and 8W
- 70 Volt: 4W, 8W, 16W, 32W, and 64W
- 100 Volt: 8W, 16W, 32W, and 64W
- 16Ω
Terminals: A 4-position ceramic terminal strip is provided for wiring connections. One set of terminals provides the signal input while the other set provides a pass-thru for daisy-chaining multiple speakers. Each terminal can accommodate speaker wire up to 12 gauge in size and includes a set-screw to hold the wire firmly in place.
Specifications:
- Speaker Type: 8", coaxial, in-ceiling
- Woofer: 8" Polypropylene cone with butyl rubber surround
- Tweeter: 1" Silk dome
- Impedance (nominal): 16Ω
- Sensitivity (1W @ 1M): 89dB
- Frequency Response (-3 dB): 92Hz - 18kHz
- Frequency Response (-10 dB): 65Hz - 22kHz
- Maximum Program Power: 128W
- Maximum Continuous Power: 64W
- Maximum SPL: 107dB
- Coverage Angle (-6dB @ 2kHz): 105˚
- Coverage Angle (-6dB @ 10kHz): 40˚
- Coverage Angle (Avg. 2 to 10kHz): 95˚
- Crossover Frequency: 3.0kHz
- Tap Settings:
- 25 Volt: 0.5W, 1W, 2W, 4W, and 8W
- 70 Volt: 4W, 8W, 16W, 32W, and 64W
- 100 Volt: 8W, 16W, 32W, and 64W
- 16Ω
- Enclosure Material: Sealed drawn-steel backcan, ABS front baffle
- Grill: Painted steel-mesh
- Inputs: 4-Terminal ceramic barrier strip
- Dimensions: Diameter - 11.70", Depth (incl. grill) - 6.50"
- Mounting Depth: 5.750"
- Cutout Diameter: 10.45"
- Maximum Ceiling Thickness: 0.04" to 1.60"
- Weight: 9.0 lbs.
