SoundTube Mighty Mite 43-BGM 3-way commercial pendant speaker (Silver)

Name: SoundTube Mighty Mite 43-BGM
Brand: SoundTube
SKU: 298M43SL
Price: 487.0 USD
Availability: InStock

Item # 298M43SL

This versatile pendant speaker can efficiently cover a wide area with quality sound, thanks to a clever 3-way design.

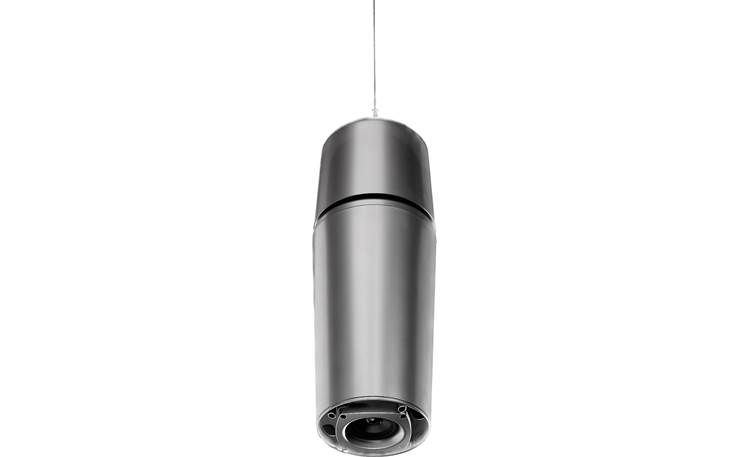

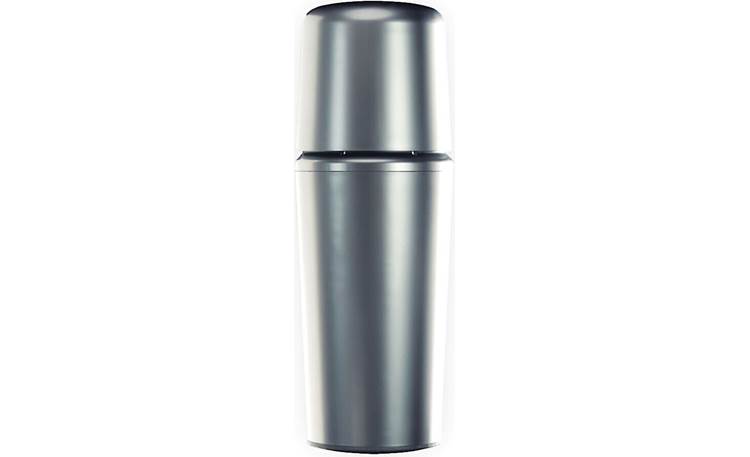

Front

1/4

Shown with grille removed

2/4

Only at Crutchfield

3/4

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

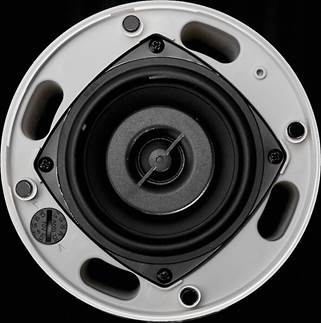

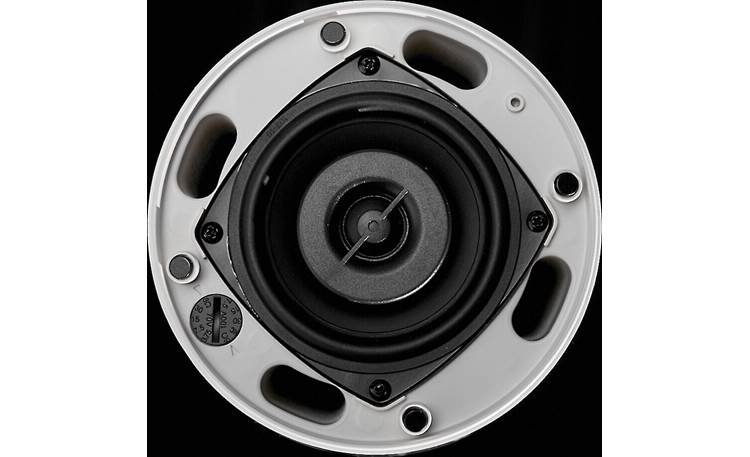

Close-up view of 3-way driver and transformer tap

SoundTube Mighty Mite 43-BGM Shown with grille removed

SoundTube Mighty Mite 43-BGM Only at Crutchfield

SoundTube Mighty Mite 43-BGM Close-up view of 3-way driver and transformer tap

This versatile pendant speaker can efficiently cover a wide area with quality sound, thanks to a clever 3-way design.

Item # 298M43SL

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Low stock

$487.00 each

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-315-2758

by Crutchfield's Eric A.

DIY and save — with our help

We help businesses across the country install their own commercial A/V systems without involving costly third-party installers. Ordering is easy, and you get FREE lifetime support.

Get a free system design

1-800-315-2758

Submit a request

The SoundTube Mighty Mite 43-BGM features a 3-way driver design and convenient transformer tap.

A versatile pendant speaker

The handy SoundTube Mighty Mite 43-BGM lets you use a few speakers to fill a large space. Music and announcements can be heard clearly, thanks to a clever 3-way driver design that includes a 3/4" tweeter, a 4" midrange woofer, and a 5-1/4" band-pass subwoofer. Each speaker delivers sound in a conical pattern, so you can hang it from the ceiling and cover lots of space below.

Built-in transformer tap

The Mighty Mite is designed to work in a commercial distributed audio system, with one amplifier using power efficiently to drive several speakers at once. There's an easily accessible rotary transformer tap on the business end of the speaker, so you can configure each one in your system individually.

Safe, secure installation

The Mighty Mite includes everything you need to suspend the speaker safely from your ceiling. There's a hanging cable, safety cable, and two SpeedClamps. And remember, your Crutchfield account manager is always available to offer advice while you're installing it.

Product highlights:

full-range pendant speaker with a built-in subwoofer
3-way design:
- 3/4" BroadBeam® ring tweeter
- 4" midrange woofer
- 5-1/4" dual-chamber band-pass subwoofer
rotary transformer tap for distributed audio systems
- 3.75, 7.5, 15, and 30 watts at 70 volts
- 7.5, 15, and 30 watts at 100 volts
- 8-ohm bypass for use with conventional stereo amplifier
power handling: 30 watts RMS at 8 ohms (60 watts peak)
frequency response: 62-24,000 Hz (±3dB)
sensitivity: 84 dB
103 dB maximum SPL
screw-down terminal block for connecting speaker wire
integrated hanging bracket with cables and SpeedClamp™ self-locking wire grip
seamless powder-coated magnetic grille

Dimensions and warranty:

21-15/16" height x 7-1/2" diameter
weight: 14 lbs.
warranty: 5 years
MFR # MM43-BGM-SL
Item # 298M43SL

What's in the box:

Pendant speaker (silver)
Hanging cable with attached snap-hook
Safety cable with attached snap-hook
2 SpeedClamps
1 Hex wrench
4 Wire ties

Researched by Crutchfield's Russ B.

Features & specs

General
Drivers Per Speaker	3
Woofer Size (inches)	5.25
Tweeter Size (inches)	.75
System Frequency Response	62Hz-24kHz
Maximum SPL	103
Number of Speakers Included	1
Power Handling
Power Rating	30
Peak Power Rating	---
70V Transformer Taps (watts)	3.75W, 7.5W, 15W, 30W
100V Transformer Taps (watts)	7.5W, 15W, 30W
8-ohm Bypass	Yes
Specs
Width (inches)	7-1/2
Height (inches)	21-15/16
Depth (inches)	7-1/2
Weight	14 lbs

Product Research

Features

Overview: The Soundtube Mighty Mite 3-Way Hanging Speaker is a pendant-mount speaker designed for 70- and 100-volt applications. It features a 5-1/4" dual-chamber bandpass subwoofer and a 4" mid-bass woofer, both with polypropylene cones and a rubber surround, and a 0.75" silk dome tweeter. The tweeter features Soundtube's BroadBeam Ring technology for consistently smooth high frequencies. With a wide 115° conical dispersion pattern, the Mighty Mite is ideal for both music and voice applications in high-ceiling open areas.

Enclosure: The Mighty Mite housing offers long lasting performance and durability with its injection molded ABS enclosure and powder-coated aluminum grille, both of which are paintable. The Mighty Mite carries both UL1480 UEAY and UL2239 ratings, along with CE and RoHS certifications.

70/100 Volt: Designed primarily for distributed systems, the Soundtube Mighty Mite features a 30-watt transformer housed inside the speaker enclosure. Wiring connections consist of a 4-position ceramic terminal strip on top of the speaker that can accept speaker wire from 22-14 gauge in size. One set is provided as the input while the other paralleled terminals can be used for daisy-chaining multiple speakers. A rotary dial on the top of the speaker is provided for the following tap selections:

70V: 3.75W, 7.5W, 15W, 30W
100V: 7.5W, 15W, 30W
8Ω: Bypass

Installation: The Mighty Mite pendant speaker features an integrated hanging bracket on top of the speaker enclosure, and comes with UL-listed hanging cable and a safety cable, both with integrated snap-hooks for attaching to the speaker. Each cable includes a SpeedClamp self-locking wire grip for fast and easy height adjustment.

Specifications:

Drivers:
- Woofer: 5-1/4" Polypropylene cone with rubber surround
- Mid-Bass Woofer: 4" Polypropylene cone with rubber surround
- Tweeter: 0.75" Silk dome with BroadBeam Ring
Frequency Response (+/-3dB): 62Hz - 24kHz
Frequency Response (+/-10dB): 37Hz - 27kHz
Sensitivity (1W/1M): 84dB
Maximum Program Power: 60W
Maximum Continuous RMS Power: 30W
Maximum SPL (@1M): 116dB
Coverage Angle: 115°
Tap Options:
- 70V: 3.75W, 7.5W, 15W, 30W
- 100V: 7.5W, 15W, 30W
- 8Ω: Bypass
Inputs: 4-Position ceramic terminal strip
Speaker Dimensions: Diameter: 7.50", Height: 21.90"
Weight: 14 lbs.
