SoundTube RS31-EZ-T 3" commercial weather-resistant pendant speaker (White)

Name: SoundTube RS31-EZ-T
Brand: SoundTube
SKU: 298RS31W
Price: 117.0 USD
Availability: InStock

Item # 298RS31W

The SoundTube RS31-EZ-T speaker offers a quality sound solution for rooms with high ceilings.

Stabilizing arm included

1/4

2/4

Only at Crutchfield

3/4

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

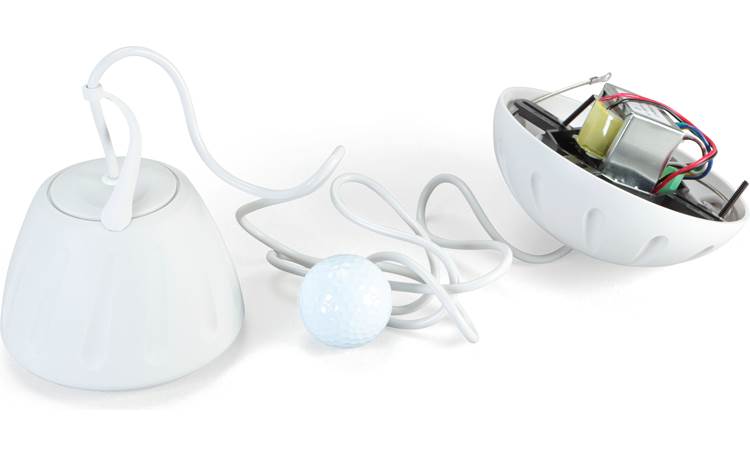

golf ball shown for scale

SoundTube RS31-EZ-T Stabilizing arm included

SoundTube RS31-EZ-T golf ball shown for scale

The SoundTube RS31-EZ-T speaker offers a quality sound solution for rooms with high ceilings.

Item # 298RS31W

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$117.00 each

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-315-2758

by Crutchfield's Eric A.

Full-range sound for rooms with high ceilings

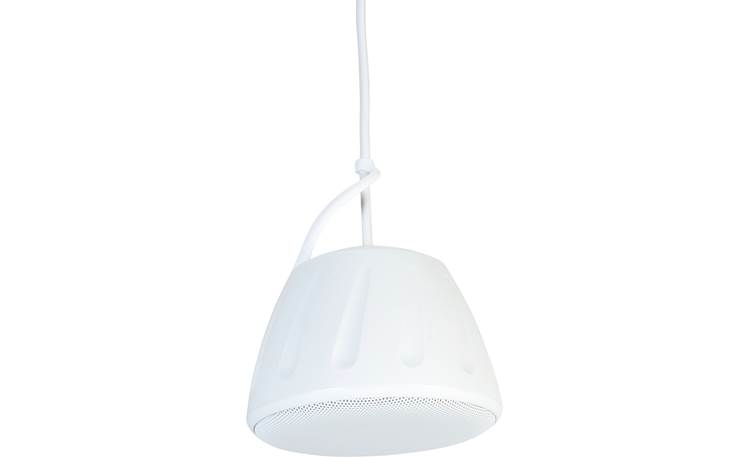

The SoundTube RS31-EZ-T speaker offers a quality sound solution for rooms with high ceilings. This compact pendant speaker features a full-range 3" driver in a ZeroReflection™ ABS enclosure, so customers seated below hear music and announcements clearly.

Mounting gear, including a 10-foot hanging cable, is included. The speaker and grille can be painted to match your decor.

DIY and save — with our help

We help businesses across the country install their own commercial A/V systems without involving costly third-party installers. Ordering is easy, and you get FREE lifetime support.

Get a free system design

1-800-315-2758

Submit a request

Product highlights:

3" full-range poly driver with butyl rubber surround
low-profile ZeroReflection™ ABS enclosure
- stabilizing arm included
built-in transformer for use with 70-volt commercial systems
- power taps at 3, 5, 10 and 20 watts
power handling: 40 watts continuous program power (when using transformer bypass)
ceramic input terminal strip with thermal fuse
70° downward coverage angle
frequency response: 170-14,000 Hz (±3dB)
maximum SPL: 98 dB
paintable powder-coated aluminum grille
mounting accessories and 10-foot cable included
diameter: 4-7/16"
height (speaker only): 4-7/16"
weight: 1.4 lbs.
warranty: 5 years
MFR # RS31-EZ-T-WH
Item # 298RS31W

What's in the box:

SoundTube RS31-EZ-T owner's manual

One pendant speaker (attached to transformer on a 101" cable)
Cover plate (attached to transformer)
Installation instructions

Researched by Crutchfield's Russ B.

Features & specs

General
Drivers Per Speaker	1
Woofer Size (inches)	N/A
Tweeter Size (inches)	N/A
System Frequency Response	170-14k
Maximum SPL	98
Number of Speakers Included	1
Power Handling
Power Rating	20
Peak Power Rating	---
70V Transformer Taps (watts)	1.3, 2.5, 5, 10
100V Transformer Taps (watts)	2.5, 5, 10, 20
8-ohm Bypass	No
Specs
Width (inches)	4-3/8
Height (inches)	5
Depth (inches)	---
Weight	1.3 lbs

Product Research

Features

Overview: The Soundtube RS31-EZ-T is a low profile pendant-mount speaker designed for 25, 70, and 100 volt applications. The speaker features a 3" full-range polypropylene driver with a butyl rubber surround housed in Soundtube's proprietary Ultra-low profile ZeroReflection ABS enclosure. The RS31-EZ-T is ideal for finished ceiling applications in retail stores, restaurants, conference rooms, educational facilities, and outdoor patio areas.

Enclosure: The RS31-EZ-T housing offers long lasting performance and durability with its Ultra-low profile ZeroReflection enclosure, constructed of injection-molded ABS along with a powder-coated aluminum grill. All components have been weatherized for indoor/outdoor applications and carry a UL1480A rating.

25/70/100 Volt: Designed for distributed systems, the RS31-EZ-T includes a 20 watt transformer housed in the mounting plate. Six terminals on a Euroblock connector provide the various tap settings for each voltage with a convenient legend identifying each. The Euroblock terminals can accept speaker wire from 22 - 14 gauge in size. The following tap settings are available with NO option for 8Ω bypass:

25V: 0.2W, 0.4W, 0.7W, 1.3W, and 2.5W
70V: 1.3W, 2.5W, 5W, 10W, and 20W
100V: 2.5W, 5W, 10W, and 20W

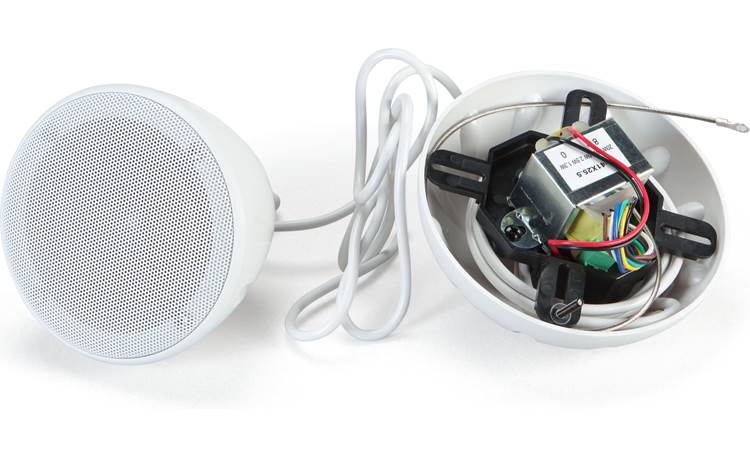

Installation: The speaker utilizes an all-in-one ceiling mount system designed to retrofit in most j-boxes. A mounting plate, with two integrated 1" screws, mounts the plate to the junction box (not included) and houses the transformer for the speaker. An 8.5' cable suspends the speaker from the mounting plate. The cable can be adjusted to the proper height at the mounting plate and all excess cable can be wrapped around the mounting plate for storage, keeping it hidden. A cover plate is provided to hide the mount, transformer, and any excess cabling. The top of the speaker includes a built-in stabilizing arm that's also clamped to the suspended cable adding extra support and strain-relief for the cable. A 12" safety cable is included on the mounting plate which gets attached to either the j-box or a ceiling stud for added safety.

Specifications:

Driver: Full-range, 3" Polypropylene with butyl rubber surround
Frequency Response (+/-3dB): 170Hz - 14kHz
Frequency Response (+/-10dB): 120Hz - 22kHz
Sensitivity (1W/1M): 85.0dB
Maximum Program Power: 40W
Maximum Continuous RMS Power: 20W
Maximum SPL (@1M): 98.0dB
Coverage Angle (-6dB @2kHz): 70˚
Tap Selector: Selectable terminal input strip (Euroblock)
Tap Options:
- 25V: 0.2W, 0.4W, 0.7W, 1.3W, and 2.5W
- 70V: 1.3W, 2.5W, 5W, 10W, and 20W
- 100V: 2.5W, 5W, 10W, and 20W
- 8Ω Bypass: None
Inputs: Terminal strip (Euroblock)
Speaker Dimensions: Diameter - 4.34", Height - 5.0" (incl. bracket)
Weight: 2.0 lbs.

Loading accessories...

1 question already asked

Can these also connect to an 8ohm amp or only 70v?

brad Jun 01, 2019

1 answer

These speakers are not compatible with 8 ohm amps. If you are looking for commercial audio speakers that can be used with such an amp, I recommend contacting an advisor on 1-800-315-2758 to get a personal recommendation.

jason Jun 13, 2019 (Staff)
