SoundTube RS500i 5-1/4" commercial weather-resistant pendant speakers (White)

Name: SoundTube RS500i
Brand: SoundTube
SKU: 298RS500WH
Price: 666.0 USD
Availability: InStock

Item # 298RS500WH

These hanging commercial speakers make a great choice for spaces with high, open ceilings.

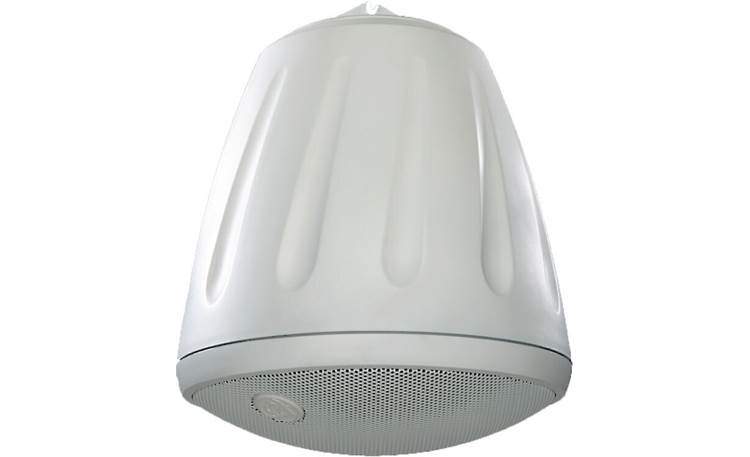

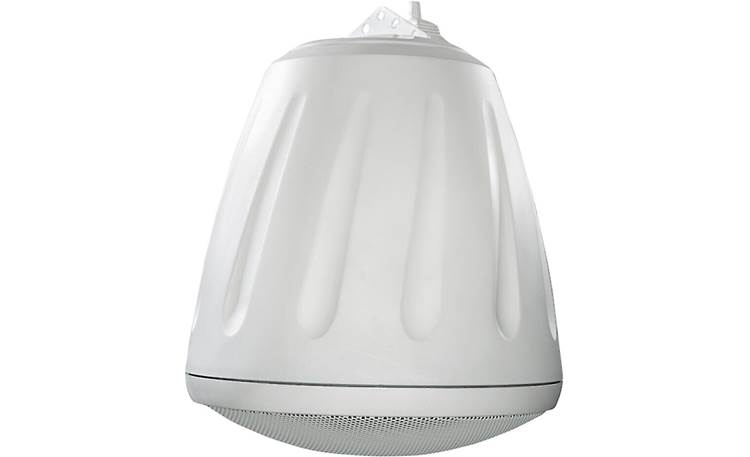

Single speaker pictured; sold in pairs

1/3

Single speaker pictured; sold in pairs

2/3

Only at Crutchfield

3/3

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

SoundTube RS500i Single speaker pictured; sold in pairs

These hanging commercial speakers make a great choice for spaces with high, open ceilings.

Item # 298RS500WH

Special order

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

$666.00 pair

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-315-2758

by Crutchfield's James Ralston

DIY and save — with our help

We help businesses across the country install their own commercial A/V systems without involving costly third-party installers. Ordering is easy, and you get FREE lifetime support.

Get a free system design

1-800-315-2758

Submit a request

Pendant-style speakers for rooms with high ceilings

For restaurants and retail spaces with high, open ceilings, pendant-style speakers like SoundTube's potent RS500i can be a handy option. These speakers include nine-foot hanging cables plus secondary cables for safety. And the speakers and hardware are weather-resistant for use in outdoor settings. Each speaker in the pair uses a 5-1/4" woofer and 1" titanium tweeter for articulate full-range sound. Patented BroadBeam® technology allows wide, even high-frequency dispersion with a coverage angle of 95°.

Built-in transformers with a range of power taps let you configure these speakers in a 70V or 100V commercial distributed audio system. Or you can bypass the transformers and power them with more traditional amplification.

Product highlights:

5-1/4" poly woofer with butyl rubber surround
1" ferrofluid-cooled convex titanium tweeter
- proprietary BroadBeam waveguide technology for consistent high-frequency dispersion
- 95° coverage angle
proprietary cast-aluminum baffle with heat sink
weatherized components for use in both indoor and outdoor settings
built-in transformer for use with 70-volt/100-volt commercial systems
- 70V taps: 3, 6, 9, 17 and 33 watts
- 100V taps: 6, 9, 17 and 33 watts
- 8-ohm transformer bypass
handles up to 150 watts program power
frequency response: 87-22,000 Hz (±3dB)
maximum SPL: 105.5 dB
steel grilles with powder-coat finish
pendant mounting accessories included
- 10-foot hanging cables plus secondary safety cables
diameter: 9-3/4"
height (speaker only): 11-5/8"
weight: 9.5 lbs. (each)
warranty: 5 years
MFR # RS500I-WH
Item # 298RS500WH

What's in the box:

SoundTube RS500i owner's manual

Two 70/100V 5.25" pendant speakers (white)
Four 10' steel suspension cables
4 Gripple wire hangers (SpeedClamps)
Two 4-pin Euroblock connectors
2 Rubber connector boots
Ten 4" wire ties
8 Wire clips
Installation instructions

Researched by Crutchfield's Russ B.

Features & specs

General
Drivers Per Speaker	2
Woofer Size (inches)	5.25
Tweeter Size (inches)	1
System Frequency Response	87Hz-22kHz
Maximum SPL	105.5
Number of Speakers Included	2
Power Handling
Power Rating	75
Peak Power Rating	---
70V Transformer Taps (watts)	3W, 6W, 9W, 17W, 33W
100V Transformer Taps (watts)	6W, 9W, 17W, 33W
8-ohm Bypass	Yes
Specs
Width (inches)	9-3/4
Height (inches)	11-5/8
Depth (inches)	---
Weight	9.5 lbs

Product Research

Features

Overview: The Soundtube RS500i is a pendant-mount speaker (x2) designed for 25, 70, and 100 volt applications. The speaker features a 5-1/4" polypropylene woofer with a butyl rubber surround, and a 1" convex titanium tweeter housed in an ABS enclosure. The tweeter features Soundtube's BroadBeam waveguide technology for consistently smooth high frequencies. The RS500i speakers are ideal for open ceiling applications in retail stores, restaurants, educational facilities, and outdoor patio areas.

ZeroReflection Enclosure: The RS500i housing offers long lasting performance and durability with its injection molded ABS enclosure with glass fiber reinforcement, along with a powder-coated aluminum grille, both of which are paintable. The patented ZeroReflection ported enclosure offers exceptional rigidity for optimal sound reproduction. All of the speaker components have been weatherized for indoor/outdoor applications and carry UL1480 ratings and are CE and MIL Spec approved.

25/70/100 Volt: Designed primarily for distributed systems, the RS500i includes a 33 watt transformer housed inside the speaker enclosure. Wiring for each enclosure is made through a removable 4-pin Euroblock connector on top of the speaker that can accept speaker wire from 22-14 gauge in size. One pair of terminals is provided for the input while the other pair of paralleled terminals can be used for daisy-chaining multiple speakers. A rotary tap dial can easily be accessed from the grille side of the speaker by removing a small rubber plug. The following tap selections are provided, along with an 8-ohm bypass:

25V: 0.63W, 1.3W, 2.5W, 5W
70V: 3W, 6W, 9W, 17W, 33W
100V: 6W, 9W, 17W, 33W
Bypass: 8-Ohms

Installation: The pendant speaker is designed to be suspended using the included 10' galvanized steel cable suspension system. The top of the speaker housing contains the suspension point for the main cable as well as additional slots for attaching the provided safety cable. Two Gripple (SpeedClamp) wire hangers are included that allow the suspension cable length to be easily adjusted.

Specifications:

Driver: 5.25" Coaxial
Woofer: Polypropylene cone with butyl rubber surround
Tweeter: 1" Convex titanium
Frequency Response (+/-3dB): 87 Hz - 22 kHz
Frequency Response (+/-10dB): 61 Hz - 22 kHz
Sensitivity (1W/1M): 86.5 dB
Maximum Program Power: 150 W
Maximum Continuous RMS Power: 75 W
Maximum SPL (@1M): 105.5 dB
Coverage Angle (Average 2-10 kHz): 95°
Inputs: 4-Pin Euroblock
Speaker Dimensions: Diameter: 9.694", Height: 11.625"
Weight: 9.5 lbs. (each)
