SoundTube SM52-EZ-WX

Features

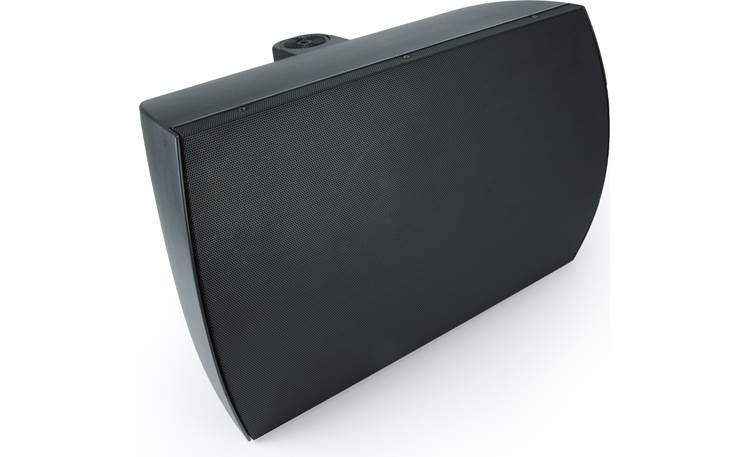

Overview: The Soundtube SM52-EZ-WX is a commercial 25/70/100 volt surface-mount speaker featuring a 5.25" coaxial driver mounted in a weather-resistant enclosure that's designed for both indoor and outdoor applications. The commercial speaker includes a versatile mounting bracket that allows the speaker to be mounted vertically or horizontally with precise aiming adjustment. A full frequency dispersion pattern and high driver sensitivity provide superb intelligibility for foreground and background music and messaging. The SM52-EZ-WX surface-mount speaker is ideal for retail and amusement applications, airports, hotels, schools, casinos, and more.

Two-Way Driver Design: The SM52-EZ-WX features a 5.25" woofer, with polypropylene cone and butyl rubber surround, and a coaxially mounted 1" soft dome tweeter with waveguide. Utilizing Soundtube's BroadBeam Ring technology, the speaker can provide enhanced midrange clarity and an ultra-wide dispersion pattern up to 10kHz for maximum coverage area per speaker.

Weather-Proof Enclosure: The SM52-EZ-WX is part of  Soundtube's WX (Weather Extreme) series speakers, featuring weather-proof drivers, a sealed enclosure, and stainless steel components. The ported enclosure is constructed of  injection-molded, high-impact Polystyrene (HIPS) with a powder-coated aluminum grille. A port plug is pre-installed in the enclosure giving it an IP65 weather-proof rating for outdoor use. The port plug can be removed for indoor use, providing a deeper bass response.

Note: The port plug must be installed to maintain the speaker's IP65 outdoor rating.

Multi-tap Transformer: The SM52-EZ-WX features a built-in 32 watt multi-tap transformer for 25-, 70-, or 100-volt installations. There is also an 8Ω bypass position for installations that do not require a transformer. Tap settings are made using the rear-panel rotary switch. A rear cover plate and conduit connector are provided to maintain weather-proof integrity. Tap settings include the following:

• 25 Volt: 0.3W, 0.5W, 1W, 2W, and 4W
• 70 Volt : 2W, 4W, 8W, 16W, and 32W
• 100 Volt: 4W, 8W, 16W, and 32W
• Bypass Setting: 8-Ohm nominal

Terminal Strip: A 4-position ceramic terminal block is provided for wiring connections. One set of terminals provides the signal input while the other set provides a paralleled pass-thru for daisy-chaining multiple speakers. Each terminal can accommodate speaker wire up to 8-gauge in size and includes a set-screw to hold the wire firmly in place.

Mounting Bracket: The SM52-EZ-WX includes a U-bracket that allows the speaker to be mounted vertically or horizontally to a flat surface. The U-bracket also provides a wide tilt-range for precise aiming of the speaker. A 10" safety cable is also provided.

Specifications:

• Speaker Type: Coaxial, surface-mount, ported or sealed
• Woofer: 5.25" Polypropylene cone with butyl rubber surround
• Tweeter: 1" Soft dome with waveguide
• Impedance (nominal): 8Ω
• Sensitivity (1W @ 1M): 83dB
• Frequency Response (-3 dB): 80Hz - 20kHz
• Frequency Response (-10 dB): 62Hz - 22kHz
• Maximum Program Power: 100W
• Maximum Continuous Power: 50W
• Maximum SPL: 100dB
• Coverage Angle (-6dB @ 2kHz): 90˚ horizontal / 120˚ vertical
• Coverage Angle (-6dB @ 10kHz): 70˚ horizontal / 110˚ vertical
• Coverage Angle (Avg. 2 to 10kHz): 95˚ horizontal / 100˚ vertical
• Crossover Frequency: 3.5kHz
• Tap Settings:
  • 25 Volt: 0.3W, 0.5W, 1W, 2W, 4W
  • 70 Volt: 2W, 4W, 8W, 16W, 32W
  • 100 Volt: 4W, 8W, 16W, 32W
  • 8Ω: Bypass
• Enclosure Material: Injection-molded, high-impact Polystyrene (HIPS)
• Grille: Aluminum with powder-coat finish
• Inputs: 4-Position ceramic terminal block
• Speaker Dimensions: Width: 7.69", Height: 11.94", Depth: 6.66" / 8.91" (w/ bracket installed)
• Weight: 7.4 lbs.
