Features
Connections, Controls, and Indicators
Specifications

Features

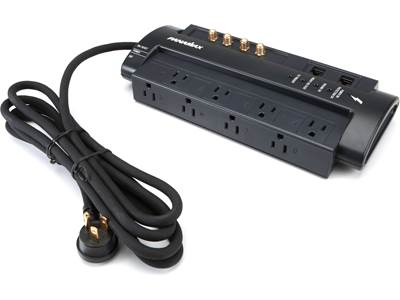

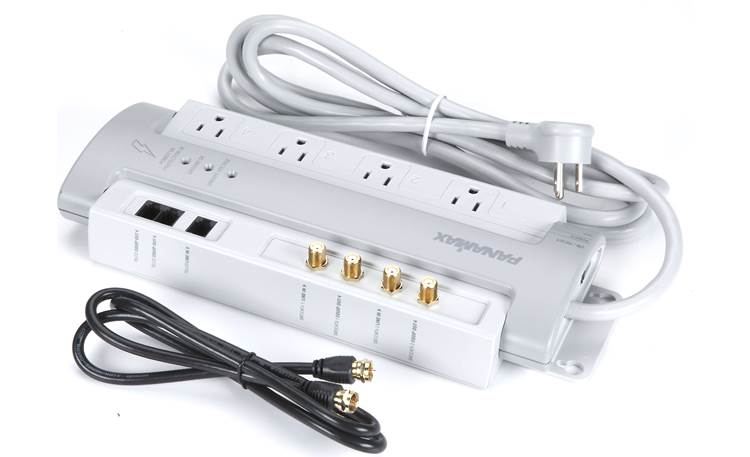

Overview: The Panamax M8-AV Surge Protector features 8 AC outlets controlled by the unit's power switch. The M8-AV also provides protection for coaxial and telephone connections. In addition, this surge protector is equipped with 3 diagnostic LEDs.

AVM Automatic Voltage Monitoring: The Panamax M8-AV utilizes an AVM (Automatic Voltage Monitoring) system to protect your connected equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns. The Panamax M8-AV will protect your AV system from catastrophic surges.

Lifetime $5,000,000 Connected Equipment Warranty: Panamax will replace or repair equipment that is damaged by an AC or signal line surge while connected to a properly installed Panamax surge protector (up to $5,000,000).

8 AC Outlets: The 8 AC outlets provide power protection with transformer spacing between outlets.

Power Cord: The surge protector features an attached 8 ft power cord with a right-angle, 45-degree offset three-prong plug.

Mounting: The Panamax M8-AV Surge Protector can be placed on the floor, on a shelf, or inside a cabinet. The M8-AV can also be wall-mounted using the integrated wall-mount brackets, key-hole slots, and supplied hardware.

Connections, Controls, and Indicators

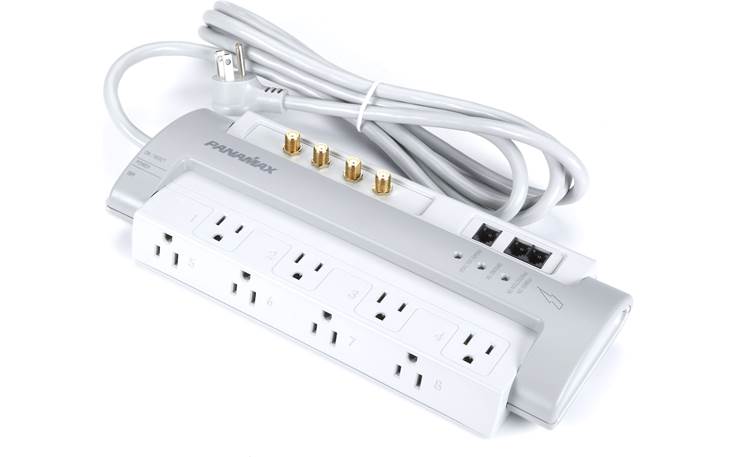

AC Outlets:

• Bank 1: The four AC outlets along the top (numbered 1 to 4).
• Bank 2: The four AC outlets along the side (numbered 5 to 8).

Input/Output:

• SAT/CATV: 2 Coaxial line inputs and 2 coaxial line outputs (gold-plated, threaded, female F-Connectors).
• Telephone: One telephone line input and two telephone outputs (RJ-11 connection).

Controls:

• On/Off Switch: Turns all the outlets On and Off.

Indicators:

• Power On/Protection OK: Green LED, indicates the surge protector is functioning properly and all equipment is protected.
• Ground OK: Green LED, indicates the wall outlet is properly wired and grounded.
• Unsafe Voltage: Red LED, indicates that incoming voltages are unsafe and the surge protector has disconnected the power to your connected equipment.

Specifications

• AC Specification:
  • Overvoltage Shutoff: 144V +/-8V
  • Undervoltage Shutoff: 90V +/-6V
  • Line Voltage: 120VAC, 50/60Hz
  • Initial Clamping Level: 200V Peak, 141V RMS,
  • Voltage Protection Rating (UL1449 3rd Edition, 3000A): 500V
  • Protection Modes: L-N, L-G, N-G
  • Maximum Current Rating: 15A (1800W)
  • EMI/RFI Noise Filtration: 50dB (100kHz-1MHz)
  • Response Time: <1ns
  • Single Pulse Energy: 1650 Joules
  • Peak Impulse Current: 52,000 A
• Telco Protection:
  • Clamping Level: 260V
  • Capacitance: 30 pf (approximate)
  • Suppression Mode: Metallic and Longitudinal
  • Wire Protected: 2-wire, 1-pair (3,4)
  • Connectors: RJ-11
• Universal Cable/Satellite Protection:
  • Clamping Level: 75V
  • Frequency Range: 0MHz-2.2GHz
  • Insertion Loss: <0.5dB
  • Connections: Female "F"-type, gold-plated
