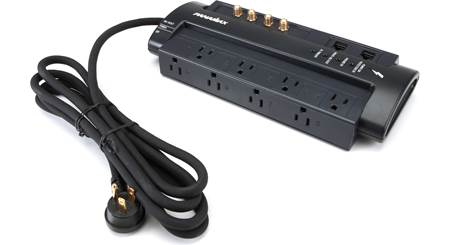

About the Panamax Power360 P360-8
Product highlights:
- 8 protected AC power outlets
- Protect or Disconnect™ circuitry
- SmartGuard technology offers active over/under voltage monitoring
- Circle Of Protection LED display lets you easily monitor protection, wiring and voltage status
- EMI/RFI noise filtering for clean power
- two detachable USB charging modules with included 6' cables for convenient USB charging
- each 2.1A capacity USB module can charge two phones simultaneously or one tablet
- 1 set of coaxial RF input/output connectors for cable TV or antenna connections
- 1 set of phone input/output jacks
- 6-foot power cord with right-angle plug
- 1620-joule protection
- maximum current rating: 15 amps
- 12-1/2"W x 2-1/4"H x 3-3/4"D
- weight: 5 lbs.
- warranty: lifetime
- lifetime $500,000 connected equipment warranty (covers equipment damaged by an AC or signal line surge while connected to properly installed Panamax surge protector); valid only in the United States and Canada
- MFR # Power 360-8
- Item # 299P3608OT
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Panamax Power360 P360-8 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Surge protector/USB charging station with attached 6' power cord and right-angled plug
- Modular charging station
- Two 6' microUSB-to-USB cables
- 2 Rubber pads
- Instruction Manual
More details on the Panamax Power360 P360-8
Features & specs
| Type | Strip | |
| Total AC Outlets | 8 | |
| Total Current Capacity | 15 | |
| High-Current Outlets | None | |
| USB Connections | 4 USB-A | |
| Coaxial RF Jacks | Yes | |
| Line Conditioning | Yes | |
| Joule Rating | 1620 | |
| Powerline Network Compatible | No | |
| Connected Equipment Guarantee | $500,000 | |
| Width (inches) | 12-1/2 | |
| Height (inches) | 2-1/4 | |
| Depth (inches) | 3-3/4 | |
| Weight (pounds) | 5 | |
| Parts Warranty | Lifetime | |
| Labor Warranty | Lifetime | |
Product Research
Features
8 AC Outlets: The Panamax P360-8 is equipped with 8 surge protected 3-prong AC outlets, controlled via a power on/off switch.
Surge Protection: The Panamax P360-8 provides protection of your connected devices through Protect-or-Disconnect + SmartGuard technology.
- Protect-or-Disconnect: The Panamax P360-8 keeps your electronics safe from power spikes by disconnecting load in a catastrophic event.
- SmartGuard: SmartGuard protects against brownouts and dangerous
over-voltage conditions. It disconnects the power when
the incoming voltage falls below 95 Volts or rises above 140 Volts. Then it reconnects when the voltage returns to a safe level.
LED Indicators: Three LED indicators monitor the outlet wiring, voltage, and protection status. These LEDs can be switched off.
- Protected: This BLUE LED indicates that the P360-8 is functioning properly and that all connected equipment is protected. If the LED is off, this indicates that the power is disconnected from the outlets or that the switch is in the off position. If this light is off, but the Voltage light is illuminated Blue, then the Protect-or-Disconnect feature in the P360-8 has protected your equipment from a catastrophic surge event and disconnected power.
- Wiring: This Blue LED indicates that the wall outlet is properly wired and grounded. When this LED is Red, it indicates an open ground (no ground wire) or reverse wiring (polarity) condition is detected.
- Voltage: A Blue LED indicates that incoming voltage is within a safe range. When the LED is RED, this indicates an over-voltage or brownout condition and that P360-8 has been disconnected power to connected equipment to keep it safe. The P360-8 will automatically reset when voltage is back within a safe range.
RFI/EMI AC Filtering: The Panamax P360-8 provides AC noise filtering to reduce radio frequency and electromagnetic interference.
Signal Line Protection: Universal coaxial (RF in/out) and telco/DSL (RJ-11 in/out) protection prevents signal lines from carrying damaging electrical surges while maintaining full high-definition video and high speed internet signals to your equipment.
Modular Charging Stations: The P360-8 features two modular charging stations that are each fitted with two USB (type-A) ports for charging smartphone and tablet devices. With a total of four USB charging ports, you can charge four devices simultaneously at 1A maximum for each, or charge two devices at 2A maximum for each. These patent-pending modular charging stations can be removed from the surge protector and placed on your desk top or tabletop using the included two 6' micro-USB to USB cables. This allows you to place the surge protector on the floor, while the modular charging stations can rest on your table or desk.
Power Cord: The surge protector features an attached 6 ft power cord with a right-angle, 45-degree offset three-prong plug.
Warranty: The P360-8 has a lifetime product warranty plus a $500,000 connected equipment protection policy. Click here for full warranty details and restrictions.
The Panamax Power360 P360-8 replaces these items:
- 6 protected AC outlets
- Circle Of Protection LED display lets you easily monitor protection, wiring and voltage status
- one set of coaxial RF inputs and outputs, one phone input and output, and dual USB charging ports on a detachable module
