Hertz CK 165 F Cento Series 6-1/2" flat-profile component speaker system

Item # 301CK165F

Thanks to a special 6-1/2" flat-profile woofer design, the Cento Series sound is a fit in more...

Find what Fits your vehicle

Remove

Checking fit...

Thanks to a special 6-1/2" flat-profile woofer design, the Cento Series sound is a fit in more...

Item # 301CK165F

Every order includes

  • Free lifetime tech support
  • 60-day price-drop protection
  • 60-day returns

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

About the Hertz CK 165 F

Alexander H.

Product highlights:

  • component speaker system
  • package includes two flat-profile woofers, two tweeters, and two crossovers
  • 6-1/2" semi-pressed paper woofer with mica powder coating

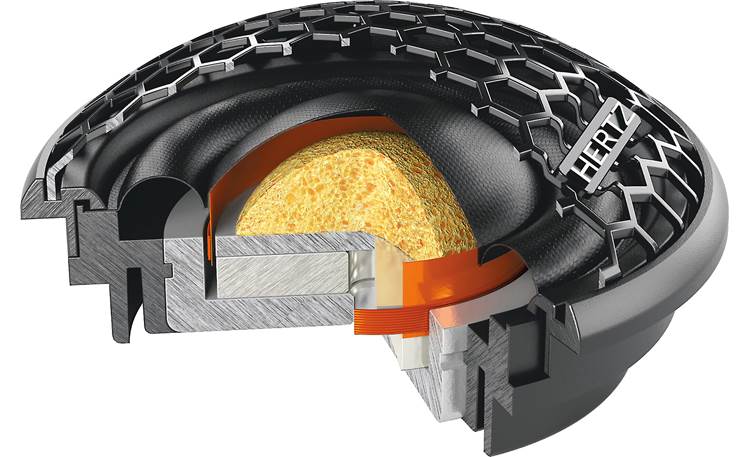

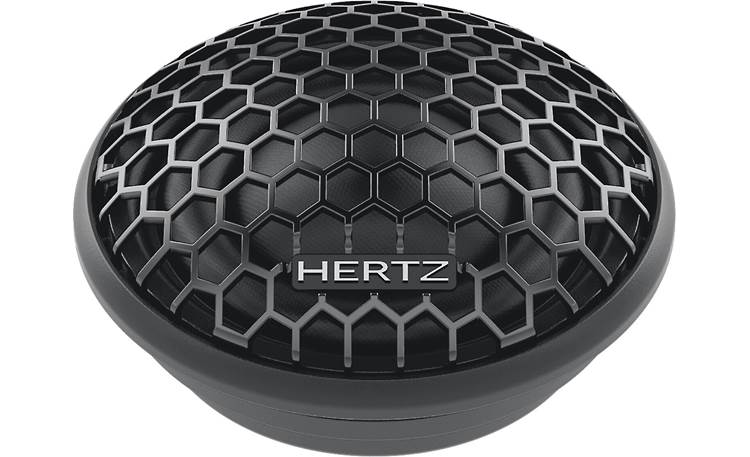

  • 1" Tetolon dome tweeter
  • 2-way crossover (2500 Hz at 12 dB per octave)
  • handles up to 90 watts RMS (270 watts peak power)
  • frequency range: 65-22,500 Hz
  • sensitivity: 93 dB
  • woofer mounting depth: 1-3/4"
  • woofer grilles included
  • warranty: 2 years
  • MFR # CK 165F
  • Item # 301CK165F

What's in the box:

Hertz CK 165 F owner's manual

If you need assistance accessing this owner's manual, please give us a call.
  • Two C 165 F Woofers
  • Two C 26 Dome tweeters (with attached 9" length of speaker wire)
  • Two CCX 2 Crossover networks
  • 2 Tweeter flush mount clamps
  • 2 Angled surface mount housings
  • 2 Woofer grilles
  • Two M3x4.5mm Machine screws
  • Eight 3/4" Screws (large head)
  • Eight 3/4" Screws (small head)
  • Four 5/8" Flat head screws
  • 8 Large speed clips
  • 4 Small speed clips
  • Owner's manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 28 Others)
  • Templates on box

More details on the Hertz CK 165 F

Pat M.

Features & specs

General
Speaker Size 6 1/2
Driver Design 2-way
Woofer Design Cone
Woofer Material Semi-Pressed Paper reinforced with Mica
Woofer Surround Rubber
Midrange Design ---
Midrange Material ---
Tweeter Design 1" Dome
Tweeter Material Tetolon
Super Tweeter Design ---
Super Tweeter Material ---
Impedance (Ohms) 4
Weather-resistant No
Grilles Included Black steel mesh, Gray plastic frame
Parts Warranty 2 Years
Labor Warranty 2 Years
Specifications
Sensitivity (1W at 1 meter) 93
Sensitivity at 2.83 volts N/A
Frequency Response 65 - 22.5k Hz
Maximum RMS Wattage 90
Peak Power Handling (Watts) 270
Top-mount Depth (Inches) 1 3/4
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 5 7/16
Mounting Height (Inches) 0.282
Frame Width 6.507
Frame Length 6.507

Product Research

Features

Size Classification Note: Some manufacturers, including Hertz, call this size woofer a 6½". Because it requires a larger cutout than a standard 6½" speaker, Crutchfield has traditionally referred to this size speaker as a 6¾". Please enter your vehicle information to confirm fit.

Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and computer software to do large-scale analysis of drivers in motion, helps Hertz optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

Tweeter Mounting: Brackets are included for flush mounting and angled surface mounting (60° or 30°) the tweeters.

Note: We've found some Hertz speakers with the wrong size tweeter template on the box. Before cutting, make sure the template has the correct diameter.

Tweeter Mounting Dimensions:

  Flush Mount 60° Angled Surface Mount 30° Angled Surface Mount
Mounting Height 0.436" 1.375" 1.735"
Depth 0.46" N/A N/A
Frame Diameter 1.728" N/A N/A
Cutout Diameter 1.514" N/A N/A
Frame Width N/A 1.745" 1.745"
Frame Depth N/A 1.735" 1.375"

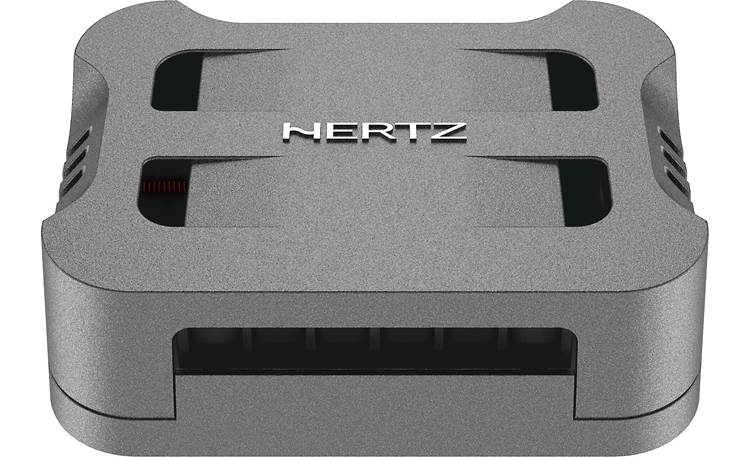

Crossovers: Each crossover has a tweeter output level switch; choose between 0dB (flat) and +3dB. The crossover point is 2.5 kHz and the slope is 12 dB/octave (low pass and high pass). The inputs and outputs are screw terminals that will accept bare wire or spade connectors up to 0.315" wide. The woofer has quick slide terminals, so crimp-on terminals can be added (item number 120FQS10PK, sold separately) to provide the needed terminals.

Crossover Dimensions:

  • Width: 4"
  • Height: 1⅜"
  • Depth: 3"
