RCF SUB-8003-AS-MK3 18" powered PA subwoofer — 2,200W peak

Name: RCF SUB-8003-AS-MK3
Brand: RCF
SKU: 303SB803M3
Price: 2299.0 USD
Availability: InStock

Item # 303SB803M3

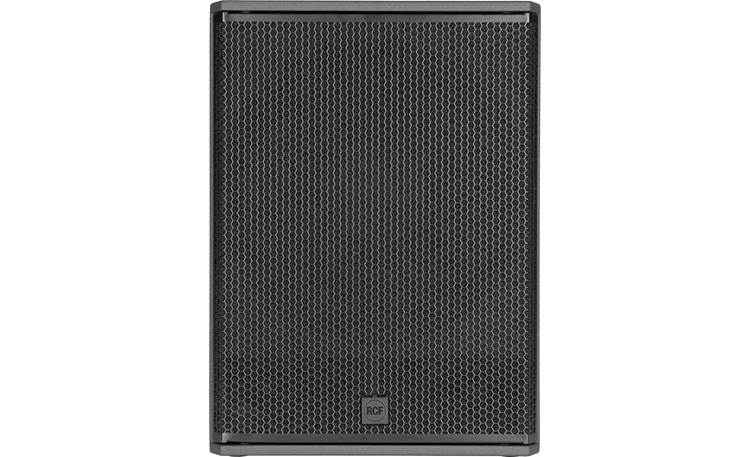

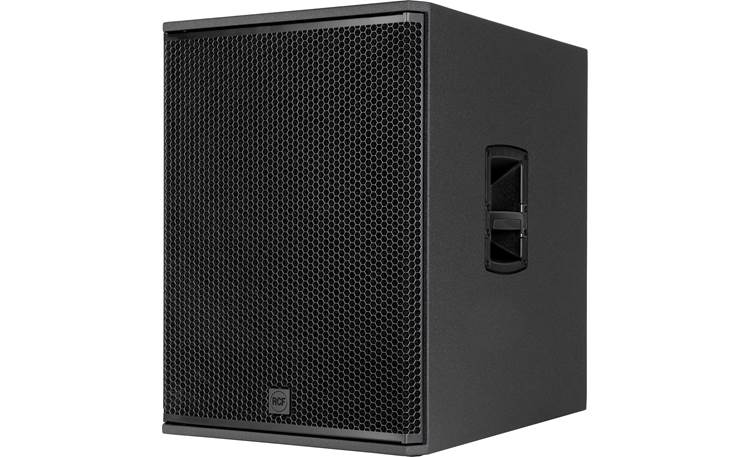

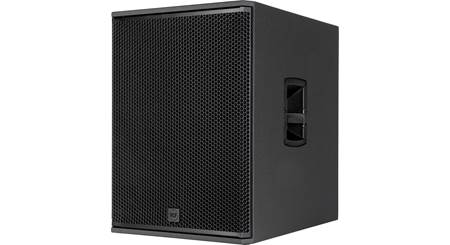

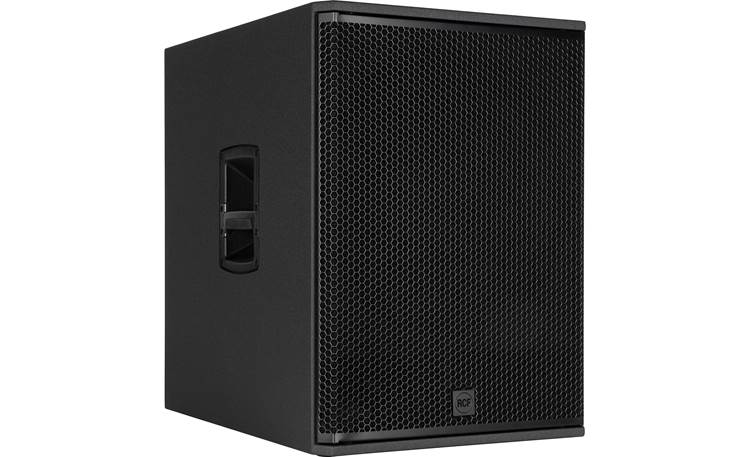

This RCF powered sub features an 18" woofer with a built-in amp that puts out up to 2,200 watts peak power.

Front

1/8

2/8

Only at Crutchfield

3/8

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

This RCF powered sub features an 18" woofer with a built-in amp that puts out up to 2,200 watts peak power.

Item # 303SB803M3

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$2,299.00 each

Add to cart

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-555-9369

by Crutchfield's Charlie Pastorfield

Low-frequency punch

Any soundperson will tell you — the low frequencies are what get the show rolling. RCF's SUB-8003-AS-MK3 powered sub combines an 18" woofer in a heavy-duty ported cabinet with a built-in amp that puts out up to 2,200 watts of power, a union that supplies an impressive 135 dB low-end punch. Adding a pair of these powerhouse subs to your powered speakers will transform a good sound system into a full-range firebreather.

The lowest lows

Bass Motion Control processing allows the specially designed 18" woofer with its 4" voice coil to produce impressive bass without distortion. Instead of using high-pass filters that can cause phase problems with other speakers, RCF's processing maps the cone's behavior and produces an algorithm that limits cone over-excursion, allowing it to handle even the lowest lows. Your audience will hear and feel the bass it craves.

Seriously versatile control

The rugged birch plywood cabinet is protected by a textured black finish. On the back panel, you'll find stereo XLR inputs and outputs, along with a rotary encoder and a small screen. With this system setup encoder, you can access these functions and adjustments:

input gain reduction to control level (up to 99 dB reduction in 1 dB increments);
speaker delay settings to ensure this sub fires along with your main speakers (up to 20 meters);
speaker presets — extended low, hard (more pressure at 50-60 Hz), cardioid.

The cardioid configuration pattern under Speaker Presets is useful for keeping the bass out front when you're running multiple subwoofers. Another switch lets you choose between sending a full-range signal to your powered speakers or using a high-pass filter to remove the low bass from your mains, allowing them to play louder and cleaner.

Built tough

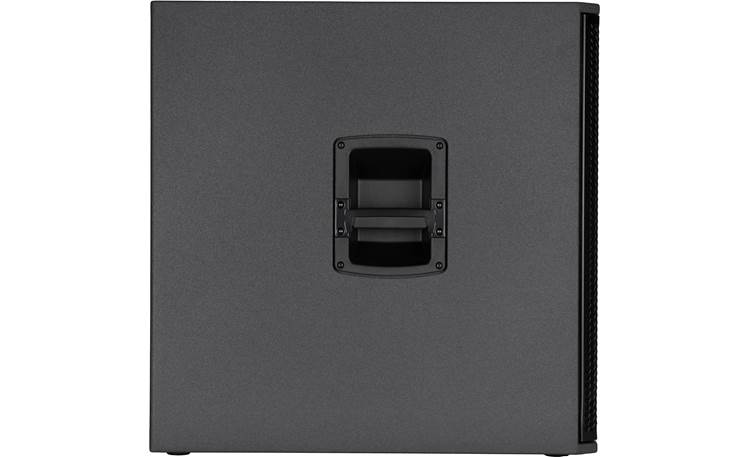

The heavy-duty cabinet is protected by a scratch-resistant polyurea coating. Two handles make it easy to move this powerful sub, and the pole-mount socket handles the standard speaker pole. This sub will add the bass you need to play or host successful gigs in larger clubs, halls, theaters, and other venues.

Product highlights:

powered PA subwoofer with 18" woofer
built-in amplifier: 1100 watts RMS, 2200 watts RMS
maximum output level: 135 dB SPL
frequency range: 35-120 Hz
Bass Motion Control — advanced processing limits woofer over-excursion and eliminates high-pass filter

Controls and connections:

two XLR balanced inputs
two XLR outputs
Powercon input and output for AC power
rear controls: high-pass filter on outputs (80, 120 Hz); rotary encoder and screen
rotary encoder access these functions and adjustments:
- input gain reduction (up to 99 dB reduction)
- speaker delay settings (up to 20 meters)
- speaker presets (extended low, hard, cardioid)

Box:

powder-coated metal grille
M20 threaded pole-mounting socket for PA speaker, plus two handles for easy transport
dimensions: 27.28"H x 19.88"W x 26.97"D
weight: 95.24 pounds
warranty: 3 years
MFR # SUB-8003AS-MK3
Item # 303SB803M3

What's in the box:

RCF SUB-8003-AS-MK3 owner's manual

One 18" powered PA subwoofer

Researched by Crutchfield's Russ B.

Features & specs

Speakers
Drivers per speaker	1
Woofer Size (inches)	18
Tweeter Size (inches)	---
System Frequency response	35-120 Hz
Maximum SPL	135
Electronics
Built-in Amplifier	Yes
RMS Power rating	1100
Program Power rating	---
Peak Power rating	2200
Mic Inputs	0
Line Inputs	(2) XLR
Tone Controls	EQ presets via DSP
General
Width (inches)	19-15/16
Height (inches)	27-5/16
Depth (inches)	27
Weight	95.24 lbs

Product Research

Features

Overview: The RCF SUB 8003-AS Mk3 is a powered 18" PA subwoofer designed for live sound applications, featuring a heavy-duty state-of-the-art transducer and a powerful 2200-watt (peak) Class-D amplifier. It features two balanced XLR inputs, with linked full-range or filtered pass-thru connectors, and built-in DSP, making it an ideal complement for 10" and 12" full-range loudspeakers. The SUB 8003-AS Mk3 is built specifically for highly demanding live/touring applications.

18" Subwoofer: The RCF SUB 8003-AS features a single high-power 18" transducer with a 4" voice coil that can deliver sound pressure levels up to 135 dB.

2200W Peak Class-D Amplification: The RCF SUB 8003-AS Mk3 features a built-in Class-D amplifier that can deliver up to 2200-watts of dynamic power (1100W RMS) to the 18" driver. The amp is designed to manage extreme sound pressure levels while providing an ultra-fast attack, realistic transient response, and very low thermal loss. A solid aluminum heat sink attached to the amplifier provides excellent heat dissipation without the need for an internal cooling fan.

Rugged Enclosure: The SUB 8003-AS Mk3 bass reflex enclosure is constructed of high-quality, multi-ply hardwood and coated in a rugged polyurea finish. A rugged powder-coated metal grille protects the driver and features a transparent foam backing to protect against dust and humidity. Two carry-handles with rubber grips built into the sides of the cabinet are provided for transport. The SUB 8003-AS Mk3 weighs 95.24 lbs.

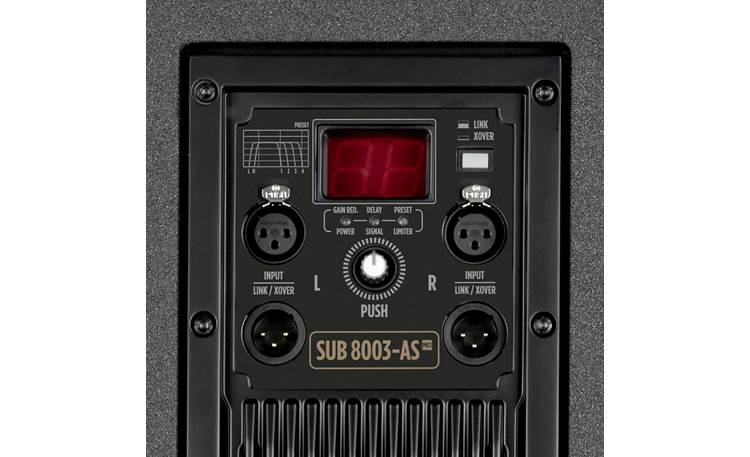

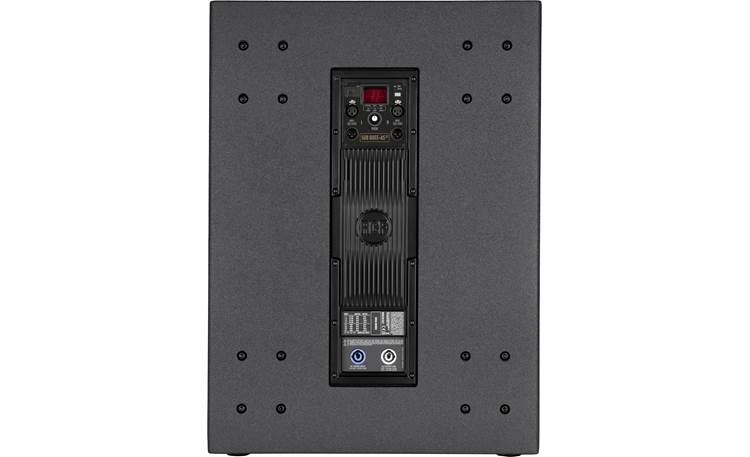

Rear Control Panel: All of the SUB 8003-AS Mk3 connections and settings are made on the rear panel.

Dual XLR Inputs: Two balanced XLR inputs provide L and R inputs, both accepting line-level signals.
Link/Xover Outputs: Each of the two input jacks includes a corresponding balanced XLR Link/Xover Output that can pass the input signals out to additional powered speakers. The pass-thru signals will be unfiltered when the Link/Xover Out Switch is Off, and filtered with the switch On; DSP high/low-pass filtering can be applied to each input and output in the System Setup Display.
Link/Xover Out: A push-button control lets you select Link (unfiltered signal) or Xover (filtered) for the corresponding XLR outputs.
System Setup Display & Rotary Encoder: A rear-panel LCD screen and corresponding Rotary/Push Encoder let you access and adjust the following DSP settings:
- Gain Reduction: Lets you reduce the input signal level; reduction is in 0.1 dB steps for the first 10 dB, then in 1 dB steps; maximum reduction is 99 dB.
- Delay: Applies a delay the output signal of the subwoofer - expressed in meters; delay can be adjusted in 0.1 m steps for the first 10 m, then in 1 m steps; maximum delay is 20 m.
- Preset (Xover): Preset high/low crossover settings can be applied to the input and pass-thru signals, available in 3 categories of Presets; the first value indicates the low-pass crossover point and the second indicates the high-pass crossover point:
  - Extended Low (extended and linear frequency response):
    - L1: 30 Hz/ 60 Hz
    - L2: 30 Hz/ 80 Hz
    - L3: 30 Hz/ 100 Hz
    - L4: 30 Hz/ 125 Hz
  - Hard Presets (response not as extended; boost applied at 50-60 Hz):
    - H1: 40 Hz/ 60 Hz
    - H2: 40 Hz/ 80 Hz
    - H3: 40 Hz/ 100 Hz
    - H4: 40 Hz/ 125 Hz
  - Cardioid Presets: L Presets; used in combination with one or two additional SUB 8003-AS Mk3 subwoofers (applies a 30 Hz high-pass filter and a selectable low-pass filter):
    - C1: 30 Hz/ 60 Hz
    - C2: 30 Hz/ 80 Hz
    - C3: 30 Hz/ 100 Hz
    - C4: 30 Hz/ 125 Hz
LED Indicators:
- Gain Reduction/Power: Lights Green when the subwoofer is connected to AC power via the PowerCon input, and when Gain Reduction is activated.
- Delay/Signal: Lights Green if there is an audio signal present on either XLR input, and when Delay is activated.
- Preset/Limiter: Lights Green when the Presets menu is activated; lights Red if the built-in limiter circuit is activated due to clipping or distortion; the limiter indicator can blink occasionally, but should not be lit solid (input signal should be lowered).

Pole Receptacle: The RCF SUB 8003-AS Mk3 features a threaded M20 pole receptacle for mounting an optional full-range PA cabinet (sold separately) on top of the subwoofer.

Power: The SUB 8003-AS Mk3 powered subwoofer requires AC power for operation and features a PowerCon AC power input with a corresponding PowerCon Link Output for powering additional speakers.

Specifications:

Driver: 18"
Power: 1100 W RMS (2200 W peak)
Frequency Response: 35 Hz-120 Hz
Maximum SPL: 135 dB
Amplifier Type: Class-D
Inputs: (2) Female XLR (balanced, line-level)
Outputs: (2) Male XLR (balanced, line-level)
Dimensions: 19.88"(w) x 27.28" (h) x 26.97" (d)
Weight: 95.24 lbs.
