Video Features

HyperReal Picture Engine: The Samsung FHD TV utilizes Samsung's HyperReal Picture Engine with additional proprietary technologies to achieve an optimized high-definition picture.

• 1080p Resolution: The Samsung FHD TV is outfitted with two HDMI 2.0 inputs. The TV's HDMI inputs will support 1080p (24/60Hz), 1080i, 720p, 480p and 480i video signals. All video signal are upscaled and displayed at 1080p. This TV does not contain analog composite or component video inputs.
• Micro Dimming Pro: Micro Dimming Pro Technology enhances the picture quality of Samsung TV by analyzing each frame of video to optimize the LED backlight and video signal in real-time.
• PurColor: PurColor allows the TV to express most shades of color as nature intended for optimal picture performance. Most TV's focus on the adjustment points of primary colors Red, Green and Blue. PurColor focuses on primary and secondary colors Magenta, Cyan and Yellow. You'll witness a wider spectrum of colors on the TV screen, just like the director intended. You'll enjoy enriched colors while watching your favorite movies, and shows, even if it's older, non-HD content.
• Motion Rate 60 w/ Auto Motion Plus: The Samsung Full HD TV features a native refresh rate of 60Hz.

Mega Contrast HDR: The Samsung Frame TV features the ability to provide a premium High Dynamic Range (HDR) experience, with a higher level of contrast between light and dark images. HDR delivers a much higher level of contrast between light and dark to produce an image that is more realistic and closer to what the content creator imagined. This increased contrast reveals the subtle nuances of the image, from detailed blacks and shadows to the brightest whites and colors, plus greater depth.

• HDR10: HDR10 is an open standard and currently the most popular HDR format on the market. It supports 10-bit color and 1,000 nits. It uses static metadata at the start of a movie to tell the receiver and your TV that the video content is encoded using HDR.
• HDR10+: Samsung Electronics and Amazon Prime Video announced the entire Prime Video HDR library is now available in HDR10+, a new open standard that leverages dynamic metadata to produce enhanced contrast and colors on an expanded range of televisions. Prime Video is the first streaming service provider to deliver HDR10+ content to its users. The HDR10+ technology on Prime Video incorporates dynamic metadata that allows the Samsung Frame TV to adjust brightness levels on a scene-by-scene or even frame-by-frame basis. By applying individualized tone mapping to each scene, HDR10+ delivers an incredible viewing experience. The picture quality offers an enhanced visual experience with more detailed expressions, brighter shadow areas and more accurate color renderings that stay true to the creator's original intent.

Picture Controls: You can make the following adjustments for an optimum picture. The TV's picture adjustments can be made for a particular AV input or for all inputs.

• Picture Modes: Picture Modes apply preset adjustments to the picture. Select from Dynamic (increases the brightness of the screen), Standard (suitable for a normal environment), Movie (darkens the screen and reduces glare), or Eco (saves energy by reducing backlight & brightness).
• Manual Picture Settings: The TV has several options for manually adjusting the picture quality. Manually adjust Backlight (adjusts the brightness of the LED backlight), Contrast (increases or decreases the contrast between dark and light areas of the picture), Brightness (adjusts the brightness level of the picture) Sharpness (sharpens or dulls the edges of objects), Color (adjusts the color saturation of the picture), and Tint (adjusts the amount of green and red in a picture).
• Expert Settings: The TV also offers more advanced picture adjustments for expert fine tuning. Fine tune the
  • Contrast Enhancer: automatically balances the contrast to prevent excessive differences between bright and dark areas
  • Color Tone: adjusts the overall color tone of the televisions using Cool/Normal/Warm 1/Warm 2 presets
  • Color Space: adjusts the range of colors available to create the image
  • Color Booster: boosts color levels
  • White Balance: adjusts the color temperature for more natural picture colors)
  • Gamma: adjusts the primary color (red/green/blue intensity)
  • Shadow Detail: adjusts the brightness of dark images to increase detail in blacks
  • Noise Reduction: reduces any static and ghosting that may appear on the screen
• Film & Games Modes: The TV can be set to automatically sense and process film signals and adjust the picture from optimum quality. The television can also be set to Game mode, which is designed specifically for fast-action gaming, and not normal TV viewing.

Built-in HDTV Tuner: The Samsung TV features a built-in over-the-air HDTV (ATSC) and Clear QAM tuner, so you don't need a separate set-top box to receive and decode over-the-air HDTV/SDTV or unencrypted Digital Cable signals (up to 1080i); subscription still required to receive cable channels. A single RF-type coaxial input is use to connect an external indoor/outdoor antenna (sold separately).

Audio Features

Immersive Sound: Utilizing unique sound technologies (such as OTS Lite and Q-Symphony), plus a selection of Sound Modes (Standard, Adaptive & Amplify), the Samsung TV is able to create a more immersive sound experience.

• Sound Modes: The Adaptive Sound mode provides optimized sound quality by analyzing the acoustic components (dialog, music and special effects) of the audio content scene-to-scene. The Amplify Sound mode enhances midrange and high frequency sounds, which is useful when voices are difficult to hear. The Standard Sound mode provides a balanced sound where no tones are over emphasized.
• Object Tracking Sound Lite (OTS Lite): Object Tracking Sound (OTS) technology delivers a sound experience perfectly aligned with the picture. It lets you hear the action in every scene with audio that tracks every motion on the screen from a 20 watt 2ch speaker system.
• Q-Symphony: Surround yourself with synchronized sound from your TV and soundbar, orchestrated in complete harmony with Q-Symphony. Q-Symphony creates a more dynamic listening experience by pairing the TV speakers with the audio of select Samsung soundbars (sold separately). By utilizing both of these audio channels, Q- Symphony delivers a fuller, more dynamic sound experience. Q-Symphony is available only with compatible Samsung soundbar; check for Q-Symphony compatibility on Samsung soundbar product specifications.

Other Audio Settings: The Samsung TV also offers a variety of audio adjustments to help you meet your listening needs.

• Equalizer: You can manually adjusts the TV's built-in 7-band EQ (100, 200, 500, 1k, 2k, 5k, & 10k Hz) for a more customized sound.
• Auto Volume: The Auto Volume feature equalizes the sound automatically so that the volume level remains the same when you change between channels and sources.
• Audio Delay: The Audio Delay function corrects audio/video mismatch, when watching TV or video, and listening to a digital audio output using an external device such as an AV receiver. You can adjust the audio delay from 0ms to 250 ms.

eARC (Enhanced Audio Return Channel): The Enhanced Audio Return Channel within the television's HDMI 2 input enables the TV, via a single HDMI cable, to send audio data "upstream" to an AV receiver; increasing user flexibility and eliminating the need for any separate S/PDIF audio connection. This feature allows audio to be sent from the television to your AV receiver through the same HDMI cable already being used to send audio/video to the television. This eliminates the need for extra cables connected to the TV. eARC allows audio from the TV tuner, Network connection, inserted USB device, or HDMI inputs connected device to be heard through your eARC compatible AV receiver via the television's HDMI eARC input.

• The audio from the TV's tuner, HDMI inputs, USB ports, and Samsung TV apps can pass as Dolby Atmos (via Dolby Digital Plus), Dolby Digital Plus, Dolby Digital, or 2ch PCM.
• DLNA compliant devices will only output audio at 2ch PCM only.
• DTS multichannel audio formats are not supported.

Network/USB Functions

Network Connection: You can set up the Samsung HDTV so that it can access your home network and online Samsung TV Apps through your local area network (LAN) using a wired (RJ-45 Ethernet) or wireless connection (built-in WiFi); it also supports WiFi Direct.

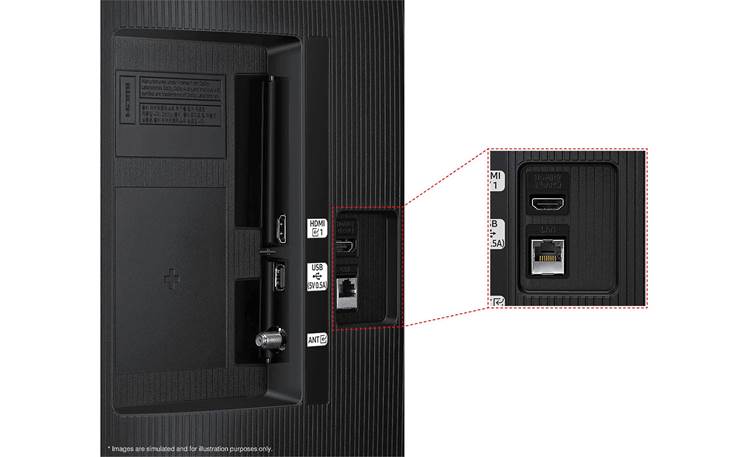

• Wired Ethernet: The TV's contains an RJ-45 Ethernet jack on its back-panel for a wired network connection. You can setup a wired network connection automatically or manually.
• WiFi 802.11ac: The TV is IEEE 802.11ac WiFi certified for a wireless network connection. You can setup the wireless network connection using these four methods; Automatic, Manual, WPS (PBC), or WPS (PIN). The TV's built-in WiFi supports WEP (open/shared), WPA-PSK (TKIP/AES), or WPA2-PSK network security.
• WiFi Direct: When using WiFi Direct, you can connect directly with other devices without using a wireless router. You'll be able to wirelessly transfer personal content (such as photos & videos) to the Samsung TV without connecting to your home network. WiFi Direct completely bypasses your WiFi access point/router, so it's easy to set up. Streaming of copy-protected content and other certain formats are not supported.

Samsung Smart TV Apps: Once you have connected the Samsung TV to your home network, you gain access to Samsung's TV Apps. Samsung's TV Apps let you download online applications and services to the Samsung TV. Samsung TV Apps has a growing collection of online applications that connect you to some of your favorite online content. You can enjoy a variety of content from various downloaded applications - such as movies, TV shows, music, news, sports, and more (subscriptions and purchase fees will apply).

• Samsung TV Plus: With Samsung TV Plus, you can watch over 150+ live channels covering top news, sports, entertainment, and more. It’s 100% free and doesn't require any downloads or additional devices. Local channels not available. Available content may vary by region and is subsequent to change without notice.
• Movies & TV Shows: Watch online movie & TV show providers from Apple TV+,  Amazon Video, HBO Max Netflix, Disney+, FandangoNow, Google Play Movies & TV, Paramount+, ShowTime, Vudu, and more. You'll also be able to watch live TV broadcasts from Hulu+Live, Sling TV and YouTubeTV.
• For The Kids: Get access to PBS Kids, Disney Now, and YouTube Kids for your children and the young at heart.
• Music & Radio: You can listen to online music and internet radio from Amazon Music, iHeart Radio, Pandora, Spotify, SiriusXM, and more.
• News & Sports: Enjoy news & sports from CBS News, Newsy, ESPN, Fox Sports, NBC Sports, and more.

Mobile Device Casting: Quickly and easily enjoy your favorite videos, photos, games, and more from your Apple iOS or Android devices on the Samsung TV with Google Cast. Support for Apple AirPlay 2 also lets you cast videos, photos, and more from your Apple iOS device or Mac computer to the Samsung television.

• Google Cast: Google Cast lets you cast your favorite entertainment apps and video content from your compatible Android or Apple iOS device using the Google Home App (for Android OS and Apple iOS) to the Samsung TV. Now you can cast your favorites movies or TV shows (on Netflix, Hulu, Vudu, Google Play, HBO, and more); your favorite music and radio stations (on Spotify, Pandora, iHeartRadio, TuneIn, YouTube Music, and more); Sports highlights (on ESPN, NBC, CBS, and more); plus photos and videos (on YouTube, Google Photos, and more) from your compatible Android or Apple iOS device to the Samsung TV. For a list of all compatible Google Cast apps click here.
• AirPlay 2: With support for AirPlay 2, you will be able to wirelessly stream content (including videos, photos, music, podcasts, and more) directly from your Apple iPhone/iPad (iOS 12.2 and newer) or Mac computer (OS X 10.14.4 and newer) to the Samsung TV's screen - all without the need for an Apple TV or additional wired connection.

Content Share: You can play media content saved on your computer (via DLNA), thumbdrive or hard disk drive (via USB), and the cloud (via Samsung Cloud) through the Samsung TV.

• DLNA Certified: The Samsung TV is DLNA certified, allowing you to watch videos and photos, as well as listen to music saved on your Windows 7/8/10 PC (or other DLNA Certified media server) through the TV via its Ethernet (LAN) port or built-in WiFi (wireless).
• USB 2.0 Port: The television is equipped with a single USB-A 2.0 port for connecting a USB thumbdrive or HDD (hard disk drive). An external HDD may require its own AC power adapter. Both USB 2.0 ports let you view photo and movie files, as well as listen to audio files saved on a compatible USB device. Files must be formatted in FAT, exFAT, or NTFS. The TV can recognize up to 1,000 files per folder.
• Gallery App (Samsung Cloud): The built-in Gallery App lets you view photos and videos synchronized with the Samsung Cloud. You can enjoy various content synchronized with a mobile device that supports the Samsung cloud. The available content types are photos, videos, stories, and other content shared through your groups.

SmartThings Compatible: From the Samsung TV's on-screen dashboard, you can monitor, configure, and control smart devices you connected to the SmartThings service via the SmartThings app (for Apple iOS and Android OS) installed on your compatible smartphone or tablet device. You'll receive notifications about the statuses of your smart devices on the TV's screen. You'll also be able to create custom modes to easily control multiple smart devices with a single command from the TV. Control of your SmartThings devices can be done from the included remote with Bixby or your mobile device running the SmartThings app.

• SmartThings & Samsung Devices: With SmartThings hub functionality, the Samsung allows you to connect and control SmartThings compatible devices - including a Multipurpose Sensor, a Motion Sensor, a Arrival Sensor, a Water Leak Sensor, and a Smart Outlet (all sold separately - see Accessories Tab). It is also compatible with a number of Samsung appliances - including refrigerators and washers/dryer machines.
  Internet of Things (IoT): In addition to being compatible with SmartThings and other Samsung network-enabled products, Samsung Connect Home is compatible with a number of third-party network devices that support Internet of Things (IoT) through Z-Wave, zigbee, LAN, or Cloud-to-Cloud; including locks (from Kwikset & Schlage), thermostats (from Honeywell), cameras (such as Netgear Arlo), light bulbs (such as Philips Hue), and more.

Full Web Browser: You can surf the Internet on the TV as you would on a PC. You may enter a URL addresses or enter a keyword search. The player will archive your web browser history. You can scroll web pages with the directional pad on the included remote. For a more convenient web browsing experience, connect a USB- or Bluetooth-enabled keyboard and mouse (sold separately) to the TV.

Convenience Features

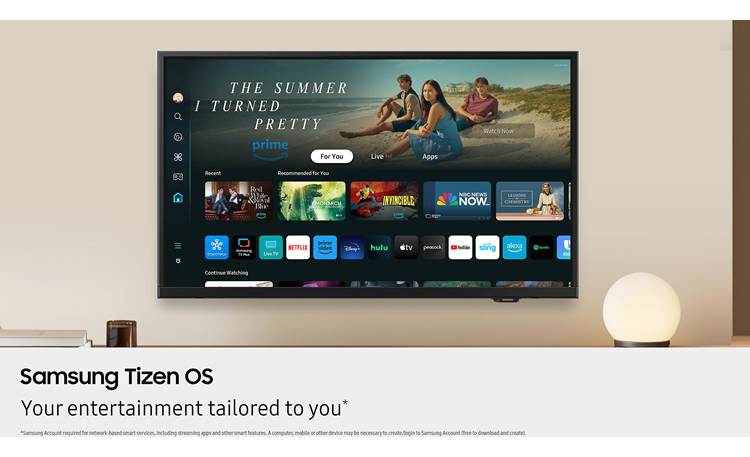

Smart Hub via Tizen: The TV's Smart Hub via Tizen offers easy navigation and quickly access to off-air and online content, as well as menu settings (many of these features can be done while still watching a program). The Smart Hub offers convenient access to content by displaying your favorite and most used TV applications, as well as recommendations for even more entertainment options. Samsung's Smart Hub offers unique ways to search and access your favorite and new content from the TV's tuner and network apps.

• Universal Guide & Keyword Search: The TV's Universal Guide provides a list of curated content from broadcast and streaming channels, personalized just for you - so you can easily find your favorite content, all in one place. You can also type in a keyword to search for TV shows & movies across platforms, like over-the-air broadcasts and available online providers.
• Smart TV Apps: From the TV's Home Screen, you can easily select the apps that have been used previously or frequently. Many of the apps can also be moved or deleted from the screen. You are also able to easily view, navigate and select between a variety of App categories.
• Channel Guide & Favorite Channels: In the Channel Guide, you can see the daily program schedules for each off-air broadcaster and Samsung TV Plus channels, see program information, choose a program to watch, and set up a schedule viewing. You can even designate frequently watched off-air stations as Favorites (up to 5).
• Notifications & Reminders: Set notifications & reminders to display on screen. You'll get a pop up message on the corner of your TV screen when there is a notification or reminder.

Hearing & Visually Impaired: The Samsung TV offers Closed Captions and Voice Guides for the hearing and visually impaired. The TV provides Analog Closed Captions and Digital Closed Captions for the hearing impaired. You can also activate Voice Guides that describe the menu options aloud to aid the visually impaired.

ECO Settings: The Samsung TV provides ECO settings to reduce the television's power consumption and cut-down on energy costs.

• Brightness Optimization: You can set the TV to automatically adjust the picture brightness based on the ambient light level in the room. This feature optimizes the viewing experience while also saving you energy.
• Brightness Reduction: This feature adjust the brightness of the TV in order to reduce power consumption. When watching TV at night, set the Energy Saver feature to High to reduce eye fatigue as well as power consumption. You can set this feature to High, Medium, Low, or Picture Off (sound remains on).
• Motion Lighting: This feature adjusts the TV's brightness in response to on-screen movements to reduce power consumption.
• Auto Power Off: Automatically turns off the TV to reduce unnecessary power consumption if there is no operation for the length of time you specify (up to 4 hours).

Security Settings: The Samsung TV offers security features for TV programming, apps, and the Internet.

• Program Rating Lock: The Program Rating Lock feature automatically locks out programs that are deemed inappropriate for children. You can block TV program based on their ratings and Movies based on their MPAA rating, so you have more control over what your children watch. The Program Rating Lock function is protected by a 4-digit PIN.
• App Lock: You can also block specific apps from being accessed by your children. These blocked apps can only be accessed by entering the same 4-digit PIN used for TV programs.
• Smart Security: When any device is connected to the Internet, it is vulnerable to hacks and malicious code. Samsung Smart Security protects the TV and storage media connected to the TV from such threats, when the television is connected to the Internet.

Timers: You can set Off Timer to shut off the TV automatically at a specific time; the Off Timer is only available if the Clock has been set. The Sleep Timer switches the television off after a specified amount of time. The sleep timer can be set to 30, 60, 90, 120, 150, or 180 minute. If the screen remains idle with a still image for a certain period of time (defined by the user), the TV's built-in screen saver is activated to prevent the formation of host images on the screen.

Remote Support + Self Diagnosis: The Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely diagnose your TV, adjust the TV settings, perform a factory reset, and install recommended firmware updates. Your TV must be connected to your homes wired or wireless network. The Samsung FHD TV also provides a Self Diagnosis menu which allows you to check the television for picture, sound, and signal problems.

• You will need to agree to Samsung's Smart Hub Terms & Conditions, Privacy Policy to access Remote Support.
• The television only comes with a brief User Manual. A complete instruction manual is built-in into the TV and can be viewed on-screen. Open the e-Manual to learn how to use the TV's many features.

Auto Updates: If the television is connected to the Internet, you can have the TV update its software automatically while you are watching it. When the background update is completed, it is applied the next time the TV is turned on. Updates can also be done via USB. Visit the Samsung Download Center for the latest Firmware & Software updates.

• You will need to agree to Samsung's Smart Hub Terms & Conditions, Privacy Policy to enable Auto Updates.
• Do not turn off the TV's power until the update is complete. The TV will turn off and on automatically after completing the software update. Video and audio settings will be reset to their defaults after a software update.

Remote & App Control

IR Remote: The supplied IR remote control is designed to operate this Samsung Full HD TV, plus HDMI-connected Samsung Anynet+ and other HDMI-CEC components. With a single press of a button, you can access Netflix, Prime Video, YouTube, and Samsung TV Plus.

Anynet+ (HDMI CEC): Anynet+ and HDMI-CEC functionality makes it possible to control HDMI-connected Samsung and other HDMI-CEC compliant external devices connected to the TV with ease. With Anynet+, you can use the TV remote control to operate all your compatible Samsung Anynet+ and HDMI-CEC devices that are connected to the TV via HDMI. Anynet+ can control up to 12 compatible external devices (up to 3 of the same type).

SmartThings App: Use the SmartThings app (for Apple iOS and Android OS) to turn your compatible smartphone or tablet into a remote control for the Samsung TV. Use the SmartThings app on your compatible Apple iOS or Android device to quickly and easily connect to the TV and control its main settings from your smartphone or tablet. In addition, you can remotely check and control the statuses of various devices such as Samsung smart devices, home appliances, and speakers registered to the server. Through the SmartThings app, you can even use Bixby on your Samsung Galaxy S8 series or higher mobile device to operate the TV via voice commands (not compatible with Apple iOS or older Android devices).

Optional Voice Control: With an Alexa or Google smart speaker (sold separately) you can use your voice to control the TV. Use your voice through a compatible Alexa or Google smart speaker to turn on/off the Samsung television, adjust menu settings, change channels or inputs, adjust the volume, and even launch your favorite online music or movie apps. Your compatible smart speaker and the Samsung TV must be connected to the same network and to the internet.

Remote Access: The new Remote Access feature on the Samsung TVs provide you wireless, on-screen control over connected peripheral devices, enabling convenient web browsing, cloud office access and more. Remote Access allows you to directly control your devices connected to the TV with a keyboard and mouse in addition to simply displaying the content on a larger screen. With Remote Access, input devices, including keyboards, can be connected to the Samsung Smart TV, making it easier for you to control your on-screen content. Without a separate HDMI cable connection, you can remotely access a PC in your room through the TV in your living room to perform various tasks including surfing the web or playing games from the TV's screen using a connected keyboard and mouse. Additionally, web browser-based cloud office service can be accessed through Remote Access, so you can now access files and work on documents from the TV.

Keyboard & Mouse Compatible: The Samsung Full HD TV will support a USB-enabled keyboard and mouse (both sold separately), which makes web browsing a lot easier.

Mounting Options

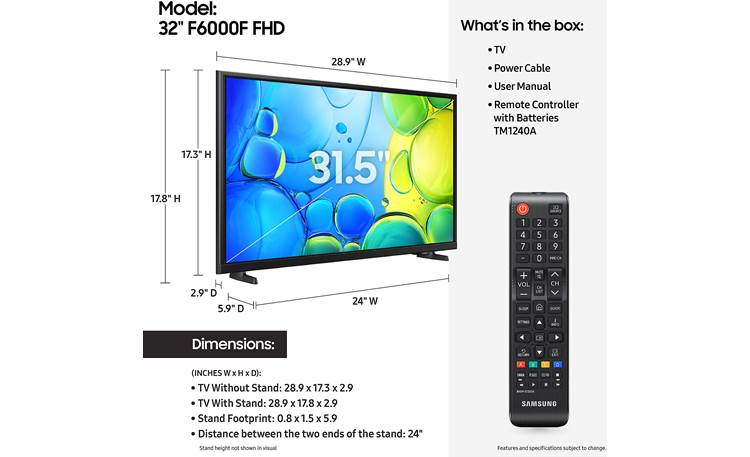

Pedestal Feet: The TV comes with two pedestal feet, which need to be installed. The television weighs 8.5 lbs with the stand. This stand does not swivel.

Wall Mounting: The TV has four threaded inserts on the back for use with an optional wall-mount bracket. The spacing of the mounting holes is 200mm (h) x 200mm (v). The threaded inserts require M8 (8mm) machine screws (not supplied). The television weighs 8.4 lbs without the stand.

Detachable AC Power Cord: The Samsung HDTV comes with a 5' detachable AC power cord. The power cord plugs into the back of the TV and fits flush with the rear-panel. The AC power cord is fitted with a right-angle AC plug that sits 1.0 " from the wall.
