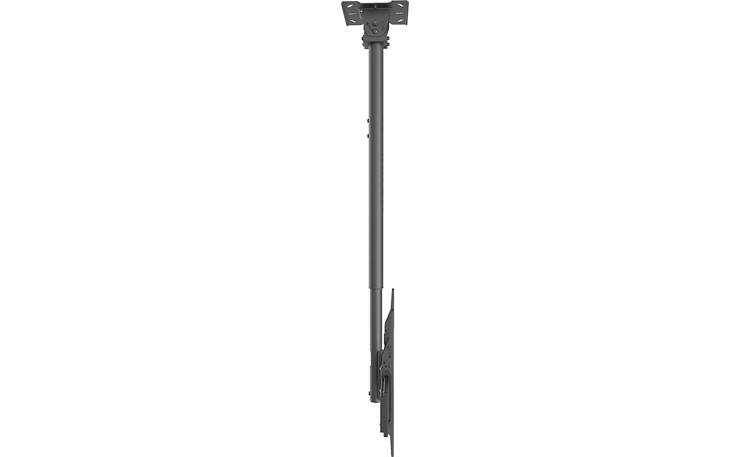

About the Kanto CM600
Product highlights:
- designed for TVs 37"- 70"
- heavy-gauge steel and aluminum construction
- mounting distance from ceiling: 42-3/4" to 66-5/16"
- mounting plate swivels up to 90° for sloped ceilings or vertical wall-mounting
- hollow core for cable management
- tilt range: -6° to +15°
- swivel range: 360°
- supports up to 110 lbs.
- joist or stud-mounting required
- 27-3/16"W x 42-3/4" to 66-5/16"H x 7-5/8"D
- weight: 19.8 lbs.
- warranty: 5 years
- MFR # CM600
- Item # 310CM600
What's in the box:
- Ceiling mount bracket
- Extension pole
- 2 Vertical TV brackets
- Horizontal TV bracket
- 2 Support brackets
- Four M5x15mm bolts
- Four M5x30mm bolts
- Four M6x15mm bolts
- Four M6x30mm bolts
- Four M8x20mm bolts
- Four M8x35mm bolts
- Four M8x50mm bolts
- Four M5/M6 washers
- Eight M8 washers
- Eight 5mm spacers
- Four 13mm spacers
- M8x12mm Screw
- M8x50mm screw
- Two M6x85mm screws
- Two M6 washers
- Two M6 lock-washers
- 2 Covers
- Grommet
- Hex-key
- Wrench
- Four M8x70mm lag-bolts
- 4 Concrete anchors
- User Manual
More details on the Kanto CM600
Features & specs
| Features | ||
|---|---|---|
| Mount Type | Ceiling Mount | |
| Motion | ||
| Tilt | Yes | |
| Swivel | Yes | |
| Extend/Retract | Yes | |
| Fixed | No | |
| Roll (Level) Adjustment | No | |
| Mounting Details | ||
| Wood Stud (Single) | Yes | |
| Wood Stud (Dual, 16-inch) | No | |
| Wood Stud (Dual, 24-inch) | No | |
| Concrete Block-compatible | Yes | |
| Recessed Housing | No | |
| Outdoor-rated | No | |
| Motorized | No | |
Product Research
Features
TV Compatibility: The Kanto CM600 full-motion ceiling-mount bracket supports 37" to 70" flat-panel TVs that weigh up to 110lbs. The TV must also meet the following VESA and screw size requirements.
- VESA Sizes: 75x75mm to 600x400mm
- Screw Size: M5, M6, or M8
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.
Durable Construction: The Kanto CM600 full-motion TV ceiling-mount bracket features anodized aluminum and solid steel construction with a durable powder-coated black or white finish.
Full-Motion Design: Capable of swinging up to 90°, its telescoping extension pole provides 23" of height adjustment and 360° of rotation, allowing you to position your TV exactly where you want it. Your TV can be hung 42.75" to 66.3125" from the ceiling. Along with adjustable leveling screws, its mounting brackets feature four discrete tilt options, giving you the ability to angle your TV independent of the pole. Tilt it up to 15° forward to improve line-of-sight, or 6° backward to compensate for potential lean.
Integrated Cable Management: The extension pole's hollow core provides an unobstructed path to route your power and audio/video cables, while an opening in the mounting plate allows them to continue through the ceiling for a truly professional looking setup.

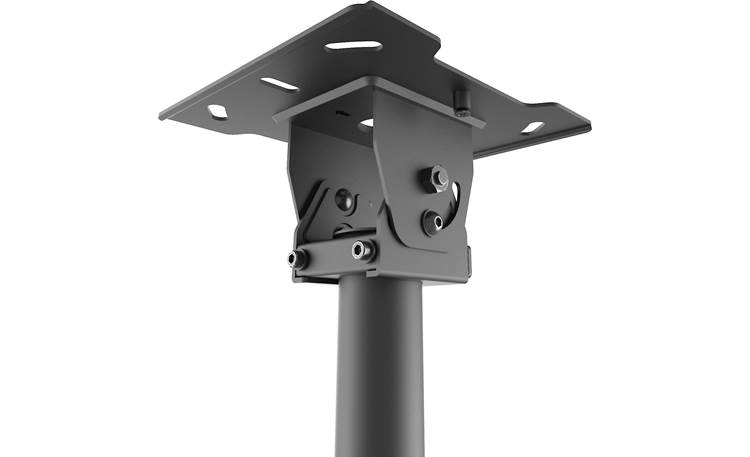

Ceiling or Wall Installation: The Kanto CM600 offers installation on both flat and sloped ceilings, as well as a wall. Adjust the mounting plate up to 90° to account for sloped ceilings and support beams, or to install the mount vertically on a wall. The detachable mounting plate can be easily installed to practically any wood stud or concrete ceiling. Simply slide the extension pole into place and secure it to complete the installation. Tools required for installation include -
- Drill
- 7/32" bit (wood), 3/8" bit (masonry)
- Socket wrench
- Phillips screwdriver
- Stud finder
- Level
- Pencil
- Tape measure
