About the Kanto CM600BTB
Product highlights:
- designed for two TVs 40"- 80", each weighing up to 100 lbs.
- fits VESA mounting hole patterns 75 x 75mm to 600 x 400mm
- heavy-gauge steel and aluminum construction with powder-coated finish
- adjustable mounting distance from ceiling: 39-1/16" to 62-11/16" (from center of TVs)
- mounting plate swivels up to 90° for sloped ceilings
- hollow core for cable management

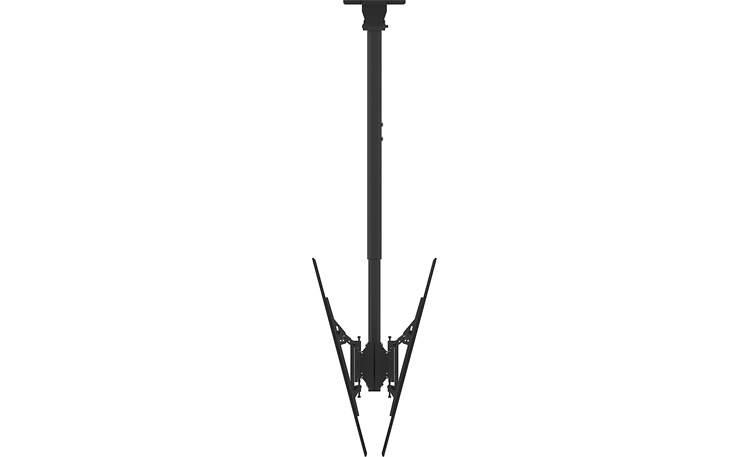

- tilt range (for each TV): 6° up to 15° down in four discrete positions
- joist or stud-mounting required
- 27-1/4"W x 39-1/4" to 62-11/16"H x 8-5/8"D
- weight: 33 lbs.
- warranty: 5 years
- MFR # CM600BTB
- Item # 310CM600BB
What's in the box:
- Ceiling mount bracket
- Extension pole
- 4 Vertical TV brackets
- 2 Horizontal TV brackets
- 2 Support brackets
- Eight M5x16mm bolts
- Eight M5x30mm bolts
- Eight M6x16mm bolts
- Eight M6x30mm bolts
- Eight M8x20mm bolts
- Eight M8x35mm bolts
- Eight M8x50mm bolts
- Eight M5/M6 washers
- Four M8 washers
- Eight 14mm spacers
- Sixteen 5mm spacers
- Two M8x50mm screws
- Two M6x85mm screws
- Two M6 washers
- Two M6 lock-washers
- Grommet
- Four M8x70mm lag-bolts
- 4 Concrete anchors
- Hex-key
- User Manual
More details on the Kanto CM600BTB
Features & specs
| Features | ||
|---|---|---|
| Mount Type | Ceiling Mount | |
| Motion | ||
| Tilt | Yes | |
| Swivel | Yes | |
| Extend/Retract | Yes | |
| Fixed | No | |
| Roll (Level) Adjustment | No | |
| Mounting Details | ||
| Wood Stud (Single) | Yes | |
| Wood Stud (Dual, 16-inch) | No | |
| Wood Stud (Dual, 24-inch) | No | |
| Concrete Block-compatible | Yes | |
| Recessed Housing | No | |
| Outdoor-rated | No | |
| Motorized | No | |
Product Research
Features

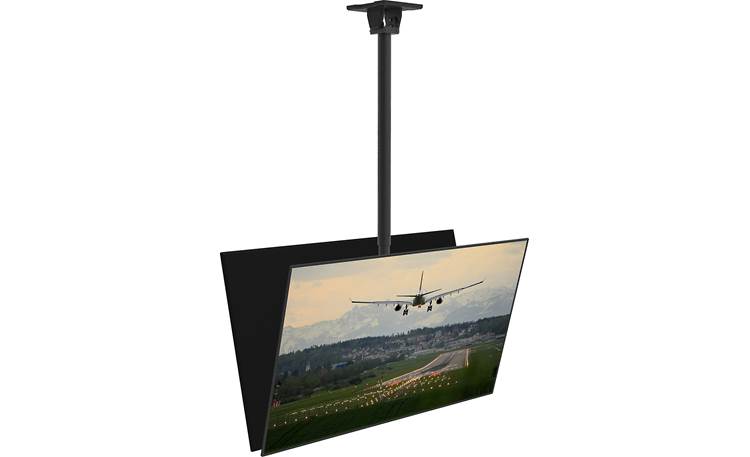

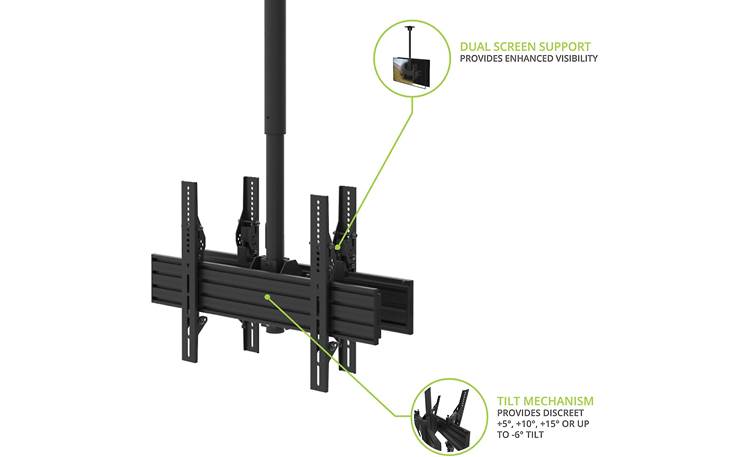

TV Compatibility: The Kanto CM600BTB full-motion ceiling-mount bracket supports two 40" to 80" flat-panel TVs back-to-back that weigh up to 100lbs each. The TV must also meet the following VESA and screw size requirements.
- VESA Sizes: 75x75mm to 600x400mm
- Screw Size: M5, M6, or M8
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.
Durable Construction: The Kanto CM600BTB full-motion TV ceiling-mount bracket features anodized aluminum and solid steel construction with a durable powder-coated black or white finish.

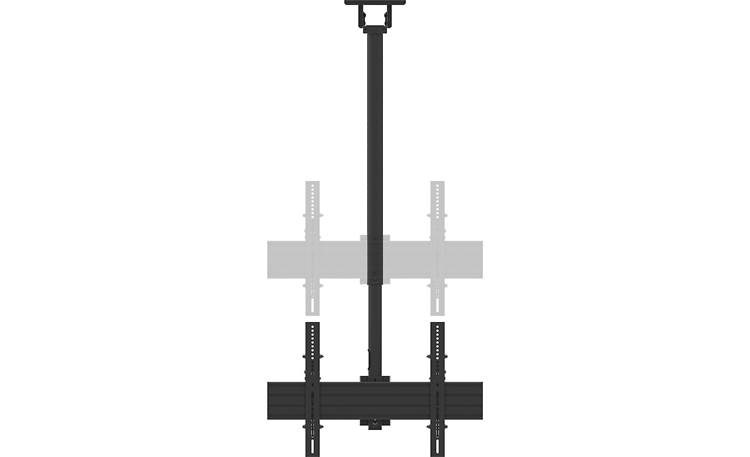

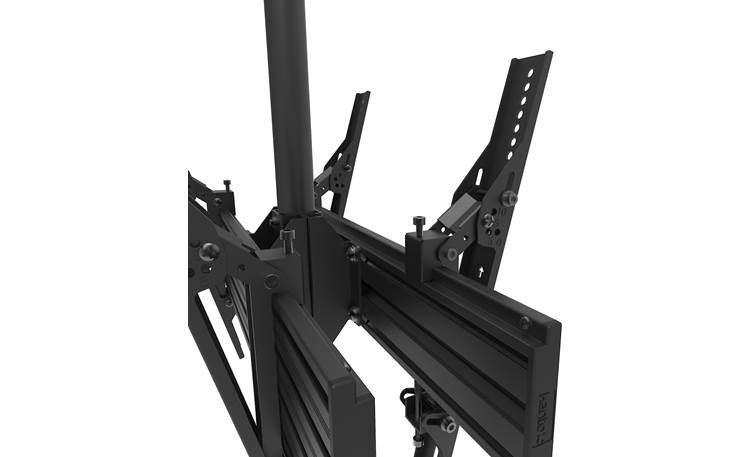

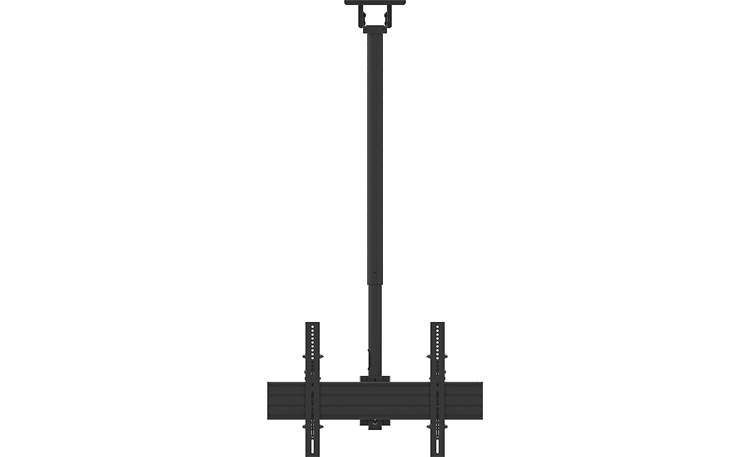

Full-Motion Design: Capable of swinging up to 90°, its telescoping extension pole provides over 23" of height adjustment and 360° of rotation, allowing you to position both TVs exactly where you want it. The two TVs can be hung 39.125" -62.5625" from the ceiling. Along with adjustable leveling screws, its mounting brackets feature four discrete tilt options, giving you the ability to angle both TVs independent of the pole. Tilt it up to 15° forward to improve line-of-sight, or 6° backward to compensate for potential lean.

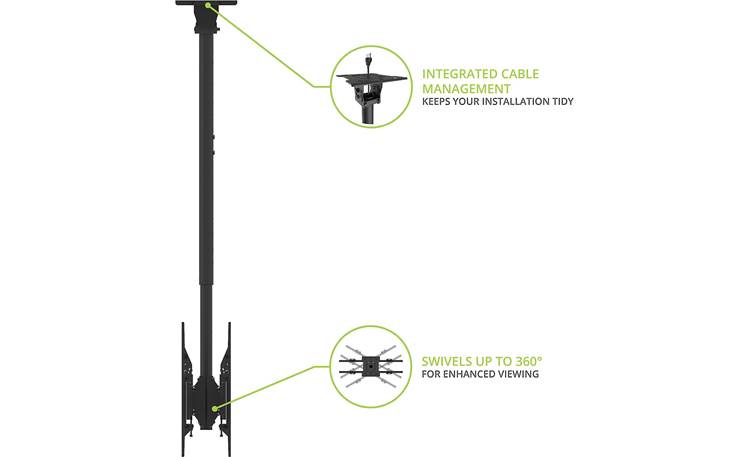

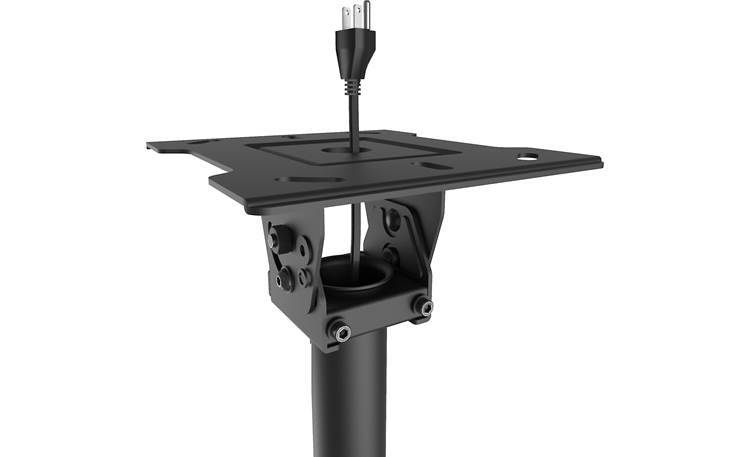

Integrated Cable Management: The extension pole's hollow core provides an unobstructed path to route your power and audio/video cables, while an opening in the mounting plate allows them to continue through the ceiling for a truly professional looking setup.

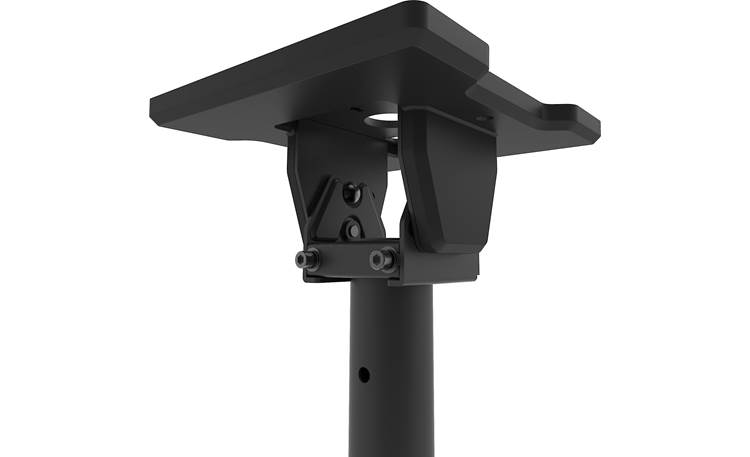

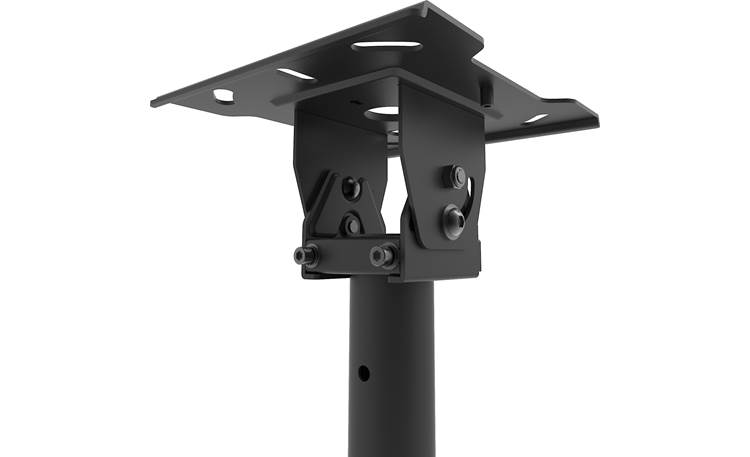

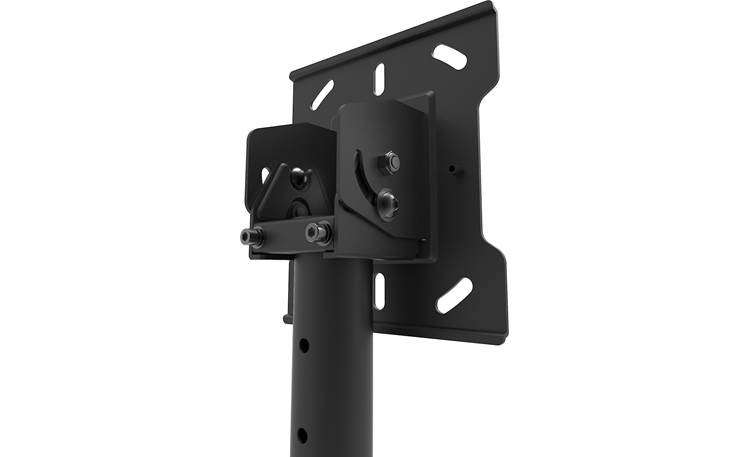

Ceiling or Wall Installation: The Kanto CM600BTB offers installation on both flat and sloped ceilings, as well as a wall. Adjust the mounting plate up to 90° to account for sloped ceilings and support beams, or to install the mount vertically on a wall. The detachable mounting plate can be easily installed to practically any wood stud or concrete ceiling. Simply slide the extension pole into place and secure it to complete the installation. Tools required for installation include -
- Drill
- 7/32" bit (wood), 3/8" bit (masonry)
- Socket wrench
- Phillips screwdriver
- Stud finder
- Level
- Pencil
- Tape measure
