About the Kanto PF400
Product highlights:
- designed for TVs 40"-90"
- supports up to 200 lbs.
- fits VESA mounting hole patterns from 100 x 100mm to 800 x 400mm
- mount holds TV approximately 1-7/16" from wall
- quick release cords with magnetic ends for storing out of sight
- horizontal leveling screws
- lockable arms for security
- solid steel construction with powder-coated finish
- stud-mounting required
- accommodates both 16" and 24" stud spacing
- mounting hardware included
- 34-13/16"W x 16-3/4"H x 1-7/16"D
- weight: 6.6 lbs.
- warranty: 5 years
- MFR # PF400
- Item # 310PF400
What's in the box:
- Wall-plate bracket
- 2 TV brackets
- Four M4x16mm botls
- Four M4x25mm bolts
- Two M5x12mm bolts
- Four M5x16mm bolts
- Four M5x25mm bolts
- Four M6x16mm bolts
- Four M6x25mm bolts
- Four M8x20mm bolts
- Four M8x35mm bolts
- Four M8x50mm bolts
- Eight 5mm spacers
- Four 14mm spacers
- Four M4/M5/M6 washers
- Four M8 washers
- Six M8x50mm lag-bolts
- 6 Anchors
- Bit extender
- Torx-bit
- Phillips-bit
- User Manual
More details on the Kanto PF400
Features & specs
| Features | ||
|---|---|---|
| Mount Type | Wall Mount | |
| Motion | ||
| Tilt | No | |
| Swivel | No | |
| Extend/Retract | No | |
| Fixed | Yes | |
| Roll (Level) Adjustment | No | |
| Mounting Details | ||
| Wood Stud (Single) | No | |
| Wood Stud (Dual, 16-inch) | Yes | |
| Wood Stud (Dual, 24-inch) | Yes | |
| Concrete Block-compatible | Yes | |
| Recessed Housing | No | |
| Outdoor-rated | No | |
| Motorized | No | |
Product Research
Features
TV Compatibility: The Kanto PF400 low-profile fixed wall-mount bracket supports 40" to 90" flat-panel TVs that weigh up to 200 lbs. The TV must meet the following VESA and screw size requirements.
- VESA Sizes: 100x100 to 800x400
- Screw Size: M4, M5, M6, or M8
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.

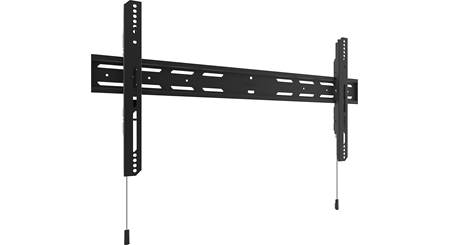

Solid Steel Construction: The Kanto PF400 low-profile fixed TV wall-mount bracket is constructed out of solid steel and features a durable powder-coated black finish.

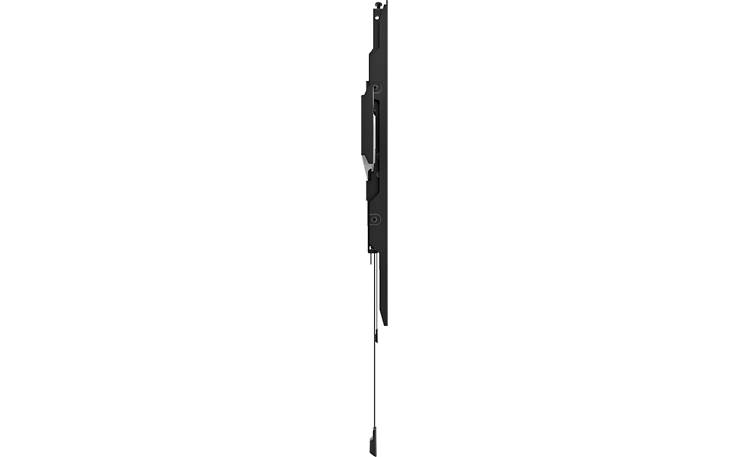

Low-Profile Fixed Design: The Kanto PF400's slim wall-plate and mounting brackets allow your flat-panel TV to sit only 1.4375" from the wall. The PF400 is a fixed TV wall-mount bracket; it does not tilt, swivel, extend, etc.
Removable & Lockable: Removing your TV from the wall is as easy as pulling on two quick release cords. Each cord includes a magnetic end, allowing them to be tucked neatly out of sight. Two Torx screws can be tightened using the provided key and extension bit to prevent your TV from being removed.
Post-Installation Leveling: Precision leveling can be achieved with two adjustable screws. Use the provided 6" extension bit to easily access the leveling screws after your TV has been mounted.
Dual-Stud Installation: The Kanto PF400 low-profile fixed TV wall-mount bracket can accommodate both 16" and 24" stud spacing, and comes with all the hardware you need for wood stud and concrete installation. Tools required for installation include -
- Drill
- 7/32" bit (wood), 3/8" bit (masonry)
- Socket wrench
- Phillips screwdriver
- Hammer
- Stud finder
- Level
- Pencil
