Kanto SW-KIT Steel stud TV wall mounting kit

Item # 310SWKIT

Item # 310SWKIT

Every order includes

  • Free lifetime tech support
  • 60-day price-drop protection
  • 60-day returns
In stock
$19.99

Other options

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

Product highlights:

  • works with select fixed and tilting TV wall mounts (sold separately)
    • not recommended for use with full-motion mounts
  • lets you attach TV mount to steel wall studs

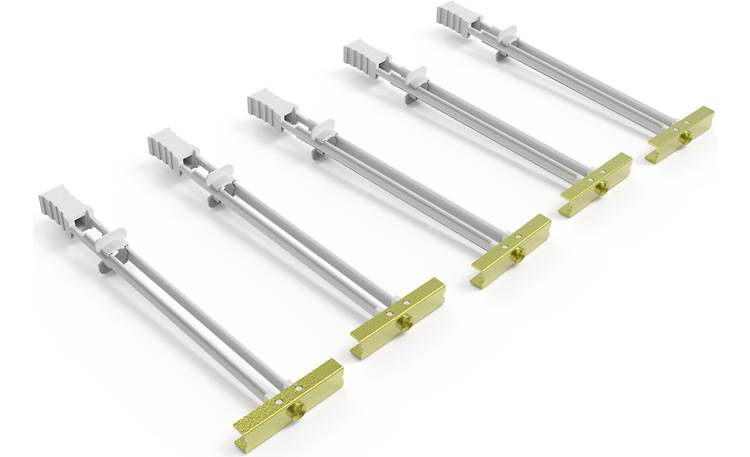

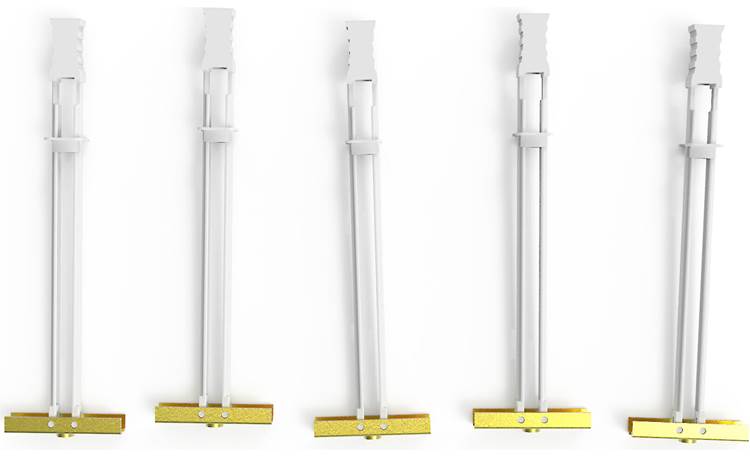

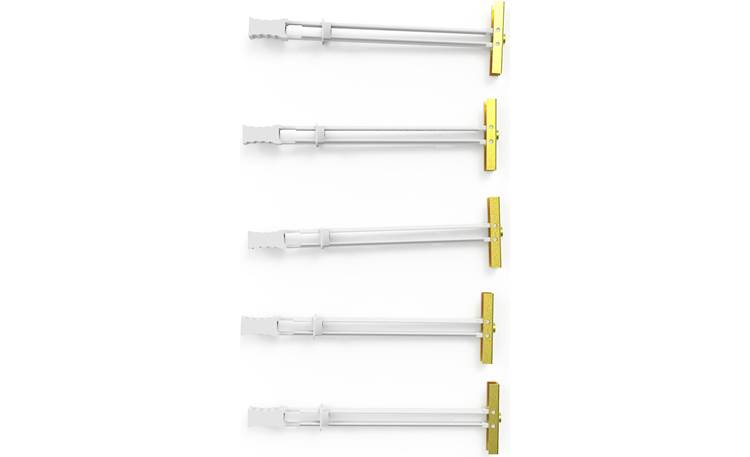

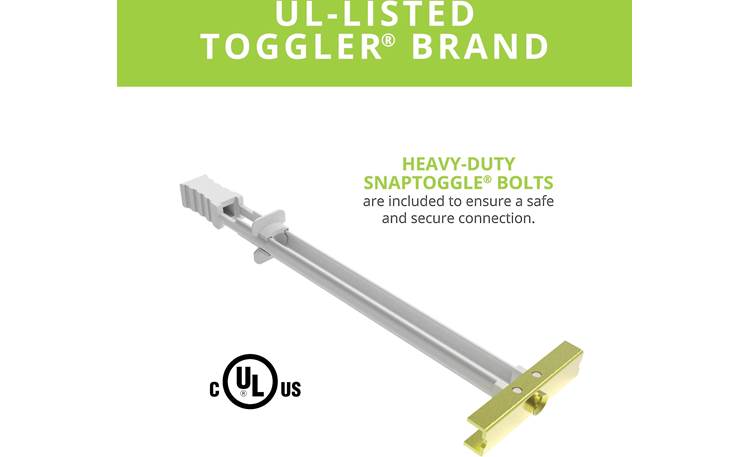

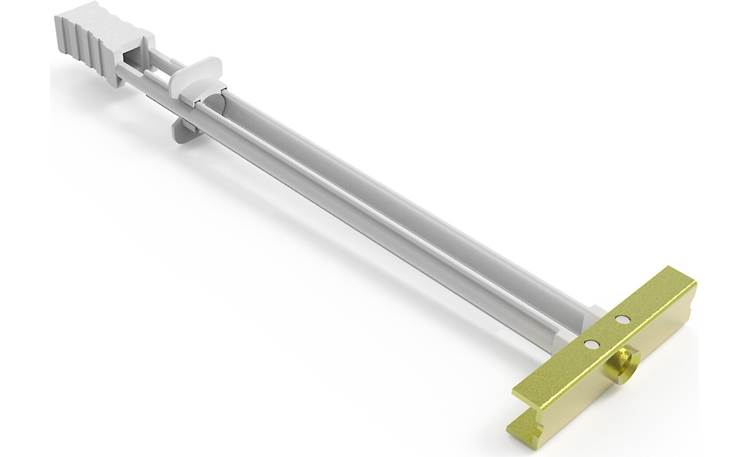

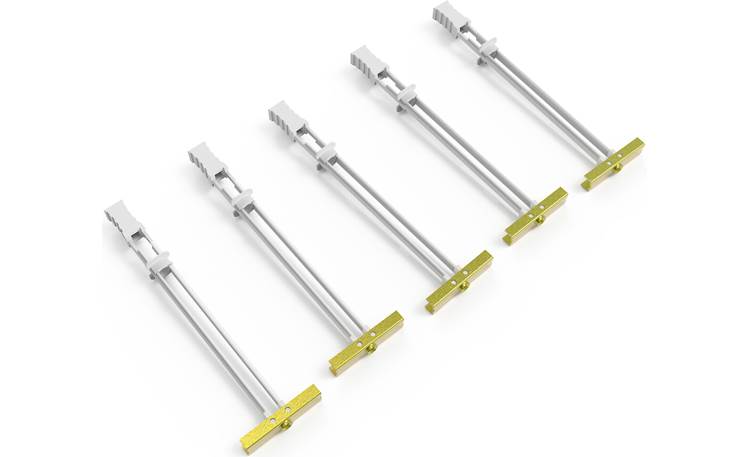

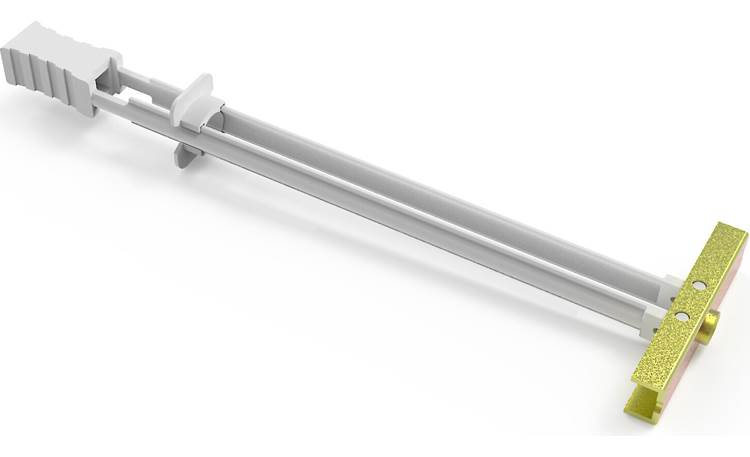

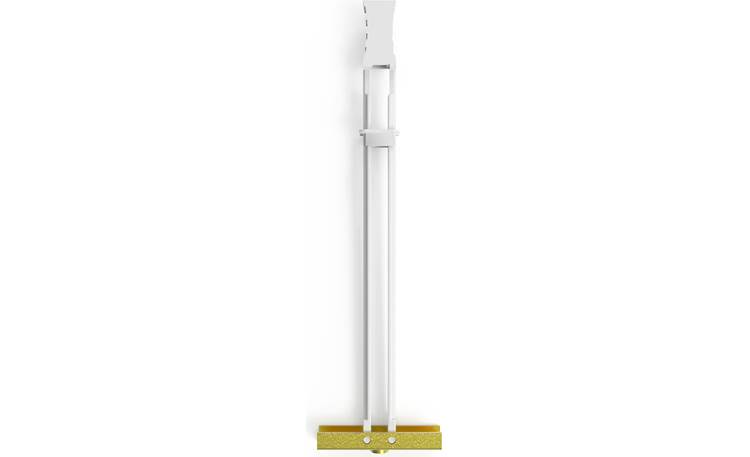

  • includes 5 heavy-duty Snaptoggle® anchors and other hardware
  • supports up to 175 lbs.
  • UL certified
  • warranty: 5 years
  • MFR # SW-KIT
  • Item # 310SWKIT

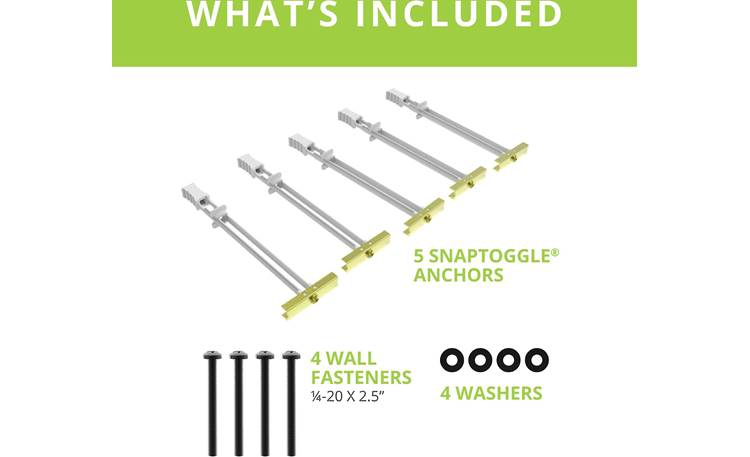

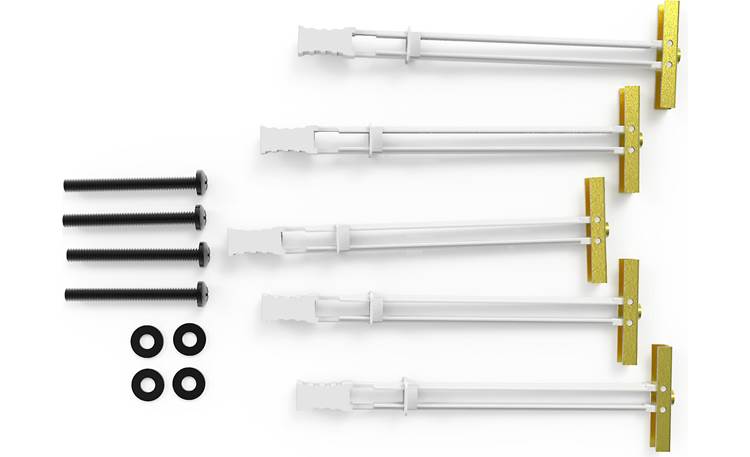

What's in the box:

  • Four 1/4"-20 x 2.5" bolts
  • 4 Washers
  • 5 Snap-Togglers
  • User Manual

More details on the Kanto SW-KIT

Stacey B.

Product Research

Features

Steel Stud TV Wall-Mount Kit: The Kanto SW-KIT is a hardware kit that allows steel wall stud-mounting for a variety of Kanto flat-panel TV mount brackets and other brands of TV wall-mounts.. This kit increases the mounting options of these TV wall mount brackets for use in commercial applications such as office buildings, warehouses or condominiums.

  • Perfect for mounting fixed position and tilting TV wall-mount brackets.
  • UL Listed hardware and can support up to 175lbs in steel studs.

Note: Not recommend for use with full-motion TV wall-mount brackets, because they can twist in steel studs and can become unsafe.

Installation: This product is designed for use in steel stud walls only. Studs must be at least 2x4-inch and 25-AWG. The wall must be capable of supporting up to five times the weight of the monitor and mount combined. If back side of wall is unfinished, drywall must be installed to minimum of one stud left and right of the stud(s) being used to install the mounting. Drywall must be a minimum of 1/2" thick on each side of the studs, and a minimum clearance of 1-7/8" behind the wall is required. This product must be centered on the studs.

Tools Required:

  • Pencil
  • Stud finder
  • Phillips-head screwdriver
  • 1/2" Drill-bit
  • Electric drill
