Ethereal CS-HDC6EXT4K HDMI Extender Send audio and 4K video over long distances through CAT-6 Ethernet cable

Name: Ethereal CS-HDC6EXT4K HDMI Extender
Brand: Ethereal
SKU: 340HDC6EXT
Price: 159.99 USD
Availability: InStock

Item # 340HDC6EXT

Ethereal makes it easy to send video and audio across a long distance with this HDMI-to-CAT-6 balun bundle.

Front

1/6

Includes IR emitter and IR receiver

2/6

Only at Crutchfield

3/6

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Connections on right side of units

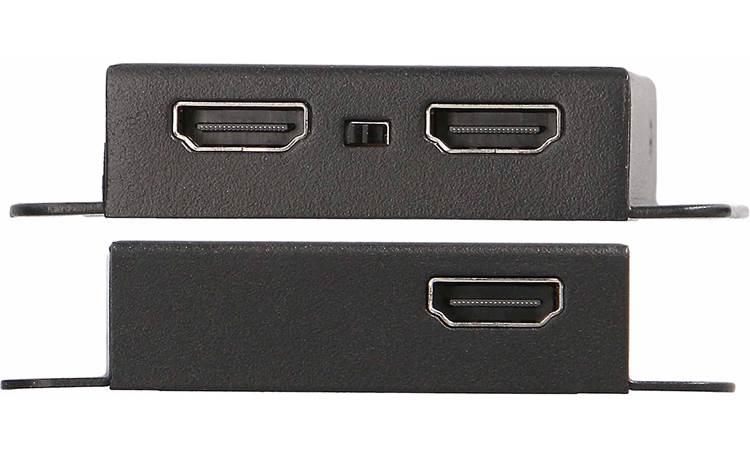

HDMI connections

Ethernet connections

Ethereal CS-HDC6EXT4K HDMI Extender Front

Ethereal CS-HDC6EXT4K HDMI Extender Includes IR emitter and IR receiver

Ethereal CS-HDC6EXT4K HDMI Extender Only at Crutchfield

Ethereal CS-HDC6EXT4K HDMI Extender Connections on right side of units

Ethereal CS-HDC6EXT4K HDMI Extender HDMI connections

Ethereal CS-HDC6EXT4K HDMI Extender Ethernet connections

Ethereal makes it easy to send video and audio across a long distance with this HDMI-to-CAT-6 balun bundle.

Item # 340HDC6EXT

Ships free today

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$159.99

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Steve Kindig

A great alternative to a long HDMI cable

Ethereal makes it easy to send video and audio across a long distance with this HDMI-to-CAT-6 balun bundle. It includes a transmitter and a receiver, which together can transfer a 4K/30Hz video signal up to 40 meters (about 131 feet) away over a single CAT-6 Ethernet cable. For 1080p signals, the range extends to 230 feet. These units are ideal for connecting an A/V receiver to an overhead projector or wall-mounted TV, without the need for an expensive, ultra-long HDMI cable.

How the system works

The transmitter balun connects to your home theater receiver, Blu-ray player, or other video source via a short HDMI cable. It then sends the incoming signal through a CAT-6 cable to the receiver balun, which is located near your TV or projector. A short HDMI cable is used to connect the receiver balun to your display.

What is a balun?

A balun gets its name by converting signals between balanced and unbalanced lines. Balanced cables carry signals over much longer distances than unbalanced lines, and also provide superior noise rejection.

These baluns convert HDMI to balanced CAT-6 connections. The result is clear, crisp signal transmission that offers flexible placement options for your equipment.

Product highlights:

HDMI-to-CAT-6 transmitter and receiver balun system
send audio and video from one room to another via a single CAT-6 Ethernet cable
- maximum range of 40 meters for 4K/30Hz video (about 131 feet)
- maximum range of 70 meters for 1080p video (about 230 feet)
HDMI version 1.4
HDCP version 1.4
EDID ("HDMI handshake") switch lets you select settings from connected source or display
HDMI loop out on the transmitter for connecting another display
supports Dolby®, DTS®, and PCM audio formats
supports Power-over-Ethernet (PoE)
- the receiver draws power from the transmitter via Ethernet cable
- no local power supply is required at the display location
included IR (infrared) blaster and receiver make relaying commands to your equipment simple
DC power supply for the transmitter included
3-1/8"W x 11/16"H x 2-3/4"D (each)
warranty: 1 year
MFR # CS-HDC6EXT4K
Item # 340HDC6EXT
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Ethereal CS-HDC6EXT4K HDMI Extender owner's manual

HDMI-to-CAT6 transmitter
HDMI-to-CAT6 receiver
AC power adapter (attached 47" DC cord)
AC plug
58" IR emitter
58" IR receiver
User Manual

Researched by Crutchfield's Research Team

The Ethereal CS-HDC6EXT4K HDMI Extender replaces these items:

Ethereal HDMI Balun Bundle

Product Research

Features

HDMI Extender Over Cat6: This HDMI Extender Over Cat6 (CS-HDC6EXT4K) includes a transmitter unit (TX) and a receiver unit (RX) working as a pair, along with an IR emitter and IR receiver. It allows for transmission and extension of an uncompressed 4K/30Hz HDMI video signal via CAT6 network cable up to 131' (40 meters) or a 1080p/60Hz HDMI video signal up to 230' (70 meters) with zero latency.

Note: You can also use a CAT5E cable, but it will limit 4K/30Hz HDMI video transmission to 115' (35 meters) and 1080p HDMI video transmission to 197' (60 meters).

HDMI 1.4: The HDMI Extender over Cat6 (CS-HDC6EXT4K) is equipped with HDMI 1.4 jacks that are HDCP 1.4 compatible. There is a HDMI 1.4 input and output on the transmitter, as well as a HDMI 1.4 output on the receiver that support up to 10.2Gbps transmission.

Supported Video Resolutions: These HDMI 1.4 jacks support 4K@30Hz, 1080p/i@50/60Hz, 720p@50/60Hz, and 480i/p@60Hz.
Supported Audio Formats: In addition to video, the CS-HDC6EXT4K also supports multichannel audio including Dolby Digital, Dolby TrueHD, DTS, and DTS-HD, as well as 2ch to 7.1ch PCM.

Note: Because the CS-HDC6EXT4K is only HDCP 1.4 compatible (and not HDCP 2.2 compatible), it does not support copyrighted 4K video content.

EDID (Extended Display Identification): The EDID 2-way dip switch is used for selecting Extended Display Identification. Switch to the right position and the extender will copy the transmitter's HDMI loop out display EDID information to signal source. Switch to the left position and the extender will copy the receiver's display EDID to signal source.

PoE (Power-Over-Ethernet): The CS-HDC6EXT4K supports PoE (Power Over Ethernet) to power the receiver, so you only need to connect the included power supply to the transmitter. Each unit will power up, as the receiver unit is powered by the transmitter unit through the connected Ethernet cable.

IR Emitter & Receiver: This HDMI extender supports one-way IR signal transmission for remote control of your source devices. It comes with an IR emitter and IR receiver. It supports 20-60kHz wide frequency IR remote controls.

The Ethereal CS-HDC6EXT4K HDMI Extender replaces these items:

Ethereal HDMI Balun Bundle
