About the Roswell R1 10"
Product highlights:
- 10" 4-ohm marine subwoofer
- suitable for infinite baffle applications and sealed or ported enclosures
- integrated RGB LED lighting (requires separate C920-1620 RGB remote/controller)
- power handling: 250 watts RMS (500 watts peak)
- frequency response: 35-300 Hz
- sensitivity: 88dB
- cutout diameter: 9:25"
- mounting depth: 5.08"
- warranty: 2 years
- MFR # C920-1802
- Item # 3511802
What's in the box:
- One 10" Marine subwoofer with grille attached
- Eight 2" Stainless steel srcews
- 8 Screw covers
- Installation instructions
More details on the Roswell R1 10"
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 10-inch | |
| Impedance (Ohms) | 4 | |
| Cone Material | Poly | |
| Surround Material | Rubber | |
| Basket Material | Centrex Plastic | |
| Grille | Anthracite (black) Plastic, Fi | |
| Free-Air | Yes | |
| Dual Voice Coil | No | |
| Sensitivity |
88 dB at 1 watt | |
| Frequency Response | 35 - 300 Hz | |
| Max RMS Power Handling | 250 | |
| Peak Power Handling (Watts) | 500 | |
| Top Mount Depth (inches) | 5 1/8 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 9 1/4 | |
| Frame Width | 10.83 | |
| Frame Length | 10.83 | |
| Vas (liters) | 43 | |
| Fs (Hz) | 35 | |
| Qts | 0.54 | |
| Xmax (millimeters) | 11 | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | N/A | |
| Minimum Sealed Box Volume (cubic feet) | N/A | |
| Maximum Sealed Box Volume (cubic feet) | N/A | |
| Ideal Ported Box Volume (cubic feet) | 1.5 | |
| Minimum Ported Box Volume (cubic feet) | 1 | |
| Maximum Ported Box Volume (cubic feet) | 2 | |
| Port diameter (inches) | 4 | |
| Port length (inches) | 10.75 | |
Product Research
Features

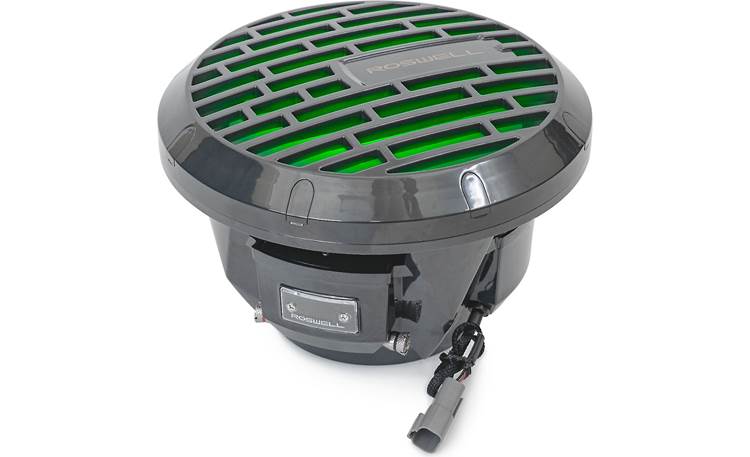

LEDs: There are multi-color LEDs in the back of the grille, to create a glow on the woofer cone. Depending on what combination of LED wires is connected, they can light red, green, blue, yellow, purple, cyan, or white. A 12 volt power supply is needed to turn the LEDs on. The LEDs can also be controlled using Roswell's RGB Remote Control (sold separately).
LED Wiring: The woofer's LED power wires are integrated into a 4-pin water tight Deutsch plug. If a Deutsch harness system isn't being used, the plug can be cut off and hard wired.
Wire Terminal: The set screw terminals will accept up to 10-gauge speaker wire.
Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Roswell optimize the woofer's motor structure, voice coil alignment, and suspension to yield the best possible performance.

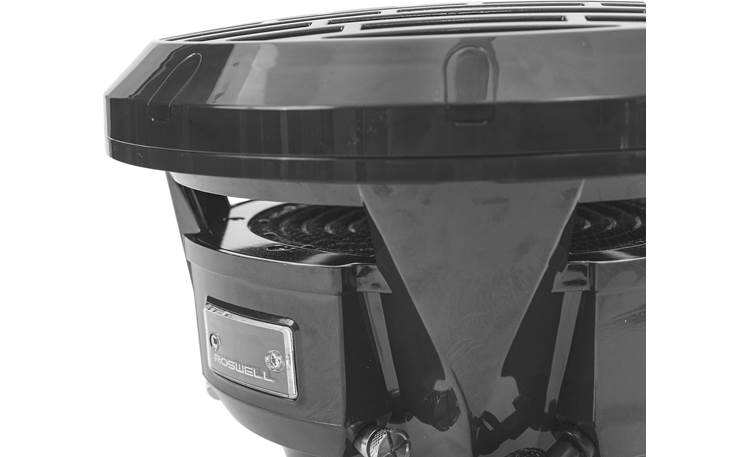

Basket And Grille: The basket and grille are Centrex plastic and enclose the woofer's motor system to prevent corrosion.
Infinite-Baffle Operation: The R1 subwoofer is designed for infinite baffle operation so that it can be installed in a variety of locations, without the need for a dedicated enclosure. If a sealed enclosure is used, Roswell recommends it be as large as is practical. Three ported enclosure options are also listed in the manual:
- 1.0 ft³ using a 4" diameter x 17¾" long port, resulting in a tuning frequency of 40 Hz
- 1.5 ft³ using a 4" diameter x 10¾" long port, resulting in a tuning frequency of 35 Hz
- 2.0 ft³ using a 4" diameter x 10¾" long port, resulting in a tuning frequency of 35 Hz
