About the Scanstrut DS21B-P

Product highlights:
- designed to provide a watertight seal for marine cables
- for connectors up to 0.83 (21mm) and cables from 0.35"-0.55" (9-14mm)
- 45.7mm (1.8") base
- tapered bung and closed-cell base seal
- ideal for antenna and navigation light cables
- designed for easy installation
- three styles to choose from
- warranty: 3 years
- MFR # DS21B-P
- Item # 356DS21BP
What's in the box:
Scanstrut DS21B-P owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Outer shell (gray)
- Base
- Base gasket w/3M adhesive
- 4 Bungs (solid / 0.35"-0.39" / 0.43"-0.47" / 0.51"-0.55")
- Three 10mm machine-screws
- Three 20mm counter-sunk screws
- Instructions on packaging
More details on the Scanstrut DS21B-P

Product Research
Features

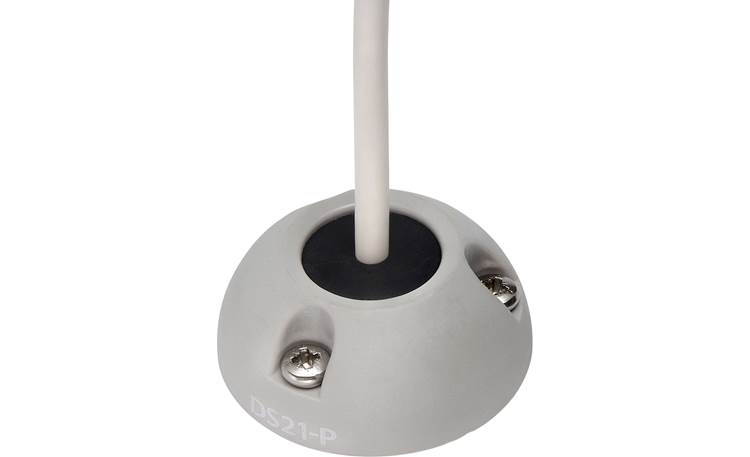

Overview: The Scanstrut DS21B-P can provide a water-tight seal for vertical cable runs in your boat or watercraft. The DS21B-P includes a tapered dome-shaped shell, made of impact-resistant plastic, and 4 rubber bungs - 3 with pre-drilled holes, and one solid that can be drilled to size. Each rubber bung is tapered to provide an IP68 watertight seal when the shell is tightened down over it.
Cable Seals: Four rubber bungs are provided for sealing the cable entry; one solid bung, that can be drilled to the required wire size, and three additional bungs that have been pre-drilled for: 0.35"-0.39", 0.43"-0.47", and 0.51"-0.55". The pre-drilled bungs are split down one side, letting you fit them around a cable without having to fit the cable connector through.
Styles: The DS21B-P features a gray impact-resistant outer shell. Additional available styles include stainless steel and black impact-resistant plastic (both sold separately).
