About the Scanstrut DS-H10

Product highlights:
- designed to provide a watertight seal for marine cable
- for connectors from 0.24" to 0.39" (6mm to 10mm)
- tapered bung and closed-cell base seal
- ideal for antenna and navigation light cables
- designed for easy installation
- two styles to choose from
- warranty: 3 years
- MFR # DS-H10
- Item # 356DSH10

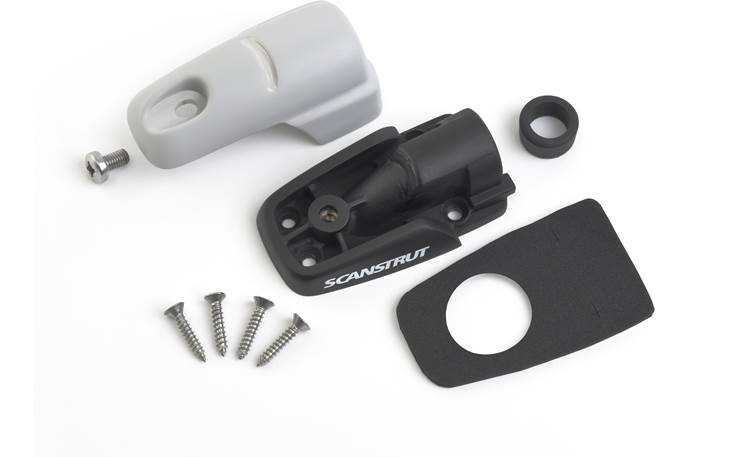

What's in the box:
Scanstrut DS-H10 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Shell (gray)
- Base
- Base gasket w/3M adhesive backing
- Four 20mm counter-sunk screws
- One M5x16mm hex-socket screw
- 5 Bungs (solid/0.23"/0.27"/0.31"/0.35" openings)
- Installation instructions
More details on the Scanstrut DS-H10

Product Research
Features

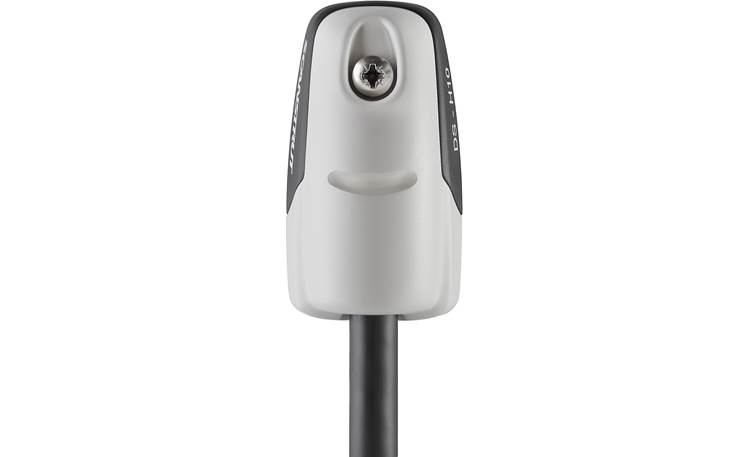

Overview: The Scanstrut DS-H10 can provide a water-tight seal for horizontal cable runs in your boat or watercraft. The DS-H10 includes a tapered dome-shaped shell, made of impact-resistant plastic, and 5 rubber bungs - 4 with pre-drilled holes, and one solid that can be drilled to size. Each rubber bung is tapered to provide a 100% watertight seal when the shell is tightened over it.
Cable Seals: Five rubber bungs are provided for sealing the cable entry; one solid bung, that can be drilled (up to 0.39") to the required wire size, and five additional bungs that have been pre-drilled with: 0.23", 0.27", 0.31", and 0.35" openings. The DS-H10 can accommodate wire sizes ranging from 0.24" - 0.39".
Colors: The DS-H10 features an outer shell made of gray impact-resistant plastic. Additional available colors include black impact-resistant plastic (sold separately).
