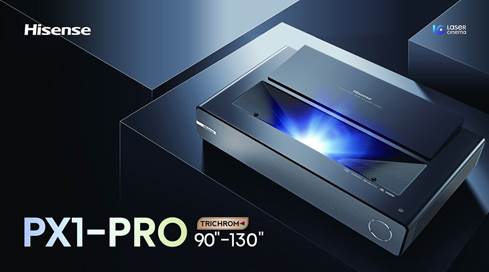

Hisense PX1-PRO

Ultra Short Throw Projector & Screen

TriChroma Laser Light Technology: The Hisense PX1-PRO ultra short throw laser projector features the award-winning TriChroma laser engine to achieve full coverage of the BT.2020 color space for a true-to-life picture with color, brightness and contrast like never before seen.  The Hisense PX1-PRO utilizes TriChroma laser light technology, featuring 3 pure-color lasers, that displays a cinema-like picture full of rich and vibrant colors. The RGB triple color Laser light source generates the three colored parts of a picture in parallel, generating improved color representation and brightness uniformity. Laser light technology also provides up to 25,000 hours of entertainment without an loss of performance.

• Wide Color Gamut: The PX1-PRO uses pure red, green, and blue lasers to achieve new levels of color performance, reaching 107% of the BT.2020 color space with 1 Billion colors. The enhanced spectrum of colors show images that are true-to-life with precision detail and natural colors.
• High Brightness & Dynamic Contrast: The Hisense PX1-PRO ultra short throw laser projector produces 2200 lumens of brightness and offers a 1,000:000:1 dynamic contrast ratio for a brilliant HDR (High Dynamic Range) video image with detailed highlights, vibrant colors, and bold blacks - making everything pop off the screen.

Note: To protect your eyes, proximity sensors dim the lasers when something gets too close.

Ultra Short Throw Design with Digital Lens Focus: The Hisense PX1-PRO is an ultra short throw laser projector that utilizes digital lens focus to project images from 90" to 130" with razor-sharp focus for maximum viewing immersion. The PX1-PRO can project these image sizes from just a few inches away from the wall and screen, thanks to its 0.25:1 throw ratio. The digital lens focus allows you to adjust the projector's focus conveniently from the included remote control (there is no manual focus wheel).

• The projector should be positioned so that it is parallel with the screen surface (it does not offer Lens Shift or Keystone Correction)
• It s recommended that the distance from the rear-panel of the projector to the screen or wall be 8.125".
• You should also leave 8.0" clearance around the sides of the projector and 6" of clearance around the back of the projector.

4K Ultra HD via XPR Pixel-Shift Technology: The Hisense PX1-PRO ultra short throw projector utilizes DLP XPR Technology (Texas Instruments' pixel-shifting technology) to achieve 4K resolution with 8.3 million distinct pixels. XPR Technology perfectly quadruples the projector's 0.47" DMD chip's 1920x1080 pixels to generate 8.3 million pixels with ultra-fast pixel shifting speed for 4K content. 4K Ultra HD has 4x more detail than Full HD 1080p.

Note: The Hisense PX1-PRO has a native resolution of 1080p, but can accept a 4K video signal and display a 4K video signal through XPR Pixel-Shift technology.

HDMI 2.1: The Hisense PX1-PRO is outfitted with two HDMI 2.1 inputs to connect your Ultra-HD and HD sources; such as your Blu-ray player, satellite/cable box, and/or game system. In addition, any HDMI input can be used to connect a PC to the Laser TV.

• Supported Video Resolutions: Both HDMI inputs will accept up to 4K @ 24/30/60/120Hz.
• HDCP 2.2: HDCP 2.2 is supported by all of the TV's HDMI inputs. HDCP 2.2 is short for "High bandwidth Digital Content Protection" and is used for 4K video copyright protection for compatibility with Ultra HD Blu-ray players and 4K Satellite/Cable providers.
• 4:4:4 Color Subsampling: Both HDMI inputs will support up to 4:4:4 chroma subsampling for full color data rendering of 4K video (4:2:2 and 4:2:0 are also supported by all HDMI inputs). With 4:4:4 color, luminance (brightness) and chroma (color) are sampled at the same rate, resulting in an RGB color palette as big as the video sampling rate for a video image with more total colors, plus greater color accuracy and detail.

Note: The projector does not contain any analog video inputs.

HDR (High Dynamic Range): The PX1-PRO ultra short throw laser projector offers the ability to provide a premium High Dynamic Range (HDR) experience, with a higher level of contrast between light and dark images. HDR delivers a much higher level of contrast between light and dark to produce an image that is more realistic and closer to what the content creator imagined. This increased contrast reveals the subtle nuances of the image, from detailed blacks and shadows to the brightest whites and colors, plus greater depth.

• HDR 10: HDR 10 is an open standard and currently the most popular HDR format on the market. It uses static metadata at the start of a movie to tell the preamplifier/processor and your TV that the video content is encoded using HDR.
• Dolby Vision (Firmware Updating Coming Summer 2022): Unlike HDR 10 which contains static metadata, Dolby Vision uses dynamic metadata technology which sets individual color and brightness levels for each and every scene. Dolby works directly with filmmakers at major Hollywood studios to create superior HDR video masters of blockbuster movies.

Note: The PX1-PRO does not support HDR 10+ or HLG.

MEMC (Motion Estimation, Motion Compensation): With microsecond level-processor response and MEMC (Motion Estimation, Motion Compensation) technology the PX1-PRO ultra short throw projector ensures you never miss a moment of the action. Fast moving video images from sports, games and action films are exceptionally smooth and crystal clear. The projector's native refresh rate is 60Hz.

Picture Modes: The Hisense ultra short throw laser projector offers a number of preset pictures modes (such as Filmmaker and Game) to suit a variety of applications and content. You can also manually adjust picture settings such as Contrast, Brightness, Color, Tint, Sharpness, Noise Reduction, White Balance, Color Space, and Gamma. Picture modes and settings can be applied to an individual source or all sources.

• Filmmaker Mode: Filmmaker Mode disables any motion processing adjustments from the projector settings to ensure you’re seeing content exactly the way the moviemakers intended. Filmmaker Mode automatically adjusts picture settings to get content looking the way the movie-makers intended, reserving the director's creative intent to provide a more cinematic experience.
• Game Mode with ALLM: You can enable Game Mode to optimize the projector's settings for playing video games with a gaming console. Game Mode bypasses and disables some of the projector's video processing to allow for faster video gaming response time. ALLM (Auto Low Latency Mode) detects when a gaming console is the active source and automatically adjusts projector settings to optimize game performance.

Built-in HDTV Tuner: The projector features a built-in over-the-air HDTV (ATSC) and Clear QAM tuner, so you don't need a separate set-top box to receive and decode over-the-air HDTV/SDTV or unencrypted Digital Cable signals (up to 1080i); subscription still required to receive cable channels. A single RF-type coaxial input is use to connect an external indoor/outdoor antenna (sold separately).

30W Speaker System: With a built-in 30 watt speaker system that supports Dolby Atmos, DTS-HD and Dolby Digital, the Hisense PX1-PRO ultra short throw projector delivers an expansive and immerse soundstage with clear dialog, crisp highs, and deep bass.

eARC (Enhanced Audio Return Channel): The Enhanced Audio Return Channel within the projector's HDMI 1 input enables the projector, via a single HDMI cable, to send audio data "upstream" to an AV receiver; increasing user flexibility and eliminating the need for any separate S/PDIF audio connection. This feature allows audio to be sent from the projector to your AV receiver through the same HDMI cable already being used to send audio/video to the projector. This eliminates the need for extra cables connected to the projector. eARC allows audio from the projector tuner, Network connection, inserted USB device, or HDMI inputs connected device to be heard through your eARC compatible AV receiver via the projector's HDMI eARC input.

• The audio from the projector's tuner, HDMI inputs, USB ports, and Android TV apps can pass as Dolby Atmos (via Dolby Digital Plus), Dolby Digital Plus, Dolby Digital, or 2ch PCM.
• Your AV receiver or soundbar will also have to support eARC (Enhanced Audio Return Channel) to accommodate the playback of these high resolution audio formats. If your AV receiver or soundbar only supports ARC (Audio Return Channel), audio playback will be limited to Dolby Digital or 5.1ch/2ch PCM.

Analog & Digital Audio Out: The Hisense PX1-PRO is outfitted with analog & digital audio outputs (only one output can be used). The stereo minijack (3.5mm) analog output can be connected to a receiver, soundbar, powered speakers, or set of headphones. The projector's optical (toslink) digital output terminal will output Dolby Digital (when available), DTS, or 2ch PCM. The digital optical output terminal only sends an audio signal in Dolby Digital or DTS when receiving Dolby Digital/DTS surround sound from a digital broadcast channel through the tuner, HDMI inputs, Android TV apps, or USB ports. When the projector's analog or digital output is selected, the projector's built-in speaker system is muted.

WiSA Ready: The Hisense PX1-PRO is WiSA Ready and compatible with WiSA enabled USB transmitters and WiSA certified speakers (all sold separately) for creating a wireless 5.1ch audio system. Thanks to WiSA technology you can create a wireless 5.1ch speaker system with low-latency (5.1 milliseconds), seamless synchronization (+/-1.0 microseconds), and high-fidelity audio (24-bit/96kHz).

Note: In addition to the Hisense PX1-PRO projector, you'll need a WiSA enabled USB transmitter and WiSA certified speakers/sub to create a wireless 5.1ch speaker setup (all sold separately).

Network, Bluetooth, & USB Integration

Wired or Wireless Network Connection: The Hisense PX1-PRO ultra short throw laser projector supports a wired or wireless network connection. Via the TV's network connection you gain access to Android TV and a variety of online entertainment streaming services, as well Google Assistant voice control through the included remote. You also get the ability to stream content from your Android or Apple iOS mobile device via Chromecast, as well as stream content from your Windows PC or Mac computer.

• Ethernet Jack: The Hisense PX1-PRO is equipped with an Ethernet (RJ45) LAN jack for connecting the ultra short throw laser projector to your home network and ISP (internet service provider).
• Built-in WiFi: Built-in WiFi (802.11ac; 2.4/5GHz) allows you to wirelessly access your home network and the internet. A wireless connection requires a home network with an 802.11 access point (802.11n or better recommended) and internet connection. Supports WPS, WEP, and WPA security.

Note: A home network connection speed of at least 2.5 Mbps is recommended for standard definition, 10 Mbps for high definition, and 20 Mbps for ultra-high definition.

Android TV: The Hisense ultra short throw laser projector features built-in Android TV with access to a wide variety of apps from Google Play which have been optimized for playback on the big screen (subscription, rental, or purchase fees may apply). Android TV lets you browse thousands of movies and TV episodes from across a variety of online streaming services, all in one place and organized into categories and genres based on what interests you the most.

• Movies & TV Shows: Watch 4K Ultra-HD, high-definition, and standard definition movies, TV shows, and videos from a variety of online entertainment services such as Amazon, Disney+, Google Play, HBO, Netflix, Vudu, YouTube, and more. You also get live TV programming from Sling Television, Hulu Live, and YouTube TV; as well as on-demand network content from ABC, FOX, & NBC.
• Music & Radio: You'll be able to listen to online music and internet radio from Amazon Music, Pandora, Spotify, iHeart Radio, SiriusXM, Tidal, TuneIn, Deezer, YouTube Music, and more.
• Sports, News, & Weather: Get scores, news, and highlights from ESPN, NBA, NFL, NHL, MLB.TV, CBS Sports, Fox Sports, and more. You'll also get news information from CBS, NBC, CNN, Fox; as well as weather forecasts from AccuWeather and The Weather Network.
• Other Apps: There are also a variety of Gaming, Lifestyle, Health & Fitness, Education, Business, Communication apps, and more from Android TV. Click here to discover the full collection of Android TV Apps from Google Play. Not all Google Play apps will be Android TV compatible.

Notes:

• 4K & 4K HDR network streaming requires a network speed of 20Mbps or greater. A wired Ethernet connection is recommended over a wireless WiFi connection for better performance. If you desire a WiFi connection, then use a dual-band Gigabit wireless-N router (or better) for 4K streaming.
• In order to use Android TV, you must consent to Google's Terms of Service and Privacy Policy.

Chromecast built-in: Chromecast built-in lets you cast your favorite entertainment apps and video content from your Android (OS 4.4.2+) or Apple iOS (8.0+) device to the Hisense PX1-PRO projector. Now you can cast your favorites movies or TV shows (on Netflix, Hulu, Vudu, Google Play, HBO, and more); your favorite music and radio stations (on Spotify, Pandora, iHeartRadio, TuneIn, YouTube Music, and more); Sports highlights (on ESPN, NBC, CBS, and more); plus photos & videos (on YouTube, Google Photos, and more) from your compatible Android or Apple iOS device to the Hisense PX1-PRO ultra short throw laser projector. For a list of all compatible Chromecast Built-in apps click here.

Bluetooth Audio Streaming: The Hisense PX1-PRO features built-in Bluetooth with support for wireless audio streaming (A2DP), so you can wirelessly stream audio content from a Bluetooth enabled source devices (such as smartphone, tablet, laptop, or desktop computer) to the ultra short throw projector's built-in speaker system.

Note: The PX1-PRO ultra short throw laser projector features a Bluetooth receiver and not a Bluetooth transmitter. It can received audio from a Bluetooth source device, but it cannot transmit an audio signal to a set of Bluetooth headphones or speakers.

Dual USB Ports: The Hisense PX1-PRO is equipped with two USB-A ports; there is a USB-A 3.0 port on the rear-panel and a USB-B 2.0 port on the side-panel. The USB-A 3.0 port is rated at 5V/1A, while the USB-A 2.0 port is rated at 5V/500mA. Both USB ports support connection of a USB MSC (mass storage class) device, such as a USB thumbdrive or HDD. Some HDDs will require an external AC power supply. The PX1-PRO laser projector allows you to playback audio, video, and photo files on a compatible USB MSC device.

• Video Files: Compatible video files include AVI, FLV, MPEG, MP4, MKV, and WEBM - up to 3840 x 2160 @ 30/60/120fps.
• Photo Files: Compatible photo files include JPEG, PNG, BMP, GIF, WebP, and HEiF - up to 15360 x 8640 pixels.
• Audio Files: Compatible audio files include AAC, FLAC, MP3, WAV, and WMA - up to 24-bit/192kHz.

Note: The USB ports do not support connection of an Apple iOS or Android OS device. The USB ports cannot be connected to a desktop computer or laptop.

Remote, App, and Voice Control

Remote Control: The included remote control operates via Bluetooth and IR. It provides wireless operation of the Hisense PX1-PRO ultra short throw laser projector. You can also program your cable or satellite remote control operate the laser projector (see Owner's Manual for control code list). The Hisense PX1-PRO also supports HDMI CEC (Consumer Electronics Control), so you can link operation (such as Power On/Off) between connected HDMI CEC compatible devices via one remote control.

Note: Batteries for remote are not included and sold separately. The remote operates off of two "AAA" batteries.

Voice Control: The Hisense PX1-PRO ultra short throw laser projector supports voice control of select functions through the built-in Google Assistant & optional Amazon Alexa enabled devices via a wireless network connection.

• Built-in Google Assistant: The ultra short throw laser projector supports the Google Assistant through its Android operating system and the included IR remote's built-in mic. You can simply trigger the Google Assistant by by pressing the mic button on the remote and then speaking into the microphone after hearing an audible prompt. You can ask the Google Assistant to turn volume up/down, change channels and inputs, search content on select built-in Android TV apps, and control basic playback functions. In addition to Laser TV voice commands, you can use the Google Assistant to control connected smart home devices and other Google Home enabled devices. The Google Assistant can also be used to find answers for many of your daily questions through Google's advanced search engine. The projector also supports voice control through the Google family of wireless speakers and devices (sold separately - see Accessories tab).
• Works With Amazon Alexa: Alexa-enabled devices (including the Amazon Echo family of speakers, sold separately - see Accessories tab) will be able to control key functions of the Hisense ultra short throw laser projector. With this new feature you can simply use your voice to turn the projector on or off, change channels, change inputs, control volume, and control playback functions of select streaming content.

Note: In order to use voice control functions, you must consent to Google's or Amazon Alexa's Terms of Service and Privacy Policy.

Smarthome Control: The Hisense PX1-PRO ultra short throw projector can be integrated with smarthome devices that are compatible with Google Assistant. The microphone on the included remote allows you to use the Google Assistant and your voice to control Google smarthome devices throughout your home. Smarthome control requires that the Hisense projector and all compatible Google Assistant devices be connected to the same WiFi wireless network.

Android TV Remote: The Android TV Remote App (for Android OS 4.0+ and Apple iOS 9.0+) lets you use your compatible Android or Apple iOS device as a remote to control the Hisense projector's Android TV functions. Easily navigate content and play games on on the Android TV enabled projector. The remote app offers voice search and an on-screen keyboard, giving you full control of Android TV from your smartphone or tablet. Simply tap the on-screen mic button to start a voice search, or use the keyboard to input text on Android TV. If you know what you want to watch, just say it into your smartphone or tablet's microphone and the Hisense projector will find it within its Android TV applications.

Serial Port: You can connect the Hisense PX1-PRO ultra short throw projector's 3.5mm serial port to an external control device (such as a computer or A/V control system) to control the projector's functions externally.

Sleep Timer: The Sleep Timer switches the projector off after a specified amount of time. The sleep timer can be set to 10, 20, 30, 40, 50, 60, 90, or 120 minutes.

Parental Control: The projector's Parent Control feature allows you to set restriction on usage of specific channels and inputs. Parental Control is accessed and protected by a 4-digit pass-code.
