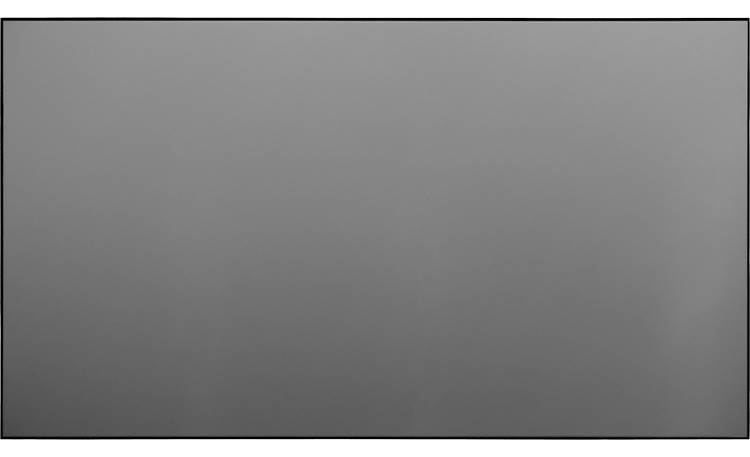

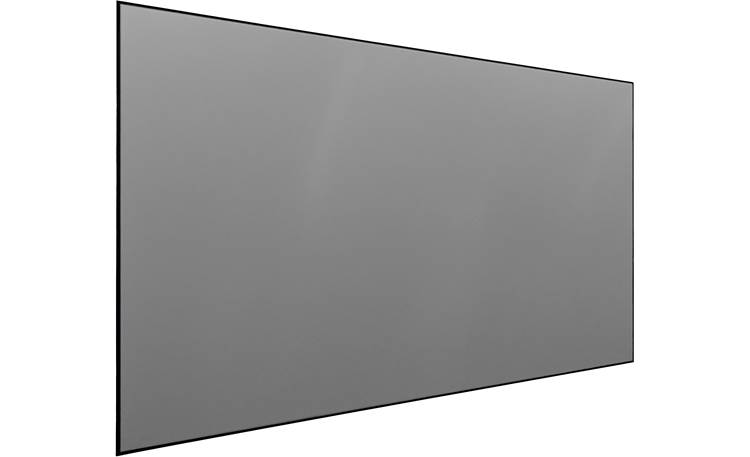

Stewart Filmscreen Balón Edge Fixed-frame projector screen with Phantom HALR Plus screen material (120")

Item # 3674005620

This sharp-looking projector screen with ultra-thin bezel was designed for rooms with uncontrolled ambient light.

This sharp-looking projector screen with ultra-thin bezel was designed for rooms with uncontrolled ambient light.

Item # 3674005620

$4,820.59

Other options

About the Stewart Filmscreen Balón Edge

James Ralston

High ambient light rejection and a "barely-there" frame

The Balón Edge offers a clean fit and finish that draws your eyes to the screen with a crisp, ultra-thin border. This 1/2"-thick frame has a black velvet Velux overlay that absorbs stray light to help bring out a projected image's color and brightness. The frame is combined here with Stewart's Phantom HALR Plus screen material, which specializes in rejecting ambient light. That means it can provide a punchy, vibrant picture in brightened rooms where other screen materials might present a washed-out image.

High ambient light rejection and a "barely-there" frame

The Balón Edge offers a clean fit and finish that draws your eyes to the screen with a crisp, ultra-thin border. This 1/2"-thick frame has a black velvet Velux overlay that absorbs stray light to help bring out a projected image's color and brightness. The frame is combined here with Stewart's Phantom HALR Plus screen material, which specializes in rejecting ambient light. That means it can provide a punchy, vibrant picture in brightened rooms where other screen materials might present a washed-out image.

Phantom HALR Plus has a peak screen gain of 1.3, providing a boost in brightness for projectors that need it. Its ambient light rejection is rated at 80%.

Streamlined installation

Stewart Filmscreen work hard to take the fuss out of assembling and mounting their screens on the wall. This screen comes intuitively packaged for a straightforward assembly and includes a flush-mount wall bracket and hanging bar system. Getting the fabric on is literally a snap, with Stewart's Quick Snap system that neatly aligns the fabric to the frame.

READ LESS

Product highlights:

  • 119-7/8" handcrafted screen (measured diagonally)
  • 16:9 viewing area
  • image: 104-1/2"W x 58-3/4"H
  • 1/2" ultra-thin frame
    • black velvet Velux overlay absorbs stray light and enhances perceived brightness and colors
    • frame built using high-quality, aircraft-grade aluminum
  • built-in railing for optional LED kit (sold separately)
  • flexible Phantom HALR Plus screen material is designed for rooms with uncontrolled ambient light
  • ambient light rejection: 80%
  • rated up to 16K resolution
  • screen gain: 1.3
  • half gain angle: 27°
  • flame-resistant
  • Quick Snap screen assembly perfectly aligns screen fabric to frame
  • includes flush-mount bracket system
  • designed and manufactured in the USA
  • 105-5/8"W x 59-13/16"H x 1-1/2"D (frame)
  • 53 lbs.
  • warranty: 1 year
  • assembly required
  • MFR # BALG3E120HPHTM13FLX

What's in the box:

  • Projection screen
  • Frame assembly
  • Mounting hardware
  • Quick Start Guide

Customer reviews for Stewart Filmscreen Balón Edge

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Stewart Filmscreen Balón Edge

Stacey B.

Product Research

Features

Balon Edge: The Stewart Filmscreen Balon Series Edge features a minimalist fixed-frame design. The Balon Edge frame measures only 0.5" (w) x 1.5" (d) and fits flush to the wall. The frame is built using high-quality, aircraft grade aluminum and is hand finished with a rich, velvet Velux overlay. The Velux finish is designed to absorb any projector overscan (stray light). From your seated viewing position, all you'll see is the narrow 0.5" black Velux border, providing a crisp, sharp image.

Phantom HALR Plus: Phantom HALR Plus is a flexible front projection, high ambient light rejecting projection screen material. Formulated for use in multipurpose viewing applications, it eliminates the concerns of a washed-out image due to uncontrolled ambient light. The elevated gain provides a needed boost to projectors requiring a little more punch. Phantom HALR Plus guarantees a viewing experience with stellar color uniformity and visual fidelity in a high ambient light application.

  • Resolution: up to 16K
  • Peak Gain: 1.3
  • Half Gain: 27°
  • Ambient Light Rejection (ALR): 80%
  • Minimum Throw Distance: 1.6x Image Width

Note: Available projection screen sizes include 110", 120", 135", and 150".

Simple Installation: The Stewart Filmscreen Balon Edge offers simple and straight-forward installation with a snap-on screen and EZ-Mount bracket system. The frame consists of four pieces (top, bottom, left side, right side) that will screw together, plus braces that will attach to the back of the frame for added support. Once the frame is assembled, the roll-out projection screen can be snapped onto the frame for a perfect fit. The EZ-Mount bracket system consist of an upper mounting bracket (49.5" wide) and lower magnetic mounts to securely hang the Stewart Filmscreen Balon Edge on your wall.

Note: The EZ mount bracket system is the standard mount for the Balon Edge. Other options include the Wall Board Mount, the Eye Bolt Mount (Hanging), and Aperture Mount - see Owner's Manual for more details.

Optional Light Kit: The Balon Edge frame features an LED light rail at 60-degrees for perfect light disbursement when used with the optional LED light kit (sold separately).
