About the Blaze PowerZone Rack Mount Kit

Product highlights:
- mounts one or two half-width amplifiers in a full-width rack space
- height is 1U rack space
- warranty: 5 years
- MFR # TMP-RACK-KIT-BLAZE
- Item # 390BRACKT

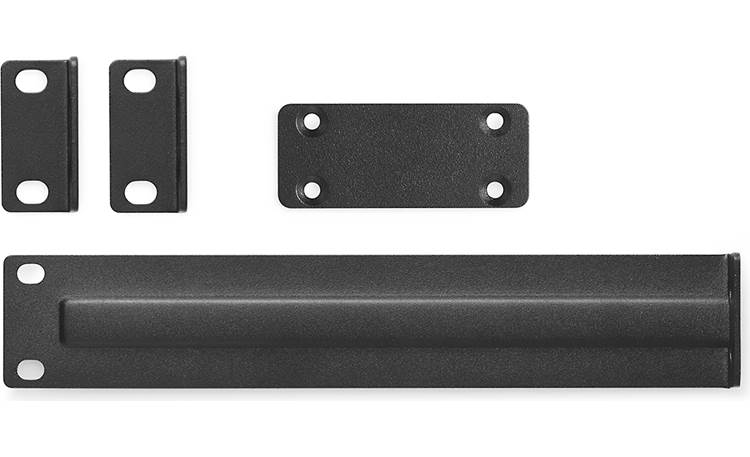

What's in the box:
- Half-rack extension bracket
- 2 Angled brackets
- 1 Adjoining plate
- Four 8mm counter-sunk screws
- Four 6mm counter-sunk screws
- One 6mm machine screw
- 1 Screw bushing
More details on the Blaze PowerZone Rack Mount Kit

Product Research
Features
Overview: The Blaze PowerZone Rack Mount Kit is designed for use with Blaze PowerZone Connect 1U commercial amplifiers. The PowerZone Rack Mount Kit allows you to rack-mount one or two PowerZone Connect amplifiers in a standard equipment rack. The amps will fit into a 1U rack space (19" wide x 1.75" high). The hardware to attach the brackets to the amplifier is included. Screws for mounting the device into the equipment rack are not included.
Installation: The Blaze PowerZone Connect amplifiers are approximately 8.7" wide, equivalent to the width of a "half-rack." To mount a single amp, two right-angled brackets (one long and one short) are used, positioning the unit to one side of the rack space. The brackets attach to the sides of the amplifier, using the supplied screws, to extend the total width to that of a standard equipment rack (19"). To mount two amplifiers side-by-side, two short right-angled brackets are used. In addition, the included adjoining bracket attaches to the tops of each amplifier to join the two units together, using the supplied screws.
