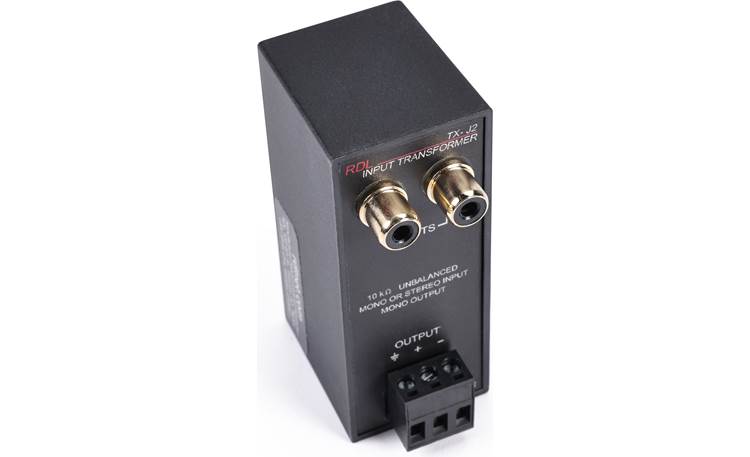

About the RDL TX-J2

Product highlights:
- mix unbalanced stereo input signal to mono balanced output
- gold-plated stereo RCA input and balanced 3-pin Phoenix-style output
- output accepts up to 14-gauge wire
- cancels hum from unbalanced line inputs
- frequency response 30-20,000 Hz (±1 dB)
- 1-1/4"W x 3"H x 1-1/2"D
- weight: .28 lbs.
- warranty: 3 years
- MFR # TMP-TX-J2
- Item # 390RDLTJ2

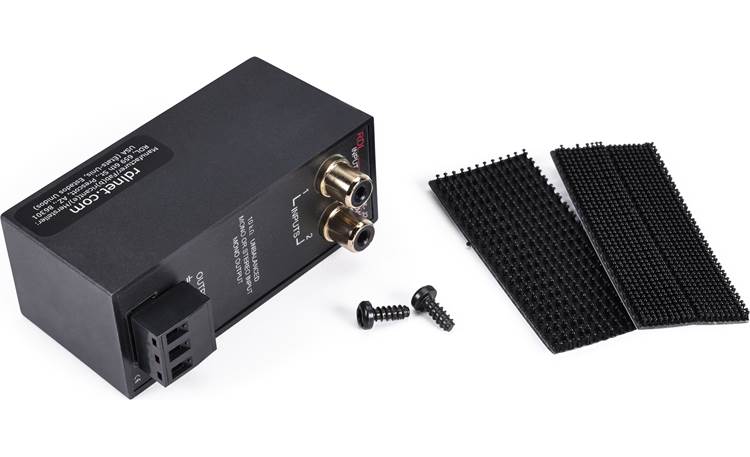

What's in the box:
- Audio balancing transformer
- 3-Pin Euroblock connector (installed)
- 2-1/2" Fastener strip with adhesive backing
- Three 3/8" screws
- Instruction sheet
More details on the RDL TX-J2

Product Research
Features
Overview: The RDL TX-J2 Unbalanced Input Transformer can passively mix two unbalanced line-level audio channels into a mono balanced output, with no added signal gain. The TX-J2 features a pair of gold plated RCA inputs, accepting either stereo or dual-mono consumer-level audio signals, and a removeable 3-pin Euroblock output that provides a balanced mono outupt signal for running to a 10kΩ or higher balanced input on outboard audio equipment. The 3-pin Euroblock connector can accommodate wire up to 14-gauge. The TX-J2 transformer is also designed to reject induced "hum" on the unbalanced inputs, and has a frequency response of 30Hz-20kHz (± 1dB).
Note: The RDL TX-J2 is a passive module that does not add gain to the consumer-level RCA input. The balanced output signal is not a standard +4dBu signal.
