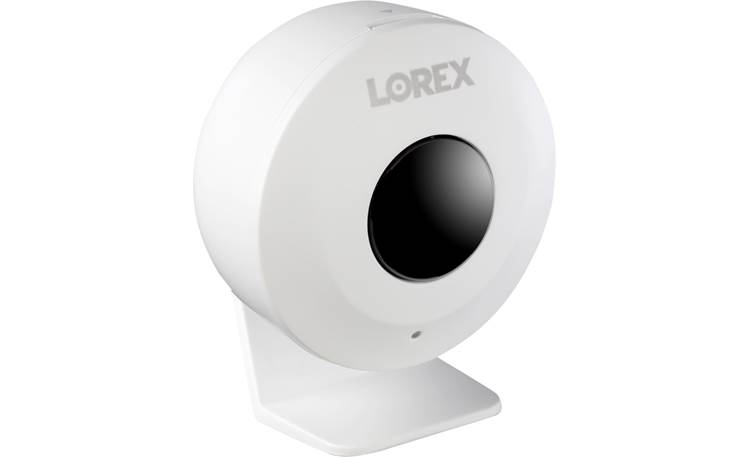

About the Lorex® AM41TK

Product highlights:
- battery-operated passive infrared (PIR) motion sensor
- compact, unobtrusive design can be mounted on a wall, ceiling, or tabletop
- detects moving heat signatures
- detection range: 26 feet
- detection angle: 110°
- receive a notification or chime alert on your phone via the free, downloadable Lorex app
- built-in Bluetooth Low Energy 5.0 for a reliable wireless connection
- works wirelessly with Lorex Smart Sensor Kit and Lorex Smart Home Security Center (both sold separately)
- up to 10 sensors can be connected to the Lorex Smart Sensor Kit and 32 sensors with the Lorex Smart Home Security Center
- includes pre-inserted CR2450 battery
- bracket and adhesive kit included
- 1-1/2"W x 1-1/16"H x 1-1/2"D (with bracket)
- weight: 0.75 oz.
- warranty: 1 year
- MFR # AM41TK
- Item # 393AM41TK
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- Passive Infrared Motion Sensor
- CR2450 battery (installed)
- Mounting bracket
- Release pin
- 4 Dual-sided adhesive pads
- Quick Start Guide (English)
- Quick Start Guide (French)
- Quick Start Guide (Spanish)
- FCC Statement/Regulatory Information
More details on the Lorex® AM41TK

Product Research
Features
Overview: The Lorex Add-on Motion Sensor (AM41TK) helps you monitor areas that aren't covered by video cameras. This sensor uses Passive Infrared (PIR) technology to detect movement in your home, and sends a signal to your security system. It works with the Lorex Sensor Hub or with the Lorex Smart Home Security Center. Up to 10 sensors can be connected to the Sensor Hub, or up to 32 to the Smart Home Security Center.

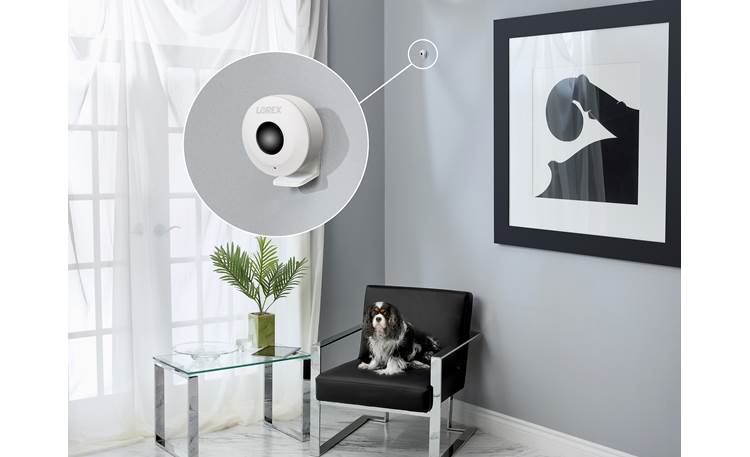

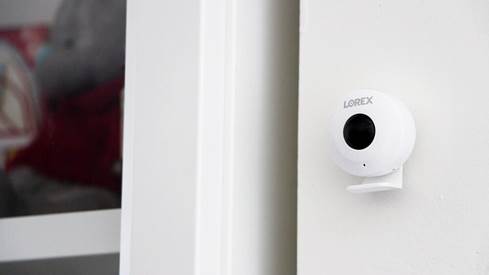

Installation: The Motion Sensor measures infrared light (IR) that radiates or reflects from objects in its field of view. When the "heat signature" changes, indicating movement, the sensor sends a signal to the hub. The Motion Sensor detects general movement within a range of 26 feet and within a detection angle of 110°. It is powered by a CR2430 coin cell battery (installed). The sensor has a mounting bracket that can be attached to a wall, ceiling, tabletop, or shelf via the supplied adhesive pads.
Specifications:
- Detection Range: 26 feet max
- Detection Angle: 110° max
- Operating Temperature: 14°F to 113°F, 0-95% RH
- Dimensions: Diameter 1.45", Height 0.998"
- Weight: 0.75 ounces
