About the DS18 G1000.4D
Product highlights:
- Featured in our article: Best budget car amplifiers for 2025
- 4-channel car amplifier
- 90 watts RMS x 4 at 4 ohms
- 150 watts RMS x 4 at 2 ohms
- 300 watts RMS x 2 bridged at 4 ohms
- Class D amp technology
- frequency response: 20-20,000 Hz
- variable high- and low-pass filters (50-2K Hz, 12 dB/octave)
- preamp and speaker-level inputs
- wiring and hardware not included with amplifier:
- 4-gauge power and ground leads recommended
- fuse rating: 25A x 2
- dimensions: 8.08"W x 1.98"H x 4.72"D
- warranty: 2 years
- MFR # G1000.4D
- Item # 408G10004D
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:

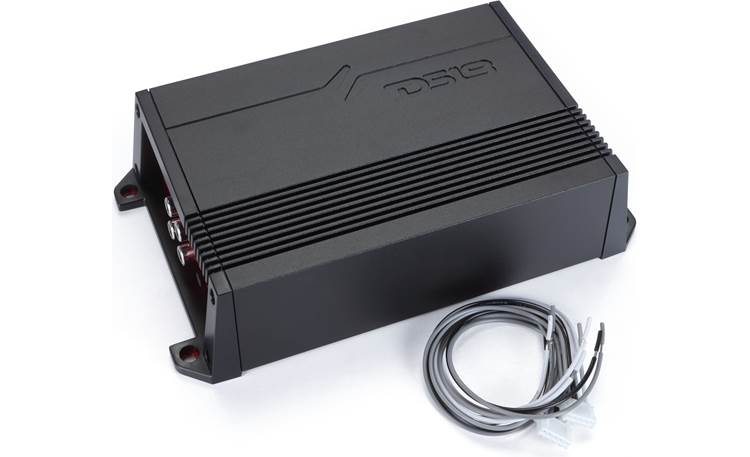

- 4-Channel amplifier (two internally installed 25A mini-fuses)
- Two spare 25A fuses
- Two 8" speaker-level input harnesses
- Four 5/8" screws
- 4 Flat washers
- 4 Lock washers
- Owner's manual (En & Sp)
More details on the DS18 G1000.4D
Features & specs
| Performance | ||
|---|---|---|
| RMS Power Output (Watts x Channels) |
90 x 4 | |
| Peak Power Output (Watts x Channels) | --- | |
| Power at 2 Ohms (Watts x Channels) | 150 x 4 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
| Bridged Power (Watts x Channels) | 300 x 2 | |
| Minimum Impedance Bridged | 4 | |
| Minimum Impedance Unbridged | 2 | |
| Best Frequency Response | 20Hz-20k Hz | |
| THD at Rated RMS Power | --- | |
| Signal to Noise Ratio | 90 dB | |
| Input Voltage | --- | |
| Features | ||
| Amplifier Class | D | |
| Built-in DSP | No | |
| Remote Control | No | |
| Low-Pass Crossover Frequency | 50-2000 Hz | |
| Low-Pass Slope (dB/octave) | 12 dB/octave | |
| High-Pass Crossover Frequency | 50-2000 Hz | |
| High-Pass Slope (dB/octave) | 12 dB/octave | |
| Bass Boost | No | |
| Bass Boost Frequency | N/A | |
| Fan Cooled | No | |
| Fuse Rating | 50 | |
| Speaker Level Inputs | Yes | |
| Preamp Outputs | No | |
| Width (inches) | 8-1/8 | |
| Height (inches) | 2 | |
| Depth (inches) | 4-3/4 | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
Product Research
Features

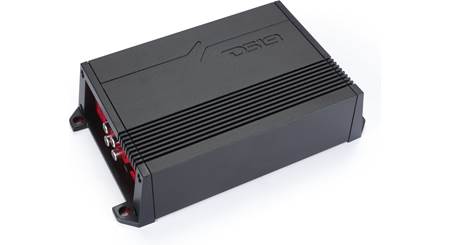

Overview: The DS18 G1000.4D is a 4-channel full-range amplifier that's part of DS18's GEN-X series car amplifiers. The compact amplifer is bridgeable, so it can also be wired as 3-channel or 2-channel. A heavy-duty aluminum heat-sink chassis helps keep the Class D amplifier circuitry cool and stable during high-output use.
RMS Power Output:
- 90W x 4 @ 4-ohms
- 150W x 4 @ 2-ohms
- 300W x 2 @ 4-ohms bridged

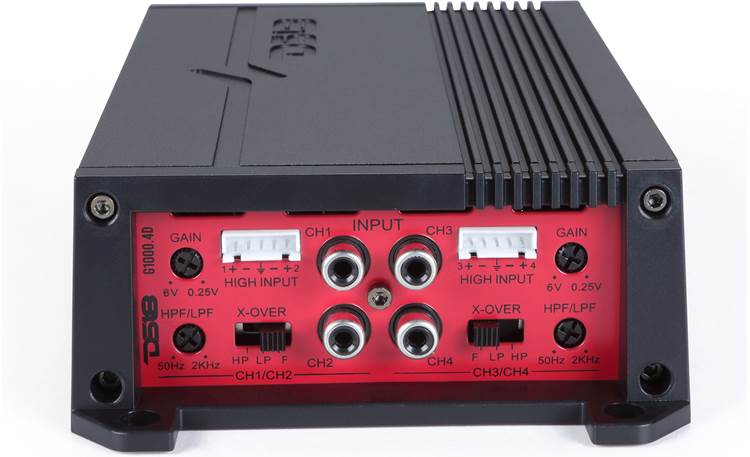

Gain: Two rotary gain controls (Ch.1/2 & 3/4) let you run low-level signals ranging from 250 mV up to 6 V. The amp can also accept speaker-level signals on the two provided input harnesses.
Crossover: Two crossovers are provided (Ch. 1/2 & 3/4), each with the following options:
- Crossover Selector: A 3-position crossover switch lets you choose LPF, Full, or HPF. The low-pass and high-pass crossovers both have a 12 dB per octave slope.
- Frequency: The crossover point is set with a rotary dial; it is continuously variable from 50-2000 Hz.
Power/Protect LED: A single LED will illuminate Green when the amp is powered on and will change to Red if the amplifier goes into protect mode. The Protect circuit can guard against Over-Heating, Over/Under Voltage, Short-Circuit, and DC Output.
Clip LED: A Clip LED will light to let you know the input signal (Gain) has reached the distortion point and will need to be lowered.
Power Terminals: The power, ground, and remote inputs use set-screw terminals; power and ground terminals will accommodate up to 4-gauge wire (recommended), while the remote turn-on terminal can accept wire up to 12-gauge (18-gauge is usually sufficient). The set screws are tightened/loosened using a Philips-head screwdriver (not included).
Fuses: The amplifier includes two internally-mounted 25A mini-fuses. Two spare 25A fuses are included.
Speaker Outputs: Four speaker outputs are provided on set-screw terminals accommodating wire up to 12-gauge.

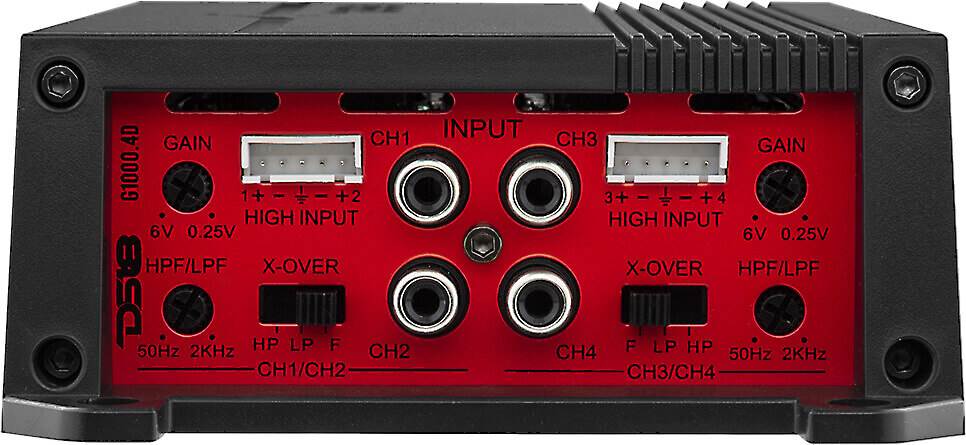

RCA Inputs: Four RCA jacks built into the amp chassis provide the low-level signal inputs.
Speaker-Level Inputs: Two 8" harnesses provide the speaker-level inputs for the four channels.
Mounting: The DS18 G1000.4D amplifier features four mounting tabs built into the chassis ends that can be secured using the supplied mounting hardware.
