About the DS18 G4000.5D
Product highlights:
- 5-channel car amplifier
- 130 watts RMS x 4 + 300 watts RMS x 1 at 4 ohms
- 220 watts RMS x 4 + 600 watts RMS x 1 at 2 ohms
- 420 watts RMS x 2 bridged at 4 ohms + 900 watts RMS x 1 at 1 ohm
- Class D amp technology
- frequency response: 20-20,000 Hz
- Ch1/2 & Ch3/4: variable high-pass filters (10-250 Hz, 12 dB/octave)
- Sub Ch:
- variable low-pass filter (50-250 Hz, 12 dB/octave)
- variable subsonic filter (10-50 Hz, 12 dB/octave)
- variable bass boost (0-12 dB at 45 Hz)
- wired bass remote control with clip light included
More info:
- preamp inputs only
- wiring, fuse, and hardware not included with amplifier:
- 4-gauge power and ground leads and a 160A fuse recommended
- dimensions: 12.75"W x 1.98"H x 4.72"D
- warranty: 2 years
- MFR # G4000.5D
- Item # 408G40005D
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- 5-Channel amplifier
- 16' Remote level control cable (terminated in RJ-45 connectors)
- 5" RCA input harness
- Four 5/8" screws
- 4 Flat washers
- 4 Lock washers
- Owner's manual (En & Sp)
More details on the DS18 G4000.5D
Features & specs
| Performance | ||
|---|---|---|
| RMS Power Output (Watts x Channels) |
130 x 4 900 x 1 | |
| Peak Power Output (Watts x Channels) | --- | |
| Power at 2 Ohms (Watts x Channels) | 220 x 4 | |
| Power at 1 Ohm (Watts x Channels) | 900 x 1 | |
| Bridged Power (Watts x Channels) | 420 x 2 | |
| Minimum Impedance Bridged | 4 | |
| Minimum Impedance Unbridged | 2 | |
| Best Frequency Response | 20Hz-20k Hz | |
| THD at Rated RMS Power | --- | |
| Signal to Noise Ratio | 90 dB | |
| Input Voltage | --- | |
| Features | ||
| Amplifier Class | D | |
| Built-in DSP | No | |
| Remote Control | Yes | |
| Low-Pass Crossover Frequency | 50-250 Hz | |
| Low-Pass Slope (dB/octave) | 12 dB/octave | |
| High-Pass Crossover Frequency | 10-250 Hz | |
| High-Pass Slope (dB/octave) | 12 dB/octave | |
| Bass Boost | 0-12 dB | |
| Bass Boost Frequency | 45 Hz | |
| Fan Cooled | No | |
| Fuse Rating | 160 | |
| Speaker Level Inputs | No | |
| Preamp Outputs | No | |
| Width (inches) | 12-3/4 | |
| Height (inches) | 2 | |
| Depth (inches) | 4-3/4 | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
Product Research
Features

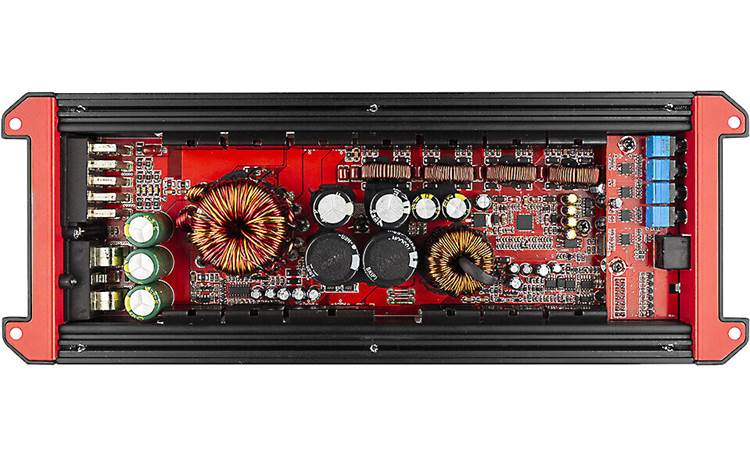

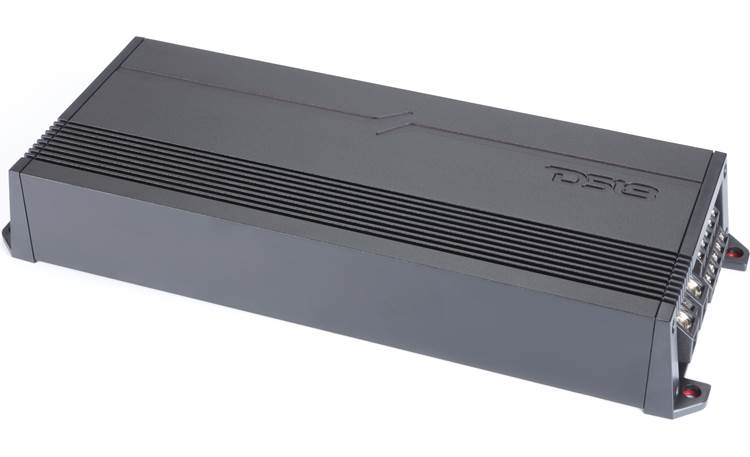

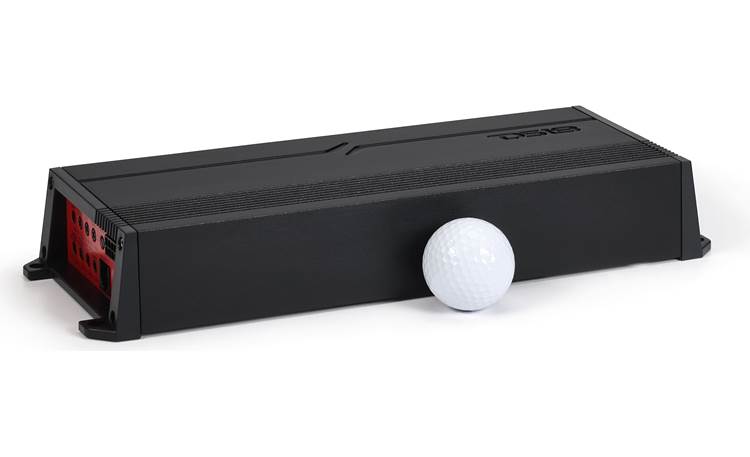

Overview: The DS18 G4000.5D is a 5-channel amplifier that's part of DS18's GEN-X series car amplifiers. It features four full-range channels that are bridgeable, and one mono subwoofer channel. The compact amplifer features a heavy-duty aluminum heat-sink chassis that helps keep the Class D amplifier circuitry cool and stable during high-output use.
RMS Power Output:
- 130W x 4 + 300W x 1 @ 4-ohms
- 220W x 4 + 600W @ 2-ohms
- 420W x 2 @ 4-ohms bridged (4 main channels)
- 900W x 1 @ 1-ohm (subwoofer channel)

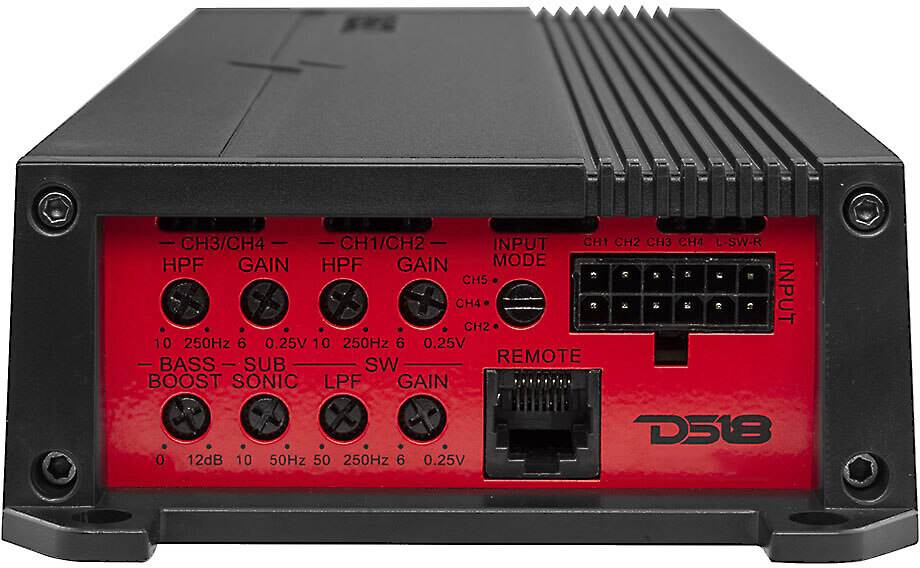

Gain: Three rotary gain controls (Ch.1/2, 3/4, & 5) let you run low-level signals ranging from 250 mV up to 6 V.
Input Mode: A 3-way dial lets you select the input channels that will feed all 5 speaker outputs:
- 2 CH: Uses signals on Channels 1/2 only for all ouput channels.
- 4 CH: Uses signals on Channels 1/2 & 3/4 for all output channels.
- 5 CH: Lets you feed all 5 channels from all of the RCA inputs.
Two HPF Crossovers (Channels 1/2 and 3/4): A rotary High-Pass crossover dial lets you select the high-pass cutoff frequency from 10-250 Hz.
Subwoofer (Channel 5) Controls:
- LPF Crossover: A rotary dial lets you select the low-pass cutoff frequency from 50-250 Hz.
- Subsonic Filter: A rotary dial lets you remove subsonic frequencies from 10-50 Hz.
- Bass Boost: A rotary dial lets you apply 0-12 dB of boost centered at 45 Hz.
Power/Protect LED: A single LED will illuminate Green when the amp is powered on and will change to Red if the amplifier goes into protect mode. The Protect circuit can guard against Over-Heating, Over/Under Voltage, Short-Circuit, and DC Output.
Clip LED: A Clip LED will light to let you know the input signal (Gain) has reached the distortion point and will need to be lowered.

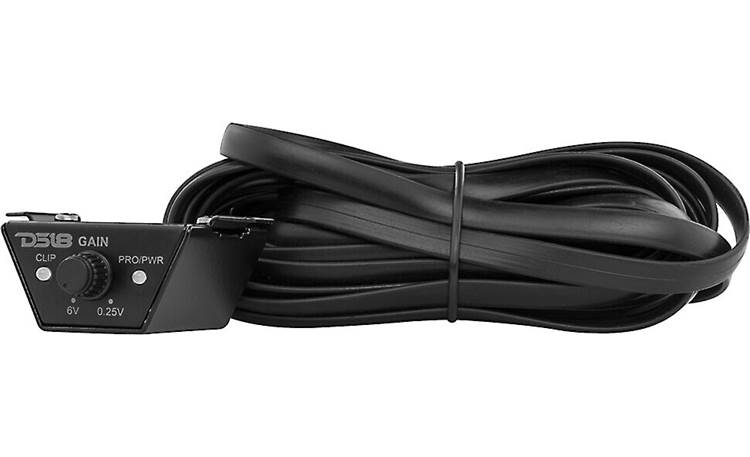

Remote Level Control: An included remote level control lets you adjust the subwoofer level from the driver's seat; level range is variable from 6 V to 0.25 V (250 mV). The remote level control features Clip and Power/Protection LED indicators for added convenience. A 16' remote level control cable, terminated in RJ-45 connectors, is included.
- Remote Level Control Dimensions:
- Width: 2.51"
- Height: 1.04"
- Depth: 3.0" (including knob and cable)
Power Terminals: The power, ground, and remote inputs use set-screw terminals; power and ground terminals will accommodate up to 4-gauge wire (recommended), while the remote turn-on terminal can accept wire up to 12-gauge (18-gauge is usually sufficient). The set screws are tightened/loosened using a Philips-head screwdriver (not included).
Fuses: The DS18 G4000.5D does not include any fuses and will require a 160-amp fuse (sold separately) placed in-line on the power wire within 18" of the positive battery terminal.
Speaker Outputs: Five speaker outputs are provided on set-screw terminals accommodating wire up to 12-gauge.

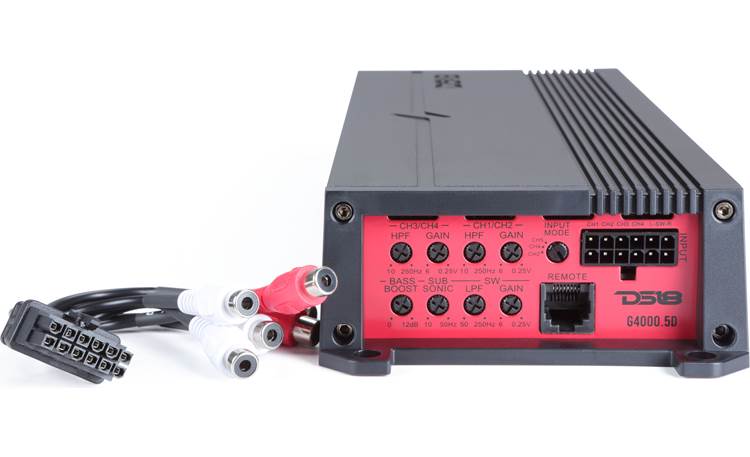

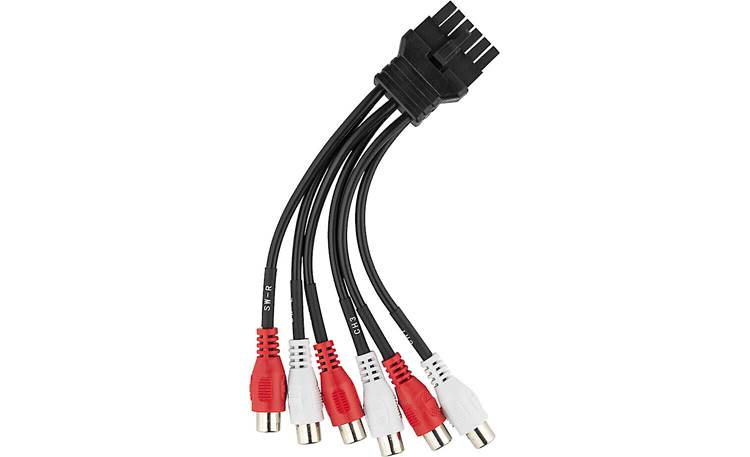

RCA Inputs: Six RCA jack inputs are provided on a 5" removeable harness.
Note: The DS18 G4000.5D does not include high-level (speaker-level) inputs. If connecting the amplifier to a factory radio, speaker wire-to-RCA adapters will be required and are sold separately (see Accessories).
Mounting: The DS18 G4000.5D amplifier features four mounting tabs built into the chassis ends that can be secured using the supplied mounting hardware.
