About the DS18 G8400.4D
Product highlights:
- 4-channel car amplifier
- 700 watts RMS x 4 at 4 ohms
- 1000 watts RMS x 4 at 2 ohms
- 1700 watts RMS x 2 bridged at 4 ohms
- Class D amp technology
- frequency response: 20-20,000 Hz
- variable high- and low-pass filters (50-2K Hz, 12 dB/octave)
- preamp inputs only
- wiring, fuse, and hardware not included with amplifier:
- 4-gauge power and ground leads an a 240A fuse recommended
- dimensions: 14.38"W x 1.98"H x 4.72"D
- warranty: 2 years
- MFR # G8400.4D
- Item # 408G84004D
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- 4-Channel amplifier
- Four 5/8" screws
- 4 Flat washers
- 4 Lock washers
- Owner's manual (En & Sp)
More details on the DS18 G8400.4D
Features & specs
| Performance | ||
|---|---|---|
| RMS Power Output (Watts x Channels) |
700 x 4 | |
| Peak Power Output (Watts x Channels) | --- | |
| Power at 2 Ohms (Watts x Channels) | 1000 x 4 | |
| Power at 1 Ohm (Watts x Channels) | --- | |
| Bridged Power (Watts x Channels) | 1700 x 2 | |
| Minimum Impedance Bridged | 4 | |
| Minimum Impedance Unbridged | 2 | |
| Best Frequency Response | 20Hz-20k Hz | |
| THD at Rated RMS Power | --- | |
| Signal to Noise Ratio | 90 dB | |
| Input Voltage | 14.4v | |
| Features | ||
| Amplifier Class | D | |
| Built-in DSP | No | |
| Remote Control | No | |
| Low-Pass Crossover Frequency | 50-2000 Hz | |
| Low-Pass Slope (dB/octave) | 12 dB/octave | |
| High-Pass Crossover Frequency | 50-2000 Hz | |
| High-Pass Slope (dB/octave) | 12 dB/octave | |
| Bass Boost | No | |
| Bass Boost Frequency | N/A | |
| Fan Cooled | No | |
| Fuse Rating | 240 | |
| Speaker Level Inputs | No | |
| Preamp Outputs | No | |
| Width (inches) | 14-7/16 | |
| Height (inches) | 2 | |
| Depth (inches) | 4-3/4 | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
Product Research
Features

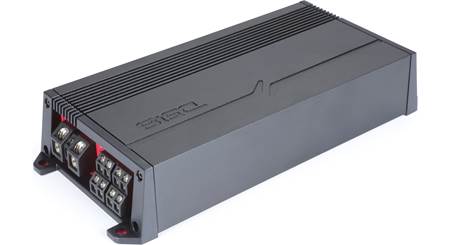

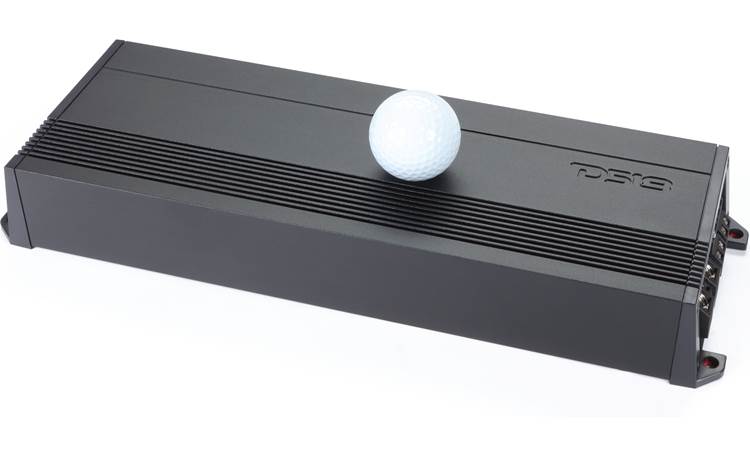

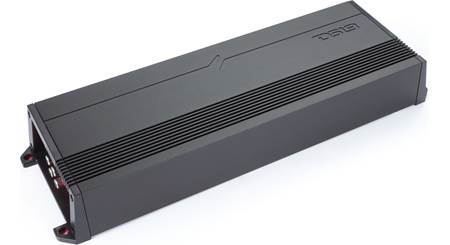

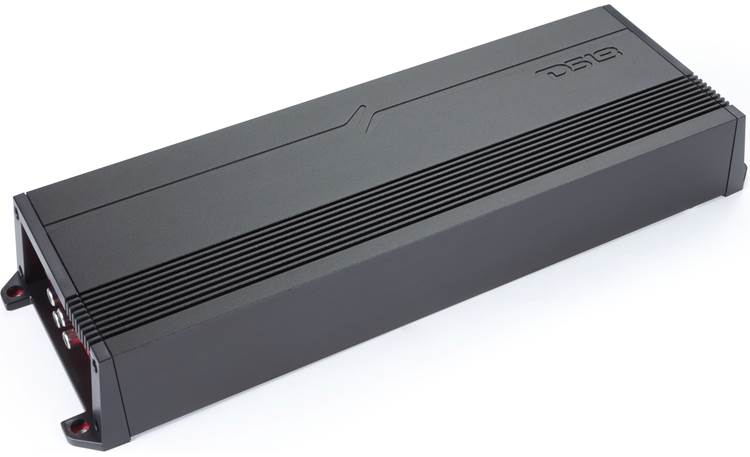

Overview: The DS18 G8400.4D is a 4-channel full-range amplifier that's part of DS18's GEN-X series car amplifiers. The compact amplifer is bridgeable, so it can also be wired as 3-channel or 2-channel. A heavy-duty aluminum heat-sink chassis helps keep the Class D amplifier circuitry cool and stable during high-output use.
RMS Power Output:
- 700W x 4 @ 4-ohms
- 1000W x 4 @ 2-ohms
- 1700W x 2 @ 4-ohms bridged

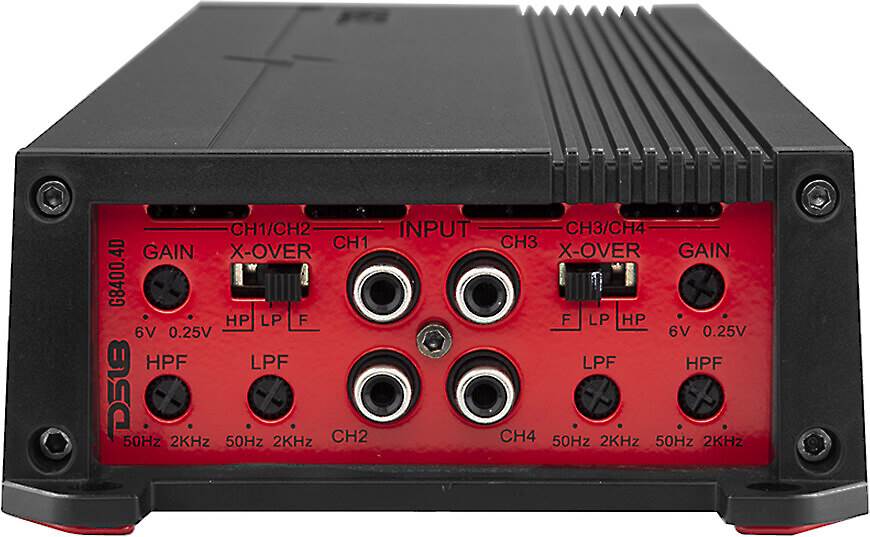

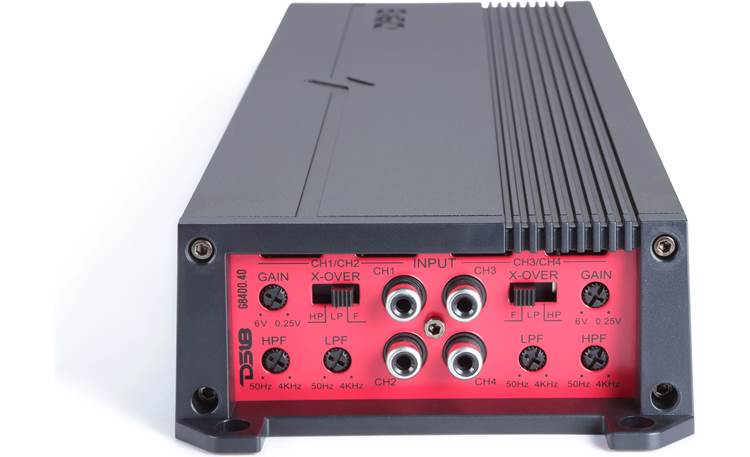

Gain: Two rotary gain controls (Ch.1/2 & 3/4) let you run low-level signals ranging from 250 mV up to 6 V.
Crossover: Two crossovers are provided (Ch. 1/2 & 3/4), each with the following options:
- Crossover Selector: A 3-position crossover switch lets you choose LPF, Full, or HPF. The low-pass and high-pass crossovers both have a 12 dB per octave slope.
- HPF: A rotary dial lets you set the high-pass filter cutoff point from 50-2000 Hz.
- LPF: A rotary dial lets you set the low-pass filter cutoff point from 50-2000 Hz.
Power/Protect LED: A single LED will illuminate Green when the amp is powered on and will change to Red if the amplifier goes into protect mode. The Protect circuit can guard against Over-Heating, Over/Under Voltage, Short-Circuit, and DC Output.
Clip LED: A Clip LED will light to let you know the input signal (Gain) has reached the distortion point and will need to be lowered.

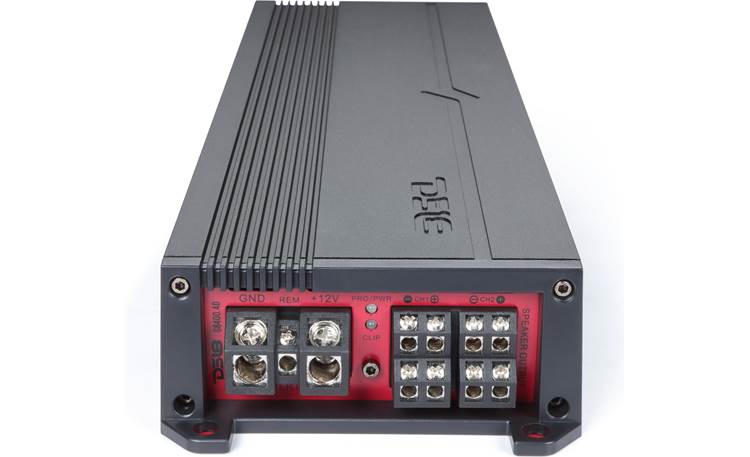

Power Terminals: The power, ground, and remote inputs use set-screw terminals; power and ground terminals will accommodate up to 4-gauge wire (recommended), while the remote turn-on terminal can accept wire up to 12-gauge (18-gauge is usually sufficient). The set screws are tightened/loosened using a Philips-head screwdriver (not included).
Fuses: The DS18 G8400.4D does not include any fuses and will require a 240-amp fuse (sold separately) placed in-line on the power wire within 18" of the positive battery terminal.
Speaker Outputs: Four speaker outputs are provided on set-screw terminals accommodating wire up to 12-gauge.
RCA Inputs: Four RCA jacks built into the amp chassis provide the low-level signal inputs.
Note: The DS18 G8400.4D does not include high-level (speaker-level) inputs. If connecting the amplifier to a factory radio, a speaker wire-to-RCA adapter will be required and is sold separately (see Accessories).
Mounting: The DS18 G8400.4D amplifier features four mounting tabs built into the chassis ends that can be secured using the supplied mounting hardware.
