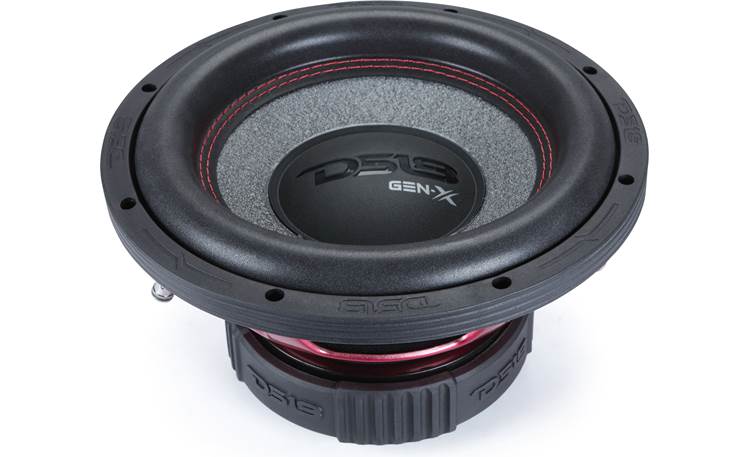

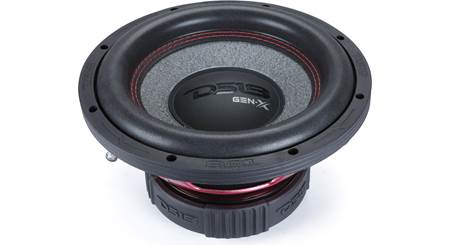

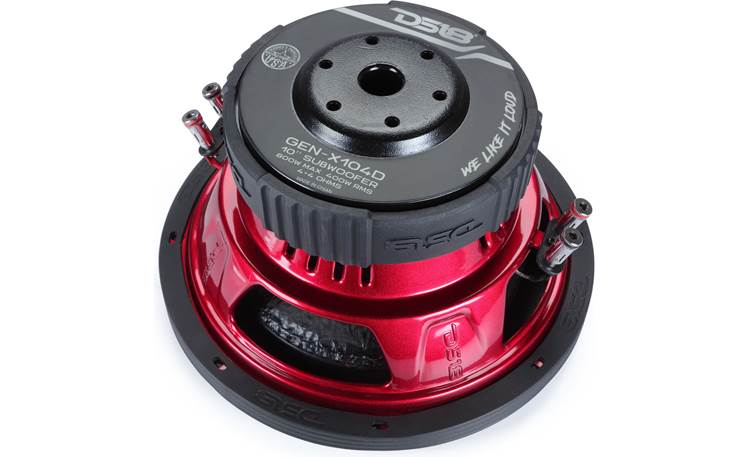

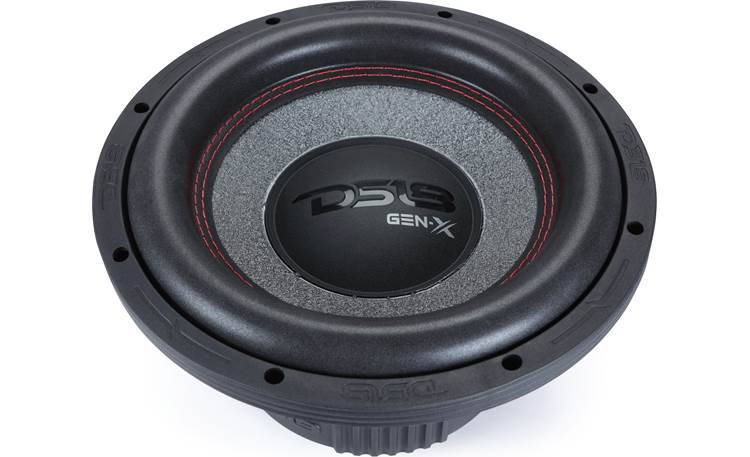

About the DS18 GEN-X104D

Product highlights:
- 10" subwoofer with dual 4-ohm voice coils
- paper cone with foam surround and PPI dust cap
- steel basket
- power handling: 400 watts RMS (800 watts peak)
- frequency response: 25-300 Hz
- recommended low-pass filter: 120 Hz
- sensitivity: 87 dB
- top-mount depth: 5.175"
- cutout diameter: 9.07"
- sealed box volume: 0.4-0.69 cubic feet
- ported box volume: 0.68-1.1 cubic feet
- grille not included
- warranty: 2 years
- MFR # GEN-X104D
- Item # 408GEN104D
What's in the box:
- One 10" Dual 4-ohm voice coil subwoofer
- Trim ring (installed)
- DS18 Lanyard
- Owner's manual
- Template
- DS18 sticker
More details on the DS18 GEN-X104D

Features & specs
Features and Specs | ||
---|---|---|
Size | 10-inch | |
Impedance (Ohms) | 2, 8 | |
Cone Material | Paper | |
Surround Material | Foam | |
Basket Material | Steel | |
Grille | None included | |
Free-Air | No | |
Dual Voice Coil | Yes | |
Sensitivity |
87 dB at 1 watt | |
Frequency Response | 25 - 6000 Hz | |
Max RMS Power Handling | 400 | |
Peak Power Handling (Watts) | 800 | |
Top Mount Depth (inches) | 5 3/16 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 9 1/8 | |
Frame Width | 10.335 | |
Frame Length | 10.335 | |
Vas (liters) | 10.6596 | |
Fs (Hz) | 54.6 | |
Qts | 0.551 | |
Xmax (millimeters) | 17.55 | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | 0.5 | |
Minimum Sealed Box Volume (cubic feet) | 0.4 | |
Maximum Sealed Box Volume (cubic feet) | 0.69 | |
Ideal Ported Box Volume (cubic feet) | 0.85 | |
Minimum Ported Box Volume (cubic feet) | 0.68 | |
Maximum Ported Box Volume (cubic feet) | 1.1 | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A |
Product Research
Features
Dual Voice Coils: For increased system flexibility, the woofer has two 4Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 2Ω load; when wired in series, the woofer presents an 8Ω load.

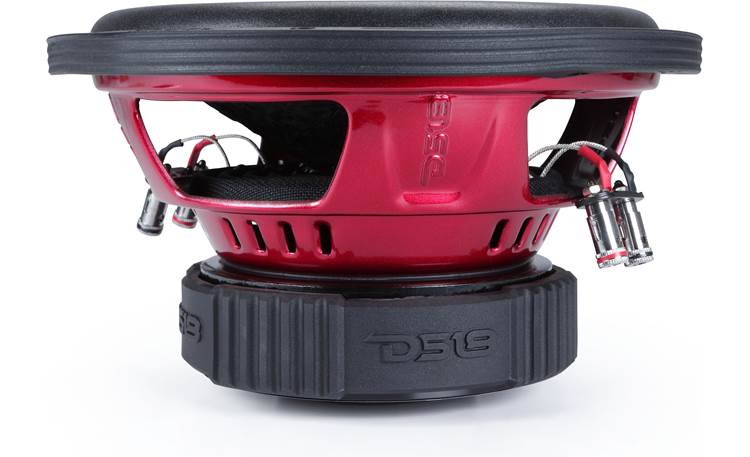

Terminals: The spring post terminals will accept pin connectors, single banana plugs, and bare wire up to 12-gauge. (Dual banana plugs do not fit.)
Sealed Box: DS18 recommends a sealed enclosure of 0.5 ft³. Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable for all types of music.
Ported Box: DS18 recommends a ported enclosure volume of 0.85 ft³ with a 12.76" x 1.18" x 18.71" long port, resulting in a tuning frequency of 32 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed, so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power. However, this efficiency comes at the expense of very low frequency output.
