About the DS18 JK-BD-LR
Product highlights:
- element-ready rear door speaker panels for 2007-18 4-door Jeep Wranglers
- each panel holds a 6-1/2" speaker and a 3/8" tweeter (both sold separately)
- custom-fit for 2007-18 4-door Jeep Wranglers
- molded from high density plastic
- mounting hardware included
- sold in pairs
- warranty: 2 years
- MFR # JK-BD-LR
- Item # 408JKBDLR

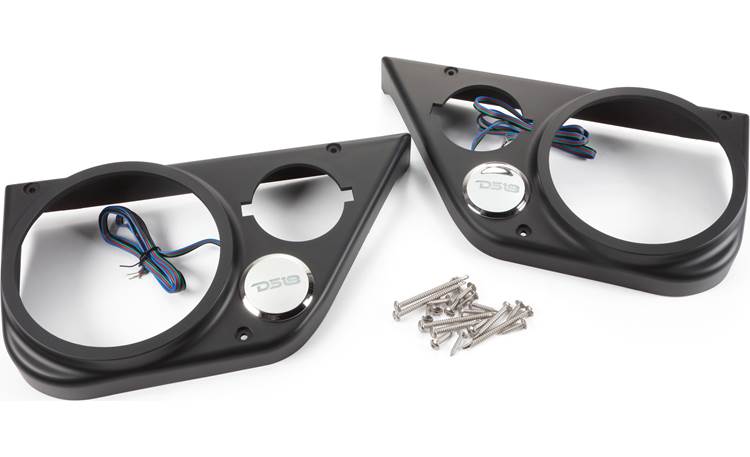

What's in the box:
- Left speaker panel
- Right speaker panel
- Four 2-3/8" Self-tapping screws
- Two 1-1/2" Self-tapping screws
- Fourteen 3/4" Screws
- Dimension sheet
- DS18 Lanyard
- DS18 sticker
More details on the DS18 JK-BD-LR
Product Research
Features
Overview: These DS18 speaker panels let you add a set of 6½" component speakers (sold separately) to the rear doors in select JK-Series 4-Door Jeep Wranglers. Each panel has precut openings for the woofer and tweeter; they are designed for DS18 speakers, but can also be used with other brands. (Keep in mind that not all speakers labeled 6½" are the same size, so compare your speaker dimensions to those below.) Please enter your Jeep information to confirm the panels will fit.

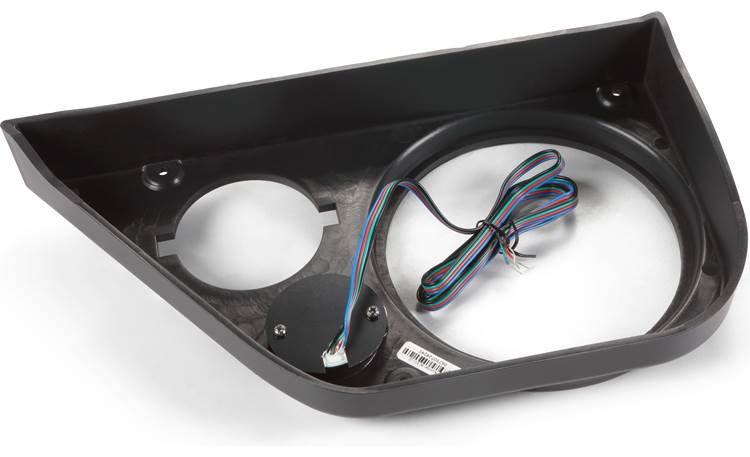

Logo: The DS18 logo is back-lit by multi-color LEDs. Choose any of the seven standard colors (red, green, blue, purple, yellow, cyan, and white) using a hardwired connection to a +12V power source, or you can vary the color using an optional RGB LED controller. The attached LED power wire is 38" long. (Black +12 volts/Red, Green and Blue ground)
Dimensions:
- Woofer Opening:
- Diameter: 5.704"
- Mounting: the flange for the woofer's mounting screws is 0.4" wide
- Max Frame Diameter: 6.45" (if the frame diameter is greater than 6.45" it will extend beyond the raised flange)
- Tweeter Opening:
- Diameter: 2.822"
- Max Frame Diameter: 3.95"
- Panel Dimensions:
- Width: 13" (top)/7" (bottom)
- Height: 7"
- Depth: 1.875" (top edge)/1.125" (bottom edge)
