About the DS18 JK-SBAR/BK.HT

Product highlights:
- compatible with select 2007-2018 Jeep Wrangler JK/JKU models
- Jeep-tuned rear soundbar replacement (black)
- installs with basic hand tools
- four 8" speaker openings
- includes four 4.5" super bullet tweeters
- includes two 1.5" compression drivers
- retains Jeep factory map light
- RGB LED-integrated tweeters
- frequency response: 1,500-20,000 Hz
- sensitivity: 108 dB
- impedance: 4 ohms
- built-in LED in DS18 logo badge
- includes 9' input harness (LED power and 4-channel speaker signal)
- warranty: 2 years
- MFR # JK-SBAR/BK.HT
- Item # 408KSBRBHT
What's in the box:
DS18 JK-SBAR/BK.HT owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One vehicle specific sealed enclosure for four 8" speakers and four tweeters
- Four PRO-TW4L tweeters (installed)
- Two PRO-DRNSC1.5 compression drivers (installed)
- Polyfill batting (installed)
- 4 Adhesive backed gaskets
- 9' input harness (LED power and 4-channel speaker signal)
- Owner's manual
- DS18 Lanyard
- DS18 sticker
More details on the DS18 JK-SBAR/BK.HT

Product Research
Features

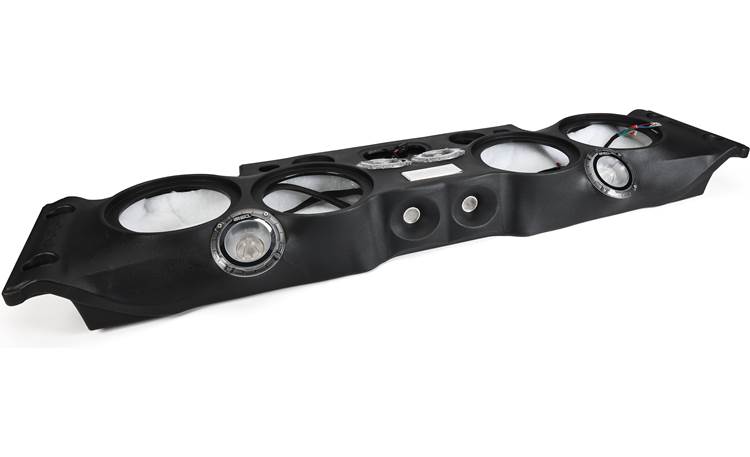

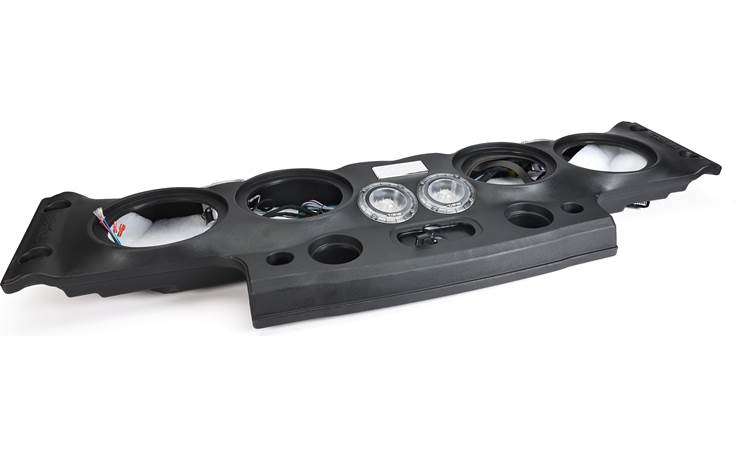

Overview: This JK-SBAR/BK.HT is an overhead soundbar designed for select hard top Jeep Wranglers (JK/JKU); please enter your vehicle information to confirm fit. The enclosure houses four PRO-TW4L tweeters (included and installed), two PRO-DRNSC1.5 compression drivers (included and installed), and four 8" speakers (not included), and mounts in the rear overhead location using the factory soundbar hardware. The factory dome light is also mounted in the new enclosure.

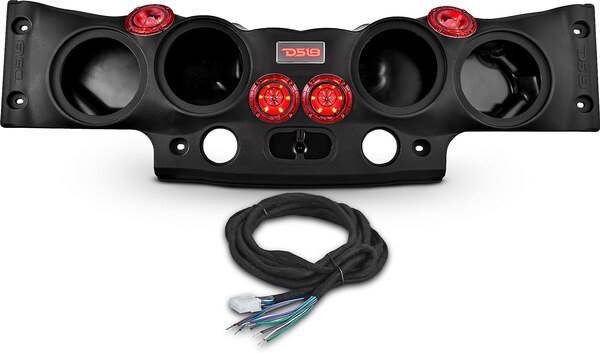

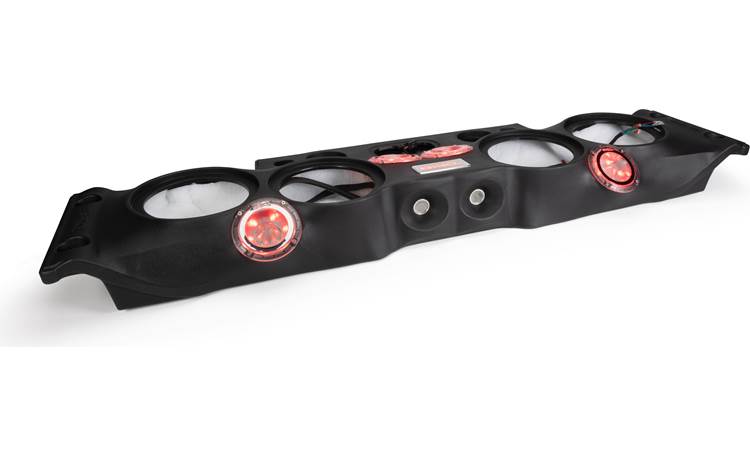

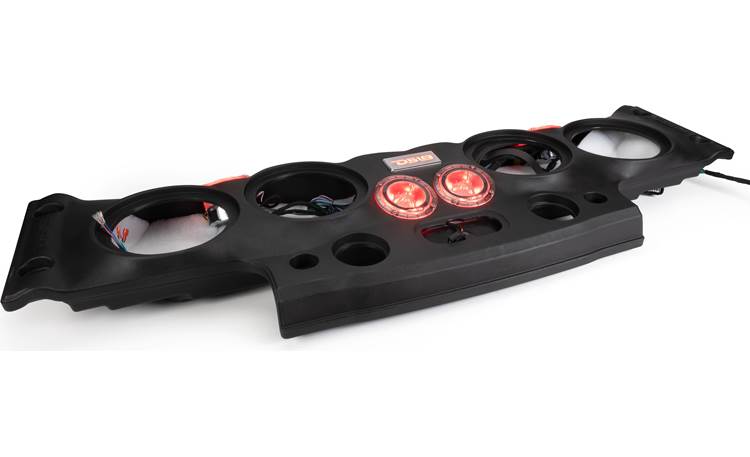

LEDs: There are multi-color LEDs to back-light the tweeters and the DS18 logo. The included wiring harness is used to power the LEDs (and the speakers). Depending on what combination of wires is connected, the LEDs light red, green, blue, purple, yellow, cyan, or white. The colors can also be adjusted using a remote lighting controller (item number 408LCRGB, sold separately). Signal and power wire is routed to each 8" speaker location, useful when installing speakers that also have LED back-lighting.

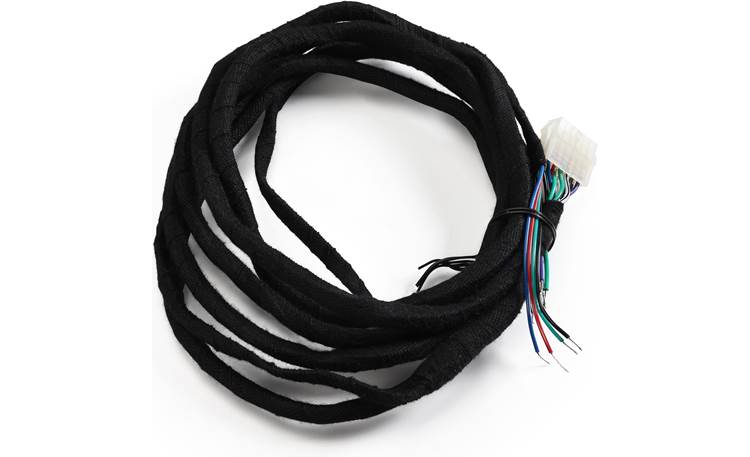

Wiring: The included 9' input harness has twelve wires, two for each of the four speakers and four to power the multi-color LEDs (+12 volts, red, green and blue).
Dimensions:
- Midrange/Woofer Openings:
- Cutout Diameter: 7.12"
- Maximum Depth: 4"
- Maximum Frame Diameter: 8.655"
