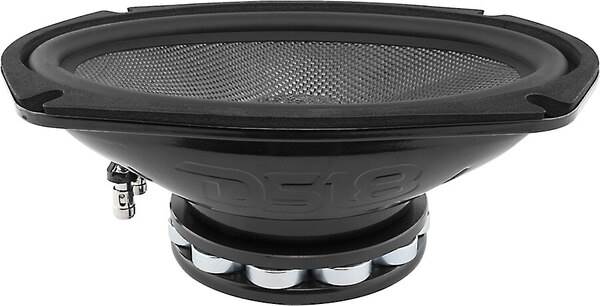

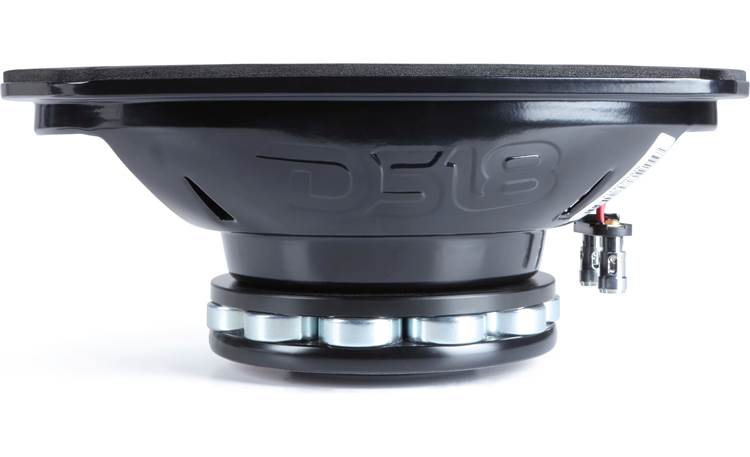

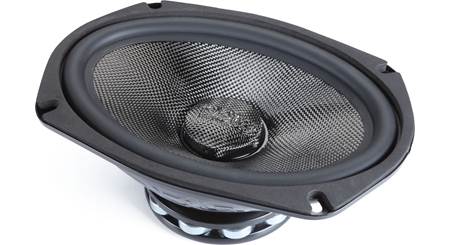

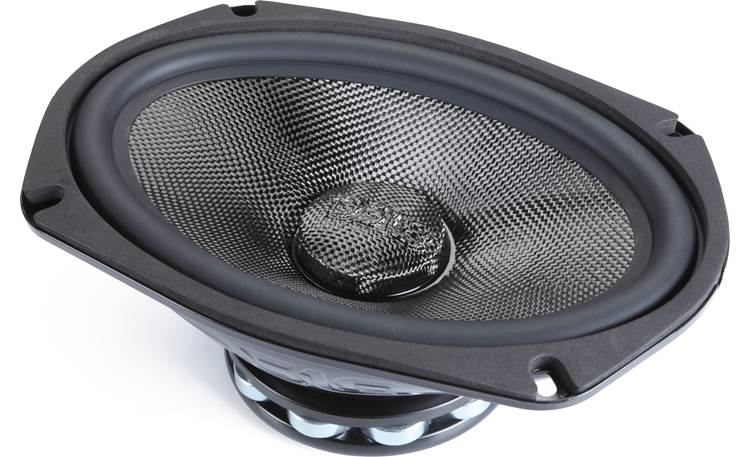

About the DS18 PRO-CF69.4 NR

Product highlights:
- 6"x9" midbass motorcycle speaker (single speaker)
- designed for cars, motorcycle and motorsports applications
- all-weather performance design
- waterproof carbon fiber cone
- steel basket
- 2" copper clad aluminum wire (CCAW) voice coil with Kapton former
Specs:
- impedance: 4 ohms
- power handling: 300 watts RMS (600 watts peak)
- frequency response: 63-12,000 Hz
- recommended high-pass filter at 80 Hz
- sensitivity: 95 dB
- top mounting depth: 3.284"
- cutout: 8.5" x 5.89" oval
- warranty: 2 years
- MFR # PRO-CF69.4NR
- Item # 408PCF694N
What's in the box:
DS18 PRO-CF69.4 NR owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 6x9 Mid-Bass
- Owner's manual
- Warranty information
- DS18 sticker
More details on the DS18 PRO-CF69.4 NR

Features & specs
General | ||
---|---|---|
Speaker Size | 6X9 | |
Driver Design | 1-way | |
Woofer Design | Cone | |
Woofer Material | Waterproof Carbon Fiber | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | --- | |
Tweeter Material | --- | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 95 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 63 - 12k Hz | |
Maximum RMS Wattage | 300 | |
Peak Power Handling (Watts) | 600 | |
Top-mount Depth (Inches) | 3 5/16 | |
Bottom-mount Depth (Inches) | 3 1/2 | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.288 | |
Frame Width | 6.484 | |
Frame Length | 9.288 |
Product Research
Features

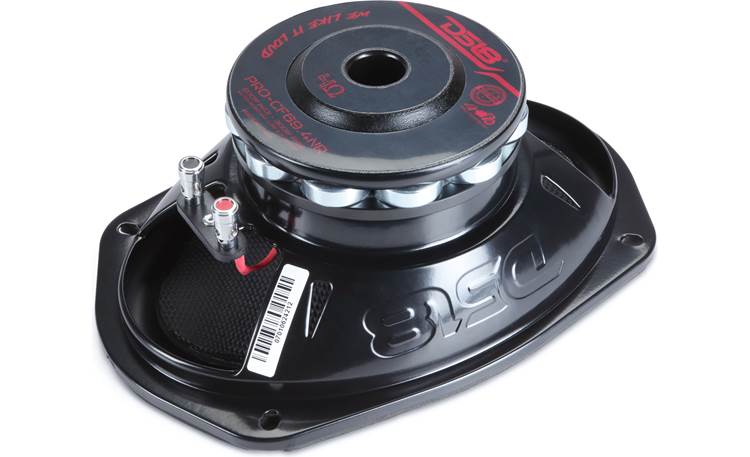

Terminals: The spring post terminals accept wire up to 14-gauge.
Crossover: Although no crossover is included, DS18 recommends using an 80 Hz high-pass filter.
