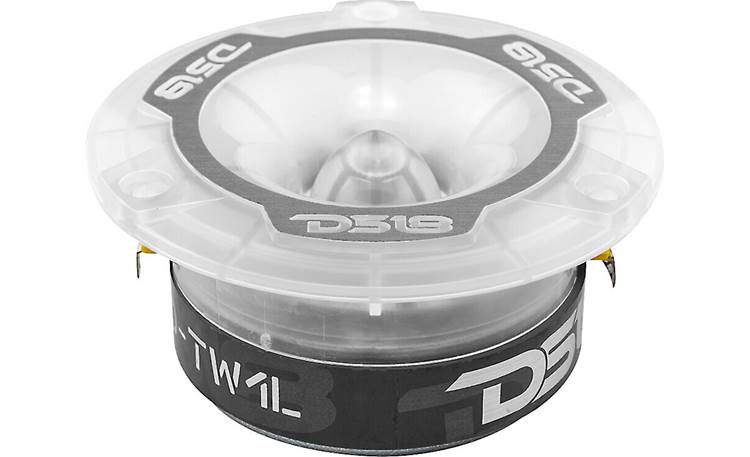

About the DS18 PRO-TW1L

Product highlights:
- 3.8" super bullet tweeters with phase plug
- transparent polycarbonate body and bullet
- repairable diaphragm
- includes passive crossover (capacitor)
- built-in analog RGB LED lighting
Specs:
- impedance: 4 ohms
- sensitivity: 103 dB
- power handling: 200 watts RMS (400 watts peak)
- frequency response: 3,500-20,000 Hz
- recommended high-pass filter at 4,000 Hz
- mounting depth: 1.57"
- cutout diameter: 3.2"
- warranty: 2 years
- MFR # PRO-TW1L
- Item # 408PROTW1L
What's in the box:
- Two PRO-TW1L Tweeters
- Two 3.3 microfarad capacitors (in-line crossovers/soldered to the positive terminal)
- 38" LED Power wire (attached)
- Owner's manual
- DS18 Sticker
More details on the DS18 PRO-TW1L

Product Research
Features
Mounting: The tweeter is designed to be flush mounted with three screws through the flange, like typical car speakers.
Measurements:
- Cutout Diameter: 3.2"
- Mounting Depth: 1.57"
- Mounting Height: 0.23"
- Frame Diameter: 3.78"

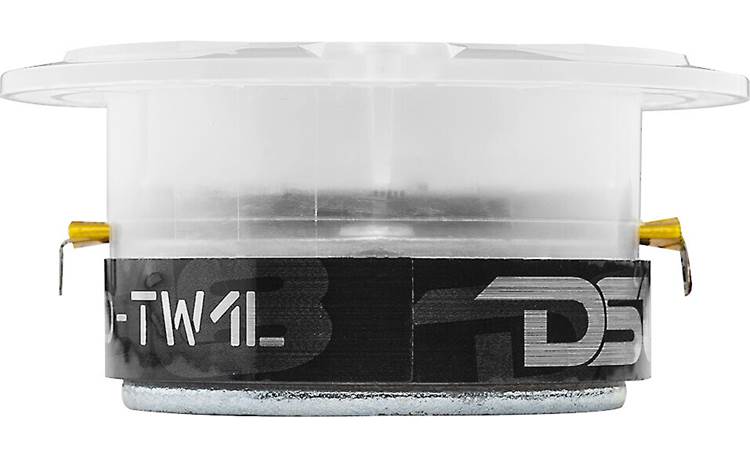

Terminals: Both the positive and negative terminal spades are 0.205" wide.
Crossover: The included 3.3 μF capacitor is a 1st order high-pass crossover (6 dB/octave slope) and must be used if no other crossover is added; the crossover point is approximately 12 kHz. The capacitor is wired in-line with the positive input of the tweeter (soldered to the positive terminal) and measures approximately ⅜" diameter x 1" long. When used, the capacitor should be insulated with heat shrink. When using an outboard active crossover DS18 recommends a crossover point of 4 kHz.

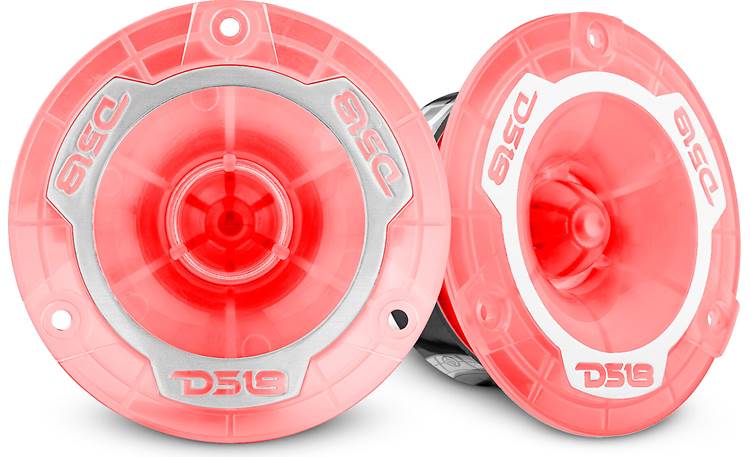

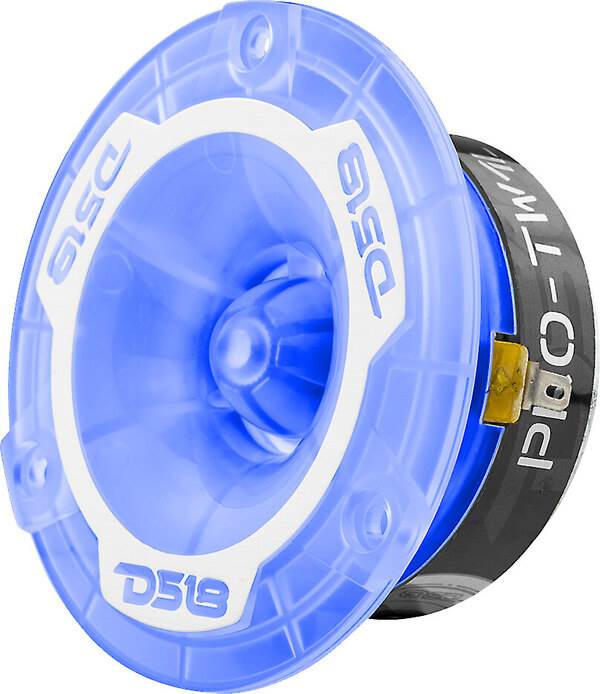

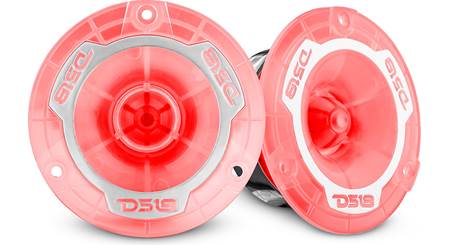

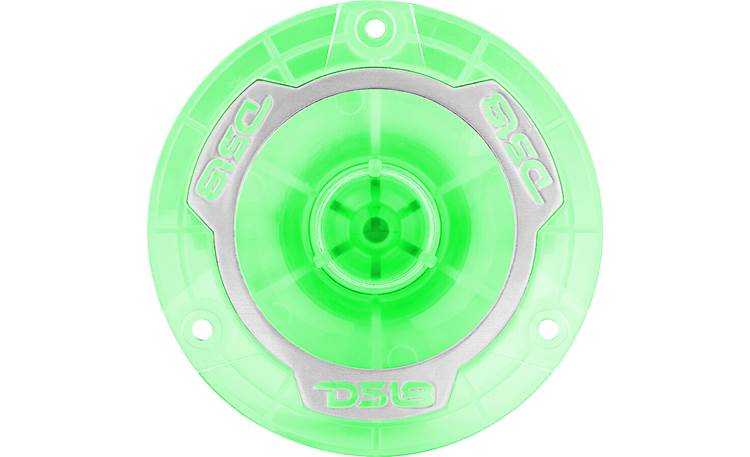

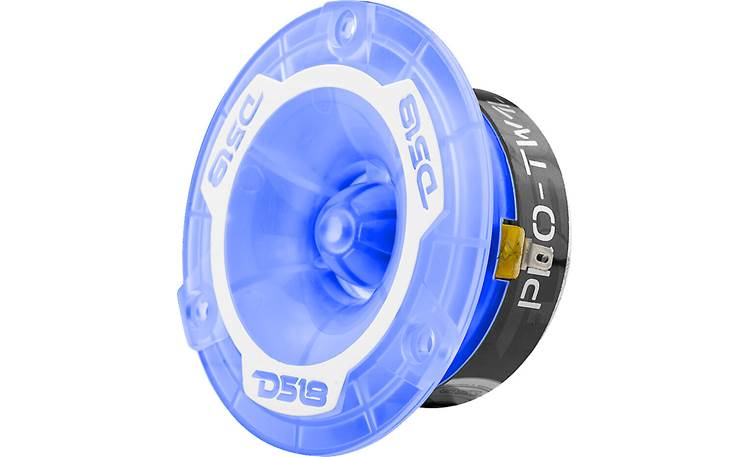

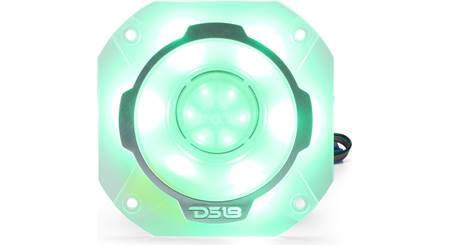

LEDs: There are six multi-color LEDs inside the tweeter housing. They can illuminate in any of the seven standard colors (red, green, blue, purple, yellow, cyan, and white) using a hardwired connection to a +12V power source, or you can vary the color using your smartphone and an optional RGB LED controller (item number 408LCRGB, sold separately). The attached LED power wire is 38" long.
