About the DS18 PRO-TW820

Product highlights:

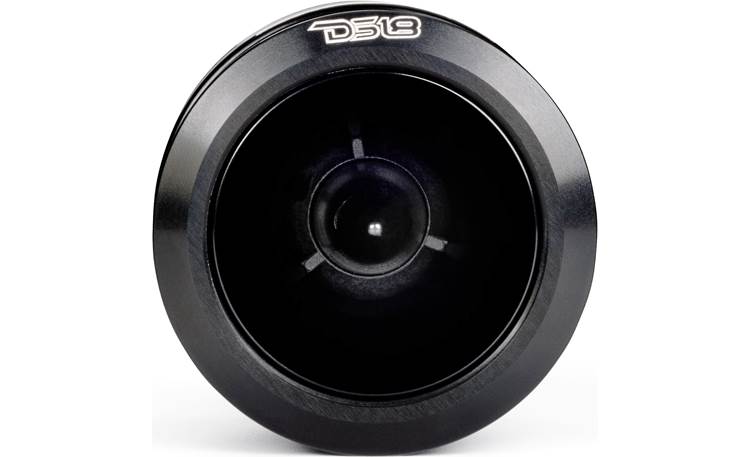

- single 2.3" high-compression super bullet tweeter
- adjustable flush mount housing
- repairable titanium diaphragm
- aluminum basket
- 1" voice coil with neodymium magnet
- built-in grille
- includes high-pass filter (capacitor)
Specs:
- adjustable mounting depth: 1.9"-2.375"
- cutout diameter: 1.71"
- impedance: 4 ohms
- sensitivity: 105 dB
- power handling: 100 watts RMS (200 watts peak)
- frequency response: 2,000-20,000 Hz
- recommended high-pass filter: 3000 Hz
- warranty: 2 years
- MFR # PRO-TW820
- Item # 408PRW820
What's in the box:
- One PRO-TW820 Tweeter
- Threaded mounting flange (installed)
- Threaded backing nut (installed)
- 3.3 microfarad capacitor (in-line crossover)
- Owner's manual
More details on the DS18 PRO-TW820

Product Research
Features

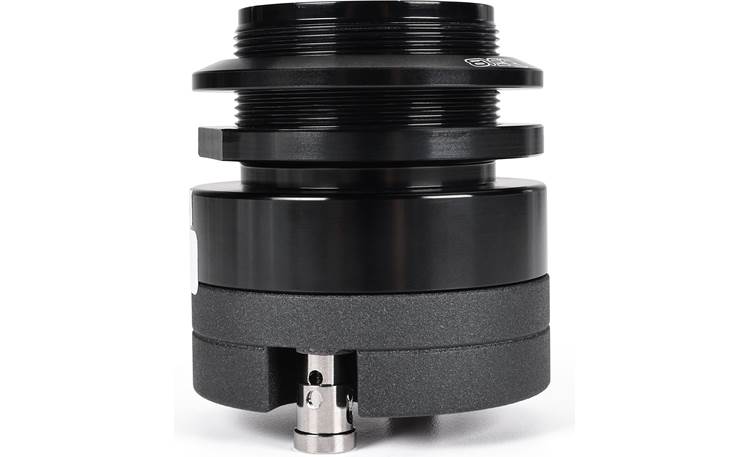

Mounting: The tweeter is designed to be flush mounted from the bottom, with the mounting surface sandwiched between the included backing nut and threaded mounting flange. The threaded shaft is approximately 1⅛" tall, so the tweeter can be positioned within a range of depth/mounting height combinations.
Measurements:
- Required Cutout Diameter: 1.71" (compatible with 1¾" hole saw bit)
- Mounting Depth: 1.9" (minimum) -2.375" (maximum)
- Frame Diameter: 2.3"
- Mounting Flange:
- Diameter: 2.245"
- Height: 0.2"
- Backing Nut:
- Diameter: 2.25"
- Height: 0.2"

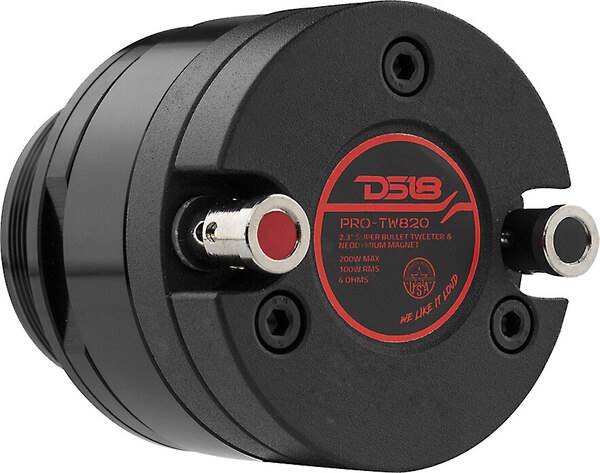

Terminals: The tweeter has spring post wire terminals and will accommodate up to 16-gauge wire.
Crossover: The included 3.3 μF capacitor is a 1st order high-pass crossover (6 dB/octave slope) and must be used if no other crossover is added; the crossover point is approximately 12 kHz. The capacitor is wired in-line with the positive input of the tweeter. The capacitor measures ⅜" diameter x ¾" long. When used, the capacitor should be soldered into speaker wire and insulated with heat shrink.
