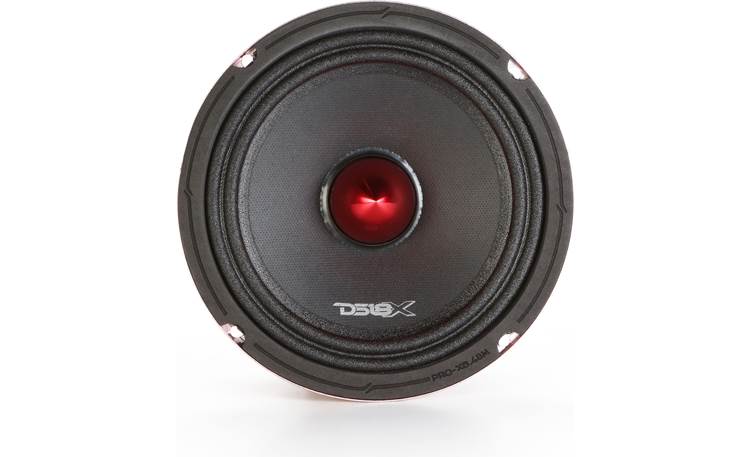

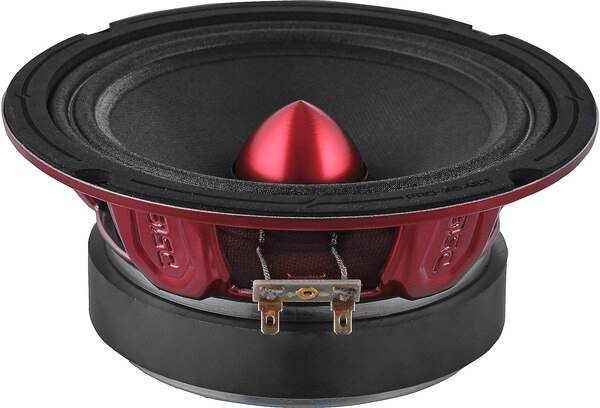

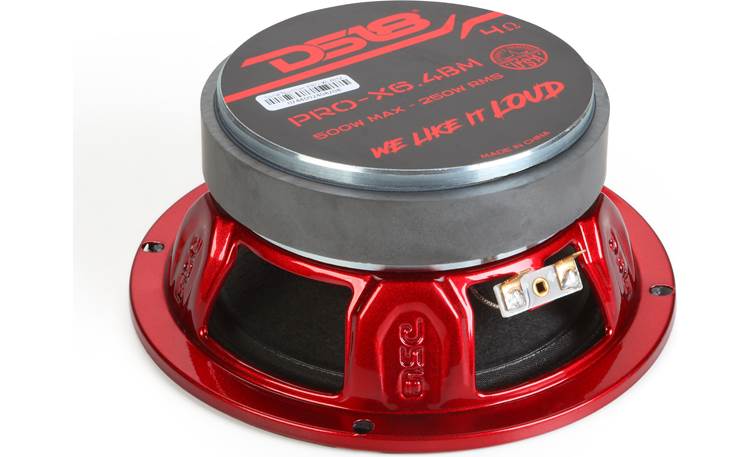

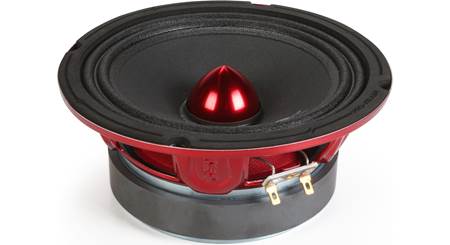

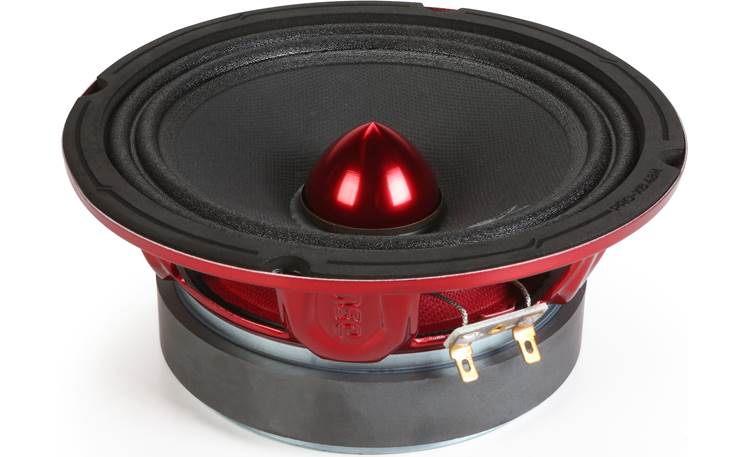

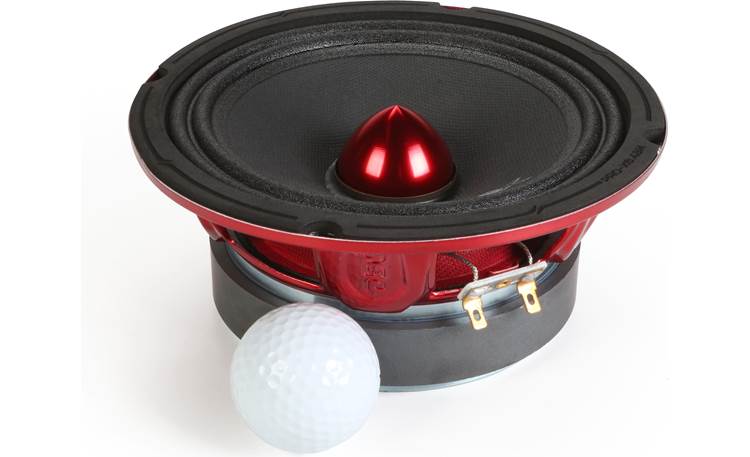

About the DS 18 PRO-X6.4BM

Product highlights:
- 6-1/2" mid-range one-way loudspeaker with phase plug (single speaker)
- non-pressed paper cone with cloth surround
- impedance: 4 ohms
- power handling: 250 watts RMS (500 watts peak)
- frequency response: 100-12,000 Hz
- sensitivity: 96 dB
- top mounting depth: 2-5/8"
- cutout diameter: 5-3/4"
- recommended high-pass crossover at 140 Hz
- warranty: 2 years
- MFR # PRO-X6.4BM
- Item # 408PRX64BM
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
DS 18 PRO-X6.4BM owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One Midrange
- Owner's manual
- Template
- DS18 sticker
More details on the DS 18 PRO-X6.4BM

Features & specs
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Driver Design | 1-way | |
Woofer Design | --- | |
Woofer Material | --- | |
Woofer Surround | Cloth | |
Midrange Design | Cone | |
Midrange Material | Non-Pressed Paper | |
Tweeter Design | --- | |
Tweeter Material | --- | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 96 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 100 - 12k Hz | |
Maximum RMS Wattage | 250 | |
Peak Power Handling (Watts) | 500 | |
Top-mount Depth (Inches) | 2 5/8 | |
Bottom-mount Depth (Inches) | 2 13/16 | |
Cutout Diameter or Length (inches) | 5 3/4 | |
Mounting Height (Inches) | 0.18 | |
Frame Width | 6.587 | |
Frame Length | 6.587 |
Product Research
Features
Size Classification Note: Some manufacturers, including DS18, call this size speaker a 6½. Because it requires a larger cutout than a standard 6½, Crutchfield has traditionally referred to this size as a 6¾. Please enter your vehicle information to confirm fit.
Crossover: Although no crossover is included, DS18 recommends using a 160 Hz high-pass filter.
