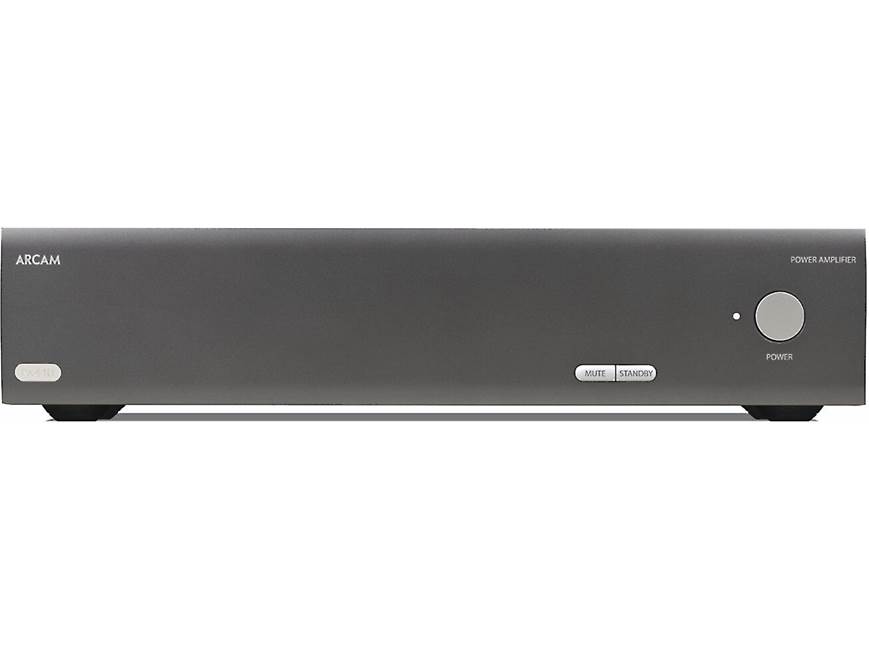

About the Arcam PA410
A flexible power amp for music or home theater applications
A flexible power amp for music or home theater applications
The Arcam PA410 provides 50 watts per channel, with four inputs and connections for four speakers. It's a versatile amp, too — you can use it to bi-wire or bi-amp stereo speakers, add surround channels to a home theater system, or power music zones in a multi-room audio system. It features a high-fidelity, low-distortion Class AB amplifier circuit with a beefy toroidal transformer that provides plenty of high-current output.
Connections
The amp offers four unbalanced RCA preamp inputs, with corresponding outputs. There are also binding posts for connecting up to four speakers. The back panel includes a 12-volt trigger input and output for automatically turning the amp and other components on and off. An RS-232 port lets you integrate third-party automation systems, and a USB Type-A port is provided for firmware updates.
Product highlights:
- 50 watts per channel into 8 ohms (20-20,000 Hz) at 0.2% THD with all channels driven
- 70 watts per channel into 4 ohms
- high-fidelity, low-distortion Class AB amplifier
- toroidal power transformer for low noise and high-current output
- signal-to-noise ratio: 106 dB
- frequency response: 20-20,000 Hz (±0.05dB)
Connections:
- four unbalanced RCA preamp inputs and outputs
- four speaker outputs with binding-post connectors
- USB Type-A port for firmware updates
- RS-232 port for control via third-party automation systems
- 12-volt trigger input and output
Dimensions and warranty:
- 17-1/16"W x 4"H x 12-13/16"D
- weight: 22.04 lbs.
- warranty: 5 years
- MFR # ARCPA410AM
What's in the box:
- 4-Channel power amplifier
- 5' AC power cord
- Handbook
- "Thank You" letter
- Registration Instructions
Reviews (1)
Customer reviews for Arcam PA410
Loading reviews...
Average review:
5.0 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Arcam PA410
Features & specs
| General | ||
|---|---|---|
| Number of Channels | 4 | |
| Power Output per Channel (8 ohms) | 50 | |
| Power Output per Channel (6 ohms) | --- | |
| Power Output per Channel (4 ohms) | 70 | |
| Frequency Bandwidth | 20-20k | |
| THD | 0.2% | |
| Minimum Impedance | 4 | |
| Bridged Power per Channel | 0 watts | |
| Speaker Outputs | 4 | |
| THX Certification | No | |
| Width (inches) | 17-1/16 | |
| Height (inches) | 4 | |
| Depth (inches) | 12-13/16 | |
| Weight | 22.04 pounds | |
| Parts Warranty | 5 Years | |
| Labor Warranty | 5 Years | |
| Inputs & Outputs | ||
| Number of Inputs | 4 | |
| Input Type | RCA | |
| Removable Power Cord | IEC 2-prong | |
| Level Controls | No | |
| Speaker Connectors | Binding Post | |
Product Research
Features
4-Channel Power Amplifier: The PA410 is a high-performance power amplifier that delivers 4 channels of efficient Class AB amplification. With an impressive 50W (8-ohm) or 70W (4-ohm) per channel, the PA410 is designed to offer the greatest flexibility and power without compromising on control. Featuring the high-quality components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA410 delivers your music with all its originality and detail for a high level of sound quality and clarity.
- 8-Ohm Power Rating: 50 watts x 4 channels @ 20Hz-20kHz with 0.2% THD
- 4-Ohm Power Rating: 70 watts x 4 channels @ 20Hz-20kHz with 0.2% THD
Unbalanced Analog Audio Inputs: The Arcam PA410 is equipped with 4 unbalanced RCA analog audio inputs and 4 unbalanced RCA analog audio outputs. The unbalanced analog stereo RCA audio outputs provide a copy of the audio signal from the power amplifier's unbalanced analog stereo RCA audio inputs. These are passive outputs with no additional filtering or amplification required.
Binding Post Speaker Terminals: The Arcam PA410 is equipped with heavy-duty binding post speaker terminals that will accept bare wire (up to 10AWG), pin-connectors, spade-lugs, or banana plugs (single only). You can connect up to four 4 to 16-ohm loudspeakers.
Mute: The speaker outputs of the PA410 can be silenced by pressing the MUTE button on either the front-panel of the power amplifier or by sending the relevent command via either RS-232.
RS-232C Port: The RS-232C portjack allows for remote control from a 3rd party home automation system or computer. Various 3rd party systems are available providing sophisticated control of the Arcam PA410 power amplifier.
Note: By default, the RS-232C port is disabled in standby to minimize power consumption. Enabling RS-232 control will increase standby power consumption.
Trigger In/Out: The Arcam PA410 is outfitted with a trigger input (3.5mm) and trigger output (3.5mm). The trigger input allows the PA410 to be turned on/off by an external source with a trigger output. The trigger output allows the PA410 to power on/off a connected source with a trigger input.
USB Port For Firmwware Updates: The Arcam PA410 is equipped with a rear-panel USB (type-A) port for installing firmware and software updates. Go to the PA410 webpage on the Arcam website to download the latest firmware and software updates onto a USB thumbdrive.
Note: This USB port only supports firmware & software downloads via a USB thumbdrive. It does not support connection of computers, USB hubs, card-readers, Apple iOS devices, or Android devices.
Detachable AC Power Cord: The Arcam PA410 comes with a detachable 5' AC power cord that plugs into the back of the power amplifier and into the AC wall outlet or surge protector (sold separately - see Accessories Tab).
Auto Standby: The Arcam PA410 will enter standby mode if there is no user interaction and no audio input signal detected for an extended period of time (default is 20 minutes).
Loading accessories...
Customer Q&A
Loading articles...
Clean signal throughout. Ample power for my system. Thanks to Crutchfield for recommending this to complete my 7.2.4 system. I highly recommend for anyone with large system in mind.
Anthony from Miami, FL
