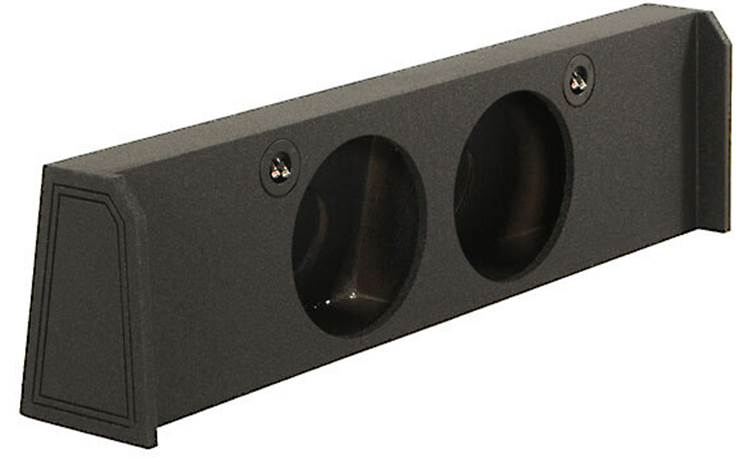

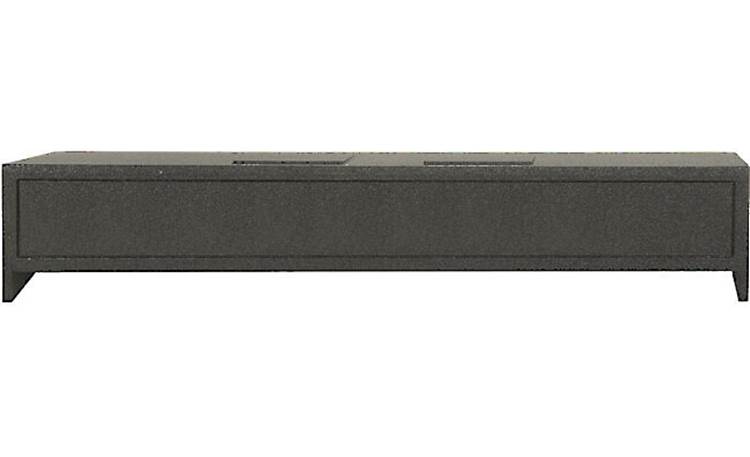

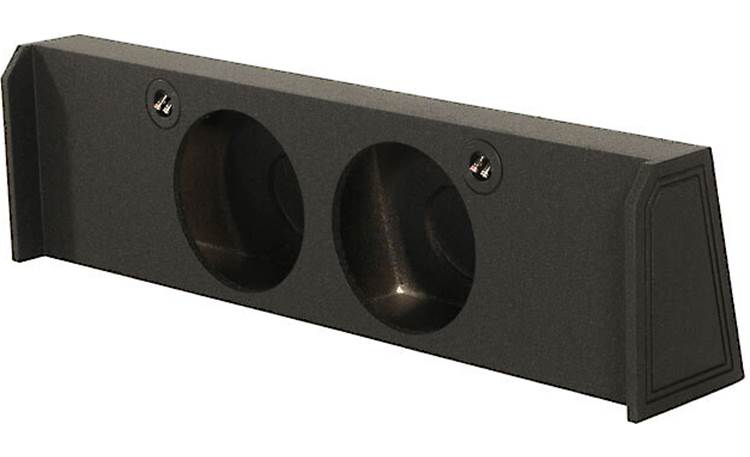

About the SPL Boxes SB362-212-BL

Product highlights:
- vehicle-specific downward-firing sealed subwoofer enclosure
- holds two 12" subwoofers (not included)
- installs under rear seat of 2009-up Ford Super Crew trucks
- MDF construction with bedliner finish
- requires drilling screw holes in the enclosure and connecting speaker wire to subs
- mounting hardware and speaker wire not included
- internal volume: 0.8 cubic feet per chamber
- subwoofer mounting depth: 4.5"
- dimensions: 50.5"W x 9.5"H x 14"D
- warranty: 1 year
- MFR # SB362-212BL
- Item # 419362212B
What's in the box:
- One vehicle specific sealed enclosure for two 12" subwoofers with spring-post terminals
More details on the SPL Boxes SB362-212-BL

Features & specs
General | ||
---|---|---|
Box Type | Sealed | |
Number of Boxes | 1 | |
Number of Speakers Per Box | 2 | |
Speaker Size | 12 | |
Cutout Diameter or Length (inches) | 11 1/8 | |
Maximum Speaker Depth (inches) | 4-1/2 | |
Box Volume (cubic feet) | 1.6 | |
Tuning Frequency | --- | |
Height (inches) | 9-1/2 | |
Width (inches) | 50-1/2 | |
Depth (inches) | 14 | |
Second Depth (inches) | 14 | |
Wood Thickness (inches) | 5/8 | |
Speaker Wire Connectors | Spring posts | |
Box Color | Black | |
Box Finish | Bedliner | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year |
Product Research
Features
Vehicle Compatibility: This custom-fit sealed enclosure is designed specifically to fit select 2009-2022 Ford full size SuperCrew pickup trucks. Please enter your vehicle information to confirm fit.
Mounting Location: The enclosure mounts under the rear bench seat without taking up interior space.
Enclosure: The enclosure is made from durable MDF (Medium Density Fiberboard) that resists flexing and damps resonance. It's covered with a bedliner type material.
Terminals: The wire terminals are spring-posts (two pair) that accept pin connectors or bare wire up to 10-gauge. Inside the enclosure there are 0.205" male quick-slides (will accept 0.205" female quick slides) for both the positive and negative terminals. The wire can also be attached using the nuts holding the quick-slides in place.
Dual 12" Subwoofers: The enclosure holds two 12" subwoofers in isolated 0.8 ft³ chambers. Once mounted the woofers are down firing.
Mounting: No mounting hardware or speaker wire is included with the enclosure.
