About the Cicada Audio CHDRGGTK

Product highlights:
- replacement "Kidney" grilles with 3/4" aluminum dome tweeters for 2014-2023 Harley-Davidson Road Glide models
- includes high-pass crossover with custom-tooled vented housing
- heavy-duty aluminum basket
- power handling: 50 watts RMS (100 peak) using included crossover
- frequency response: 2,000-20,000 Hz
- impedance: 4 ohms
- sensitivity: 101 dB
- warranty: 2 years
- MFR # CHDRGGTK
- Item # 426CHDRGGT
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Cicada Audio CHDRGGTK owner's manual

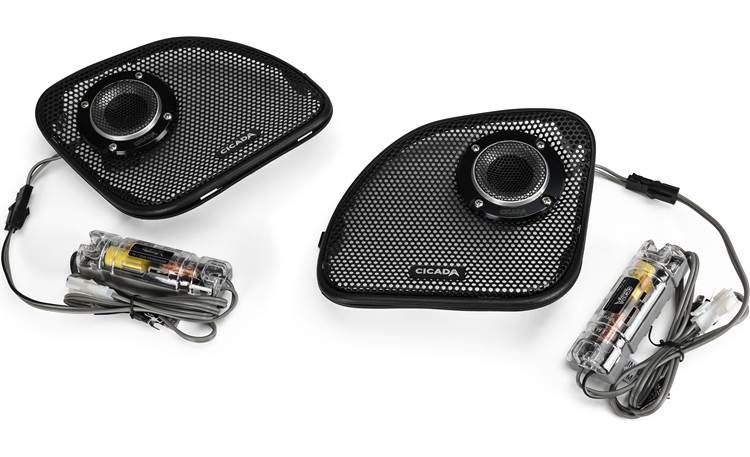

If you need assistance accessing this owner's manual, please give us a call.- Two Fairing Grilles
- Two RR075T Tweeters (mounted to the grilles)
- Two 22" Wiring harnesses with in-line crossovers

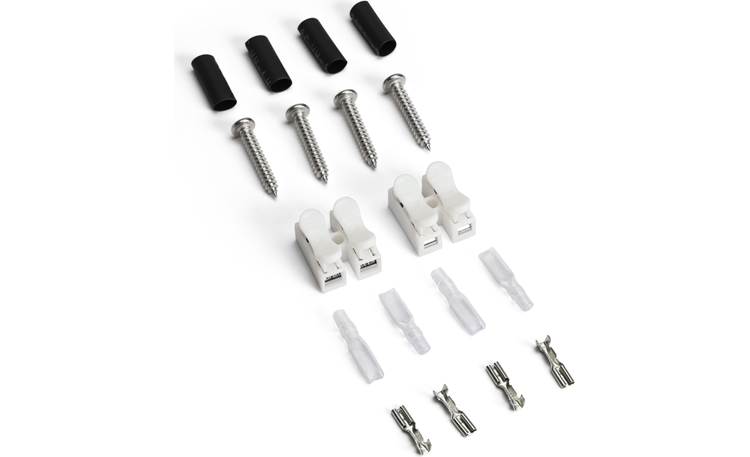

- Four 1" Stainless steel screws
- Four 0.110" Wide crimp-on quick slide connectors
- Four 0.110" Wide insulating covers
- Four 3/4" Pieces of heat shrink tubing
- 2 Speaker wire junction connectors
- Four 7" Zip ties
- Two 5/8"x1-3/4" Pieces of double sided adhesive tape
- Feature/Spec sheet
More details on the Cicada Audio CHDRGGTK

Product Research
Features

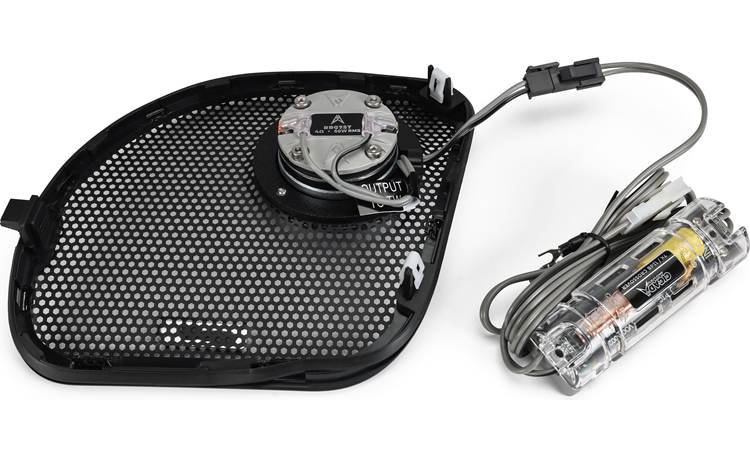

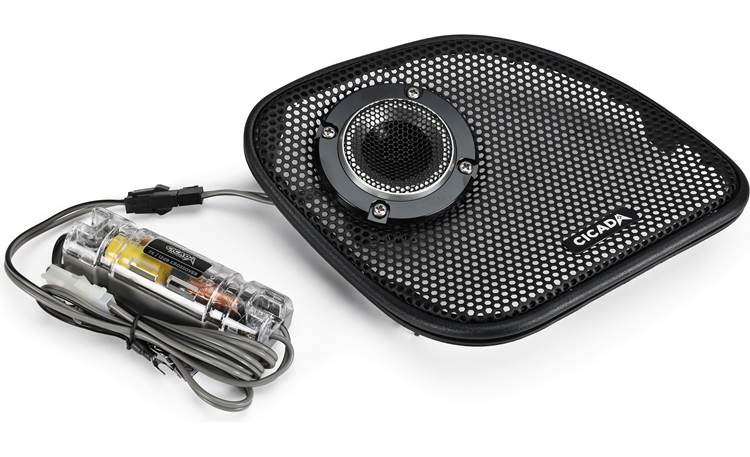

Overview: These tweeters/grilles are designed for select 2014-2023 Harley Davidson Road Glide models. The tweeters are mounted to the grilles, which are mounted over the fairing midrange/woofers, replacing the existing grilles. They're designed to work with Cicada Audio's mid-bass drivers, but can also be used with other brand speakers.
Crossovers: High pass crossovers are integrated into the included speaker wires; 12 dB/octave slope, 7 kHz crossover point. The terminals on the output wires mate with the terminals on the wire attached to the tweeters. The input wires are terminated with 0.187" male quick slides. Each wire also has a connection for the midrange/woofer, shorted with the input so the crossover has no impact.
Crossover Dimensions:
- Length: 4"
- Width: 1¼"
- Height: 1"
