REL HT Air MKII Wireless transmitter/receiver

Name: REL HT Air MKII
Brand: REL
SKU: 436HTAIRM2
Price: 149.0 USD
Availability: InStock

Item # 436HTAIRM2

This kit lets you send clean, uncompromised wireless audio to your powered sub.

Front

1/8

Solid acrylic case

2/8

Only at Crutchfield

3/8

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Back

Receiver

Transmitter

Add a secure wireless connection to your HT series subwoofer (sold separately)

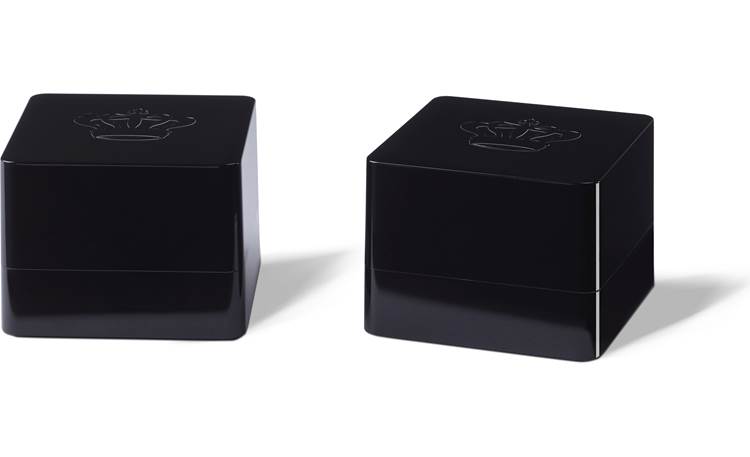

Compact, unobtrusive design

REL HT Air MKII Add a secure wireless connection to your HT series subwoofer (sold separately)

REL HT Air MKII Compact, unobtrusive design

This kit lets you send clean, uncompromised wireless audio to your powered sub.

Item # 436HTAIRM2

Ships free today

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$149.00

Add to cart

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Colin M.

The REL HT-Air MKII delivers a compression-free wireless signal to your powered subwoofer.

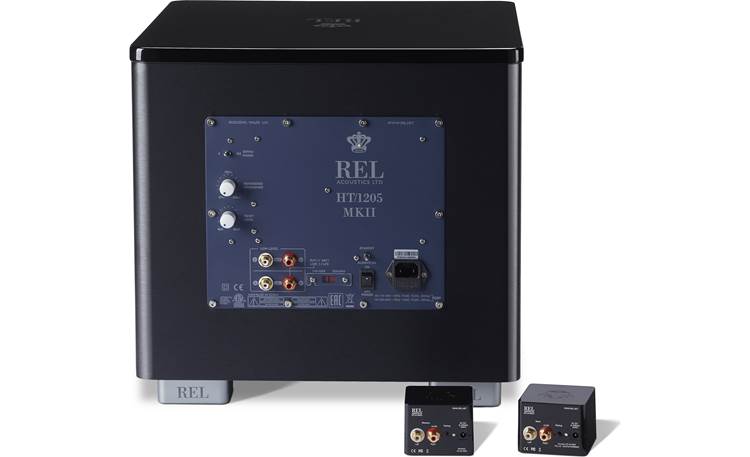

Go wireless with your REL HT subwoofer

The HT-Air MKII is designed to hook up a REL HT series powered subwoofer to your receiver or amp without sacrificing audio quality in the process. It's also way easier to find the right spot for your sub if you go wireless, and it keeps your space tidy by limiting the number of cables stretched across the floor.

Simple setup

Use the mono RCA cables in the box to plug in the kit's transmitter and receiver to your amp and sub, respectively. Each device will also need to be hooked up to AC power (adapters included). After a simple pairing process, you're good to go.

The kit has a line-of-sight range of 40 feet, so you should have more than enough flexibility to find that "sweet spot" for your sub.

Flexible applications

While it's designed for REL's HT series, the HT-Air can make virtually any powered subwoofer wireless. As long as your sub has an RCA input, you can hook it up. This kit can also pass a full-range stereo signal, which means you can use it for other audio equipment, like a powered speaker.

Product highlights:

includes wireless transmitter and receiver for use with REL HT series powered subwoofers
- compatible with other brands of subwoofers or other audio gear with mono or stereo RCA connections
high-fidelity 5.8GHz wireless transmission uses no digital compression
wireless range: 40 feet (line of sight)
latency: less than 17 milliseconds
requires no software to download or install
simple pairing button to connect transmitter and receiver
sturdy cast acrylic cases with 5 coats of high-gloss lacquer

Transmitter:

low-level stereo RCA input
- right RCA serves as an LFE input

Receiver:

low-level stereo RCA output
- right RCA serves as an LFE output

General info:

requires AC power (2 power adapters included)
includes two mono RCA cables (6.5 feet each)
2-3/4"W x 2-1/16"H x 3-1/4"D
warranty: 3 years
MFR # 857316005683
Item # 436HTAIRM2

What's in the box:

REL HT Air MKII owner's manual

Wireless receiver
Wireless transmitter
2 AC power adapters (attached 59" DC cords)
Two 39" Mono-RCA cables
Operating Instructions

Researched by Crutchfield's Research Team

Product Research

Features

HT-Air MKII Wireless: The REL HT-Air MKII wireless kit (sold separately) allows you to wirelessly send the subwoofer/LFE audio signal from your AV receiver or preamplifier/processor to select REL powered subwoofers or other brands of powered subs without having to run wires between the AV receiver/preamplifier and subwoofer. The HT-Air MKII wireless kit consists of a 5.8GHz wireless transmitter and receiver that plug into the subwoofer/LFE output of your AV receiver or preamp/processor and the stereo RCA/LFE input your compatible powered sub via RCA cables.

Compatible REL Powered Subs: Compatible REL powered subwoofers include the HT/1003, HT/1205, HT/1510, Classic 98, Classic 99, and Tzero MKII.
Other Compatible Powered Subs: The HT-Air MKII can also be used with other brands and models of powered subwoofers that feature a stereo RCA input, mono-RCA input, or LFE input.

Note: The REL HT-Air MKII is a one-to-one transmitter and receiver system. It cannot be combined with other transmitters and receivers.

5.8GHz Wireless: The HT-Air MKII employs REL's 3rd generation 5.8GHz chip, their most advanced single-chip solution. It's designed to allow continuous real-time streaming of bass sound from music and movies. The HT-Air MKII is easily capable of sending dynamic, rich-sounding sub-bass signals at up to approximately 40'. It delivers a lightning-fast response of around 17ms which results in better sound, greater dynamics, and higher performance.

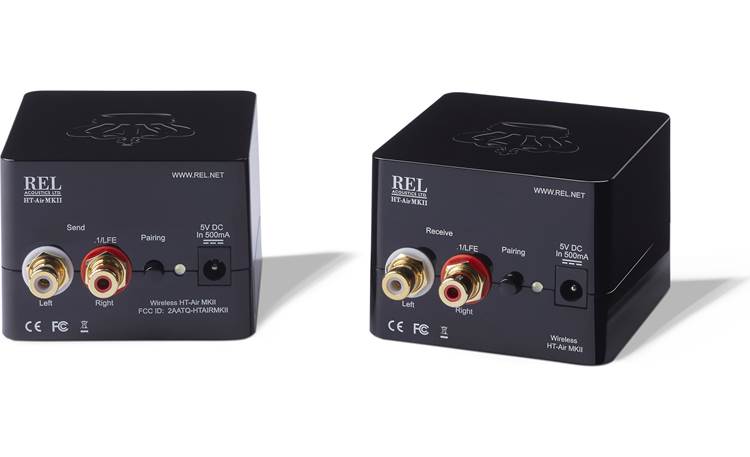

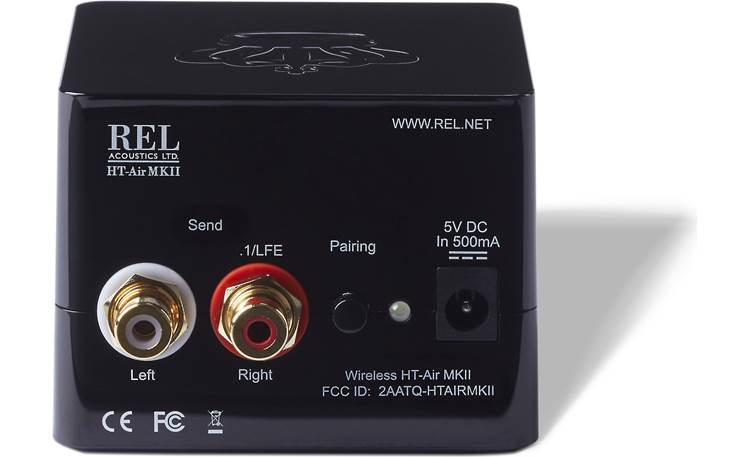

Wireless Transmitter (TX): The wireless transmitter (tx) features a set of stereo RCA inputs that will plug into the LFE out, subwoofer out, or stereo preout of your AV receiver, integrated amplifier, or preamplifier/processor. If your receiver, amplifier, or preamplifier has a LFE or mono-RCA sub output, then you only need to use the Right RCA input labeled ".1/LFE" on the wireless transmitter (tx). The wireless transmitter (tx) will wirelessly transmit subwoofer/LFE audio to the wireless receiver (rx).
Wireless Receiver (RX): The wireless receiver (rx) features a set of stereo RCA outputs and will plug into the LFE in or stereo input of your compatible powered subwoofer.. If your powered subwoofer has a LFE or mono-RCA input, then you only need to use the Right RCA out labeled ".1/LFE" on the wireless receiver (rx). The wireless receiver (rx) will wirelessly receive subwoofer/LFE audio from the wireless transmitter (tx).

Note: It is not possible to use the HT-Air MkII's wireless connection and a direct connection simultaneously. Using both wired and wireless connections for your powered sub simultaneously could result in damage and voids all warranties.

Pairing: The wireless transmitter (tx) and wireless receiver (rx) each have a Pairing button on the rear-panel. You'll need to press each of these Pairing buttons to connect the transmitter (tx) and receiver (rx) together, so they can communicate with each other wirelessly.

Power Requirements: The wireless transmitter and receiver of the REL HT-Air MKII will both require AC power and each come with an AC power adapter that will need to be plugged into an AC wall outlet.
